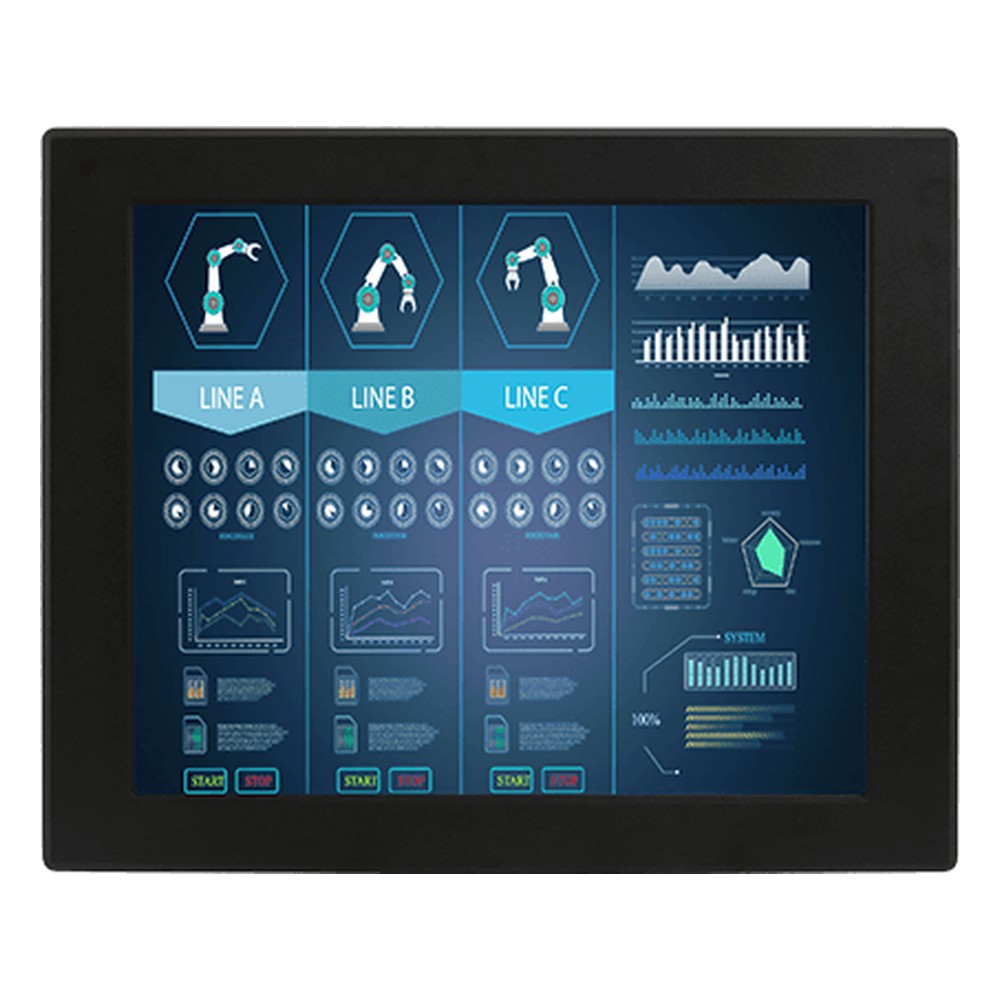

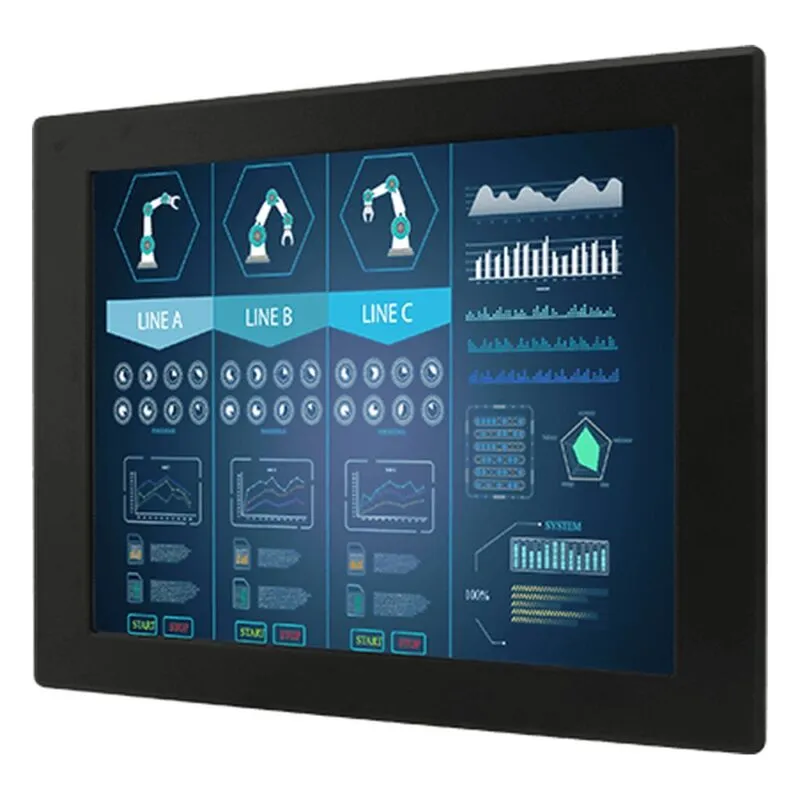

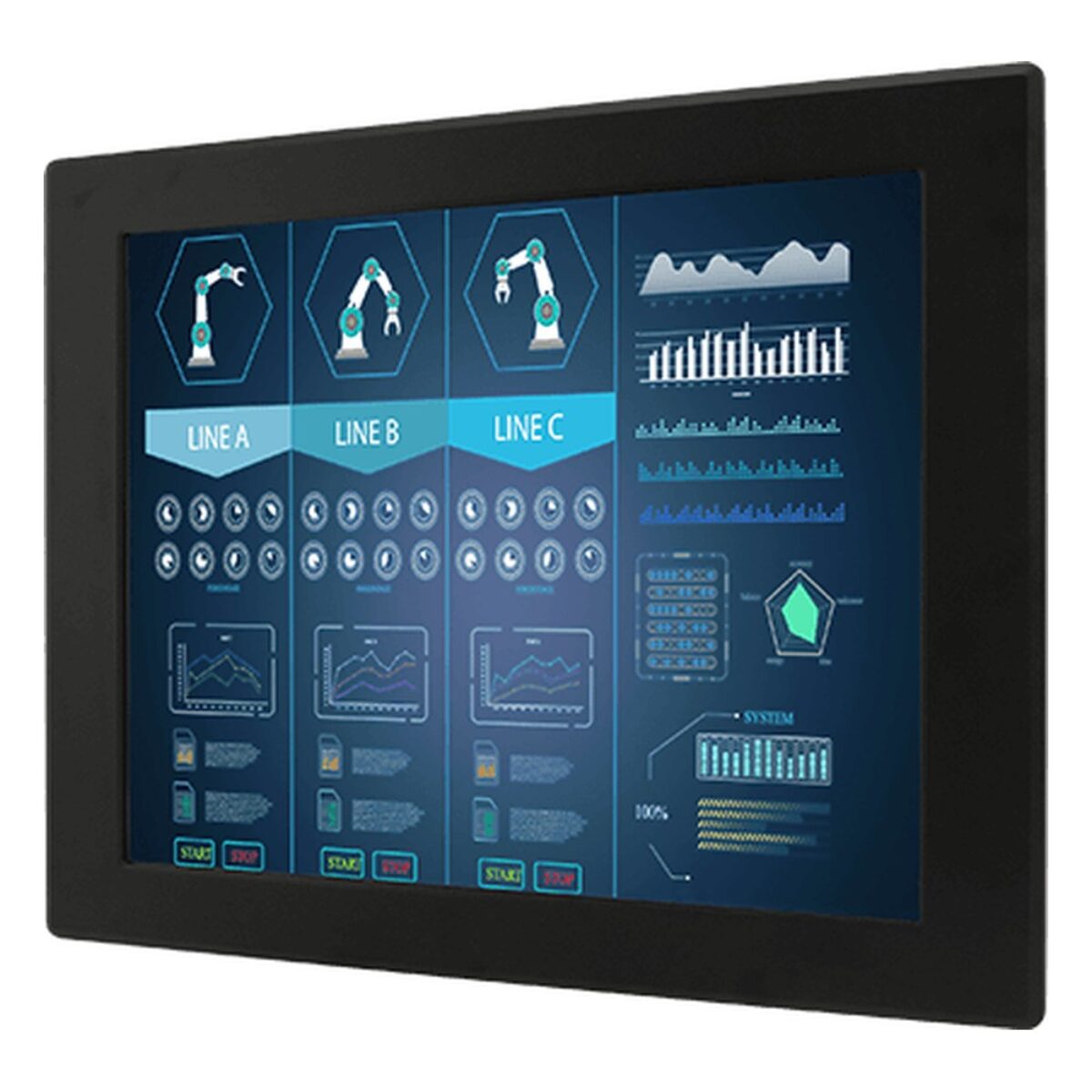

Winmate R19L300-PMA1HB 19″ Panel Mount Monitor with 1000 Nit SXGA Display and Resistive Touch

An operator screen near windows, skylights or bright overhead lighting can wash out on a standard panel, even indoors. The R19L300-PMA1HB is Winmate’s 19 inch high brightness panel mount monitor for those stations, with a 19″ SXGA panel at 1000 nits, which is sunlight readable, and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

The 19″ SXGA panel runs at 1000 nits with 1000:1 contrast, 16.7 million colours and 170 degree horizontal and 160 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R19L300-PMA1HB pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R19L300-PMM1 is the 250 nit version with optional resistive touch, and the R19L300-PMA3OD is the sunlight readable model rated from -10 °C to 60 °C.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminium bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the R19L300-PMA1HB configured and tested before dispatch.
