Winmate W14IAN3S-EHA1 14″ PCAP Touch HMI with Quad-Core Intel N150 and PCAP Touch

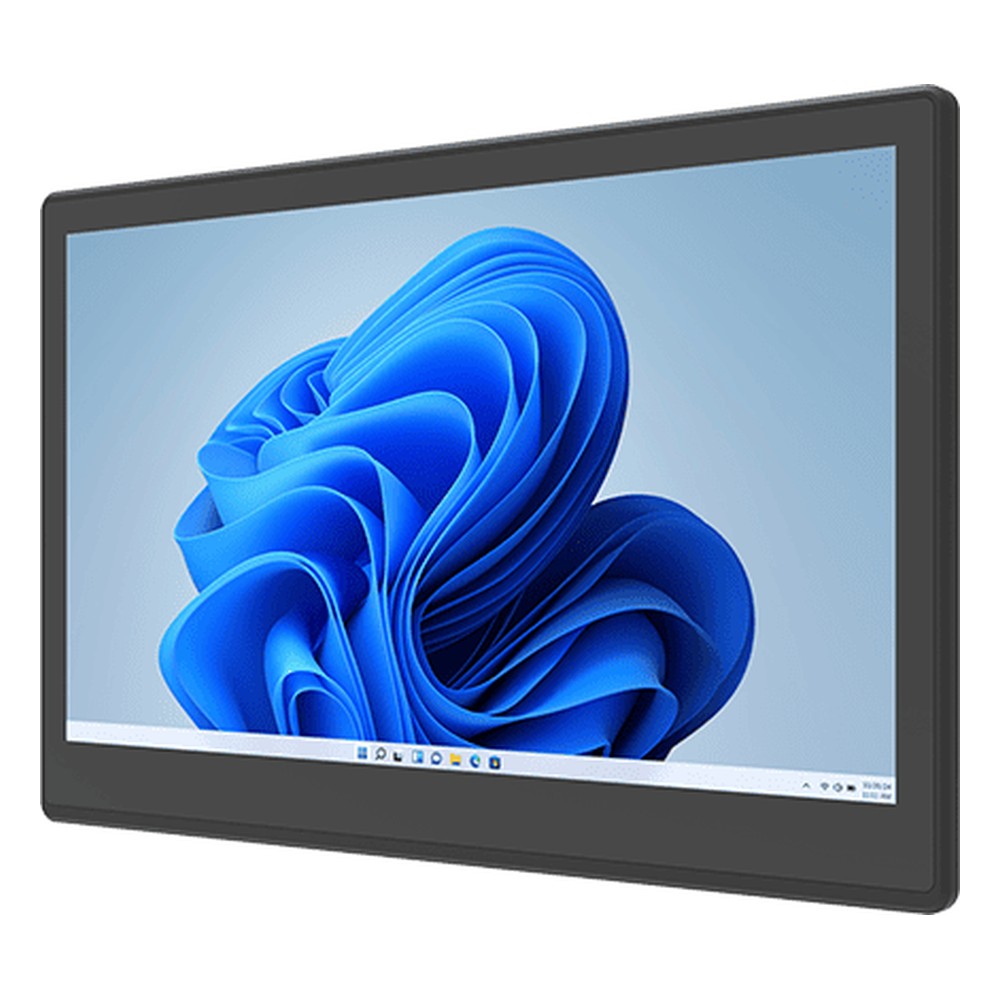

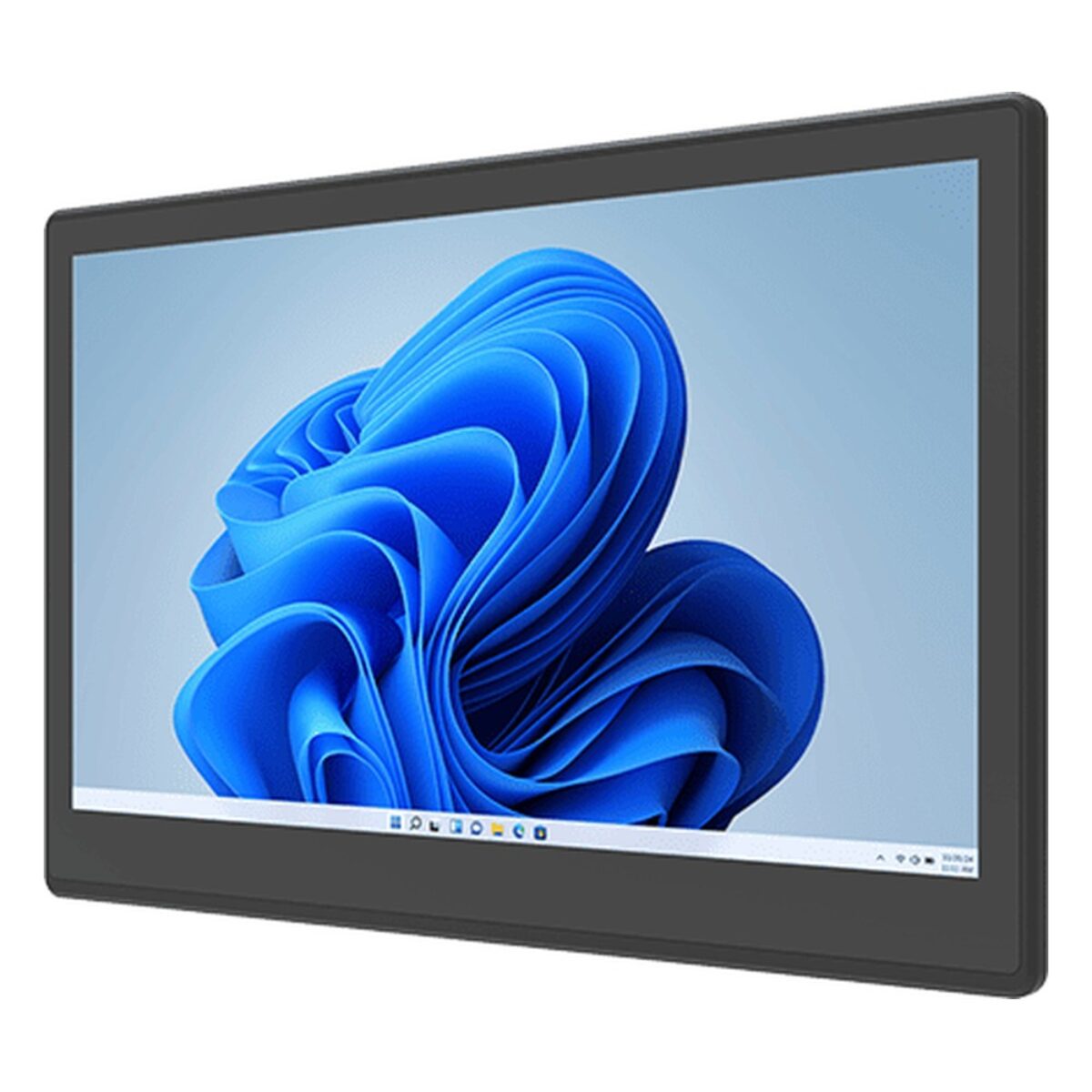

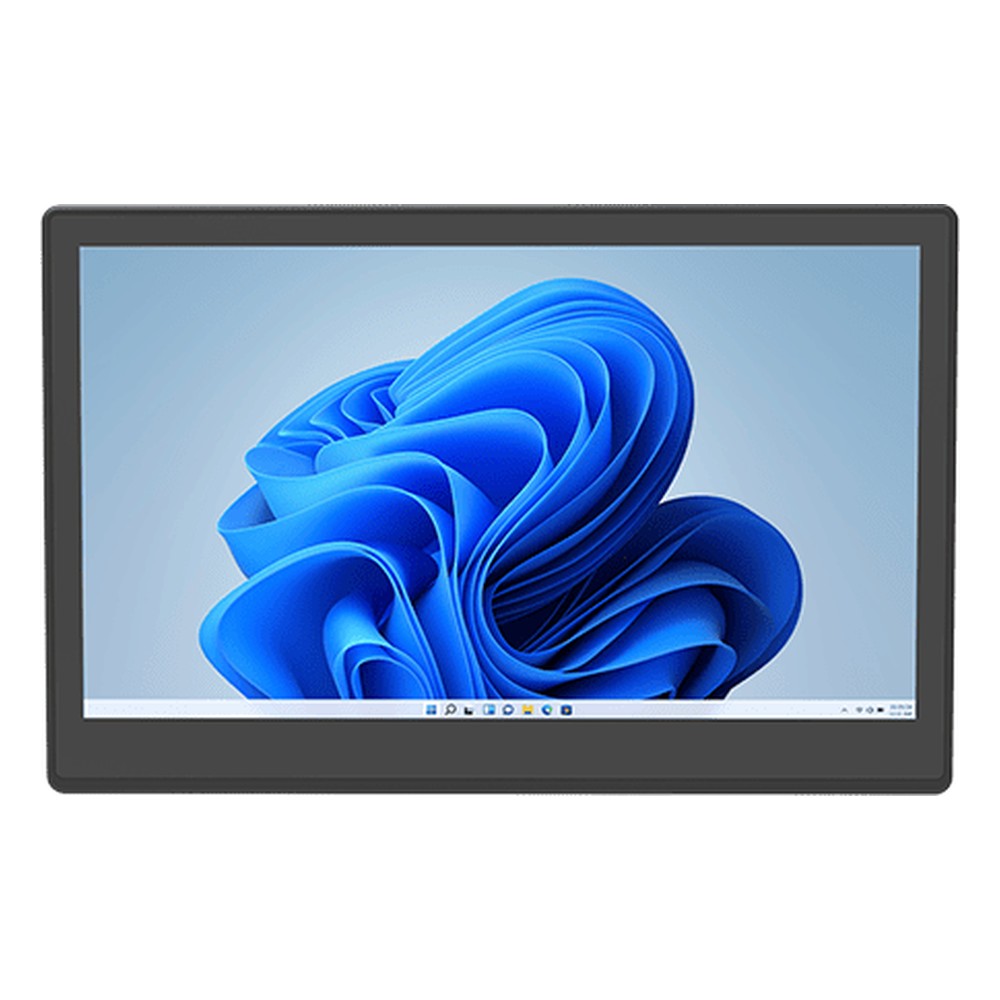

A 14 inch full HD screen fits more of a process view on one page than the usual 4:3 HMI, and a brighter panel helps on a busy, well-lit floor. The W14IAN3S-EHA1 is Winmate’s 14 inch E Series HMI panel PC for that job: a 14″ 1920 x 1080 projected capacitive multi-touch screen with a front IP65 rating, a quad-core Intel Processor N150 and two 2.5GbE ports. Winmate aims it at machine control, factory automation and operator HMI.

The Intel Processor N150 has four cores running at up to 3.6 GHz, with Intel Graphics on the chip and TPM 2.0 on board. That suits HMI client software and browser dashboards, and the low power draw lets it run fanless. Memory is 8 GB of DDR5 as standard with 16 GB as an option, and a 128 GB SSD holds the operating system and application. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be supplied.

Two 2.5GbE RJ45 ports sit on Intel controllers. USB covers two USB 3.2 Gen 2 Type-A ports and one USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, and an optional HDMI 2.0b output runs at up to 4096 x 2160 at 60 Hz. One RS-232/422/485 port, set to RS-232 by default, links PLCs, scanners and serial instruments, and an M.2 2230 E-key slot takes an optional Wi-Fi and Bluetooth module. Within the Winmate range, the W14MG3S-EHA1 is the same 14 inch E Series design with an Arm-based MediaTek Genio 510 and Android, and the W15IAN3S-EHA4 is the 15.6 inch full HD model with a 400 nit screen.

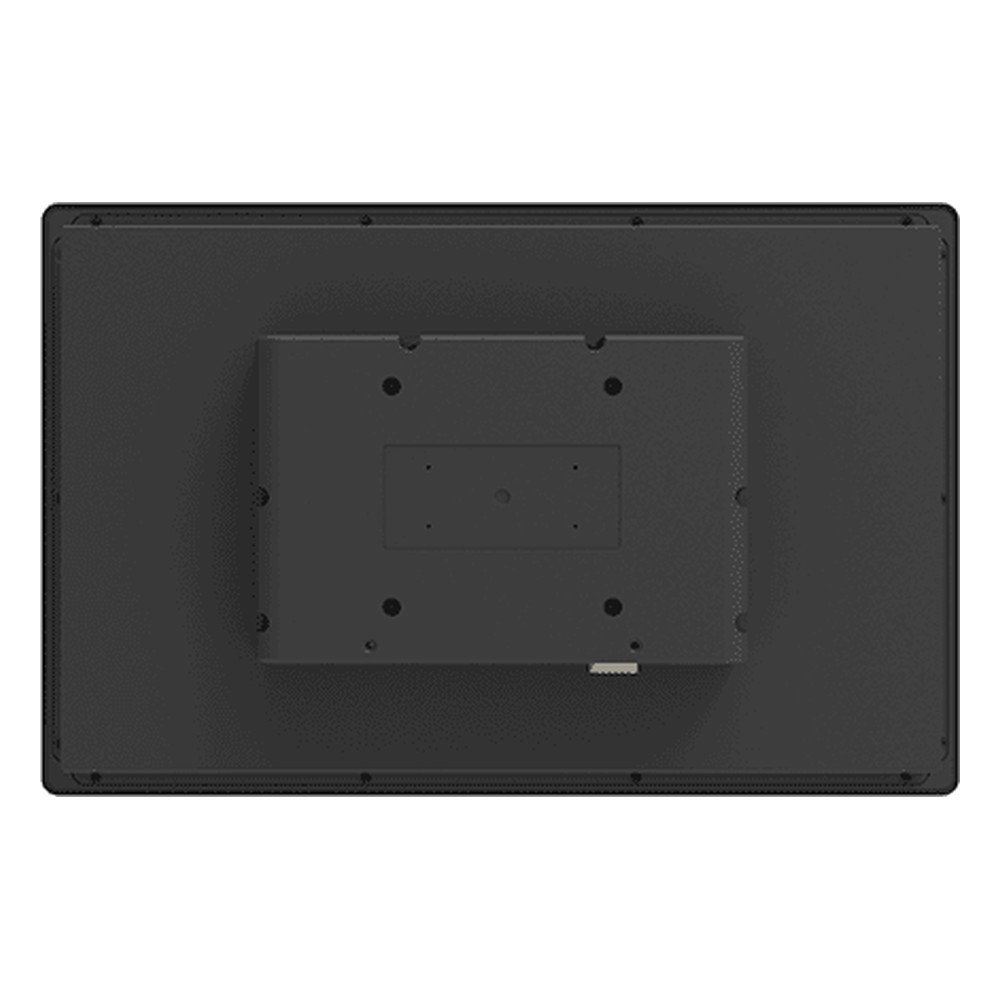

Power is 12 V DC on a DC jack, and a 12 V 50 W AC adapter is supplied. Mounting clips are supplied for panel installation, and VESA mounting is an option. The metal and ABS+PC housing runs from 0 °C to 50 °C and carries CE and FCC marks, which suits indoor production areas, machine fronts and control cabinet doors. We supply the W14IAN3S-EHA1 configured, with the OS installed, and tested before dispatch.
