Winmate W22IAN3S-GCA3 21.5″ G-WIN Front IP65 Panel PC with Intel N150 and MIL-STD-810G

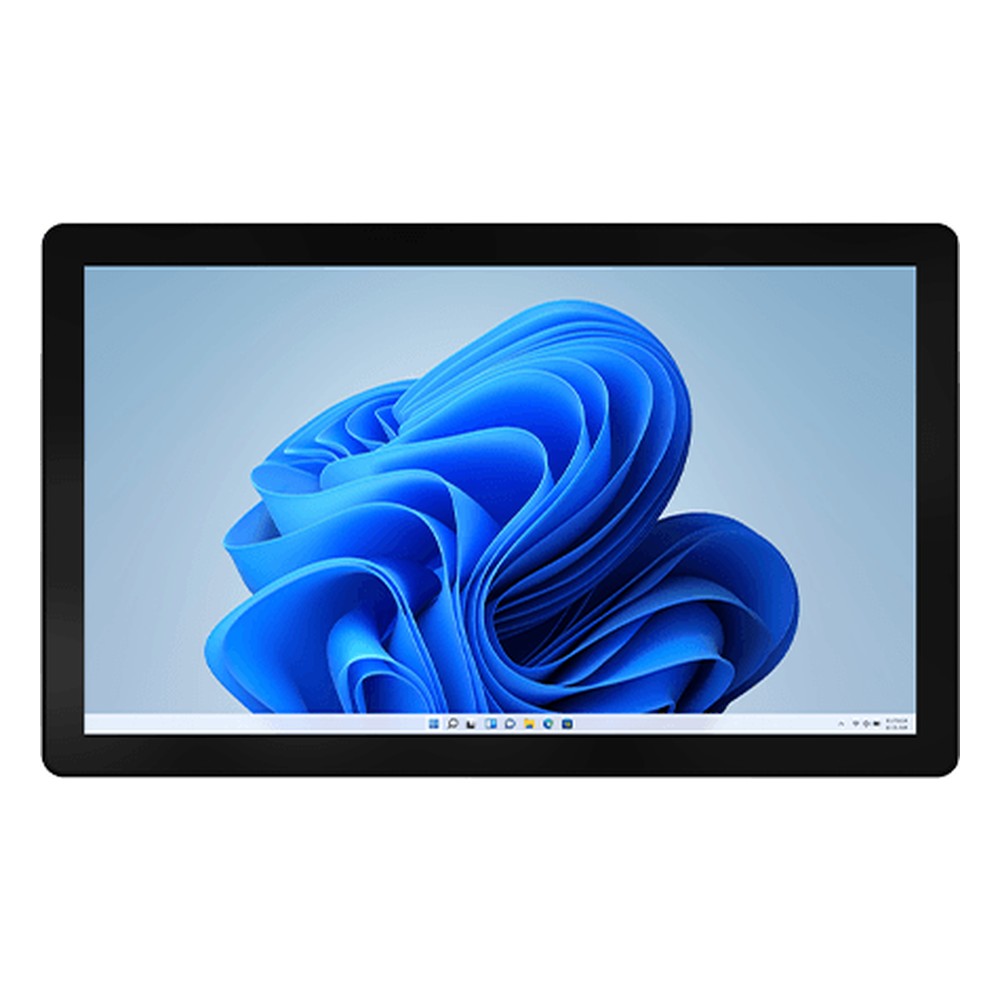

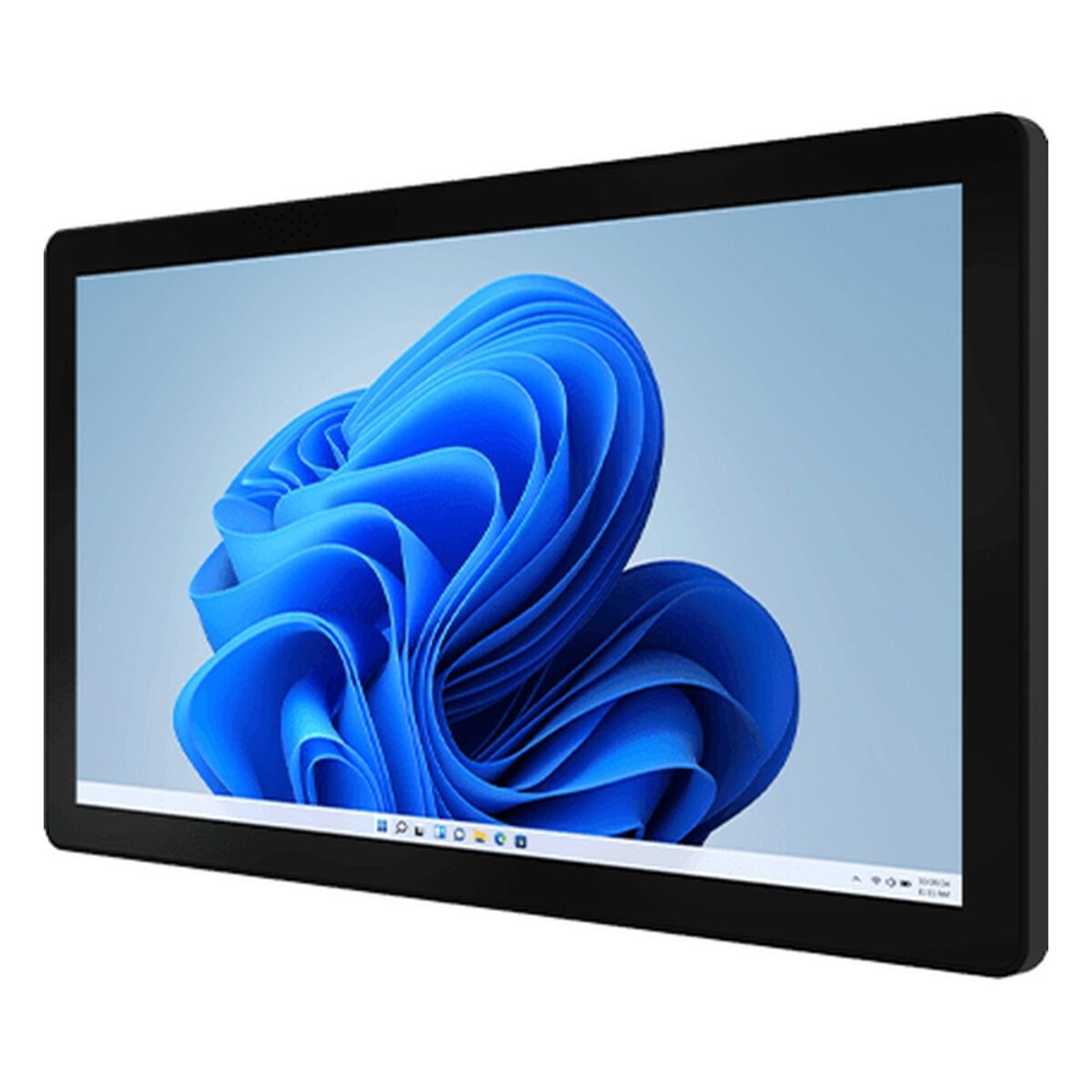

Large touch screens on a production floor are often used for work instructions, line status and andon views rather than heavy processing, so a quiet, fanless computer is usually enough. The W22IAN3S-GCA3 is Winmate’s 21.5″ G-WIN GC panel PC for those jobs, with an Intel Processor N150 behind an edge-to-edge 1920 x 1080 PCAP display with a front IP65 rating, in a metal housing with a plastic bezel.

The N150 is a low-power quad-core processor running at up to 3.6 GHz, which suits HMI runtimes, browser dashboards and video playback without a fan. Memory is 8 GB as standard with a 16 GB option, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed. The 21.5 inch panel shows 1920 x 1080 at 250 nits with 3000:1 contrast and 178 degree viewing angles under projected capacitive multi-touch.

Connections are two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port with DP Alt mode up to 4096 x 2160 at 60 Hz, an optional HDMI 2.0b output and one RS-232/422/485 port, with Wi-Fi and Bluetooth as options. The W22IAD7T-GCA3 is the same 21.5 inch GC design with a fan-cooled LGA1700 board for Core i3 to i9 processors, and the W22MG3S-GCA3 uses a MediaTek Genio 510 Arm processor for Android or Linux projects.

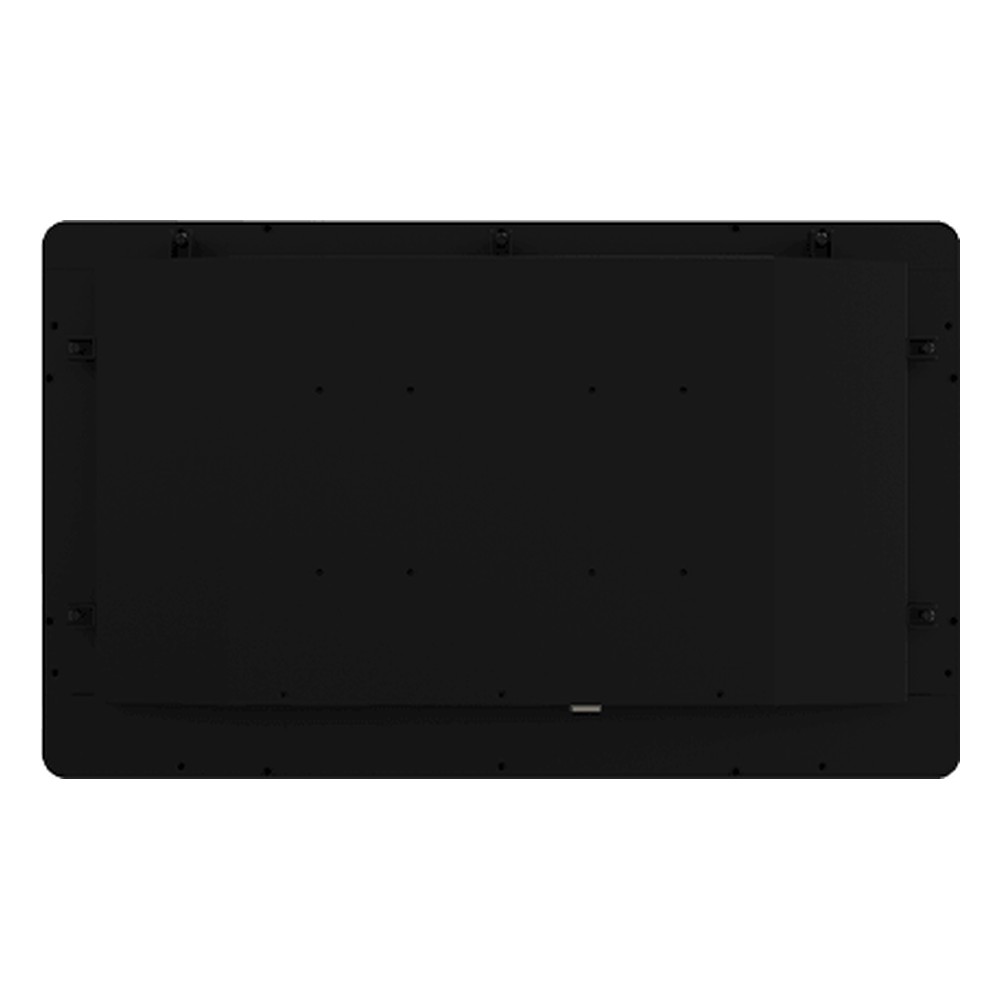

Power is 12 V DC as standard, with a 9 to 36 V DC input as an option, and an AC adapter comes in the box. The W22IAN3S-GCA3 runs from 0 °C to 50 °C, is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, and mounts on VESA as standard or in a panel as an option. It carries CE and FCC marks. We supply it configured, with the operating system installed, and tested before dispatch.
