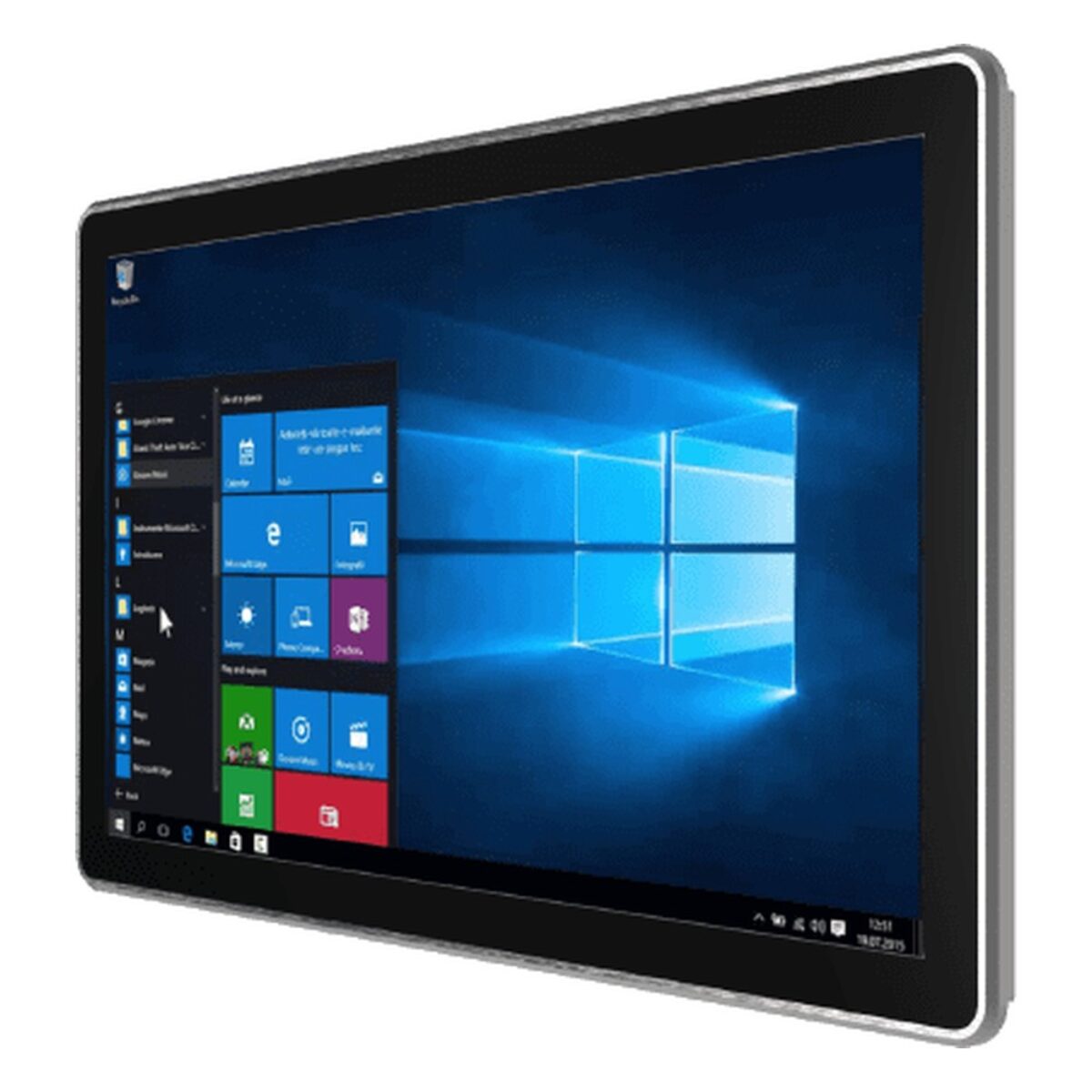

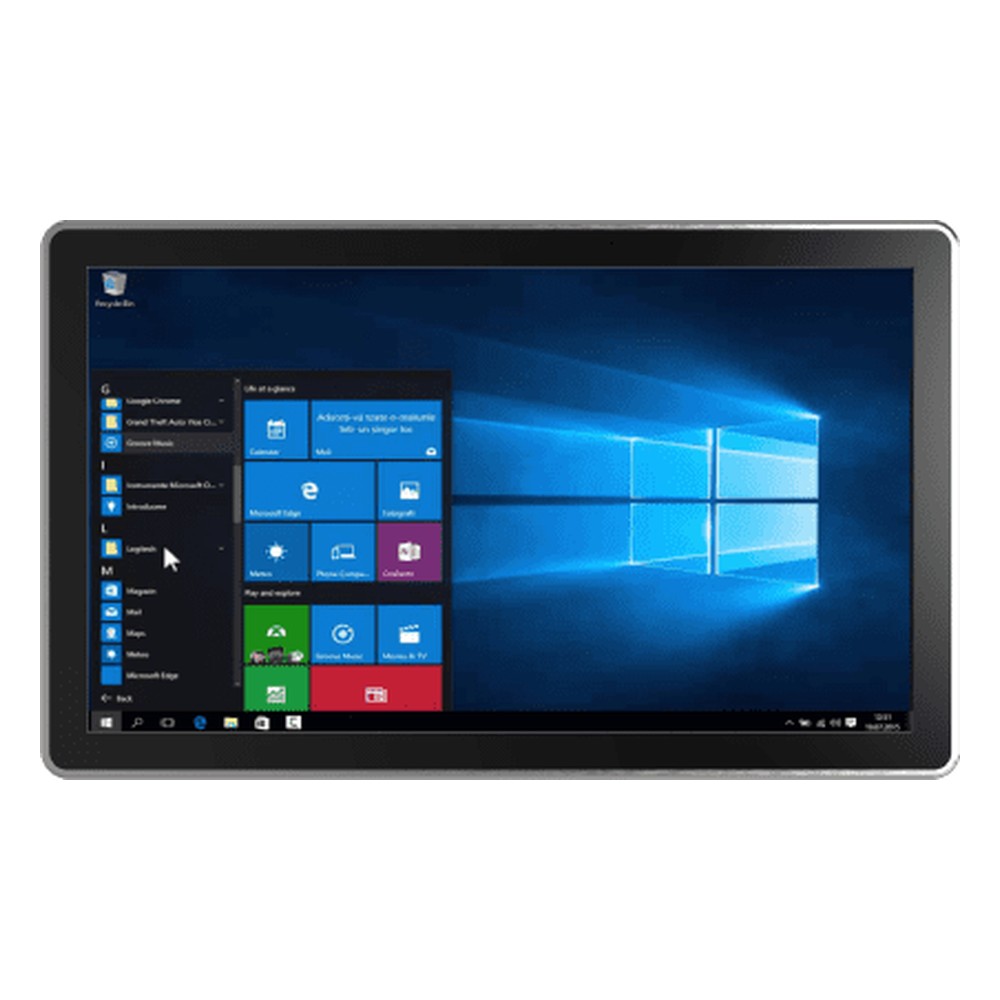

Winmate W22IT7T-PPA3 21.5″ Panel Mount HMI with 11th Gen Intel Core i5 and PCAP Touch

A full HD line-side HMI is often where a fieldbus card, a second display and a label printer all meet. The W22IT7T-PPA3 is Winmate’s 21.5 inch PP series panel mount HMI for that station, a 21.5″ 1920 x 1080 PCAP multi-touch screen at 250 nits and 3000:1 contrast with an 11th Gen Intel Core i5-1135G7 and a PCIe expansion slot.

The Core i5-1135G7 runs at 2.4 GHz with turbo up to 4.2 GHz and Intel Iris Xe graphics. Two non-ECC SO-DIMM sockets take up to 64 GB of memory, and a 128 GB NVMe SSD sits in an M.2 2280 M-key slot with options to 4 TB, plus an optional 2.5″ SATA III drive. The PCIe 4.0 x16 slot, wired with x4 signals, can take an I/O or fieldbus card where the W22IT7T-PPA3 has to talk to more of the machine. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.

Connections include one 2.5GbE and one Gigabit LAN port on Intel controllers, four USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port (RS-232 by default) and one RS-232 port, DisplayPort 1.4 with optional HDMI 2.0 for a second screen, and mic in and line out. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W22IT3S-PPA3 is the slimmer 21.5 inch PP model with two 2.5GbE ports and no PCIe slot, and the W22IT7T-GCA3 puts this processor in a G-WIN housing tested to MIL-STD-810G shock and vibration methods.

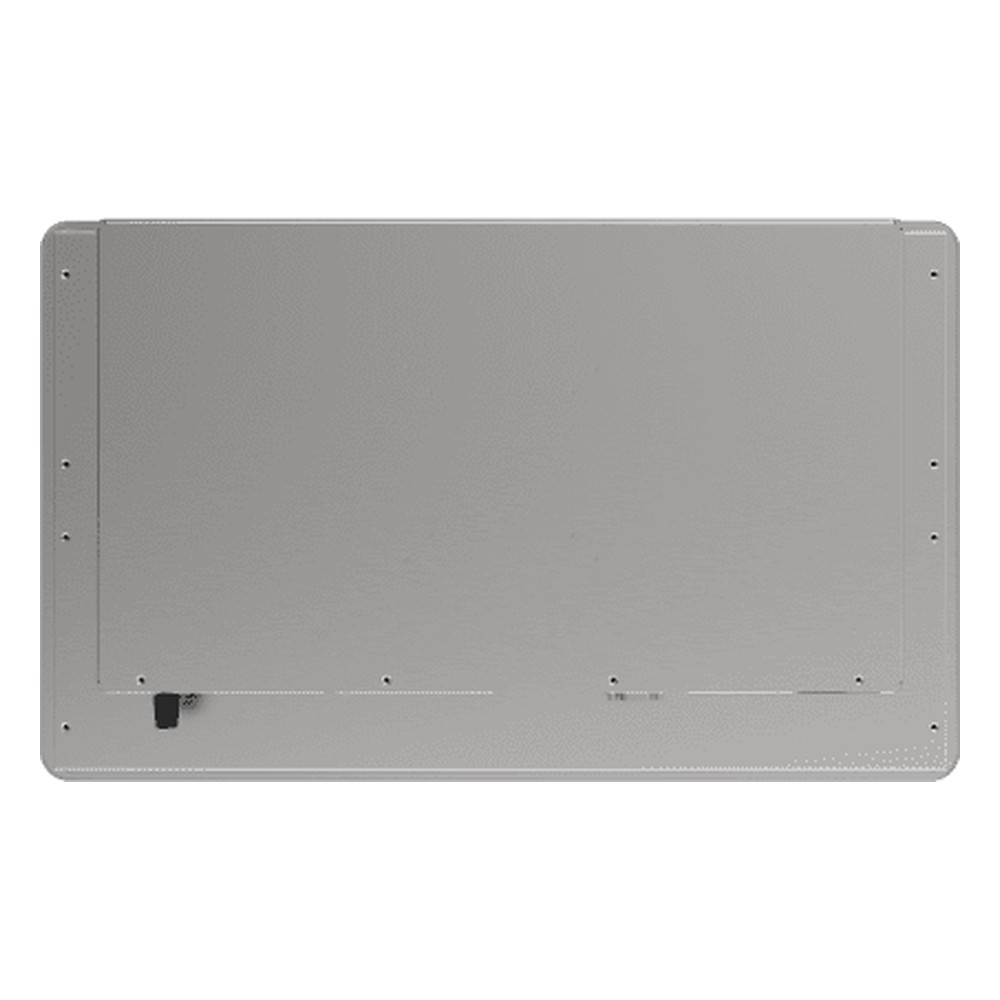

Power is 12 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter rated at 120 W and a power cord supplied. The fanless aluminium housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and is rated IP65 at the front, so the rear belongs inside a cabinet. Panel mounting with the supplied clips is standard and VESA mounting is optional, with VESA screws in the box. It carries CE and FCC marks. We supply the W22IT7T-PPA3 configured, with the OS installed, and tested before dispatch.
