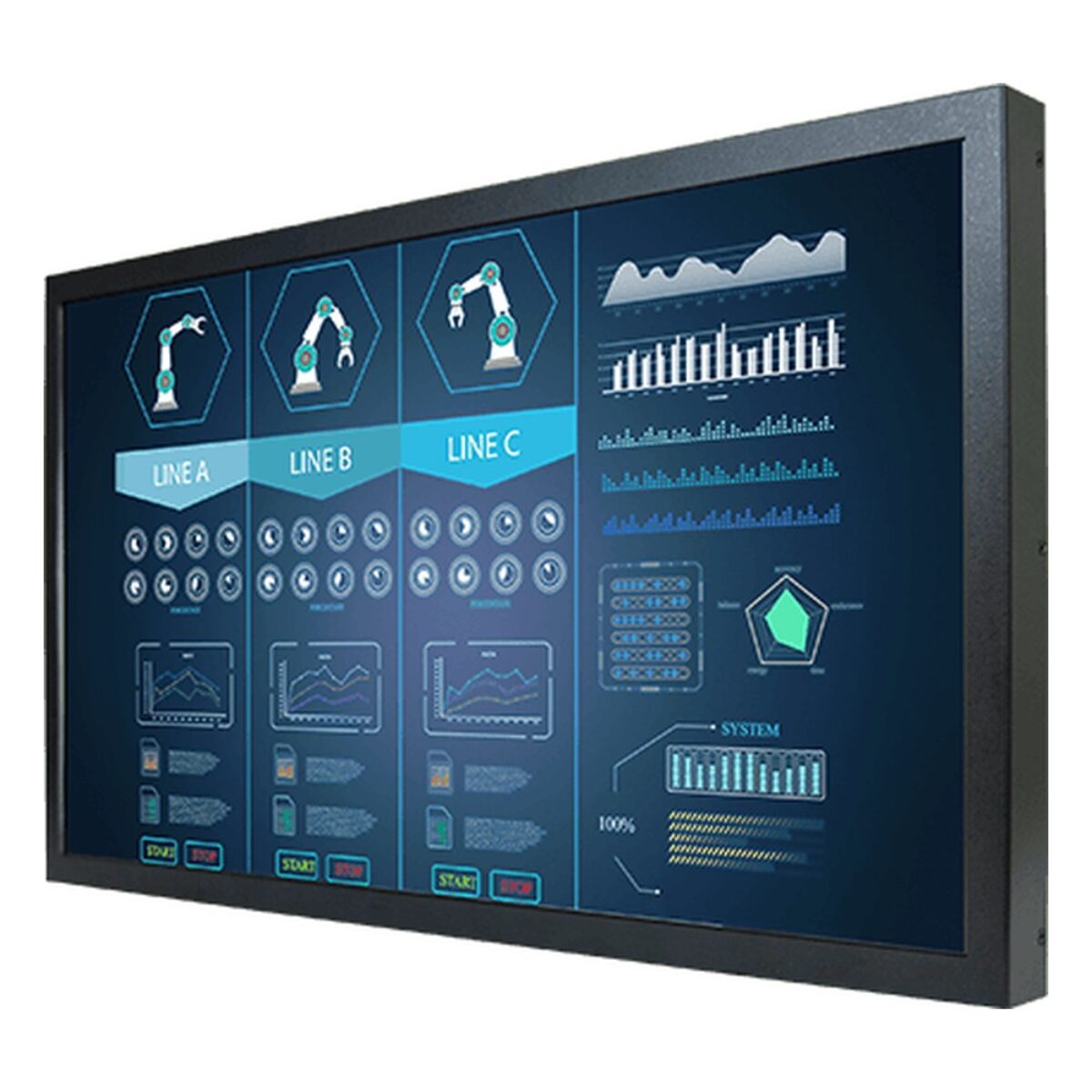

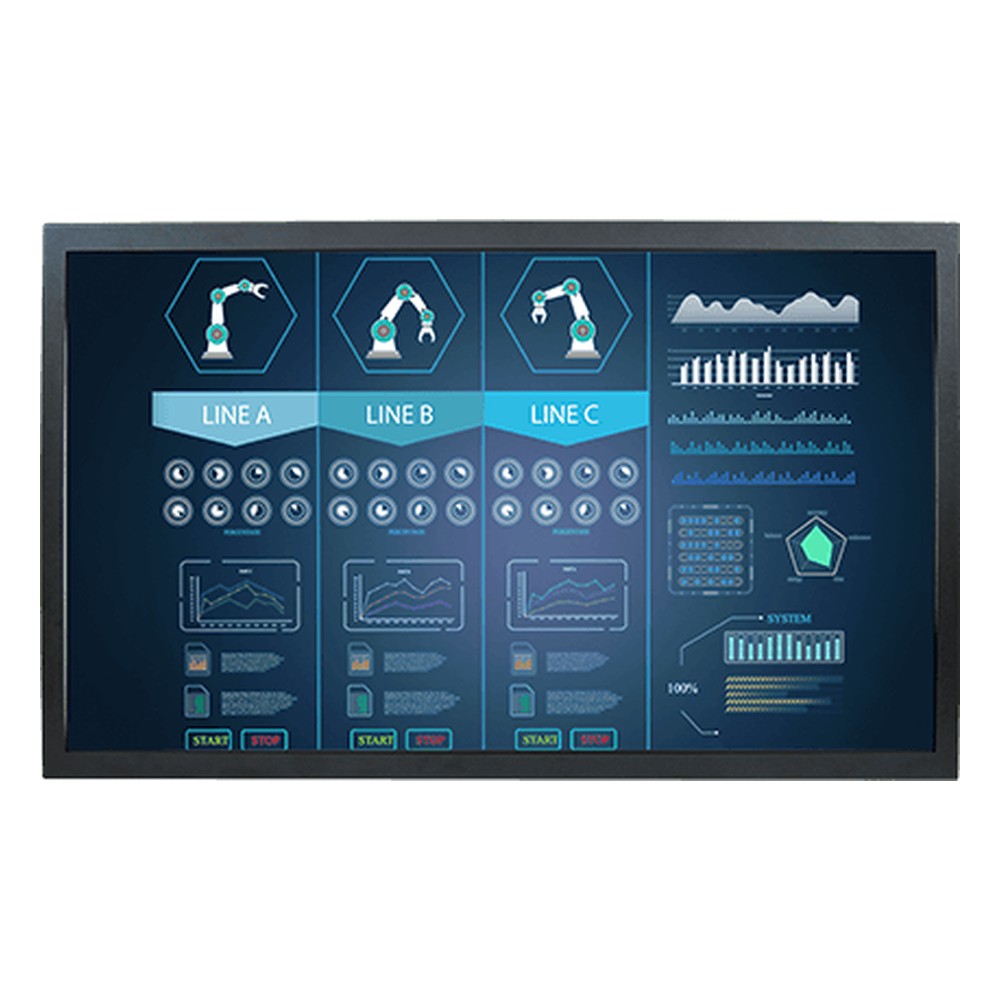

Winmate W22L100-CHA3HB 21.5″ Chassis Monitor with 1000 Nit FHD Display and Resistive Touch

In bright control rooms, kiosks and manufacturing areas, a standard panel can wash out. The W22L100-CHA3HB is Winmate’s 21.5 inch high brightness chassis monitor, with a 1000 nit panel that suits sunlight-readable installations, in a fanless metal housing that mounts on VESA.

The 21.5″ 16:9 panel runs at 1920 x 1080 (FHD) with 1000 nits and a 5000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. That brightness helps where windows or strong overhead lighting fall on the screen. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the W24L100-CHA2HB moves to a 23.8″ FHD panel at the same 1000 nits, and the W32L300-CHA3HB goes up to a 32″ FHD panel at 1500 nits, without touch.

The W22L100-CHA3HB runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 21.5 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
