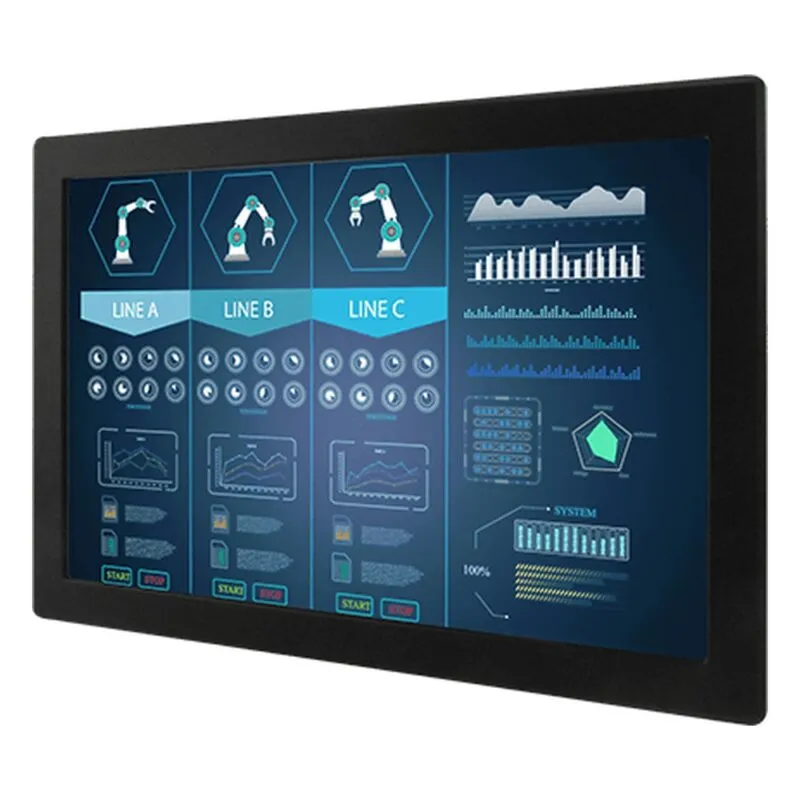

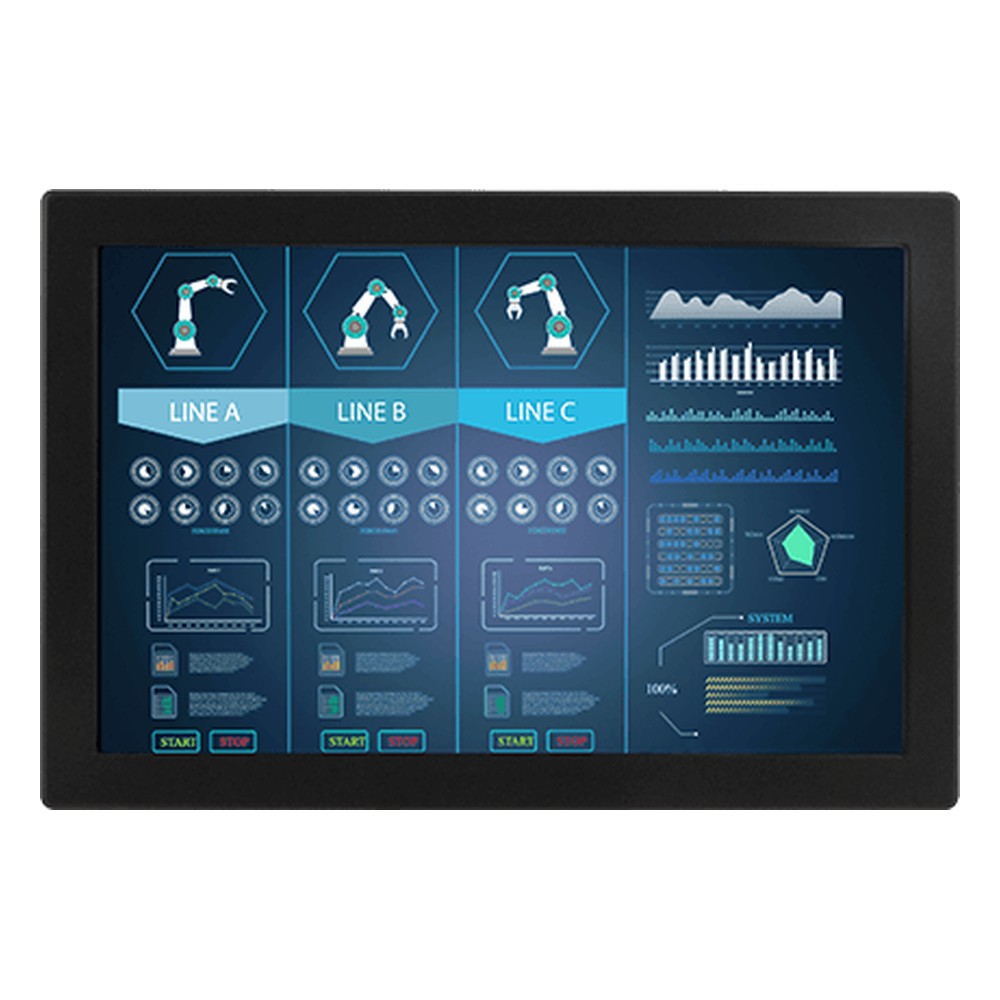

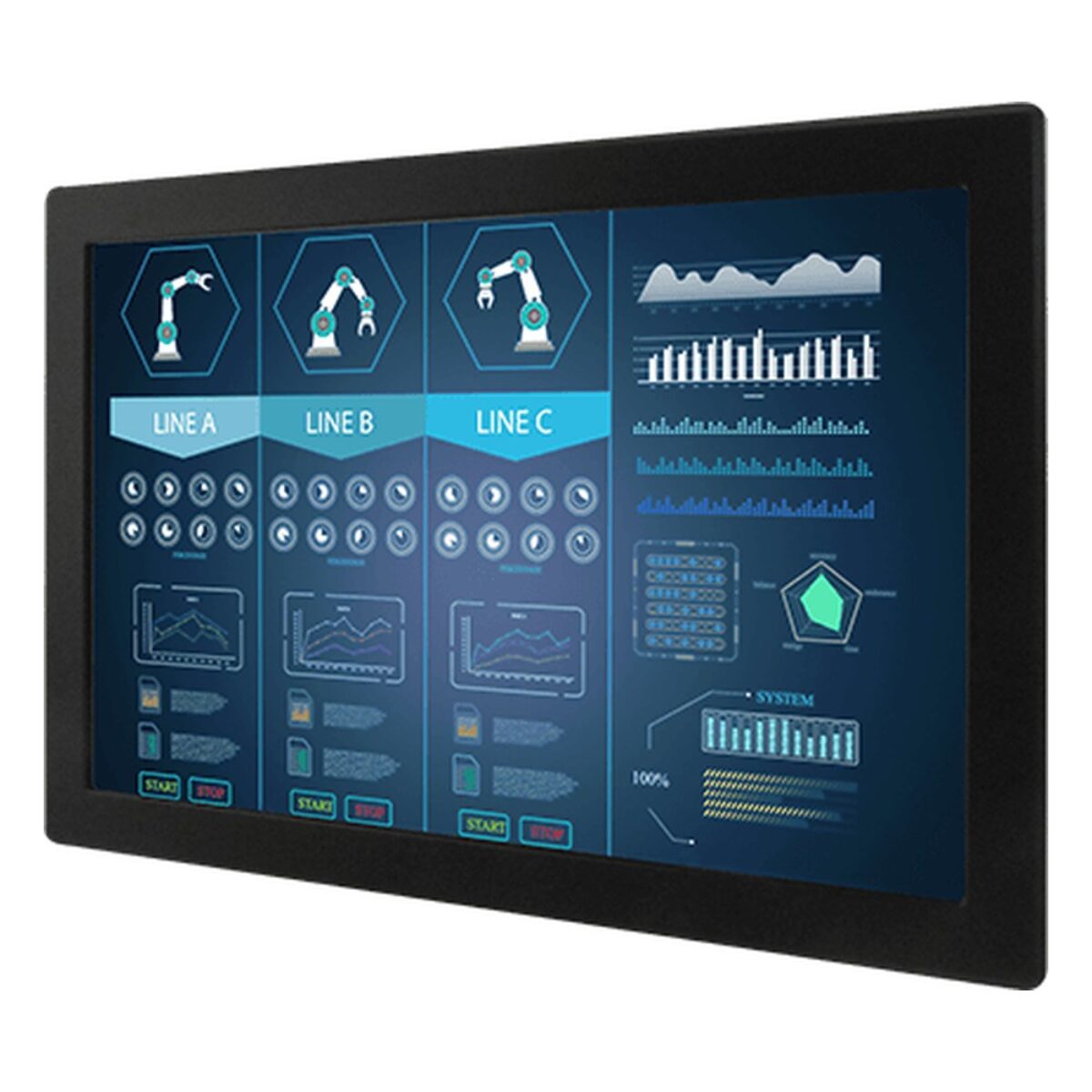

Winmate W22L100-IPA3HB 21.5″ Front IP65 Monitor with 1000 Nit FHD Display and Resistive Touch

Outdoor kiosks, loading bays and glazed control areas wash out an ordinary screen, and a large display there also has to cope with dust and spray at the front. The W22L100-IPA3HB is Winmate’s 21.5 inch industrial monitor for that job: an FHD panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 21.5″ 1920 x 1080 panel runs at 1000 nits, so it stays readable in sunlight, with 5000:1 contrast and 178 degree viewing angles. Resistive touch is fitted as standard, and it works with gloved fingers or a stylus. SAW touch or a plain protection glass without touch can be specified instead.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a single USB port. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The W22L100-IPA3 is the 250 nit version of this monitor for indoor sites, and the W18L100-IPA3HB is the 18.5 inch 1000 nit model in the same series.

The 21.5 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and it carries CE and FCC marks. We supply the W22L100-IPA3HB configured and tested before dispatch, ready to pair with the computer that drives it.
