Winmate W24IAD3S-MLA2FP 23.8″ Defence Panel PC with Intel Alder Lake Core i5-1235U, MIL-STD-810H and MIL-STD-461

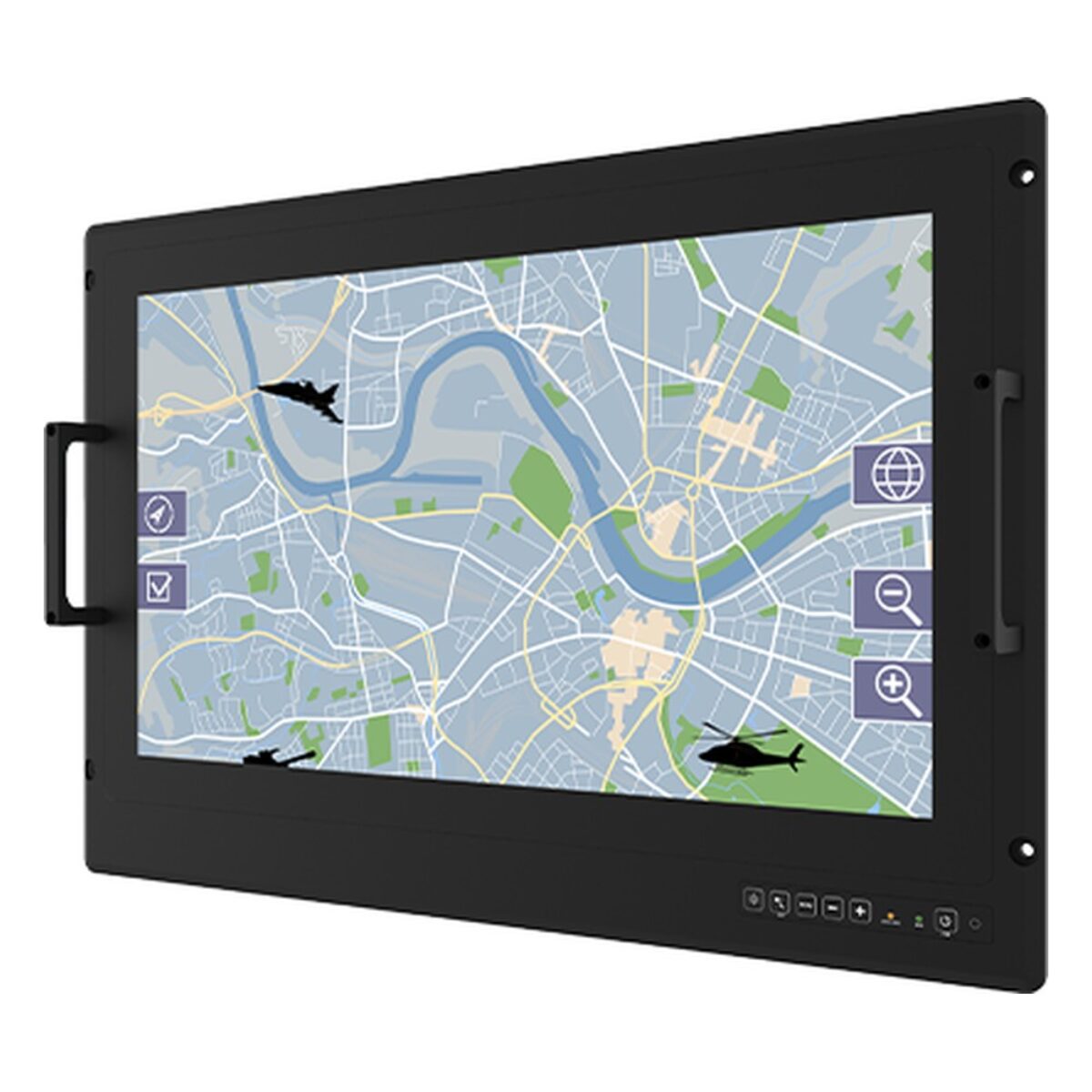

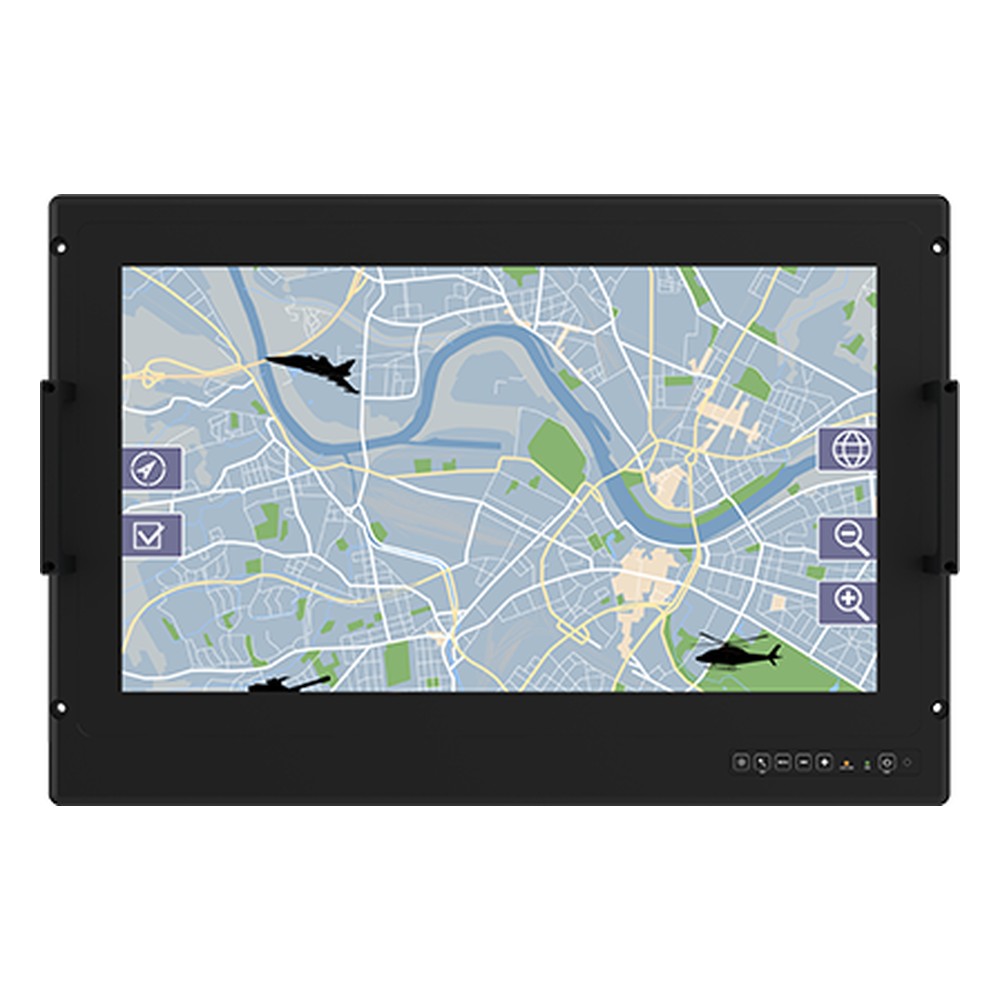

Larger operator positions in command centres often run several windows side by side, which is where a 23.8 inch widescreen earns its rack space. The W24IAD3S-MLA2FP is Winmate’s 23.8 inch widescreen defence panel PC for that job: a fanless 23.8″ unit with a 1920 x 1080 display, compliant with MIL-STD-810H and MIL-STD-461G.

The Intel Core i5-1235U has 10 cores and 12 threads at up to 4.4 GHz with Intel Iris Xe graphics, for console software and operator displays without a fan. Memory is 8 GB of DDR5 with 16 GB and 32 GB options, storage is 256 GB with options up to 2 TB, TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 1920 x 1080 panel gives 250 nits with 3000:1 contrast, with projected capacitive touch. A six-key OSD pad covers power, brightness and day or night modes, and a light sensor can set brightness automatically.

Rear I/O covers two Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port set to RS-232 by default, an optional second RS-232 port and an optional HDMI output. The W24L100-MLA2FP is the 23.8 inch defence monitor in this style for racks where the computer sits elsewhere, and the W24IAD3S-RKS1ML is the 24 inch rack mount model with a 1920 x 1200 screen and AR protection glass.

Power is 100 to 240 V AC on a MIL-DTL-38999/1 connector, with an optional isolated 9 to 36 V DC input. The W24IAD3S-MLA2FP runs from 0 to 50 °C and stores from -10 to 60 °C at 10 to 95% humidity. Winmate lists compliance with MIL-STD-810H for vibration, humidity and transit drop, and MIL-STD-461G for CE101, CE102, RE101, RE102 and CS118, with TEMPEST and NATO STANAG options and CE and FCC marks. The anti-corrosion metal housing with an aluminium bezel mounts in a rack or on VESA. We supply it configured, with the OS installed, and tested before dispatch.
