Winmate W24IT3S-PMA2 23.8″ FHD Panel Mount PC with Intel Core i5-1135G7 and 3000:1 Contrast

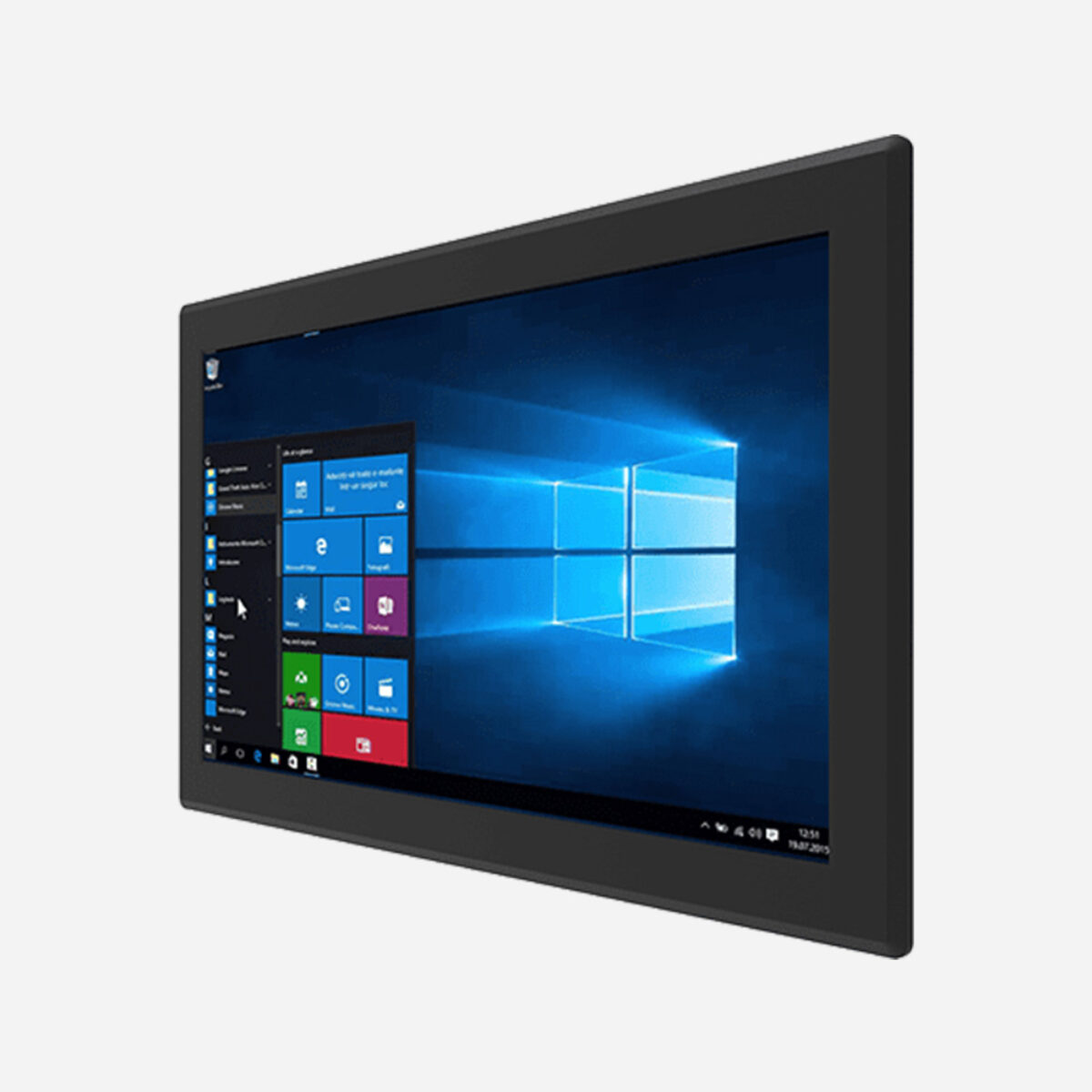

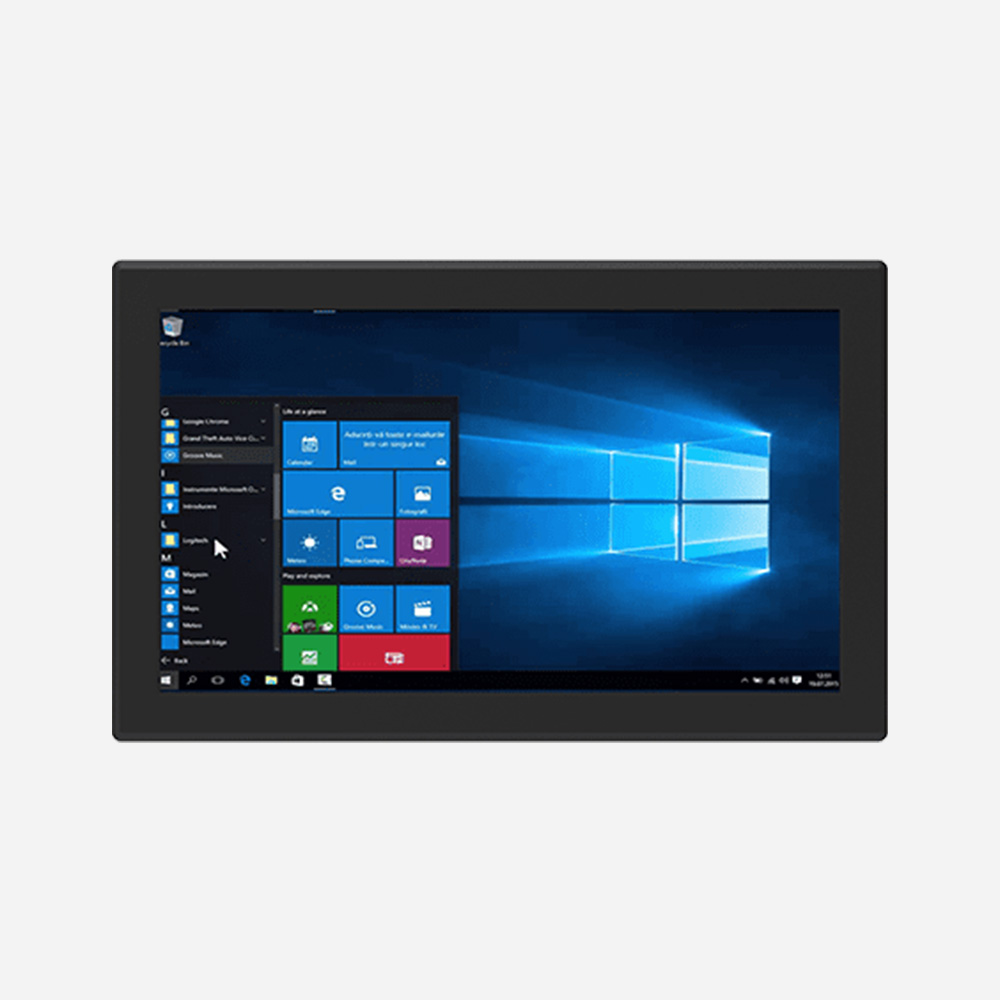

A supervisory desk or line display that a whole team reads needs the biggest screen the console will take, sitting flush so nothing snags. The W24IT3S-PMA2 is Winmate’s 23.8 inch panel mount panel PC: a fanless metal-housed computer with a 16:9 display that fits a 560.4 x 327.6 mm cut-out, with open frame and VESA mounting also supported.

It runs an Intel Core i5-1135G7 at 2.4 GHz up to 4.2 GHz, with the Intel Core i5-1145G7 at up to 4.4 GHz as an option. One DDR4-3200 SO-DIMM holds 4 GB as standard with 8, 16 or 32 GB options, and storage is one M.2 slot for a 2242 SATA or 2280 NVMe SSD from 128 GB, with NVMe options to 4 TB and an optional SATA III drive up to 2 TB. The 1920 x 1080 display is rated at 250 nits with a 3000:1 contrast ratio and 178° viewing angles in both planes, which keeps dark mimics readable from the side. Resistive touch or plain protection glass can be specified. Windows 11 IoT Enterprise SAC, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied.

The I/O comprises two USB 3.2 Type-A ports, one RS-232/422/485 and one RS-232 port, two Gigabit Ethernet ports on Intel controllers and an optional HDMI 2.0 output, with two speakers built in. An M.2 E-key slot takes an optional Wi-Fi module, and TPM 2.0 is on board. The W24IT3S-IPA2 is the front IP65 version with the same cut-out, and the W22IT3S-PMA3 is the 21.5 inch panel mount model.

Power is 12 V DC on a 2.5 mm DC jack, with a 100 to 240 V AC adapter rated at 120 W supplied. The W24IT3S-PMA2 operates from 0 to 50 °C at 10 to 90% humidity non-condensing, stores from -10 to 60 °C and carries CE and FCC marks. It measures 606 x 376 x 77 mm, weighs 8.7 kg and ships with mounting clips and VESA screws.
