Winmate W24L100-CHS1 24″ Chassis Monitor with Resistive Touch and WUXGA LCD
Resistive
Fanless
CE
FCCW24L100-CHS1 Overview

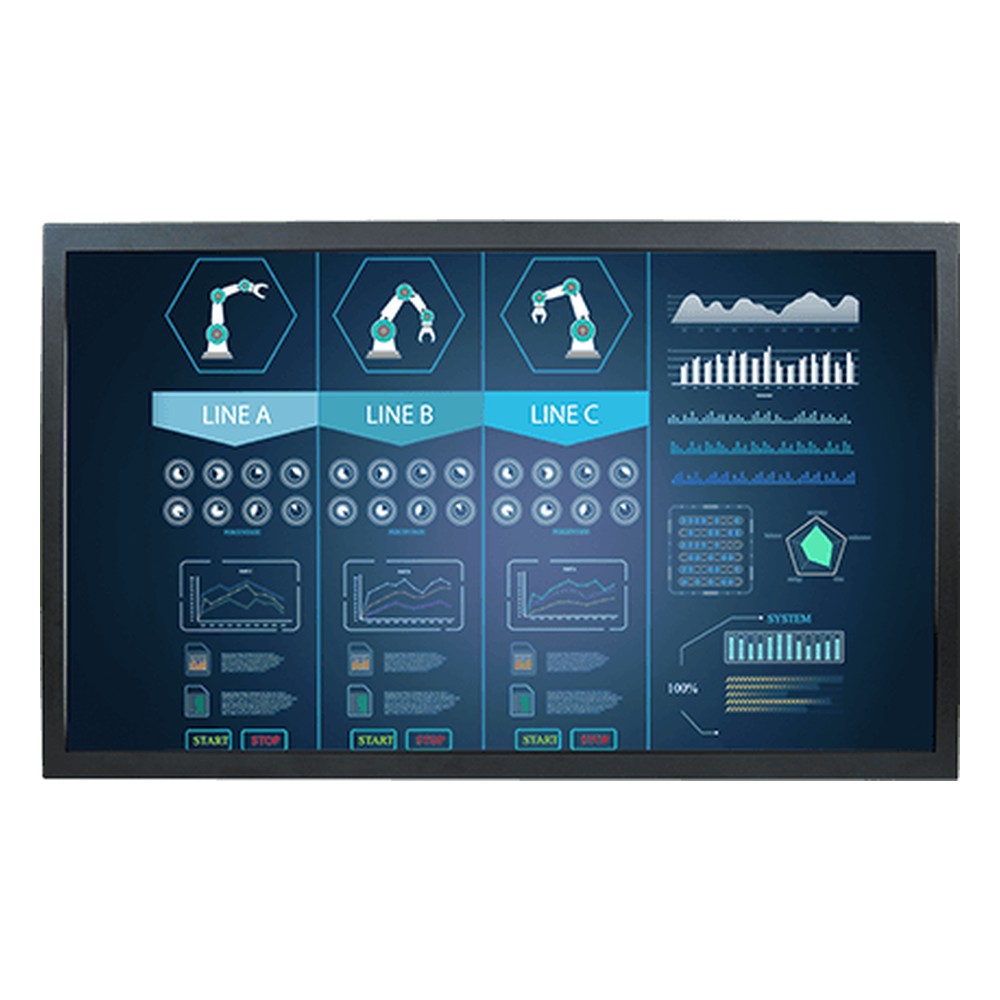

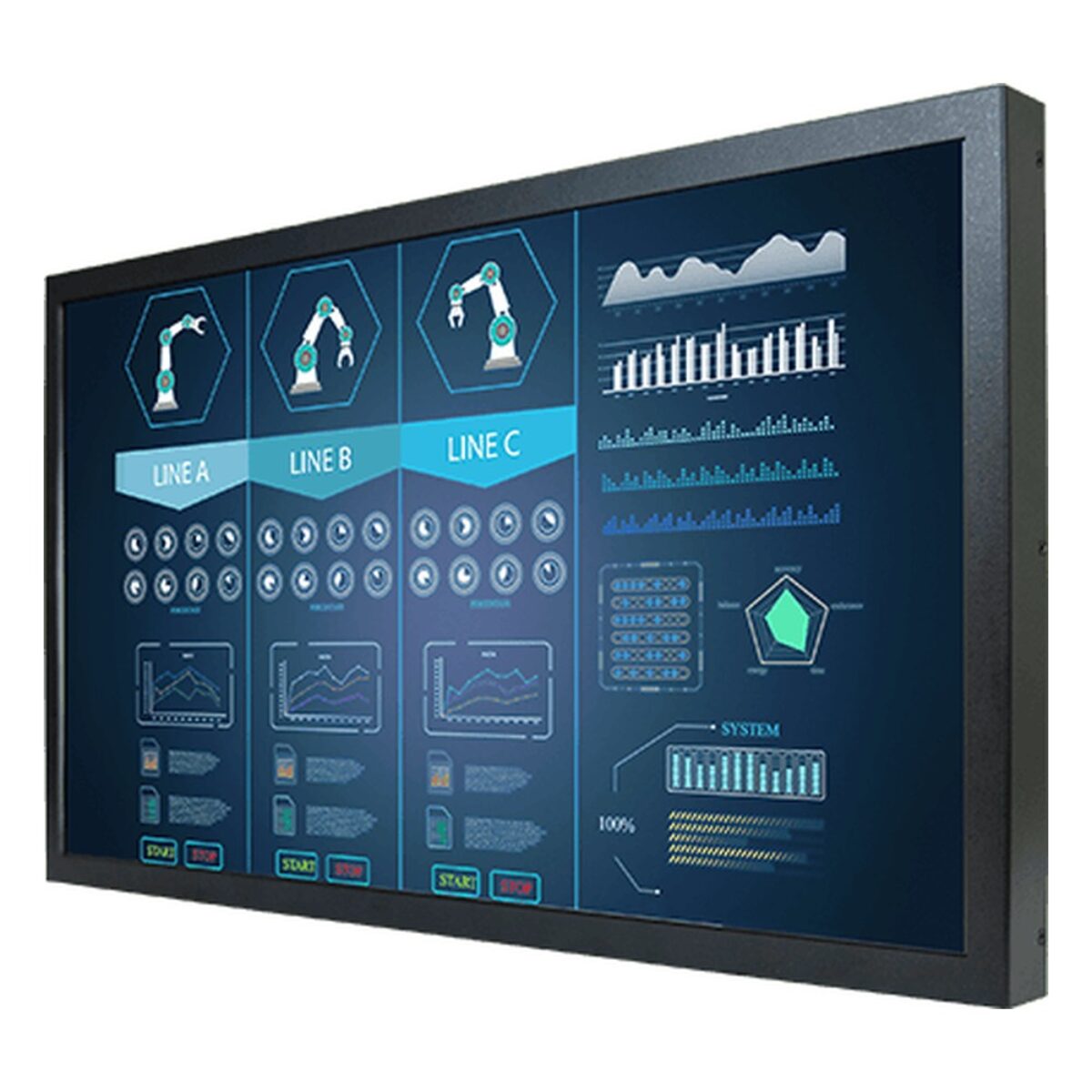

Many installations need a self-contained screen that bolts to a bracket and connects to a computer elsewhere in the cabinet. The W24L100-CHS1 is Winmate’s 24 inch chassis monitor, a fanless metal housing on VESA mounts, aimed at control rooms, kiosks and manufacturing sites.
The 24″ 16:10 panel runs at 1920 x 1200 (WUXGA) with 300 nits and a 1000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the W24L100-CHA2 uses a 23.8″ 1920 x 1080 panel at 250 nits with 3000:1 contrast, and the W24L100-CHA2HB is the 23.8″ FHD version at 1000 nits.
The W24L100-CHS1 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 24 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
W24L100-CHS1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-CHS1 |
| Features | Fanless Industrial |
| Display | |
| Display | 24"[8:5, 1920 x 1200, WUXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 564mm x 370mm x 59mm (22.20" x 14.57" x 2.32") |
| Mounting Options | VESA Mount |
- W24L100-CHS1 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the W24L100-CHS1 configured and tested for UK control room, kiosk and industrial projects. Within the Winmate range the W27L100-CHA1 steps up to a 27 inch FHD display-only panel.
The W24L100-CHS1 sits among our 24 inch industrial monitors, our chassis monitors and our touchscreen monitors. Where a project needs a 24 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
