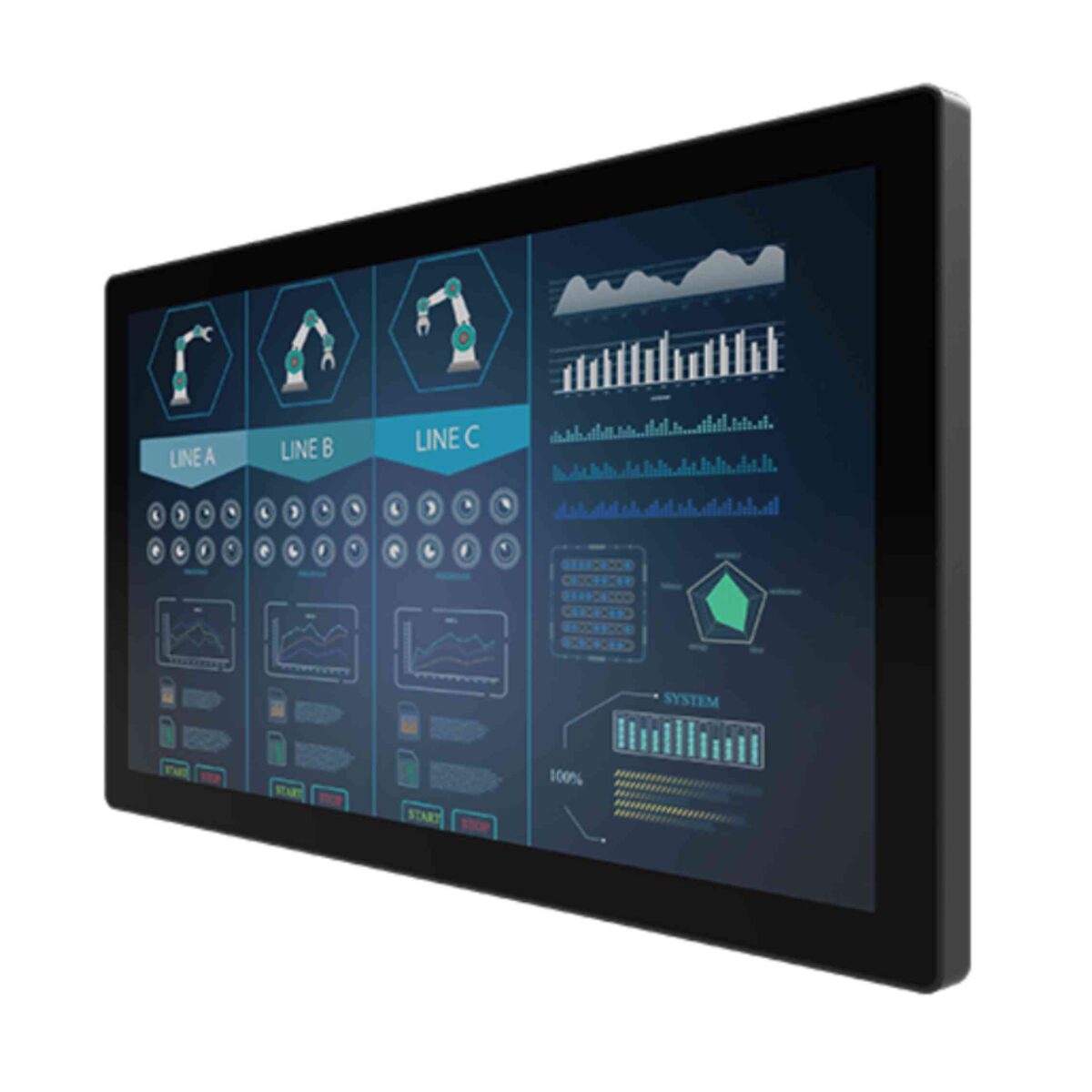

Winmate W24L100-GCC1OD 23.8″ Sunlight Readable PCAP Chassis Monitor with 1000 Nit FHD Display
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCW24L100-GCC1OD Overview

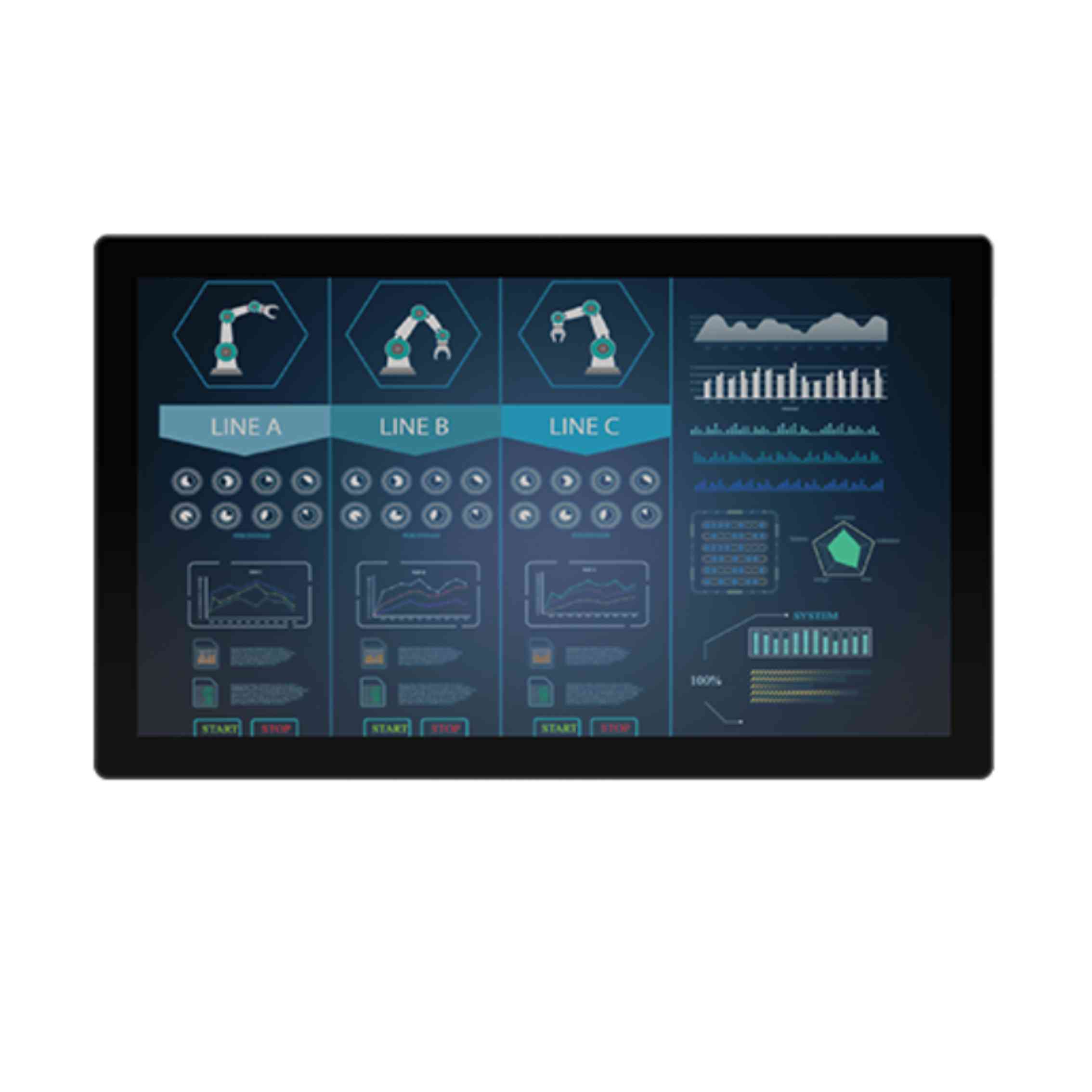

A larger touch screen helps at a public terminal or line-side station, as long as glare does not wash it out. The W24L100-GCC1OD is Winmate’s 23.8 inch chassis monitor with a 1000 nit panel and PCAP touch, built to mount on a VESA arm or into a panel near windows or outdoors.
Its 1920 x 1080 panel reaches 1000 nits with a 1000:1 contrast ratio and 16.7 million colours, and 88° viewing angles in each direction keep it readable off-axis. Projected capacitive multi-touch connects to the host over USB. Where the screen faces direct sun, Winmate offers a UV film option that protects the panel against solar radiation. That combination suits public terminals and outdoor information points that people approach from several directions.
The standard input is VGA, with HDMI and DVI as options, and setup runs through a five-key OSD panel. The W22L100-GCB1OD is the 21.5 inch version of this chassis monitor, and the W24L100-EHC1OD carries the same 1000 nit PCAP panel in a metal housing with an aluminium bezel for panel mount installs.

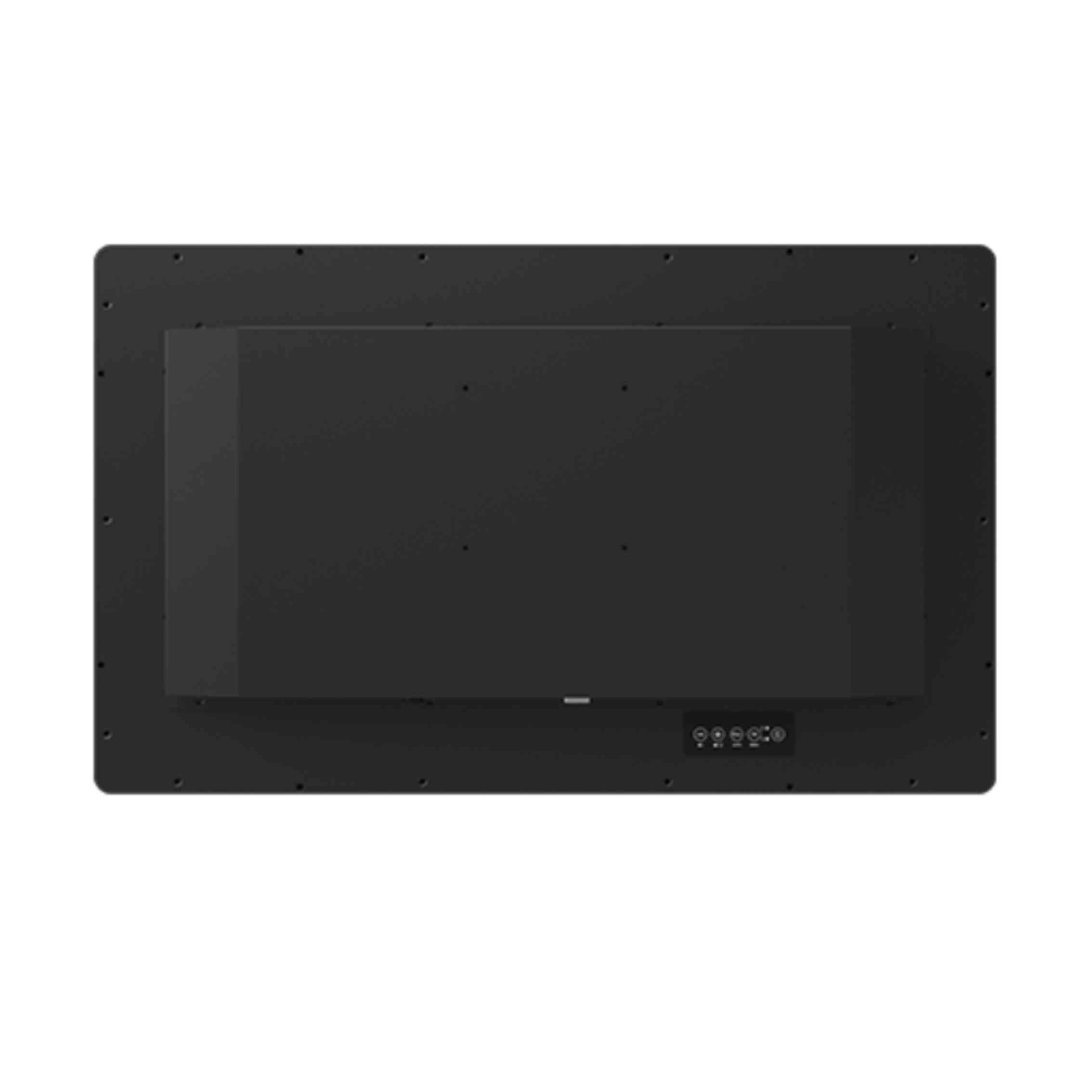

Power is 12 V DC as standard or 24 V DC as an option, with a 100 to 240 V AC adapter supplied. The fanless unit measures 588 x 358 x 55 mm and mounts on 100 x 100 mm VESA holes or into a 508 x 305 mm panel cut-out. It operates from -10 °C to 60 °C, or from -25 °C with the heater option, at 10 to 90% humidity, and carries CE and FCC marks. An optional remote controller is listed for adjustment once the unit is mounted high on a wall or arm.
W24L100-GCC1OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-GCC1OD |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 588mm x 358mm x 55mm (23.15" x 14.09" x 2.17") |
- W24L100-GCC1OD Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the W24L100-GCC1OD configured for UK kiosk and industrial HMI projects. Within the Winmate range the W22L100-GCB1OD is the 21.5 inch version of this chassis build, and the W24L100-EHC1OD is the metal panel mount version.
With a 1000 nit panel the W24L100-GCC1OD sits among our high brightness monitors, our chassis industrial monitors and our 24 inch touch monitors. Where a larger VESA-mounted touch screen faces daylight, this is the model to specify.
