Winmate W32IAD3S-MLA3FP 32″ Defence Panel PC with Intel Alder Lake Core i5-1235U, MIL-STD-810H and MIL-STD-461

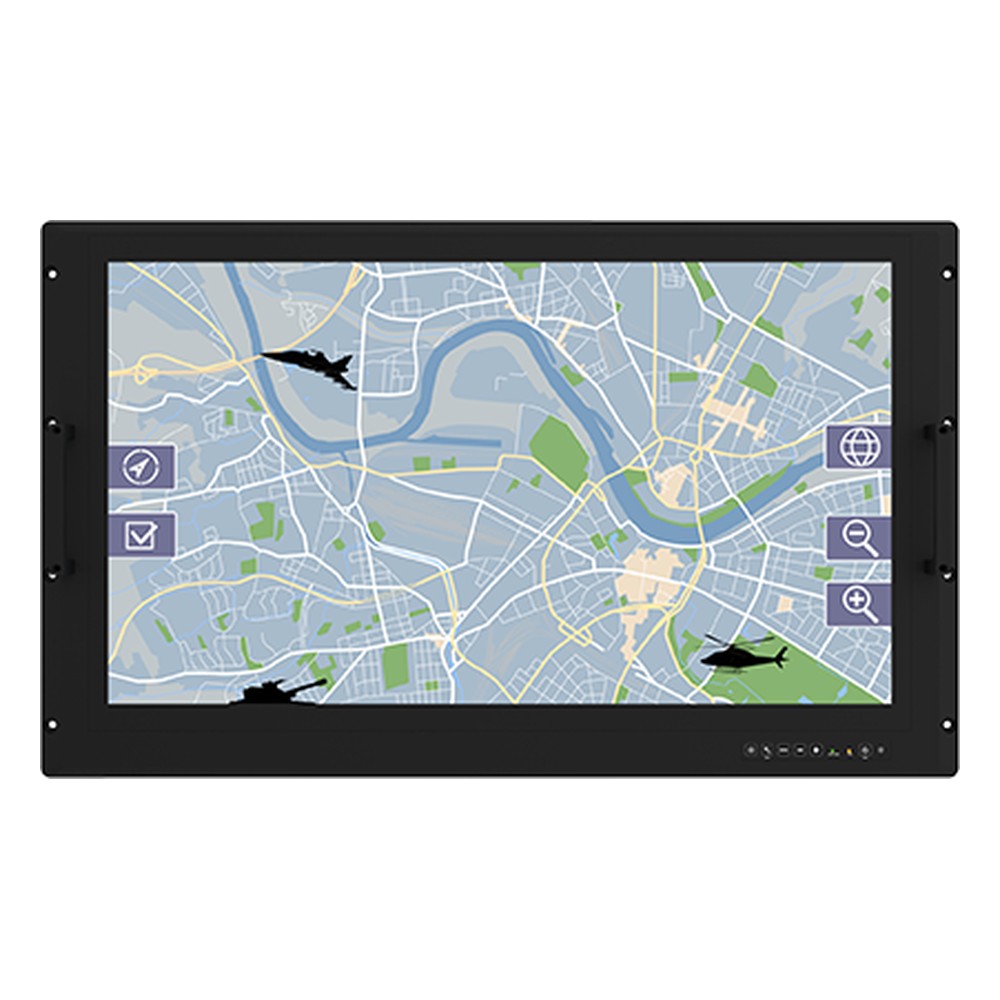

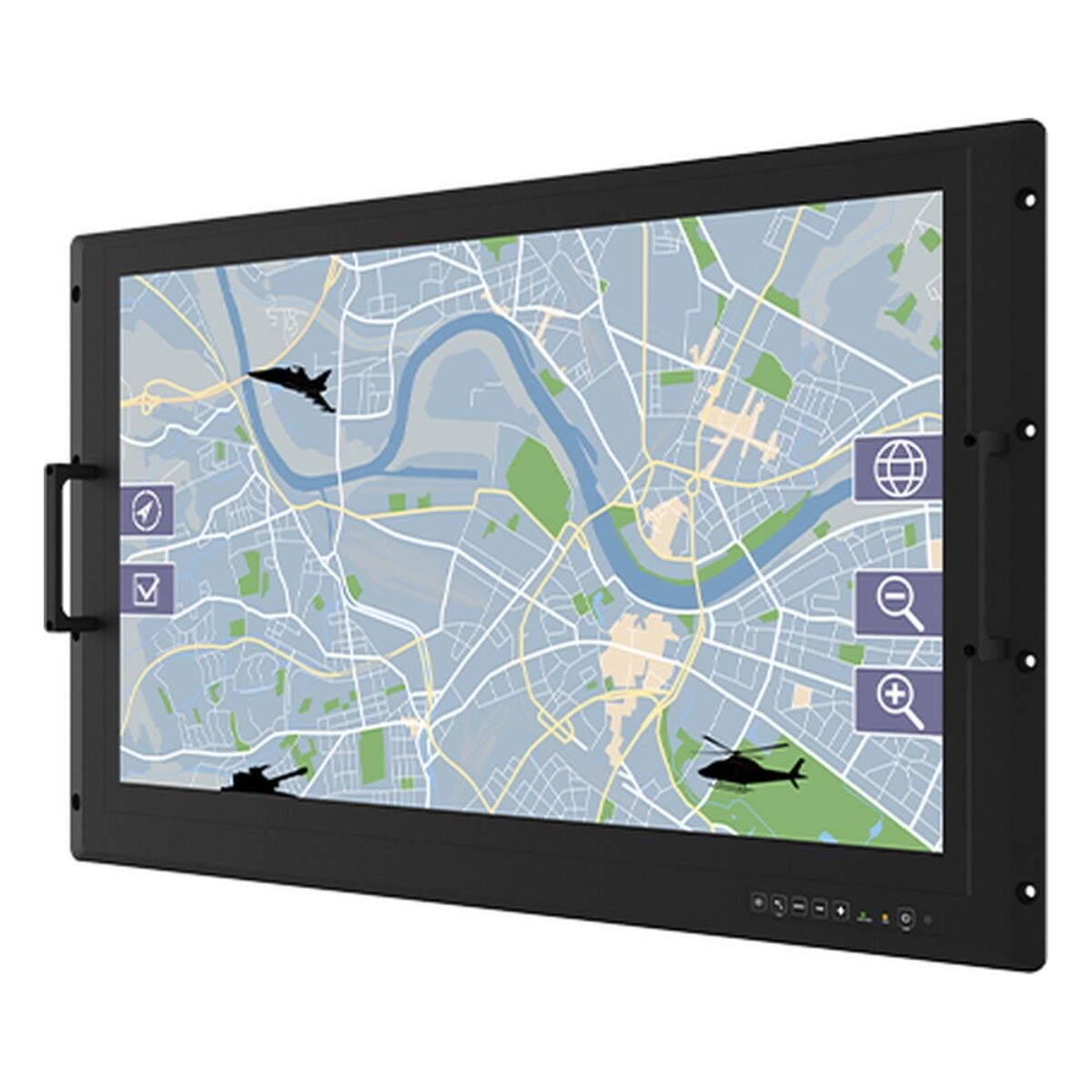

Shared displays in command centres and control rooms are read by several people at once, so size, contrast and touch matter as much as the computer behind them. The W32IAD3S-MLA3FP is Winmate’s 32 inch widescreen defence panel PC for that job: a fanless 32″ unit with a 1920 x 1080 display, compliant with MIL-STD-810H and MIL-STD-461G.

The Intel Core i5-1235U has 10 cores and 12 threads at up to 4.4 GHz with Intel Iris Xe graphics, for console software and operator displays without a fan. Memory is 8 GB of DDR5 with 16 GB and 32 GB options, storage is 256 GB with options up to 2 TB, TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 1920 x 1080 panel gives 400 nits with 4000:1 contrast, with projected capacitive multi-touch. A six-key OSD pad covers power, brightness and day or night modes, and a light sensor can set brightness automatically.

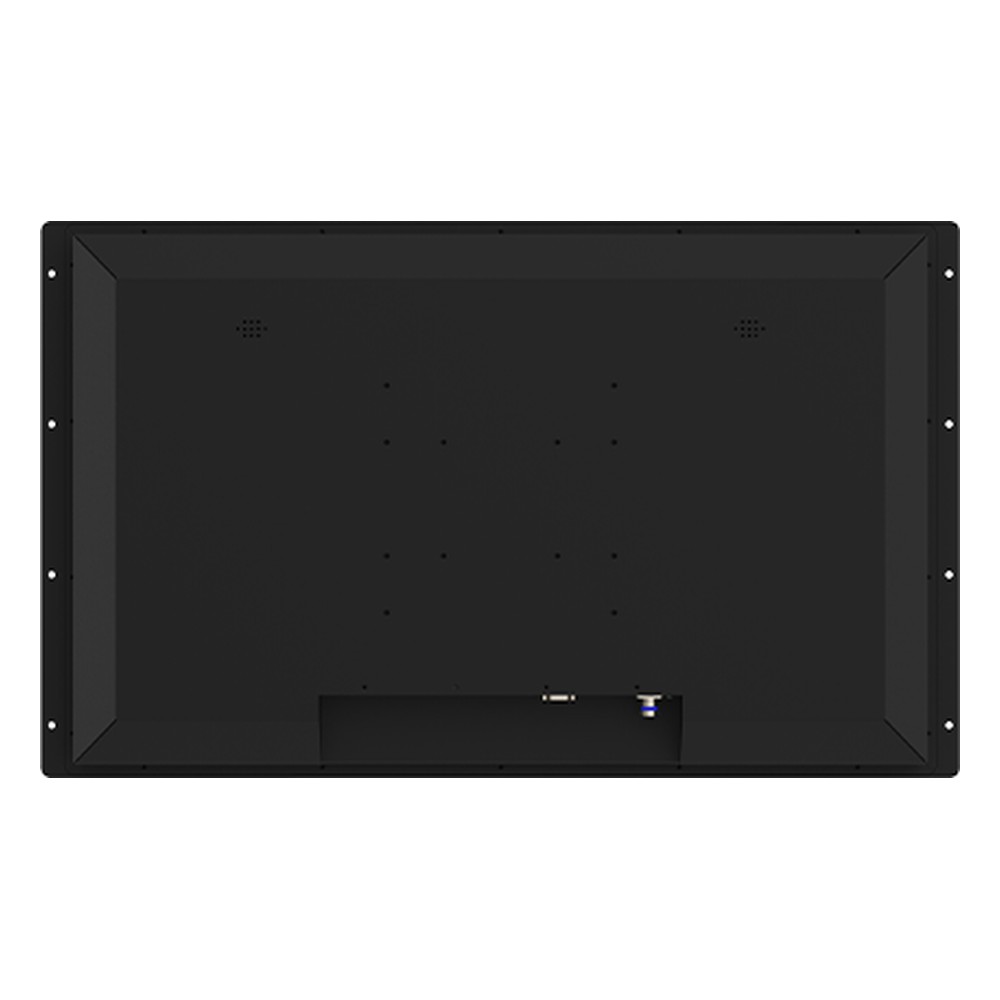

Rear I/O covers two Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port set to RS-232 by default, an optional second RS-232 port and an optional HDMI output. The W32L100-MLA3FP is the 32 inch defence monitor in this style for racks where the computer sits elsewhere, and the W22IAD3S-MLA3FP is the 21.5 inch defence panel PC for individual operator positions.

Power is 100 to 240 V AC on a MIL-DTL-38999/1 connector, with an optional isolated 9 to 36 V DC input. The W32IAD3S-MLA3FP runs from 0 to 50 °C and stores from -10 to 60 °C at 10 to 95% humidity. Winmate lists compliance with MIL-STD-810H for vibration, humidity and transit drop, and MIL-STD-461G for CE101, CE102, RE101, RE102 and CS118, with TEMPEST and NATO STANAG options and CE and FCC marks. The anti-corrosion metal housing with an aluminium bezel mounts in a rack or on VESA. We supply it configured, with the OS installed, and tested before dispatch.
