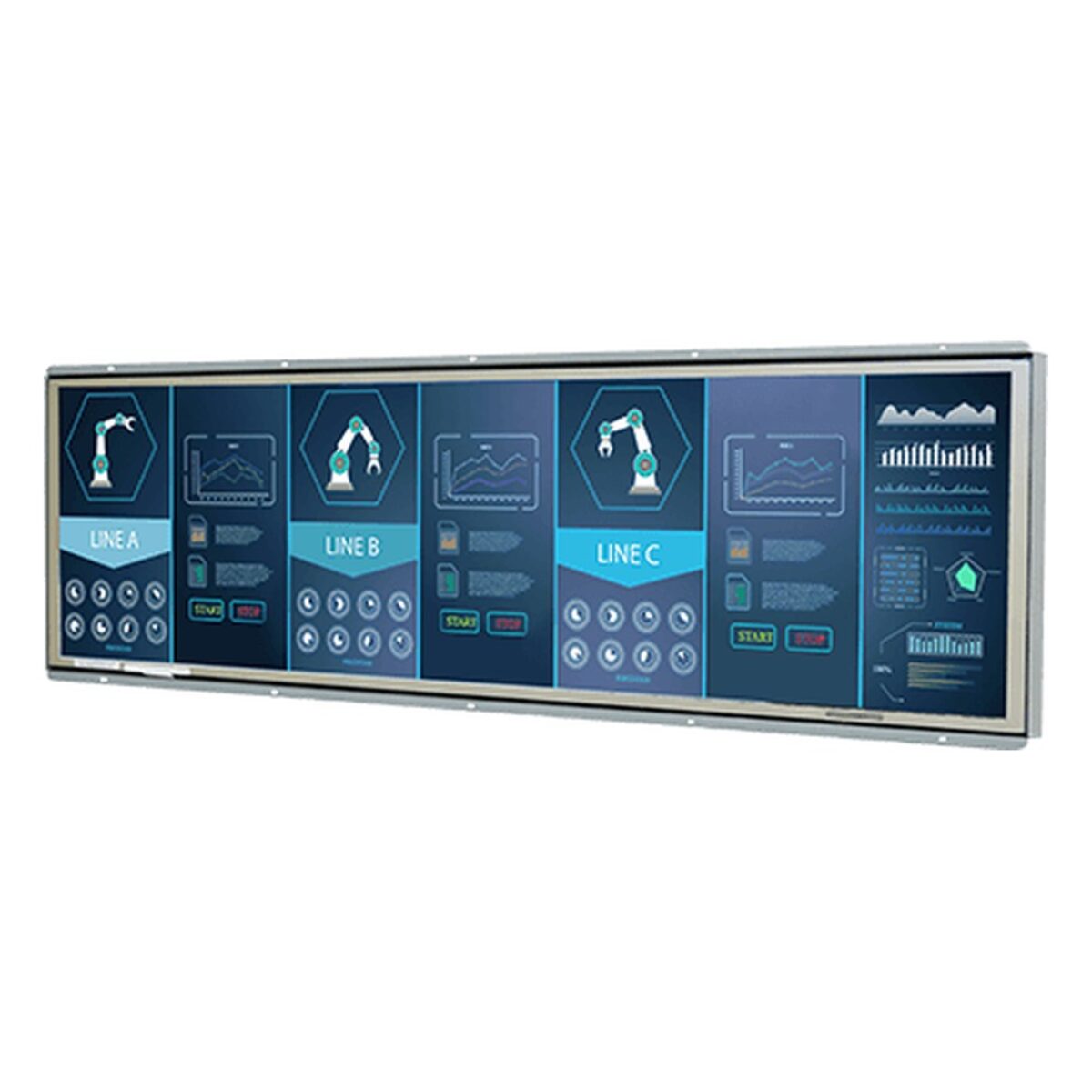

Winmate W38L100-OFA1 37″ Open Frame Monitor with 1500 Nit 1920 x 540 Display and 4000:1 Contrast

Builders framing a long information strip into a bright console or enclosure need an open frame panel with plenty of backlight. The W38L100-OFA1 is Winmate’s 37 inch bar type open frame display for this: a stretched 1920 x 540 panel at 1500 nits with a 4000:1 contrast ratio, protection glass and a front IP54 rating in a fanless metal housing. Winmate names industrial visualisation, control rooms and equipment monitoring as its uses.

The 37″ LCD runs at 1920 x 540 with 1500 nits, 4000:1 contrast and 178° viewing angles. At 1500 nits the high brightness panel is sunlight readable, so the picture holds up near glazing and under strong light. The long, shallow format fits above machines, along conveyor lines or across the top of a console, where a standard 16:9 screen would waste height.

Video arrives over VGA as standard, with an HDMI input as an option, so the display connects to the computer, media player or controller already on site. An audio line-out, two speakers and a remote controller are optional. The W38L100-CHA1 is the chassis version of this 37 inch panel, and the W28L100-OFA2 is the 28.6 inch bar type open frame model at 700 nits.

Power is 24 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The W38L100-OFA1 operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing. It is IP54 rated at the front, mounts on VESA holes as standard, with rear mounting as an option and carries CE and FCC marks. We supply it configured and tested, ready to connect to your player or computer.
