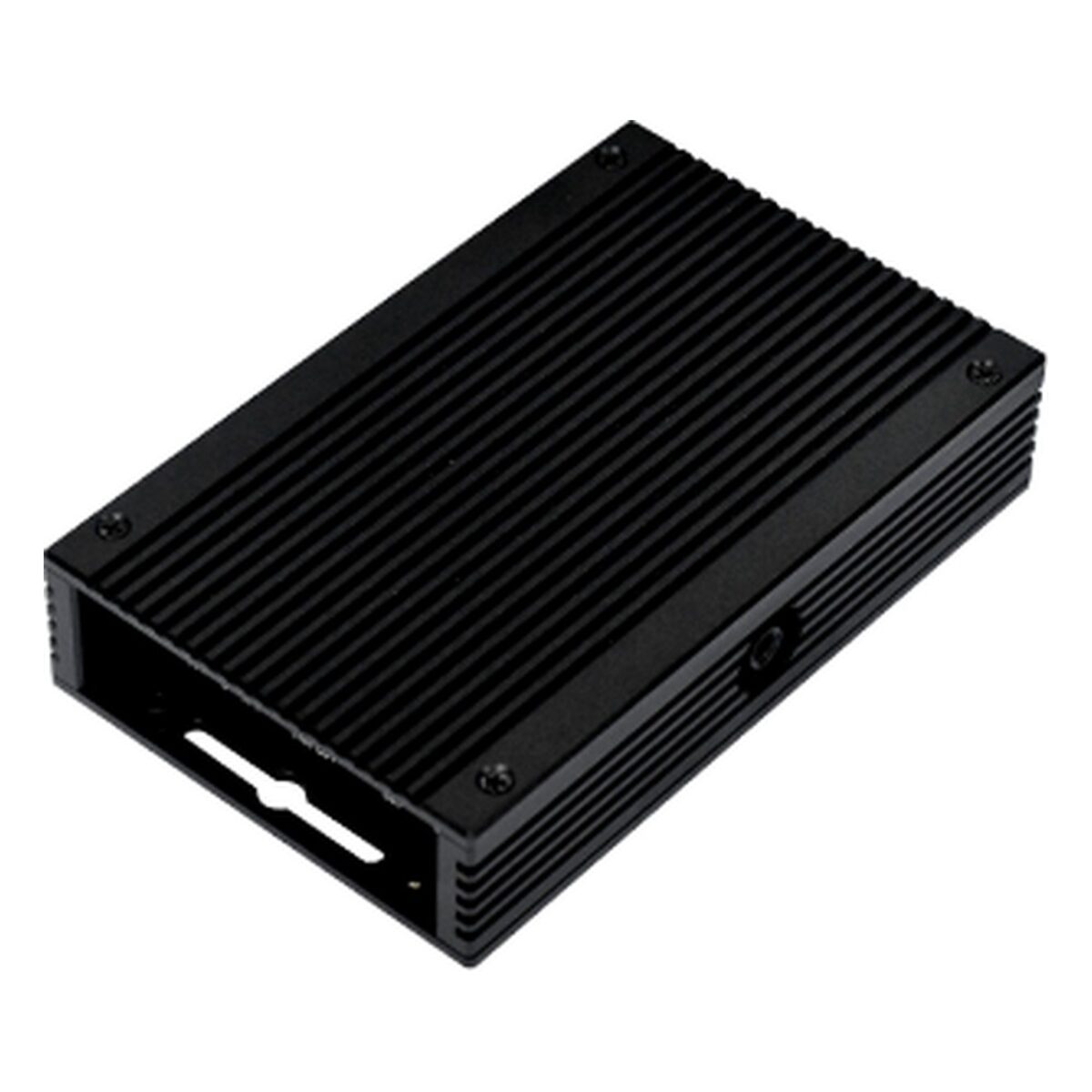

Yuan HDMI2.0 to SDVoE-F HDMI 2.0 SDVoE Encoder with SFP+ Fibre Output, USB and IR at 4K60
HDMI2.0 to SDVoE-F Overview
Getting a 4K source to a screen in another room or building usually means a long cable run. The HDMI2.0 to SDVoE-F is Yuan’s HDMI 2.0 SDVoE encoder for the source end of a fixed fibre link: it takes one HDMI 2.0 input from PCs and media players and sends it onto a 10G Ethernet network as SDVoE. Yuan describes SDVoE as lossless and zero-latency, which typically suits pro AV and live production work.
The input accepts resolutions from 4096 x 2160 and 3840 x 2160 at up to 60 fps, through 1080p, 1080i and 720p, to PC resolutions such as 1280 x 1024 and 1024 x 768 and SD at 480i and 576i. The SDVoE output is one SFP+ port for 10G fibre. Analogue L/R audio travels in both directions through a stereo phone jack, and IR and RS232 share the link, so a remote or control system at either end can reach the equipment.
A separate RJ45 port handles control, and one USB port connects to the source PC for USB HID extension. The unit runs from a 7.5 to 15 V DC input in a rugged case and is plug and play. The SDVoE to HDMI2.0-F is the matching receiver on the same fibre link, and the HDMI2.0 to SDVoE V2 switches between copper and fibre in one unit and adds PoE power.
Yuan does not list operating temperature, certification or mounting for the HDMI2.0 to SDVoE-F, so we confirm those against the site with you. We supply the HDMI2.0 to SDVoE-F configured and tested with the sources, displays and network it will connect to, so the link is proven before installation.
HDMI2.0 to SDVoE-F Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan HDMI2.0 to SDVoE-F |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x SFP+ (10G) |
| Streaming Protocols | SDVoE |
| Audio Input | 1x 3.5mm Audio Input |
| Audio Output | 1x 3.5mm Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 152mm x 96mm x 33mm (5.98" x 3.78" x 1.30") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the HDMI2.0 to SDVoE-F configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI2.0 to SDVoE-C is the same transmitter with an RJ45 copper output, and the HDMI2.0 to SDVoE V2 switches between copper and fibre and adds PoE.
Across our range, the HDMI2.0 to SDVoE-F sits with our SDVoE transmitters, our AV over IP encoders, decoders and extenders and our SDVoE capture cards for PC-based capture.
