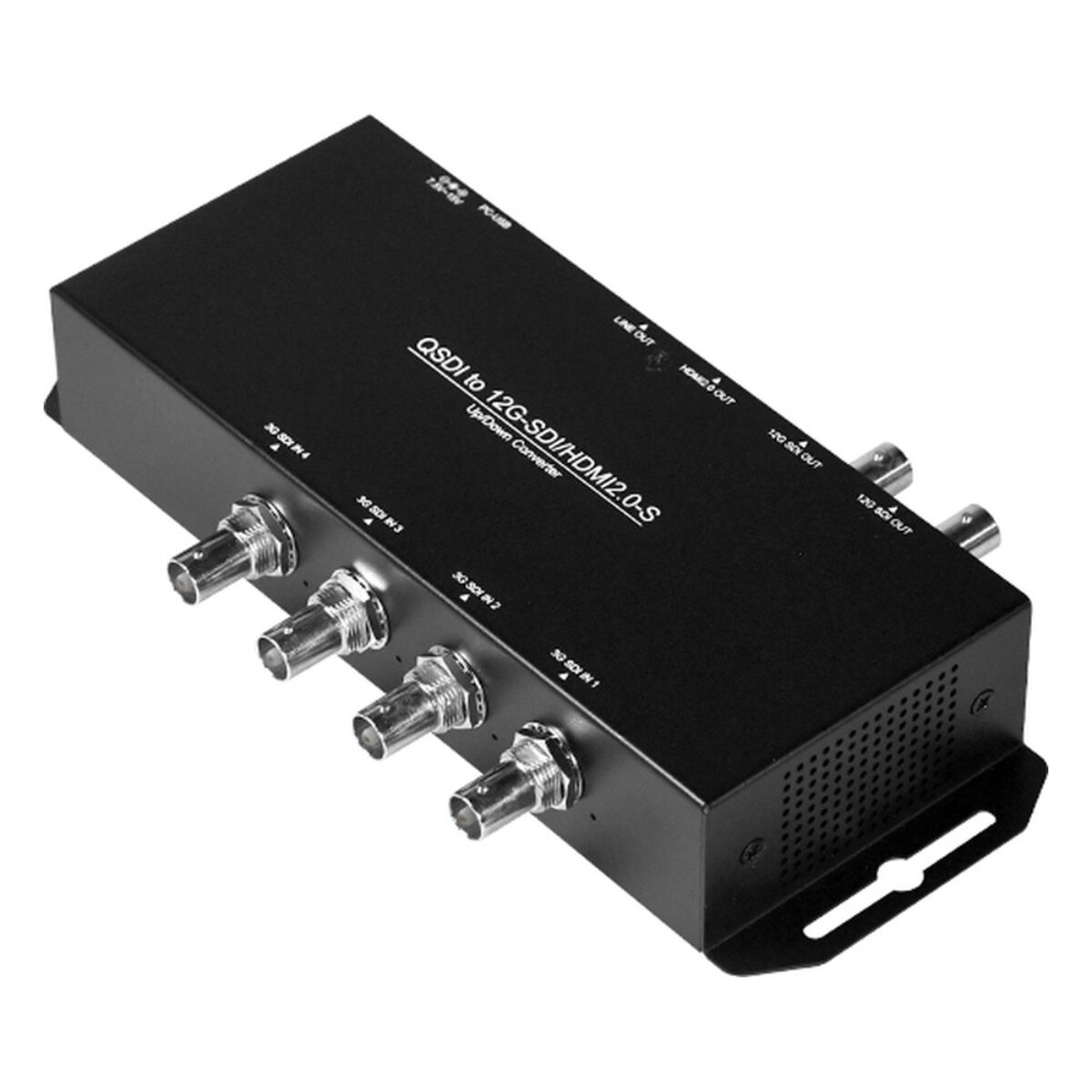

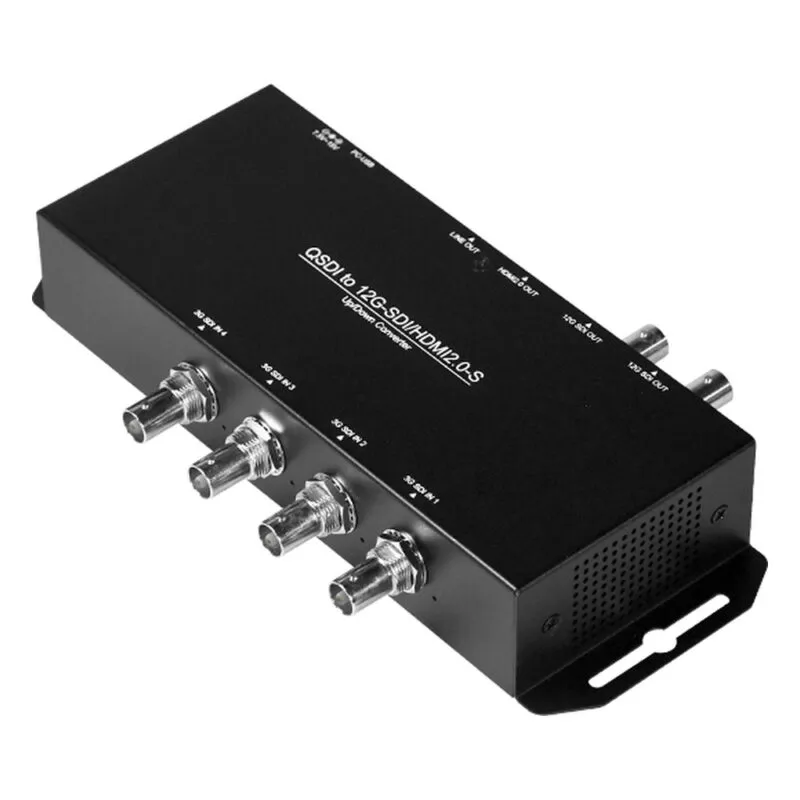

Yuan QSDI to 12G-SDI/HDMI2.0-S Quad-Link SDI to HDMI 2.0 and 12G-SDI Broadcast Video Converter with Up/Down Scaling
QSDI to 12G-SDI/HDMI2.0-S Overview
Older 4K cameras and recorders often deliver quad-link 3G-SDI over four cables, while newer monitors and routers expect single-cable 12G-SDI or HDMI 2.0. The Yuan QSDI to 12G-SDI/HDMI2.0-S is a broadcast video converter that bridges the two, so you can keep using quad-link sources in a modern broadcast or live production system.

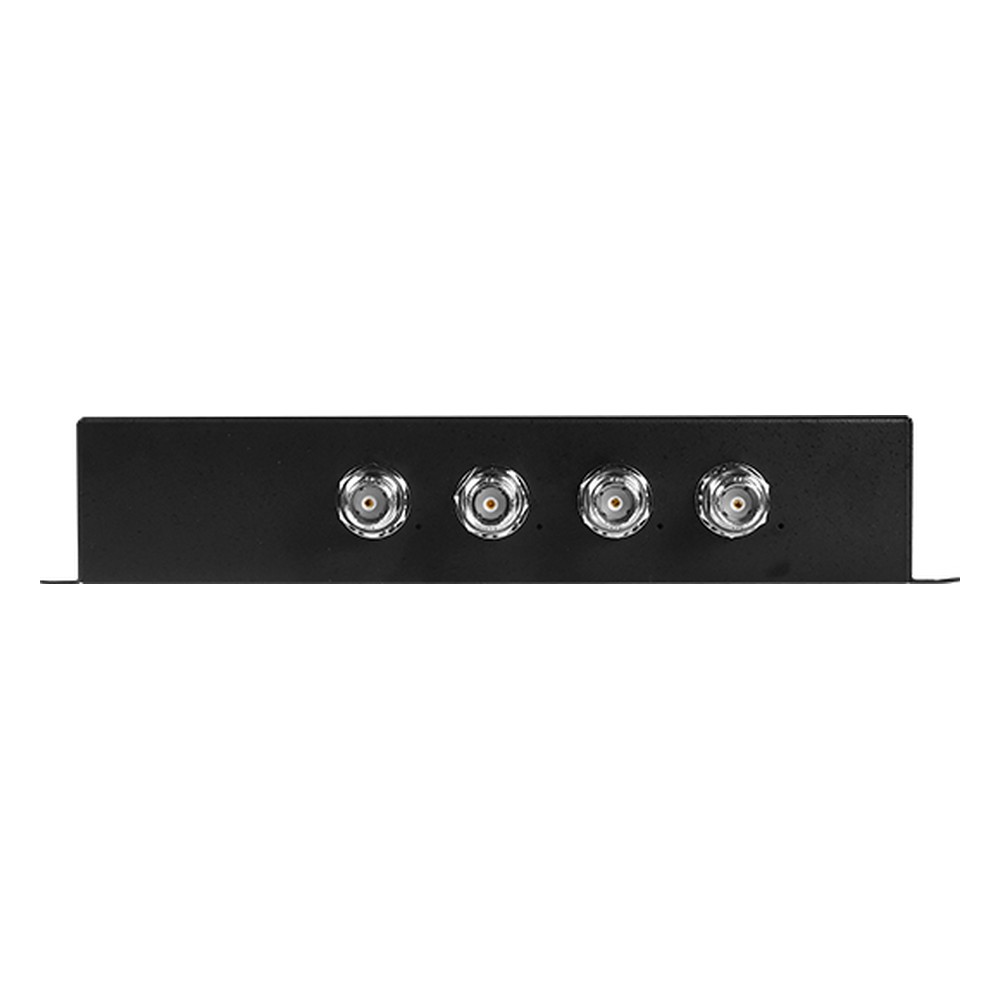

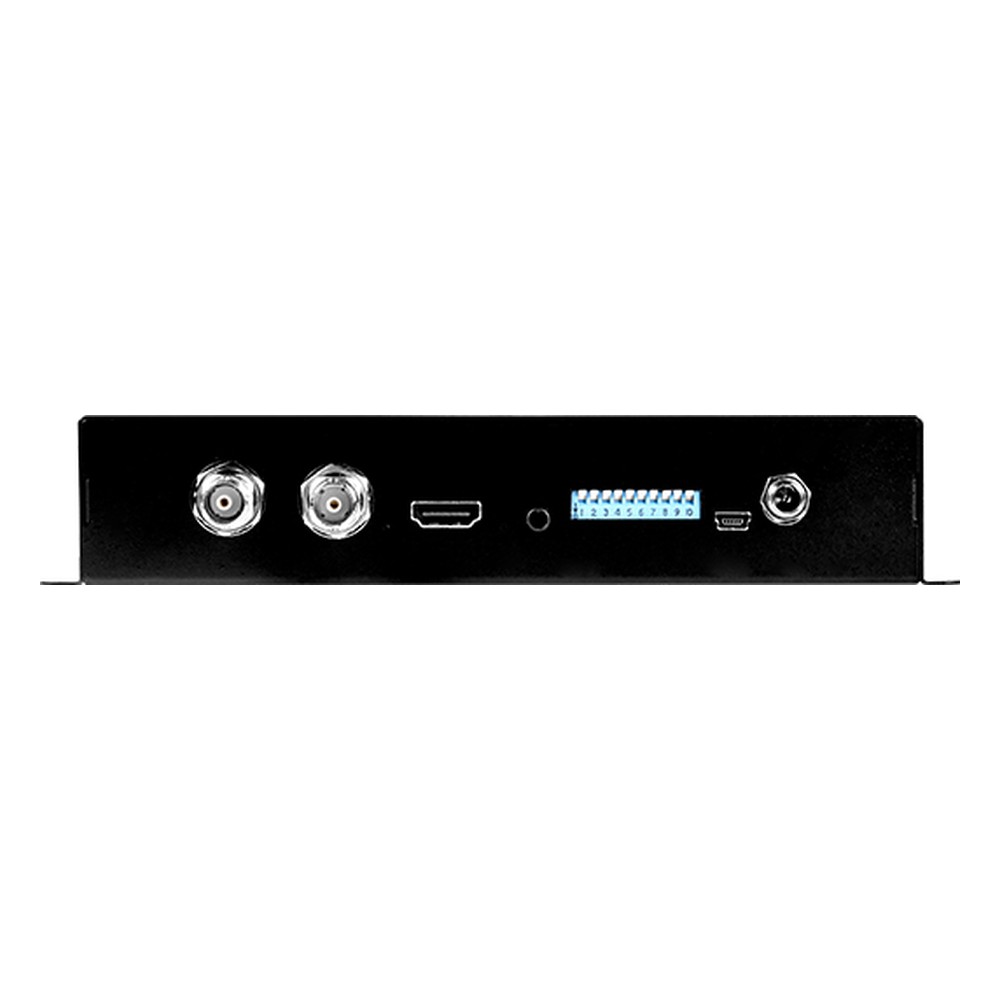

Inputs are four SDI connections accepting quad-link SDI at 4096×2160 and 3840×2160 at 60/50 fps, in two-sample interleave or square division, dual-link SDI at 4K30, and 3G, HD and SD-SDI. Outputs are one HDMI 2.0 and two 12G-SDI, scaled up or down. 12G-SDI runs at 4K60, 6G-SDI at 4K30 and HD formats below, while HDMI 2.0 also reaches PC formats from 640×480 to 1280×1024. A stereo jack outputs two channels of analogue audio. HDMI carries eight channels at up to 192 kHz, and SDI up to eight channels at 48 kHz.
The QSDI to 12G-SDI/HDMI2.0-S is plug and play with auto source format detection and a 7.5 to 15 V DC input. For the opposite direction, the 12G-SDI/HDMI2.0 to QSDI-S turns 12G-SDI or HDMI 2.0 into quad-link SDI. If you need SDI only without scaling, the QSDI to 12G-SDI merges quad-link into 12G-SDI with 16-channel audio.
No operating temperature or certification is published, so we treat it as a rack or desk unit. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. We supply the QSDI to 12G-SDI/HDMI2.0-S configured and tested with the sources, displays and SDI routing on your system.
QSDI to 12G-SDI/HDMI2.0-S Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan QSDI to 12G-SDI/HDMI2.0-S |
| Video Capture | |
| Video Input | 4x SDI |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x HDMI2.0 2x 12G-SDI |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x 3.5mm Audio Output 1x HDMI Embedded Audio Output 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 180mm x 76mm x 36mm (7.09" x 2.99" x 1.42") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the QSDI to 12G-SDI/HDMI2.0-S configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the 12G-SDI/HDMI2.0 to QSDI-S performs the reverse conversion, and the QSDI to 12G-SDI converts quad-link to 12G-SDI without HDMI or scaling.
Across our range, the QSDI to 12G-SDI/HDMI2.0-S sits with our SDI and HDMI converters, our 12G-SDI capture cards and our HDMI 2.0 capture cards.
