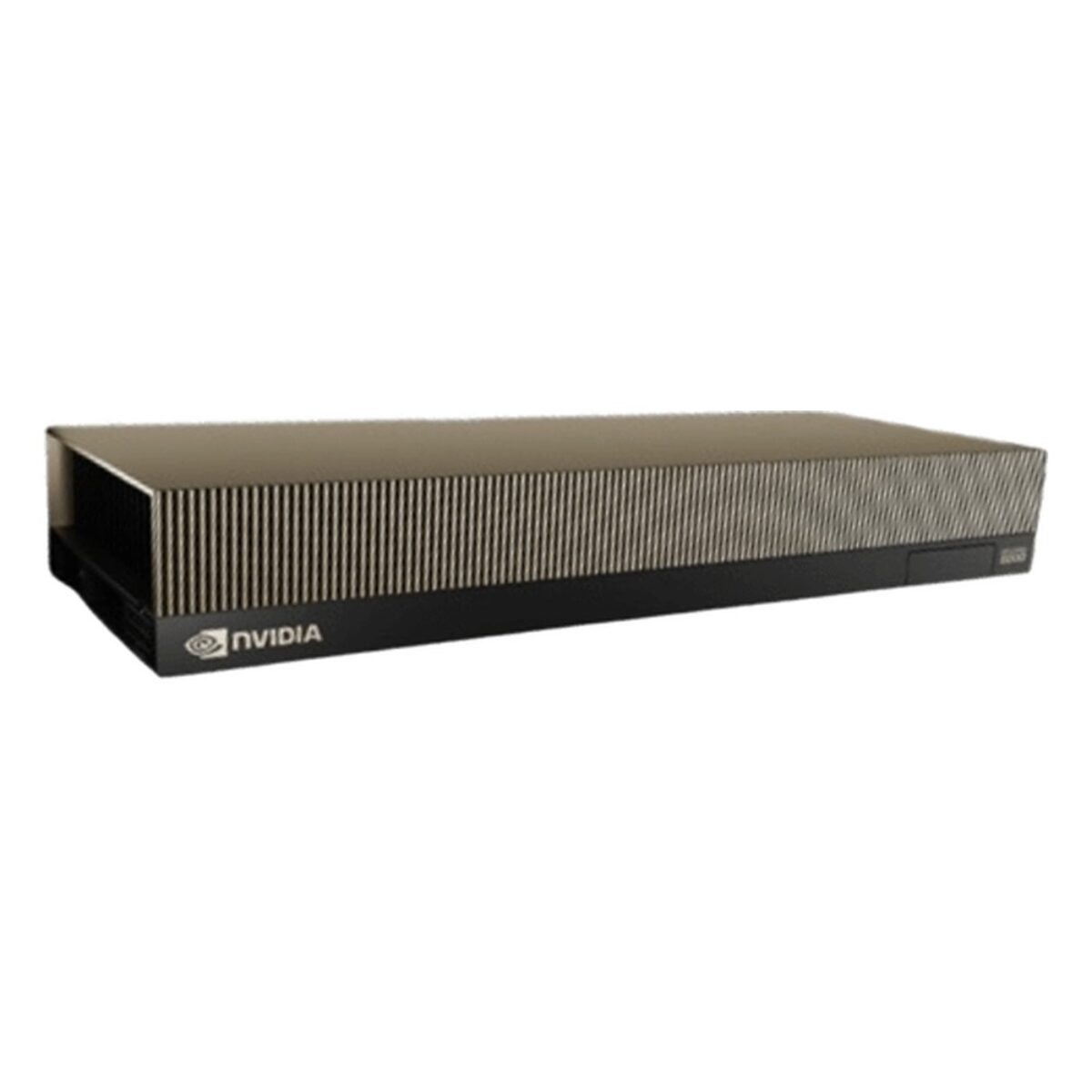

Advantech SKY-TESL-6000BS-96 NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB Data Centre GPU with Passive Cooling and PCIe 5.0

Some AI and visualisation jobs need a large memory pool and full Blackwell compute inside a rack server rather than a desktop tower. The SKY-TESL-6000BS-96 is the NVIDIA RTX PRO 6000 Blackwell Server Edition as supplied by Advantech, a passive data centre GPU engineered for high-density servers. Advantech positions it for multimodal AI inference, complex rendering and scientific computing across data centre, edge and cloud deployments.

The GPU carries 24,064 CUDA cores, 752 fifth-generation Tensor Cores with FP4 precision and 188 fourth-generation RT Cores, for 120 TFLOPS of FP32 performance. Memory is 96 GB of GDDR7 with ECC on a 512-bit interface, giving 1,597 GB/s of bandwidth, which can keep large models and detailed scenes on a single card. Multi-Instance GPU splits the SKY-TESL-6000BS-96 into up to four instances of 24 GB each, so several inference services can share one accelerator with their own memory.

The card connects over PCIe 5.0 x16 and draws up to 600 W through one PCIe CEM5 16-pin connector. It also keeps four DisplayPort 2.1 outputs, alongside four NVENC and four NVDEC engines for video encode and decode. It is a dual-slot, full-height card with passive cooling, so it relies on the server’s own airflow, and it is rated for 10 °C to 45 °C operation.

We supply the SKY-TESL-6000BS-96 tested, and we fit, configure and burn-in test it in the GPU servers we build, with chassis airflow, power and cabling checked for a 600 W card. The SKY-QUAD-6000B-96 is the Workstation Edition of the same GPU with a double flow-through cooler, the SKY-QUAD-6000QB-96 is the 300 W Max-Q version, and the single-slot SKY-TESL-4500BS-32 is the 165 W Server Edition for denser, lower-power servers.
