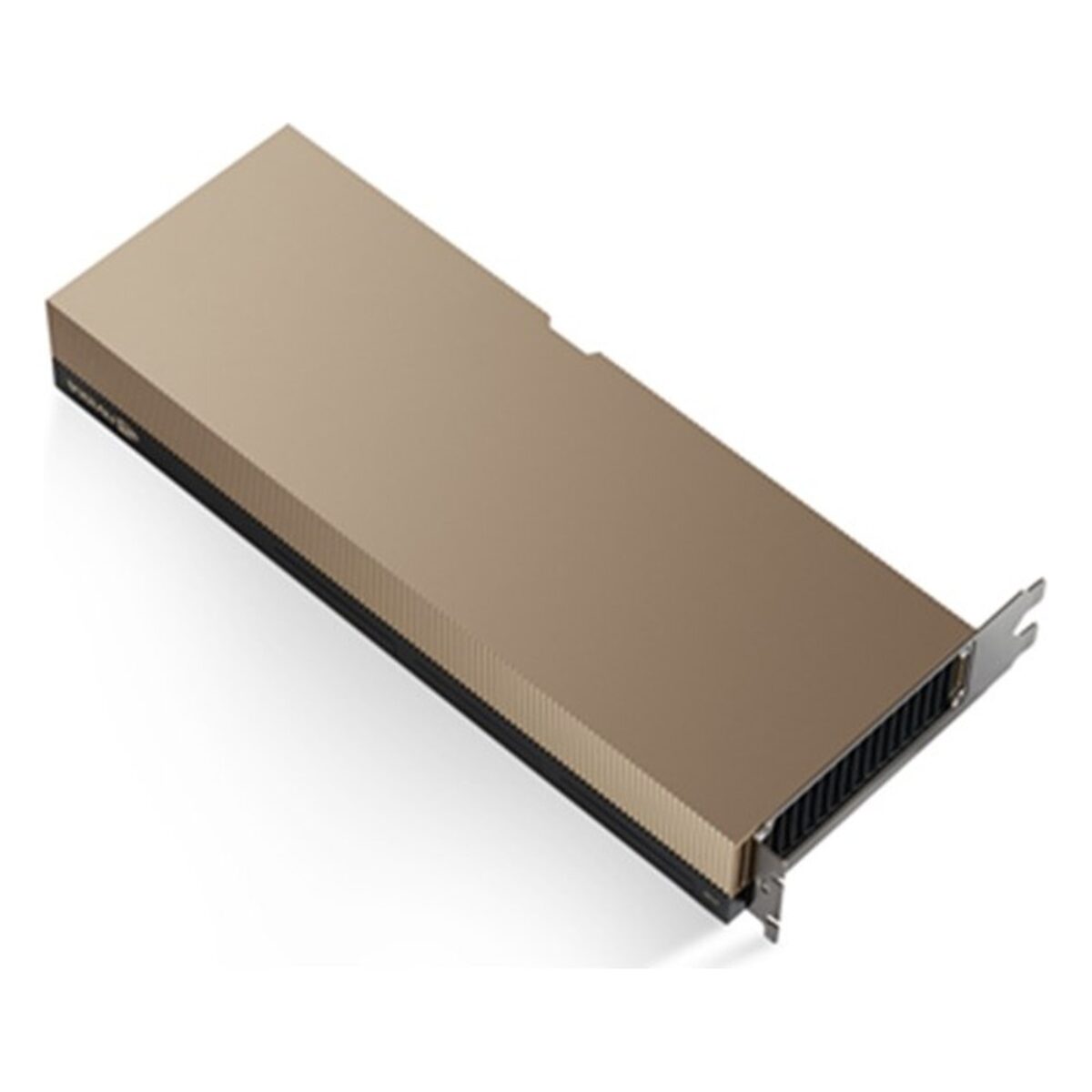

Advantech SKY-TESL-H100-80P NVIDIA H100 PCIe 80GB HBM2e Data Centre GPU Card with Up to Seven MIG Instances
PCI ExpressSKY-TESL-H100-80P Overview
Not every AI or HPC rack can feed a 600 W card in every slot. The SKY-TESL-H100-80P is the NVIDIA H100 PCIe from Advantech, a compute-optimised data centre GPU on the Hopper architecture with 80 GB of HBM2e and a maximum draw of 350 W. It is a passive, dual-slot card for lower-power, air-cooled enterprise rack designs, and suits generative AI and high-performance computing (HPC) workloads.
The GPU has 14,592 CUDA cores and 456 fourth-generation Tensor Cores, rated at 48 TFLOPS FP32 and 24 TFLOPS FP64, with fast FP64 for double-precision codes. Its 80 GB of HBM2e with ECC runs at 2 TB/s. Second-generation Multi-Instance GPU can divide the SKY-TESL-H100-80P into up to seven instances with partitioned hardware and guaranteed quality of service, so one card can serve several teams or inference services. Seven JPEG decoders and seven video decoders handle image and video ingest.
The card connects over PCI Express 5.0 x16 and takes power through a 16-pin PCIe connector. It is headless and full height, with a passive heatsink that relies on the server’s airflow. Two cards can be linked with three NVLink bridges at 600 GB/s, using the optional SKY-QUAD-NVL-2A for dual-slot spacing or SKY-QUAD-NVL-3A for three-slot spacing. NVIDIA’s NGC catalogue supplies software, libraries and optimised AI models.
We supply the SKY-TESL-H100-80P tested, and fit, configure and burn-in test it in the GPU servers we build, with airflow, power and any NVLink bridges checked before delivery, and we can help size the card count to the power and cooling available. The SKY-TESL-H100N-94P is the H100 NVL with 94 GB of HBM3 at 400 W, and the SKY-TESL-H200N-141 moves to 141 GB of HBM3e for larger models.
SKY-TESL-H100-80P Specifications
| Overview | |
|---|---|
| Brand & Model | Advantech SKY-TESL-H100-80P |
| Performance | |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | H100 PCIe |
| AI Performance | 3026 |
| GPU Family | NVIDIA Data Center |
| GPU Architecture | NVIDIA Hopper |
| PCIe Gen Support | PCIe 5.0 |
| Mechanical Properties | |
| Dimensions | 267mm x 112mm (10.50" x 4.40") |
- SKY-TESL-H100-80P Datasheet Download
Official Advantech UK Distributor
Things Embedded is an official Advantech UK distributor, and we supply the SKY-TESL-H100-80P tested, and fit, configure and burn-in test it in the GPU computers and servers we build. Within the Advantech range, the SKY-TESL-H100N-94P is the H100 NVL with 94 GB of HBM3 and 60 TFLOPS FP32 at 400 W.
Across our range, the SKY-TESL-H100-80P sits with our data centre GPUs, NVIDIA GPU range and edge AI servers.
