Antaira LMP-1002G-10G-SFP-24 10-Port 10G Managed Industrial Ethernet Switch with 8x PoE+, 2x 10G SFP+, 12-55V DC and Extended Temperature

An edge cabinet that collects eight gigabit cameras or controllers can push more traffic than a single gigabit uplink comfortably carries. The LMP-1002G-10G-SFP-24 from Antaira is a 10-port industrial managed switch for that job: eight gigabit PoE+ ports for local devices and two 1G/10G SFP+ slots for high-bandwidth fibre links back to the core or around a ring.

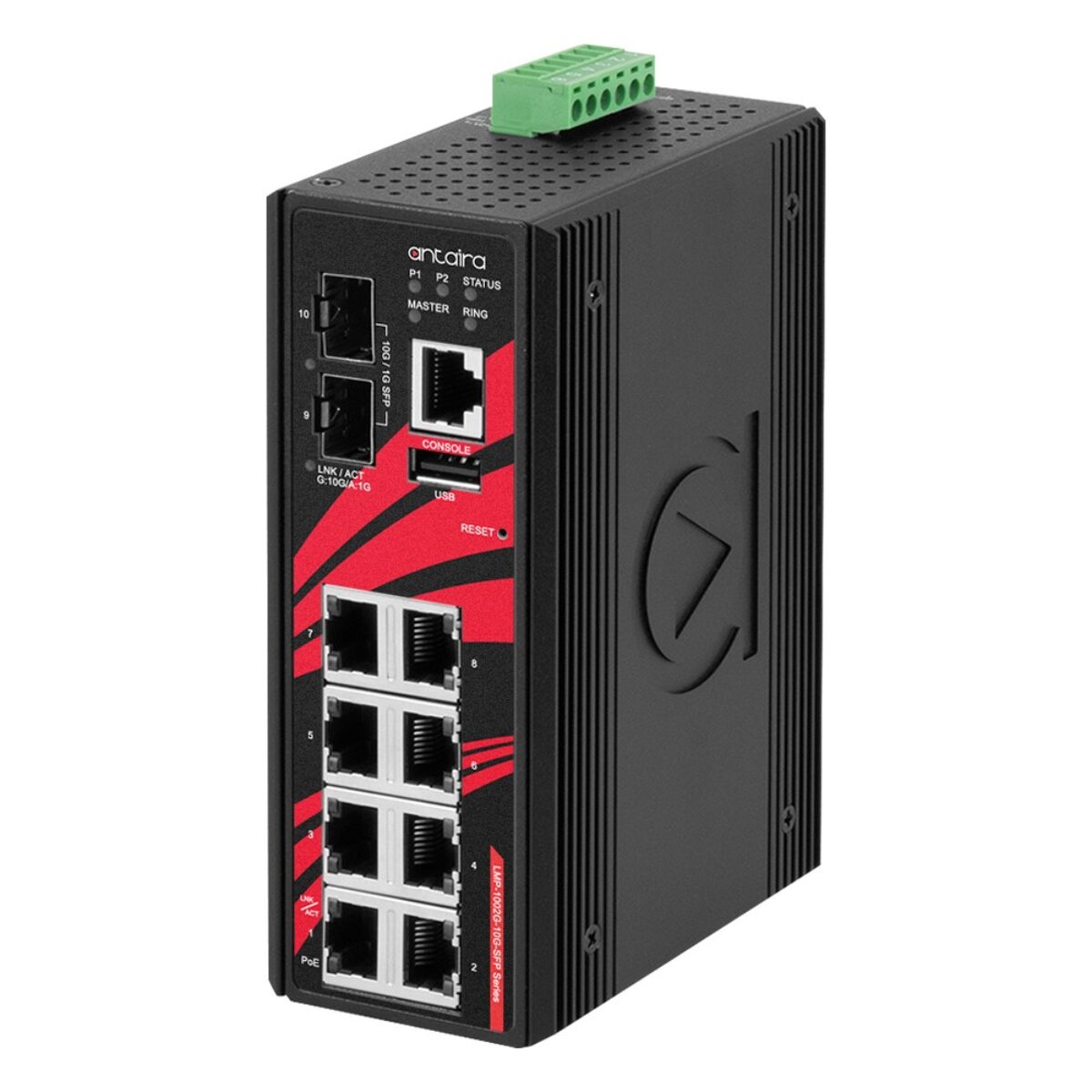

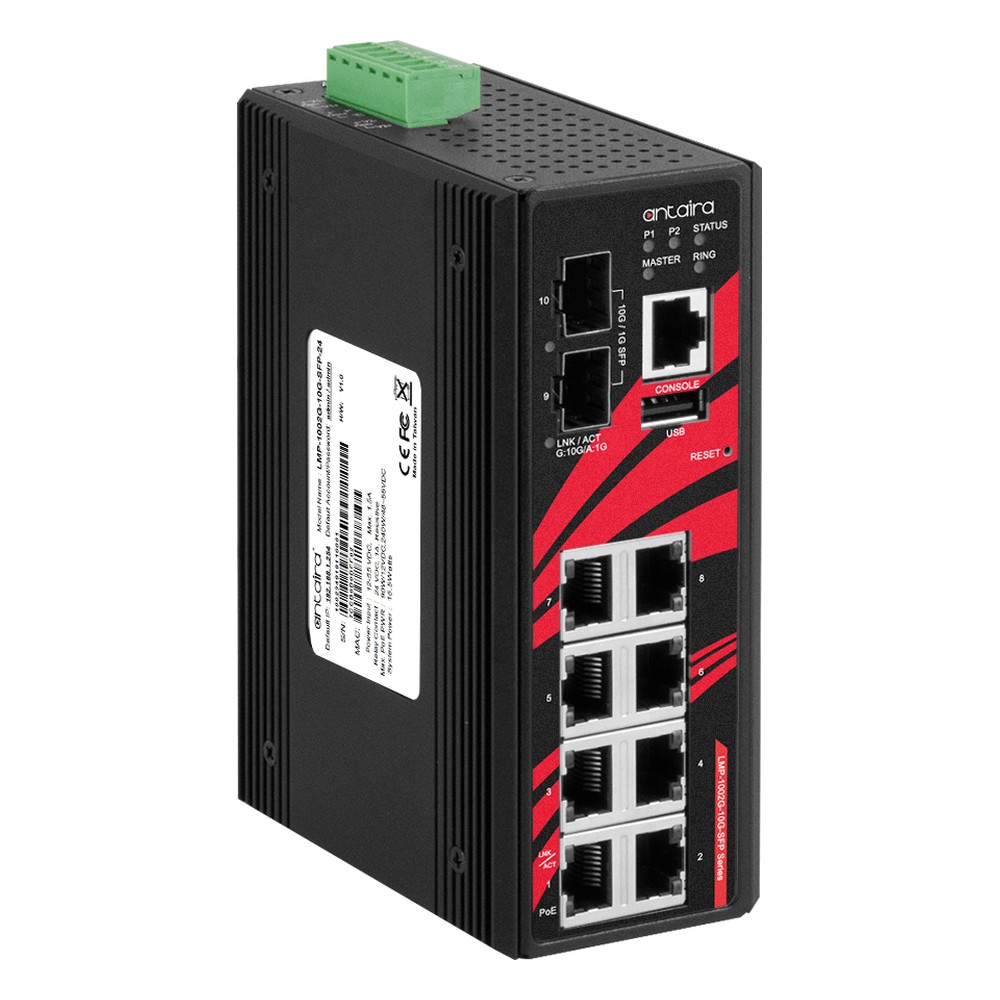

It has eight 10/100/1000Base-TX RJ45 ports with IEEE 802.3af/at PoE+ at up to 30 W each and two dual-rate 1G/10G SFP+ slots, on a 56 Gbps store-and-forward fabric with a 16K MAC table, 8 Mbit packet buffer and 9.6 KB jumbo frames. Management is Layer 2+: VLANs, QoS with IEEE 802.1p and DSCP, IGMP snooping, LACP and SNMP v1/v2c/v3, plus static routes and DHCP Option 82. Ring redundancy uses ITU-T G.8032 ERPS with recovery in under 50 ms alongside STP, RSTP and MSTP, and Modbus TCP supports SCADA monitoring.

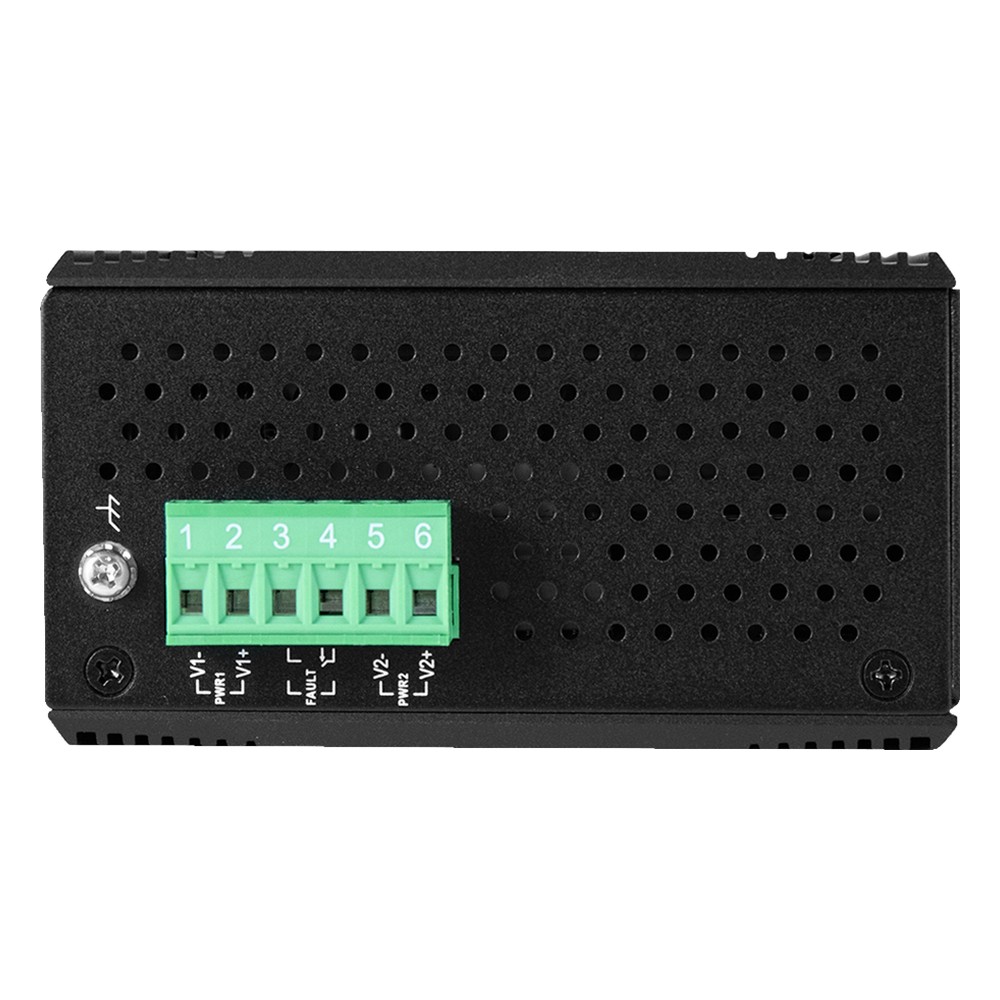

Power comes in on 12 V to 55 V DC redundant inputs through a removable 6-pin terminal block, and the PoE budget depends on input voltage: 90 W at 12 V DC, 180 W at 24 V DC and 240 W from 36 V to 55 V DC. Reverse polarity and overload current protection are built in, along with high EFT and ESD protection, and a 24 V DC, 1 A relay contact can signal a fault or power loss. The switch draws 15.5 W before PoE loads.

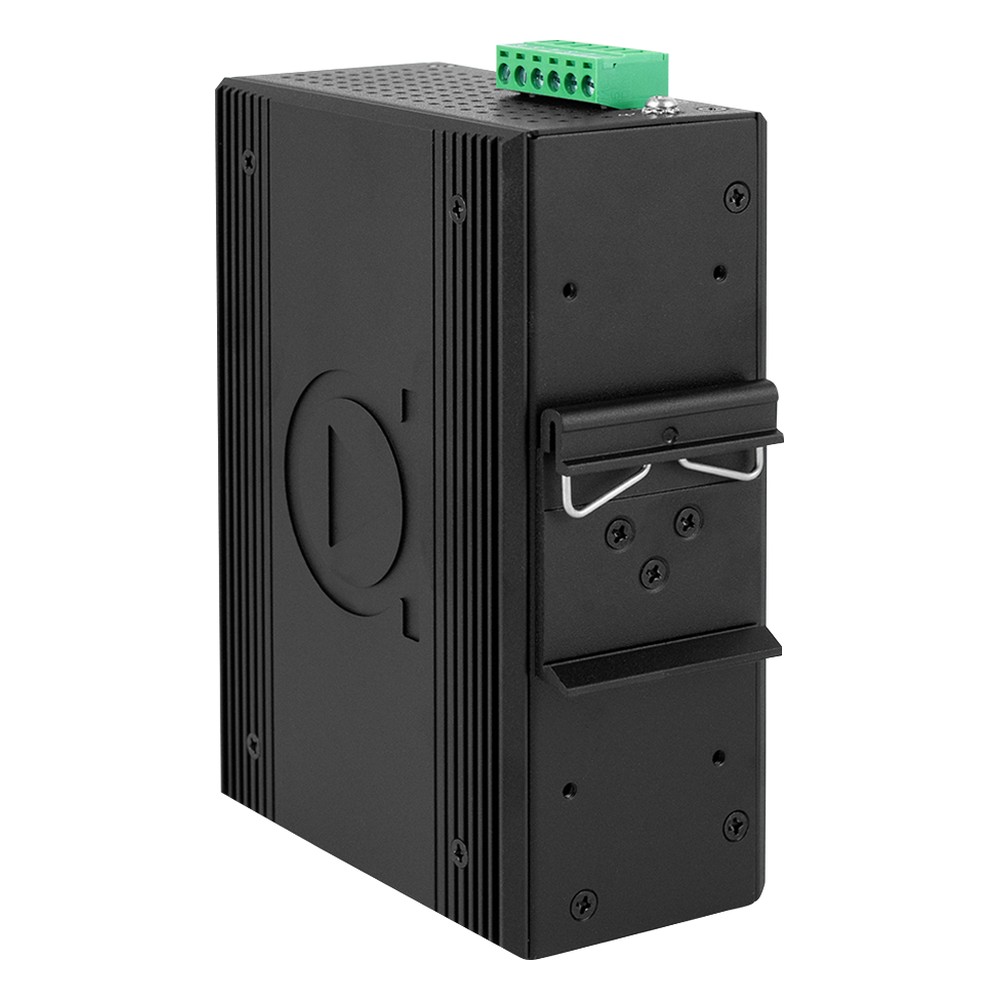

The LMP-1002G-10G-SFP-24 operates from -40 °C to 60 °C in an IP30 metal housing for DIN-rail or wall mounting, and Antaira names factory automation, ITS, power and utility and water treatment among its applications. Antaira lists FCC, CE and UL 61010-1 certifications with RoHS compliance, and the switch is covered by Antaira’s 5-year warranty. The LMP-1002G-10G-SFP is the related 10G model in the range, and the LMP-1002G-SFP-24 offers 100/1000 SFP uplinks on the same input range. We supply the LMP-1002G-10G-SFP-24 and can pre-configure IP addressing, VLANs and ring settings before it ships.
