Antaira LMX-C602G-SFP-T-V2 6-Port Compact Gigabit Managed DIN Rail Ethernet Switch with 2x SFP and Extended Temperature
Fanless
Extended Temp
CE
FCCLMX-C602G-SFP-T-V2 Overview
Roadside ITS, water and utility cabinets often have little rail space left and no heater, yet still need a managed switch with fibre to join the wider network. The LMX-C602G-SFP-T-V2 is the extended temperature build of the Antaira LMX-C602G-SFP-V2 series: a small six-port Light Layer 3 managed DIN rail switch, rated -40 °C to 75 °C.

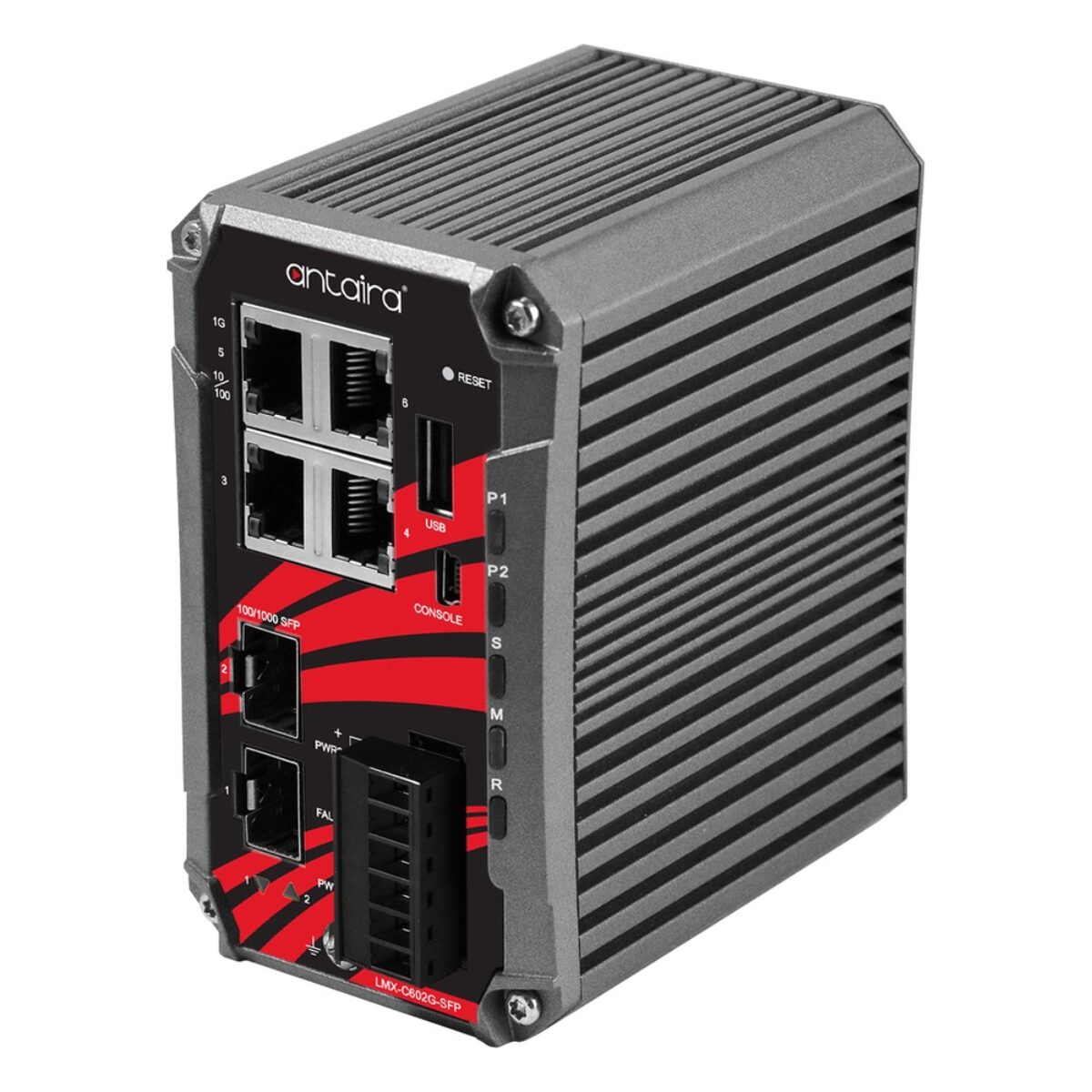

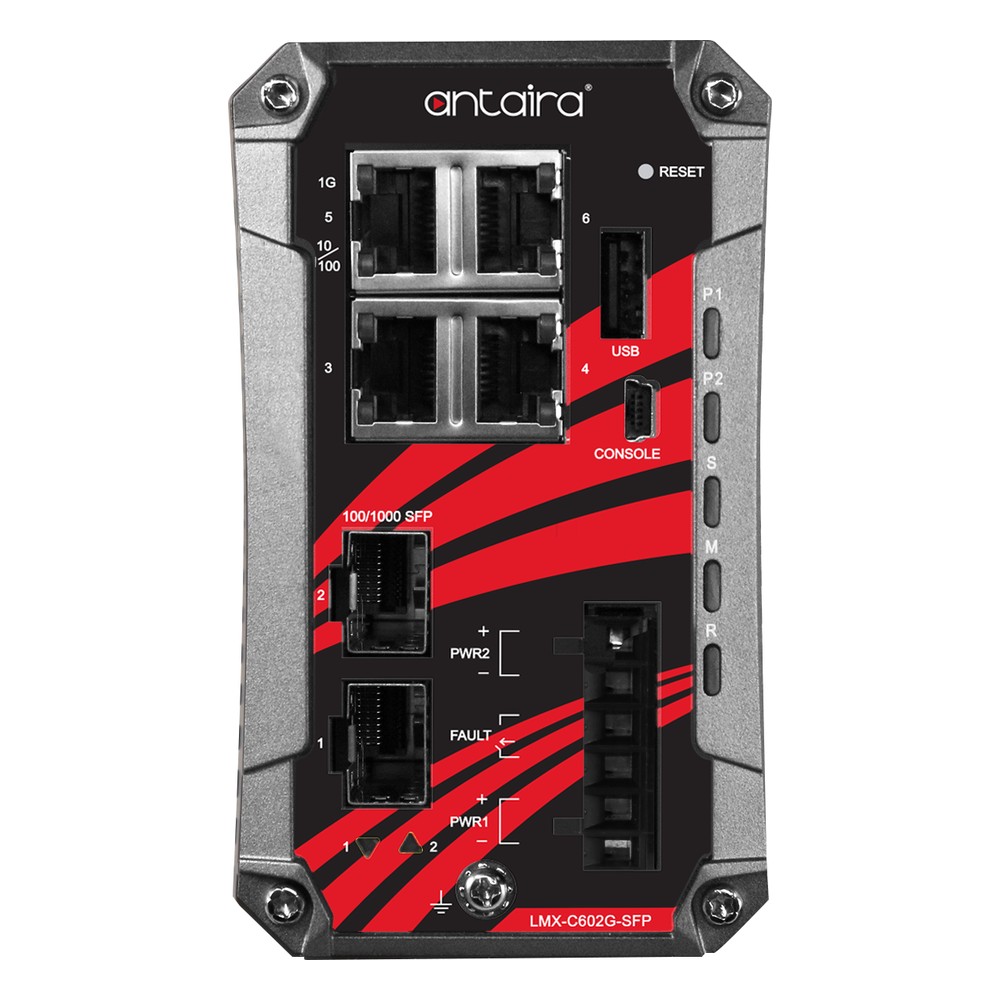

Four 10/100/1000Tx RJ45 ports with auto MDI/MDI-X serve local devices, and two 100/1000 dual-rate SFP slots take fibre transceivers, enough to place the switch on a fibre ring or run two fibre links. Switching is store-and-forward on a 12 Gbps fabric with an 8K MAC table, eight priority queues and 9.6K jumbo frames. ITU-T G.8032 ERPS restores a broken ring in under 50 ms, with STP, RSTP and MSTP, and all connections face the front for easier cabling in a space-saving install.
Light Layer 3 on the LMX-C602G-SFP-T-V2 means static routes and DHCP option 82, alongside VLAN, QoS, IGMP v1/v2/v3, LACP, LLDP, RMON and Modbus TCP, with 802.1X, SNMP v3, HTTPS and SSH securing access. Power arrives on redundant 12 to 48 V DC inputs through a removable 6-contact terminal block, and the switch draws 10.8 W with overload current and reverse polarity protection. A 24 V DC, 1 A relay contact flags faults, and the console uses a mini USB type B connector.
The LMX-C602G-SFP-T-V2 operates from -40 °C to 75 °C and stores from -40 °C to 85 °C, so it suits unheated outdoor enclosures. It sits in an IP40 metal housing for DIN rail or wall mounting, with IEC 60068-2-27 shock and IEC 60068-2-6 vibration listed, FCC and CE marks, RoHS compliance and Antaira’s 5-year warranty. The LMX-C602G-SFP-V2 is the standard temperature build rated -10 °C to 65 °C, and the LMP-C602G-SFP-bt-V2 adds 802.3bt PoE++ to the four copper ports. We can pre-configure addressing, VLANs and ring settings.
LMX-C602G-SFP-T-V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Antaira LMX-C602G-SFP-T-V2 |
| Features | Compact Fanless Industrial Managed Ethernet Switch |
| Networking | |
| Switching Layer | Layer 2+ |
| Switch Type | Managed |
| Ethernet Ports | 4x 10/100/1000 BASE-TX [RJ45] |
| Number of Ethernet Ports | 4x Ethernet Ports |
| Number of Fiber Ports | 2x 100/1000 [SFP] |
| Networking Standards | IEEE 802.1AB LLDP IEEE 802.1D Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1X Port-Based Network Access Control IEEE 802.3 10BaseTx Ethernet IEEE 802.3ab 1000BaseTx Gigabit Ethernet IEEE 802.3ad Link Aggregation IEEE 802.3az Energy Efficient Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3x Back Pressure Flow Control IEEE 802.3z Gigabit Fiber ITU-T G.8032 ERPS |
| Power | |
| Power Input | 12-48V DC, Terminal Block |
| Environmental Conditions | |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP40 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Certification | CE FCC RoHS |
| Mechanical Properties | |
| Weight | 0.9 Kg (1.9 Lbs) |
| Dimensions | 65mm x 110mm x 90mm (2.56" x 4.33" x 3.54") |
| Mounting Options | DIN Mount Wall Mount |
Official Antaira UK Distributor
Things Embedded is an official Antaira UK distributor, and we supply the LMX-C602G-SFP-T-V2 with matching SFP transceivers and a DIN-rail power supply, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the LMX-C602G-SFP-V2 standard temperature build rated -10 to 65 °C.
Across our range, the LMX-C602G-SFP-T-V2 sits with our managed industrial switches, industrial Ethernet switches and Ethernet switch range.
