Antaira LNP-0802-M-24-T 8-Port 10/100 Unmanaged Industrial PoE Switch with 6x PoE+, 2x 100FX SC Multi-mode Fibre, 12-36V DC and -40 to 75 °C
Fanless
Extended Temp
CE
FCC
UL Class 1 Division 2LNP-0802-M-24-T Overview

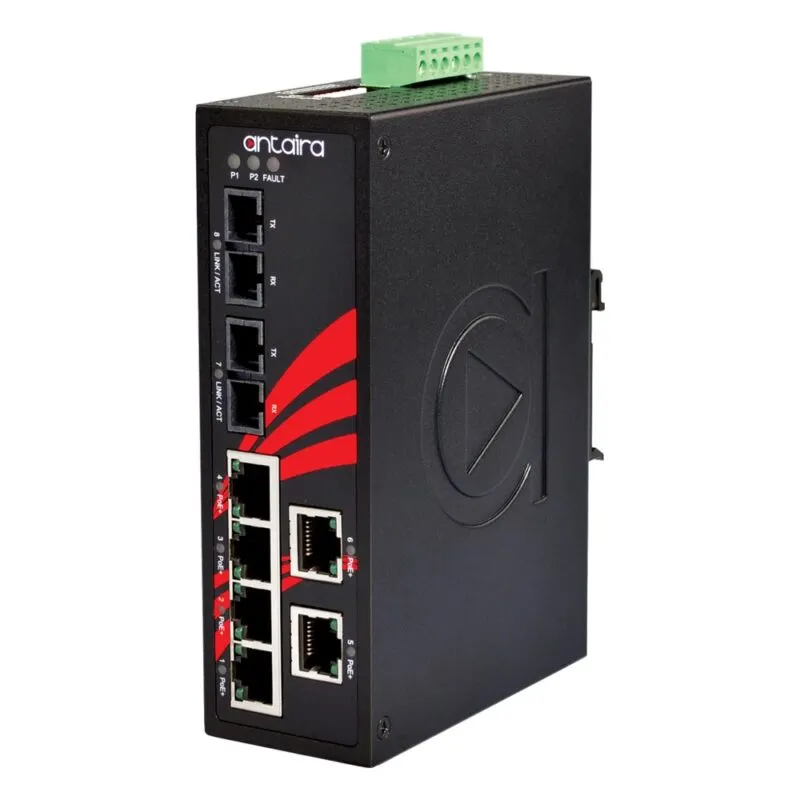

A fibre run between buildings or along a long cable route, PoE+ power for devices at the far end, and only a 12 or 24 V DC supply in the cabinet is an awkward combination for most switches. The LNP-0802-M-24-T is the multi-mode, extended temperature build in the Antaira LNP-0802-24 series: an 8-port unmanaged PoE+ switch with six PoE+ copper ports and two 100Base-FX multi-mode SC fibre ports, up to 2 km. Antaira positions the series for mobile PoE applications and other low-voltage power environments.

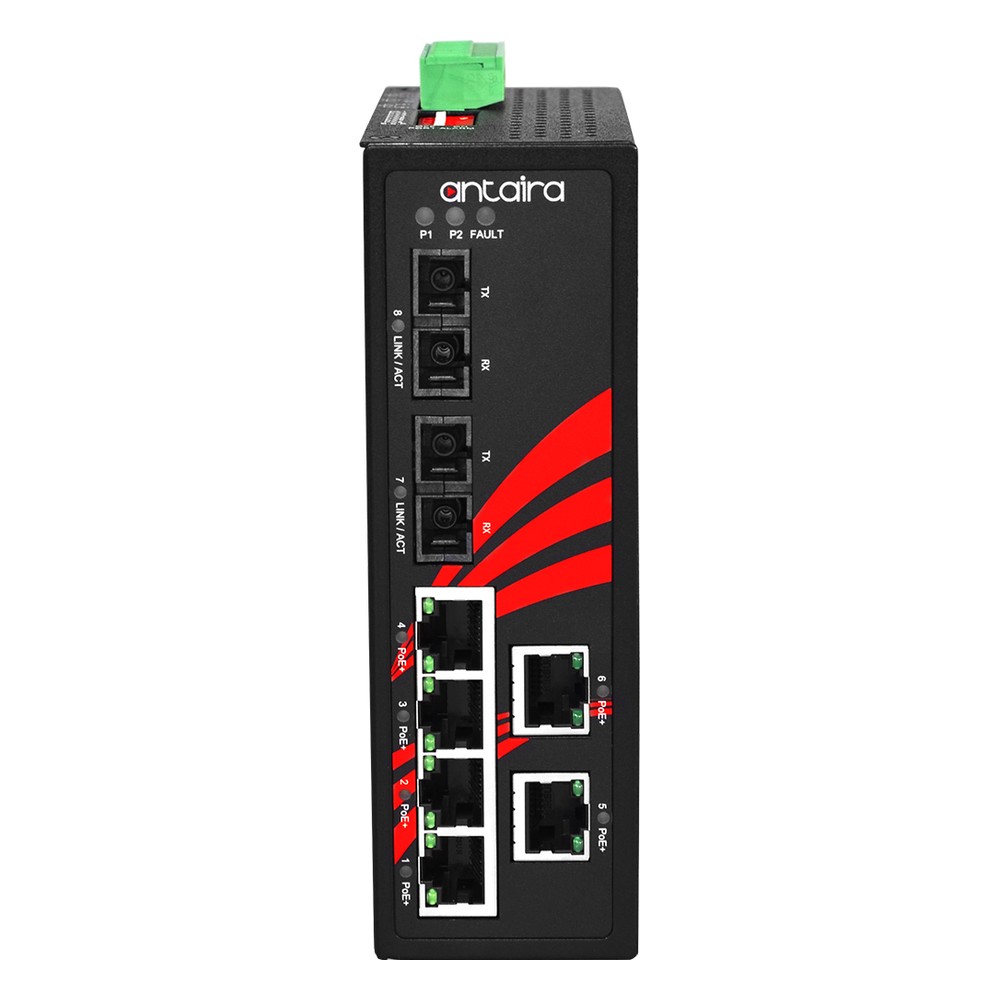

It has six 10/100Base-TX RJ45 ports with IEEE 802.3at PoE+ at up to 30 W each, plus two 100Base-FX multi-mode SC fibre ports, up to 2 km at 1310 nm. Switching is unmanaged and store-and-forward, on a 1 Gbps switching fabric with a 2K MAC address table, IEEE 802.3x flow control, auto MDI/MDI-X and broadcast storm protection. There is nothing to set up: traffic flows as soon as the switch is powered.

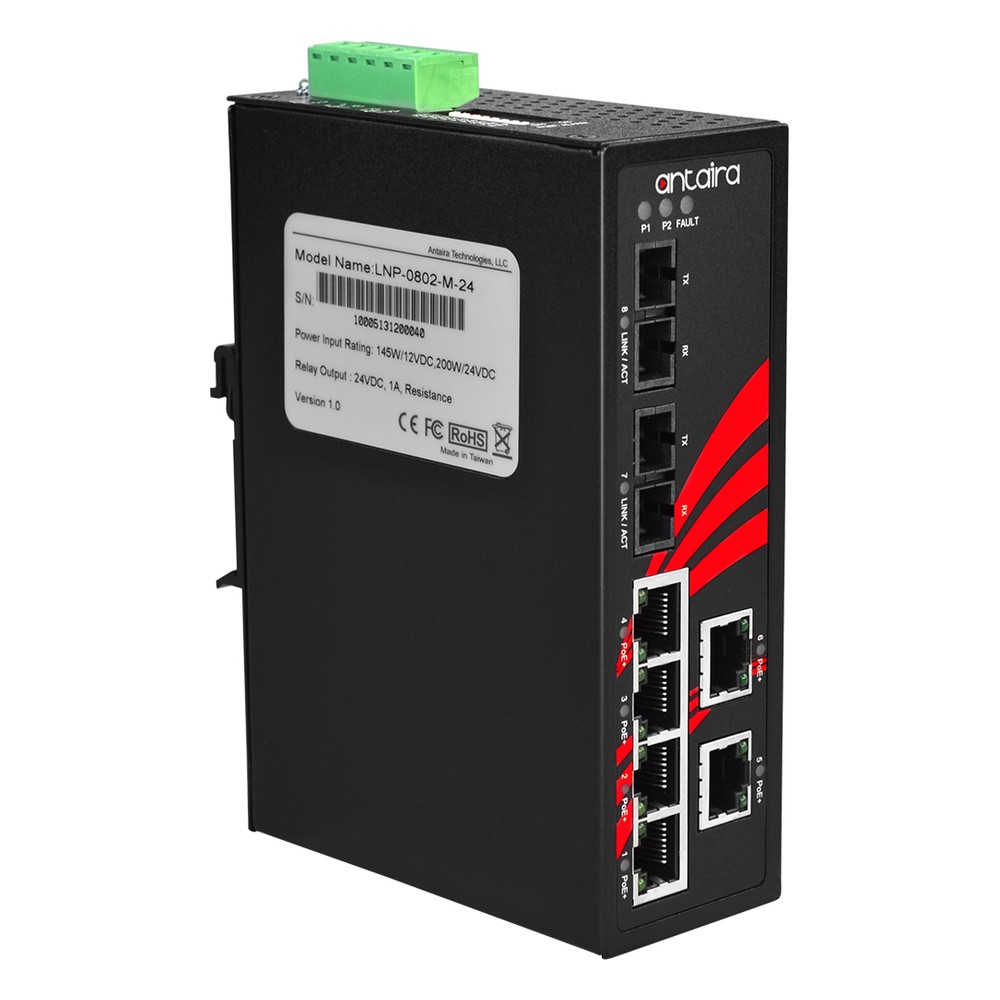

Power arrives on 12 to 36 V DC redundant inputs on a removable terminal block, and a built-in voltage booster lifts that to a full 48 V DC PoE supply. Antaira gives full-load consumption as 145 W at 12 V DC and 200 W at 24 V DC, so the usable PoE power depends on input voltage. One relay output gives a port break alarm to a PLC or alarm panel. Surge protection to 2,000 V DC, ESD protection to 6,000 V DC, reverse polarity and overload protection are built in.

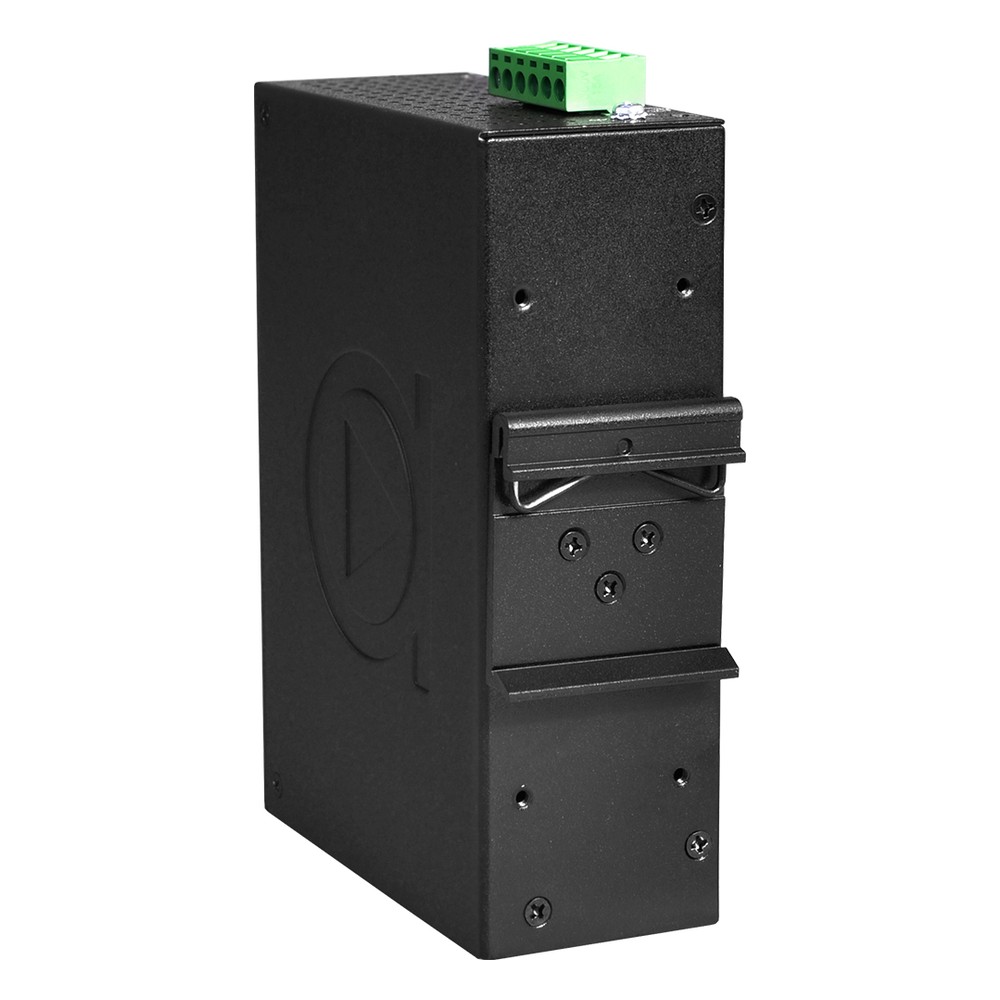

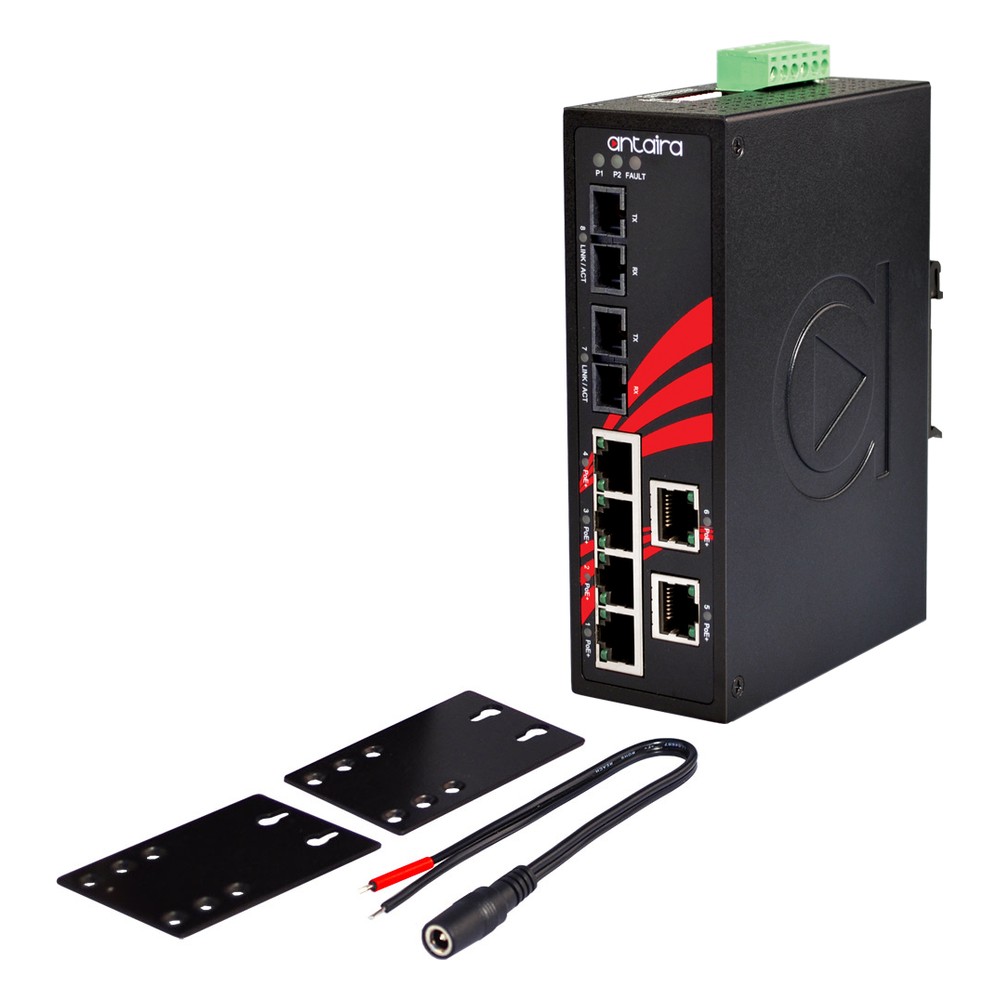

The LNP-0802-M-24-T operates from -40 °C to 75 °C in an IP30 aluminium case for DIN-rail mounting, with an optional wall-mount kit. Shock and vibration are rated to IEC 60068-2-27 and IEC 60068-2-6. Antaira lists it as UL Class 1 Division 2 certified, with CE and FCC marks and RoHS compliance, and it is covered by Antaira’s 5-year warranty. The LNP-0802-M-24 is the standard build rated -10 °C to 70 °C, the LNP-0802-S3-24-T uses single-mode fibre for runs up to 30 km, and the LNP-0602-M offers four PoE+ ports and two fibre ports on a 48 V supply.
LNP-0802-M-24-T Specifications
| Overview | |
|---|---|
| Brand & Model | Antaira LNP-0802-M-24-T |
| Features | Fanless Industrial |
| Networking | |
| Switch Type | Unmanaged |
| Ethernet Ports | 6x 10/100 BASE-TX [PoE+] [RJ45] |
| Number of Ethernet Ports | 6x Ethernet Ports |
| PoE Standard | PoE+ 30W [802.3at] |
| Number of Fiber Ports | 2x 100FX [SC] [Multi-mode] |
| Networking Standards | IEEE 802.3 10BaseTx Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3x Back Pressure Flow Control |
| Power | |
| Power Input | 12-36V DC Input [Terminal Block] |
| Environmental Conditions | |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Certification | CE FCC RoHS UL Class 1 Division 2 |
| Mechanical Properties | |
| Weight | 0.8 Kg (1.7 Lbs) |
| Chassis Material | Aluminium |
| Dimensions | 46mm x 142mm x 99mm (1.81" x 5.59" x 3.90") |
| Mounting Options | DIN Mount Wall Mount |
Official Antaira UK Distributor
Things Embedded is an official Antaira UK distributor, and we supply the LNP-0802-M-24-T with a matching DIN-rail power supply. Within the Antaira range, the LNP-0802-S3-24-T single-mode fibre for longer runs at the same temperature rating.
Across our range, the LNP-0802-M-24-T sits with our more industrial PoE switches, other unmanaged switches and the full industrial switch range.
