Antaira LNX-0501-M-T 5-Port Fast Ethernet Unmanaged Industrial Ethernet Switch with 1x 100FX SC Multi-mode Fibre and -40 to 75 °C
Fanless
Extended Temp
CE
FCC
UL Class 1 Division 2LNX-0501-M-T Overview

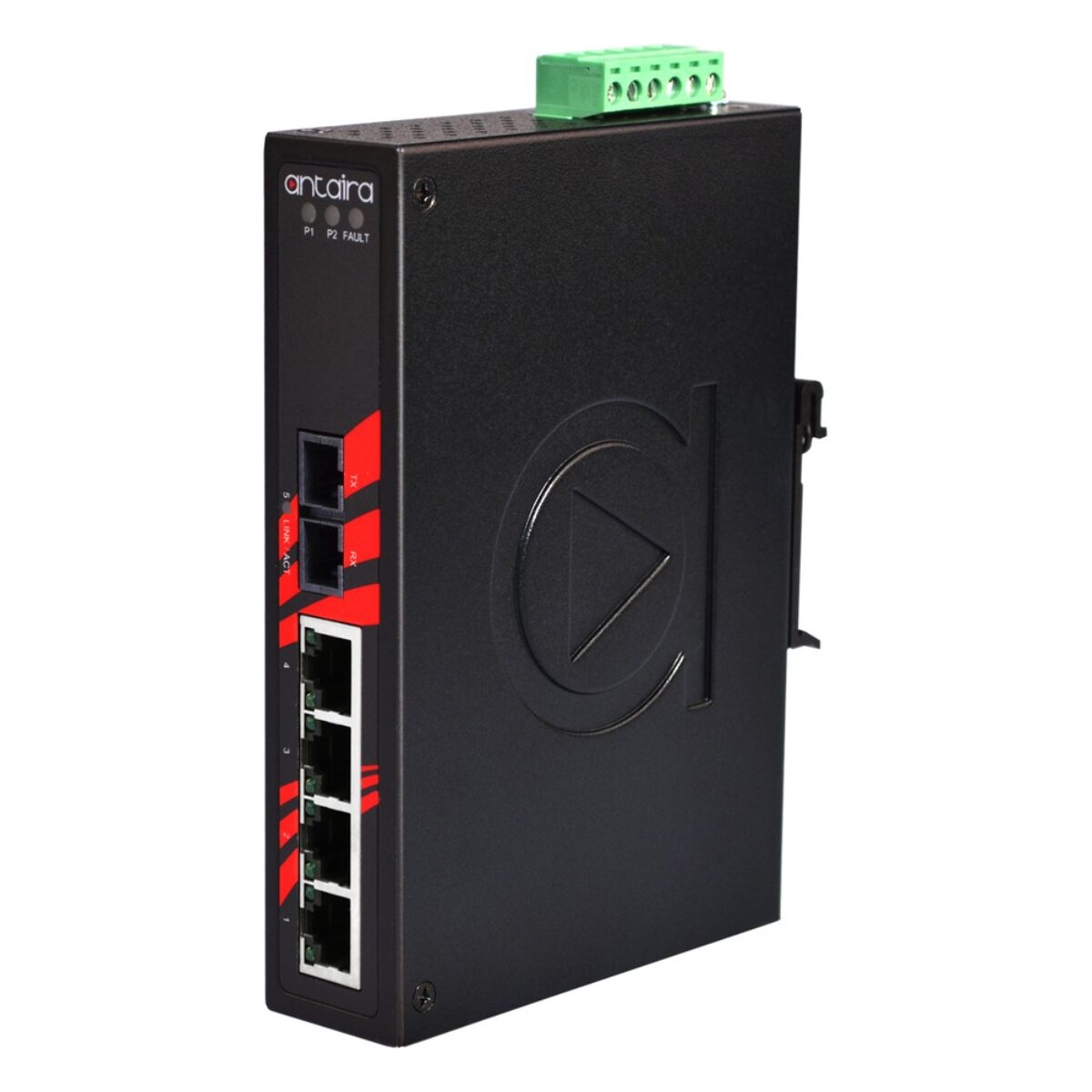

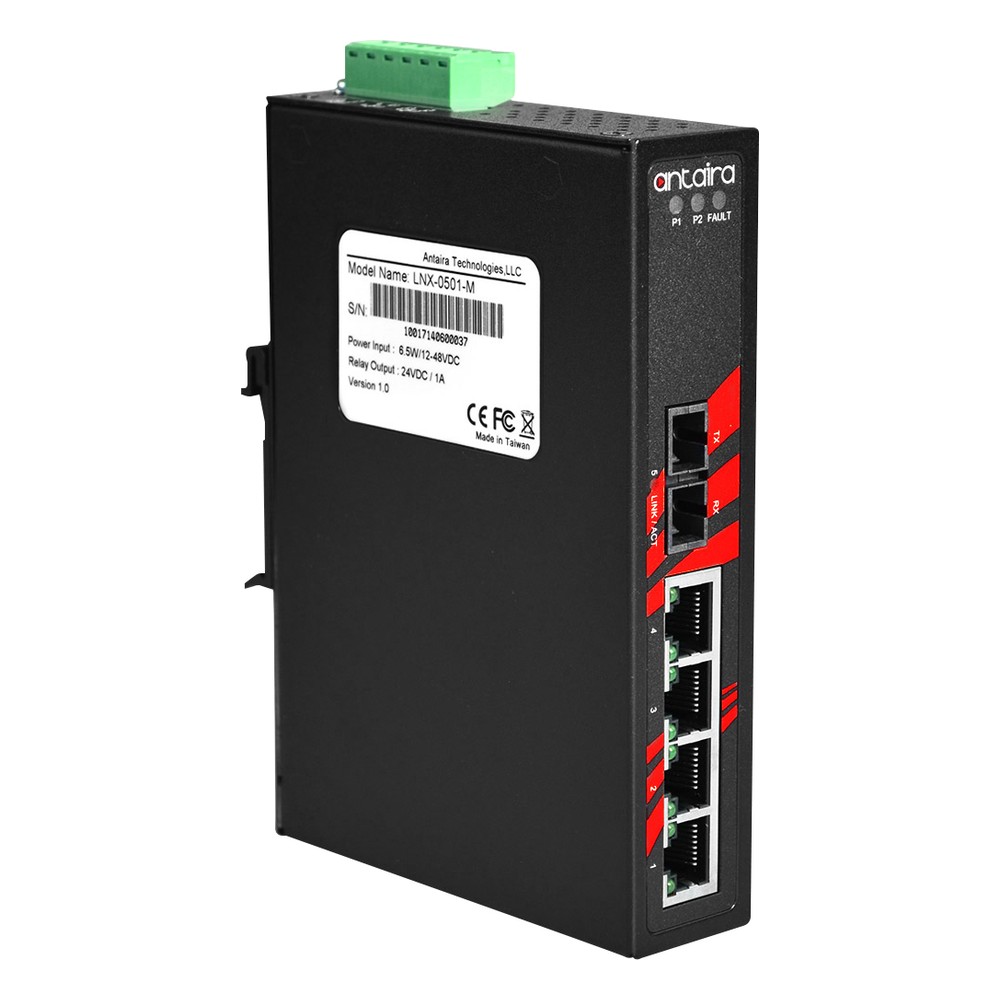

Copper Ethernet stops at 100 m, so a machine or panel at the far end of a site, or one near heavy electrical plant, often needs a fibre link back to the network core. The LNX-0501-M-T is the multi-mode SC, extended temperature build in the Antaira LNX-0501 series: an unmanaged industrial Ethernet switch with four copper Fast Ethernet ports and one fixed 100Base-FX fibre port, rated -40 °C to 75 °C.

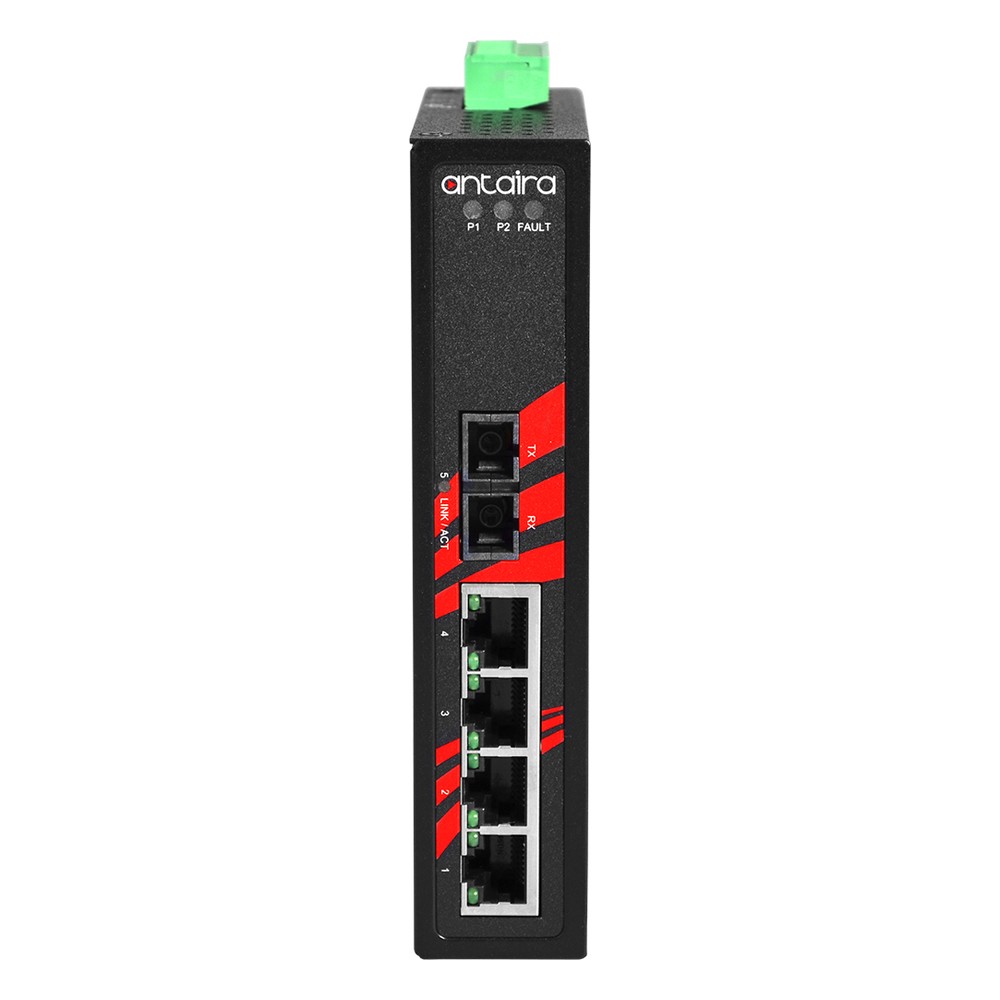

The four 10/100Base-T(X) RJ45 ports support auto-negotiation and auto MDI/MDI-X for local devices. The fibre port uses multi-mode fibre (50/125 to 62.5/125 µm) with an SC connector at 1310 nm and reaches up to 2 km, and because the optic is built in, there is no SFP module to choose or fit. Switching is store-and-forward on a 1.0 Gbps fabric with a 2K MAC address table, IEEE 802.3x flow control and broadcast storm protection.
Power arrives on redundant 12 to 48 V DC inputs on a removable 6-pin terminal block, with reverse polarity protection and a slow-blow fuse, and the switch draws 6.5 W. Antaira rates surge protection to 2,000 V DC and ESD protection to 6,000 V DC. One relay output signals a power failure or port break, so a PLC or alarm panel can flag a cable fault before anyone notices lost data.

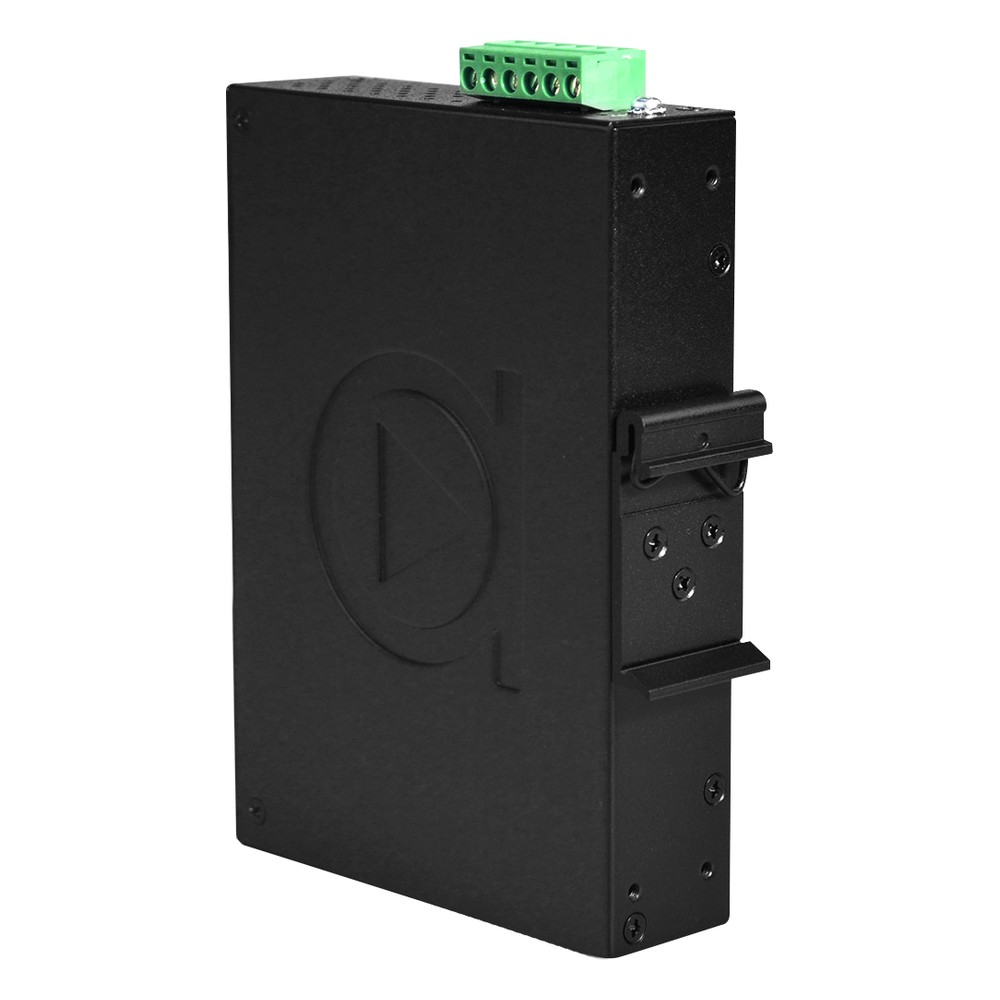

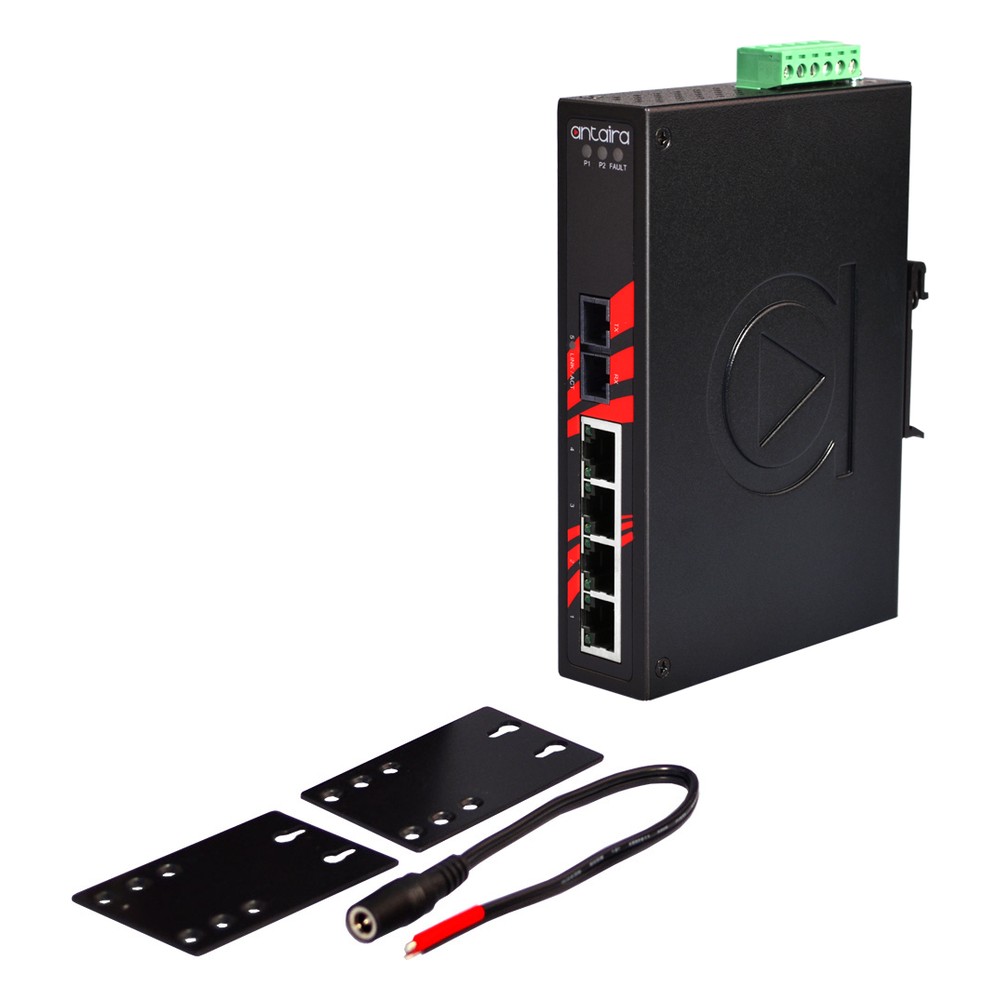

The LNX-0501-M-T sits in an IP30 metal case for DIN rail mounting, with wall mounting as an option and shock and vibration ratings to IEC 60068-2-27 and IEC 60068-2-6. Antaira lists it as UL Class 1 Division 2 certified, with UL 508, FCC, CE and RoHS marks, and covers it with Antaira’s 5-year warranty. The LNX-0501-M is the same switch rated -10 °C to 70 °C, the LNX-0501-ST-M-T uses an ST connector, and the LNX-0501-S3-T carries single-mode fibre up to 30 km.
LNX-0501-M-T Specifications
| Overview | |
|---|---|
| Brand & Model | Antaira LNX-0501-M-T |
| Features | Fanless Industrial |
| Networking | |
| Switch Type | Unmanaged |
| Ethernet Ports | 4x 10/100 BASE-TX [RJ45] |
| Number of Ethernet Ports | 4x Ethernet Ports |
| Number of Fiber Ports | 1x 100FX [SC] [Multi-mode] |
| Networking Standards | IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3x Back Pressure Flow Control |
| Power | |
| Power Input | 12-48V DC, Terminal Block |
| Environmental Conditions | |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Certification | CE FCC RoHS UL 508 UL Class 1 Division 2 |
| Mechanical Properties | |
| Weight | 0.5 Kg (1.1 Lbs) |
| Dimensions | 30mm x 142mm x 99mm (1.18" x 5.59" x 3.9") |
| Mounting Options | DIN Mount Wall Mount |
Official Antaira UK Distributor
Things Embedded is an official Antaira UK distributor, and we supply the LNX-0501-M-T with a matching DIN-rail power supply. Within the Antaira range, the LNX-0501-M the standard build, rated -10 °C to 70 °C for heated or indoor cabinets.
Across our range, the LNX-0501-M-T sits with our unmanaged industrial switches, industrial Ethernet switches and the full Ethernet switch range.
