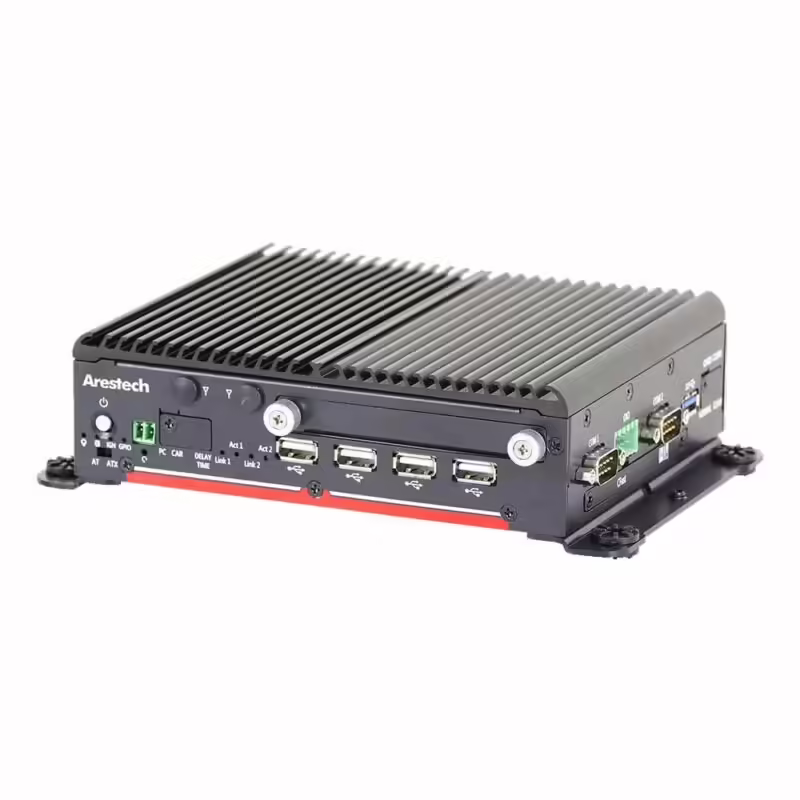

Arestech MERA-2001-2L Intel Celeron J1900 Fanless Embedded Box PC with 2x 2.5in Drive Bays

Kiosks and data-logging units often need a second drive, for local records, media or a backup image, long before they need more serial ports. The Arestech MERA-2001-2L is the two-bay model in the MERA-2000 series, a compact embedded box PC that pairs two removable 2.5″ bays with two COM ports.

Compute comes from the Intel Celeron J1900 with integrated Intel HD Graphics and a single DDR3L 1066/1333 SO-DIMM socket for up to 8 GB, which on the MERA-2001-2L suits kiosk software, access-control logic, HMI screens and serial machine control. A DVI-I output at up to 1920 x 1200, with a DVI-to-VGA adapter in the box, and a DisplayPort output at up to 1920 x 1200 drive two screens, and Windows 10 IoT and Linux are both supported.

The MERA-2001-2L carries two removable 2.5″ SATA bays, a CFast socket and an mSATA socket, with the CFast and mSATA sockets sharing a SATA channel with one bay. Two RS-232/422/485 DB9 ports with auto flow control connect serial devices. The enclosure measures 168 x 62 x 135 mm and weighs 1.4 kg. Two Intel i210-AT GbE ports support Wake-on-LAN and PXE, 4x isolated DI and 4x isolated DO sit on a 10-pin terminal block, and one USB 3.0 plus four USB 2.0 ports cover peripherals. Two full-size mini-PCIe sockets with two SIM holders take LTE or Wi-Fi modules.

Power enters at 9 to 48 V DC through a 3-pin terminal block with ignition sensing, a PC/car mode switch, remote power on/off and protection against over-voltage up to 52 V, reverse voltage and over-current. The MERA-2001-2L runs fanless from -40 °C to 70 °C, with vibration rated at 5 Grms and shock at 50 G, and the embedded box PC wall mounts, with an optional Arestech DIN rail kit. For six COM ports with the same two bays, see the MERA-2001S-2L, and for a lower 47 mm profile the MERA-2000-2L.
