AVerMedia D133ONB-1 NVIDIA Jetson Orin Nano Industrial Embedded Computer with 4G/5G Options and Out-of-Band Management

Small remote analytics jobs, such as one camera on a site gate or a car park entrance, usually come with no wired network and nobody nearby to press a reset button. The AVerMedia D133ONB-1 is an industrial embedded computer that pairs a Jetson Orin Nano 8GB with headers for an optional 4G/5G daughter board and an optional Allxon out-of-band module. It is the Orin Nano box in the D133-1 series, built on the D133-1 carrier board, and the D133OXB-1 takes an Orin NX for heavier workloads.

The D133ONB-1 is supplied with a Jetson Orin Nano 8GB module, rated by NVIDIA at up to 40 TOPS, with power consumption from 14.4 W to 25.4 W. That typically suits one or two camera streams with detection or counting models. Two internal MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04, and Allxon adds 24/7 remote management once the optional OOB module is fitted.

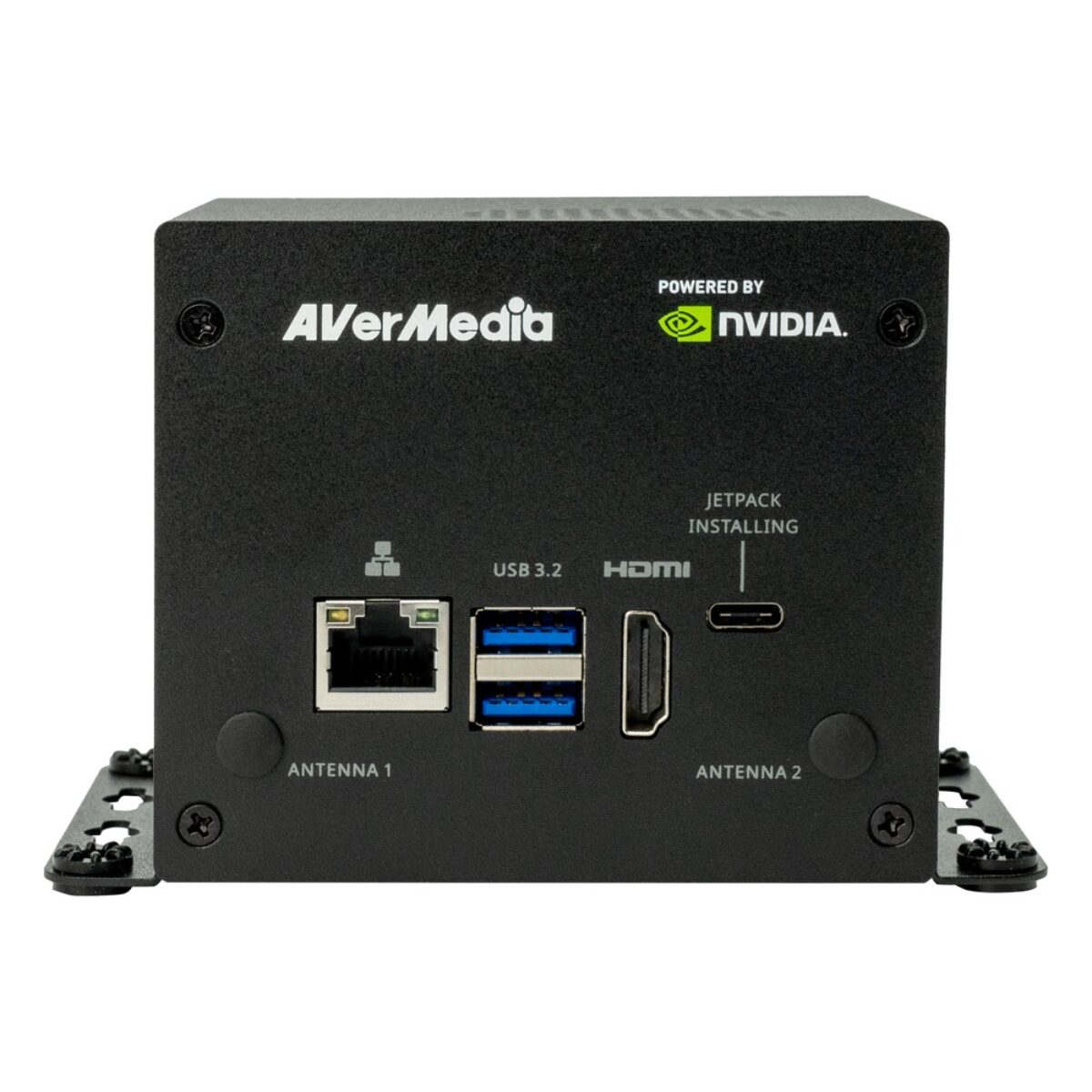

The optional daughter board connects through 5-pin and 30-pin headers and carries an M.2 B-key socket for a 4G or 5G modem plus an M.2 M-key socket for extra storage. A 15-pin header takes the optional OOB module for power cycling and serial console access. Networking is one GbE RJ45 port with an M.2 E-key 2230 socket for optional Wi-Fi. One HDMI output drives 4K at 30 Hz, two USB 3.2 Type-A ports cover peripherals, a 256GB NVMe SSD is installed, and the 20-pin header carries nine GPIO lines, two I2C buses and one UART.

The D133ONB-1 is fan-cooled and rated from -25 °C to 60 °C, with storage from -40 °C to 85 °C, on 9-24 V DC through a screw terminal. AVerMedia lists CE, FCC and KC marks with RoHS 2 compliance. We supply it with the Orin Nano module fitted, JetPack flashed and the SSD installed, with any optional 4G or 5G modem, OOB module, Wi-Fi card and antennas fitted, then test it before it ships.
