AVerMedia D133ONB NVIDIA Jetson Orin Nano Rugged Embedded Computer with Extended Temperature and 9-24V DC Input

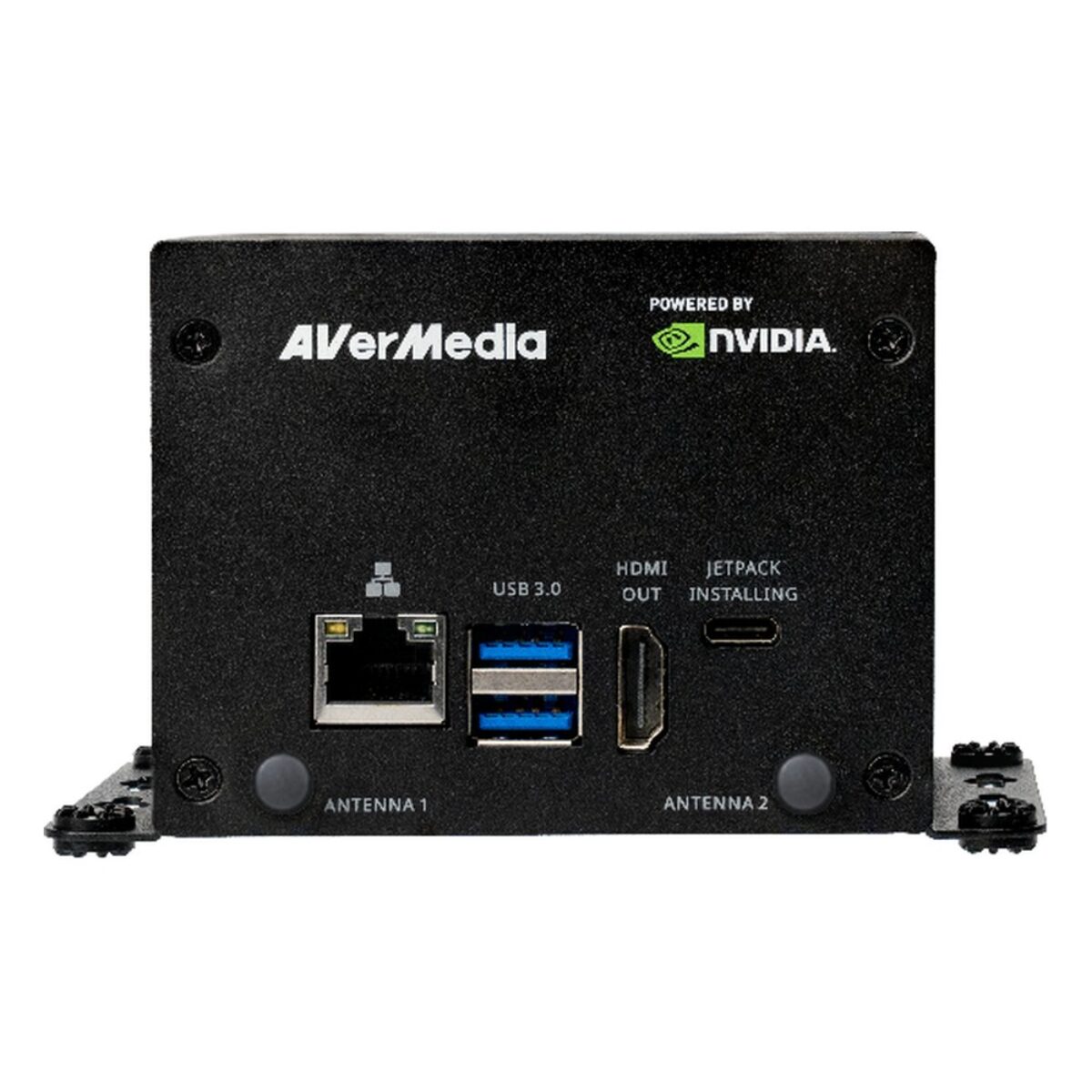

A camera watching one barrier, one doorway or one conveyor does not need much compute, but it still needs a unit that copes with an unheated cabinet and wires into a DC supply. The AVerMedia D133ONB is a rugged embedded computer with a Jetson Orin Nano 8GB for that kind of job, and it is the Orin Nano box in the D133 series. It uses the D133 carrier board, and the D133OXB is the same unit with an Orin NX for heavier models.

The D133ONB is supplied with a Jetson Orin Nano 8GB module, rated by NVIDIA at up to 40 TOPS, which typically suits one or two camera streams running detection, counting or plate reads. Two internal MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04, and power consumption runs from 14.4 W to 25.4 W depending on load.

Networking is one GbE RJ45 port, with an M.2 E-key 2230 socket for an optional Wi-Fi and Bluetooth card. One HDMI output drives a 4K display at 30 Hz, two USB 3.2 Type-A ports cover peripherals and USB-C handles recovery. A 256GB NVMe SSD sits in the M.2 M-key 2280 socket. The 20-pin expansion header carries nine GPIO lines, two I2C buses and one UART for trigger inputs, relay outputs and serial sensors.

The D133ONB is fan-cooled and rated from -25 °C to 60 °C, with storage from -40 °C to 85 °C and up to 95% humidity at 40 °C, non-condensing. Power is 9-24 V DC on a screw terminal, and AVerMedia lists CE, FCC and KC marks with RoHS 2 compliance. We supply the D133ONB with the Orin Nano module fitted, JetPack flashed and the SSD installed, with any optional Wi-Fi card and antennas fitted, then test it before it ships.
