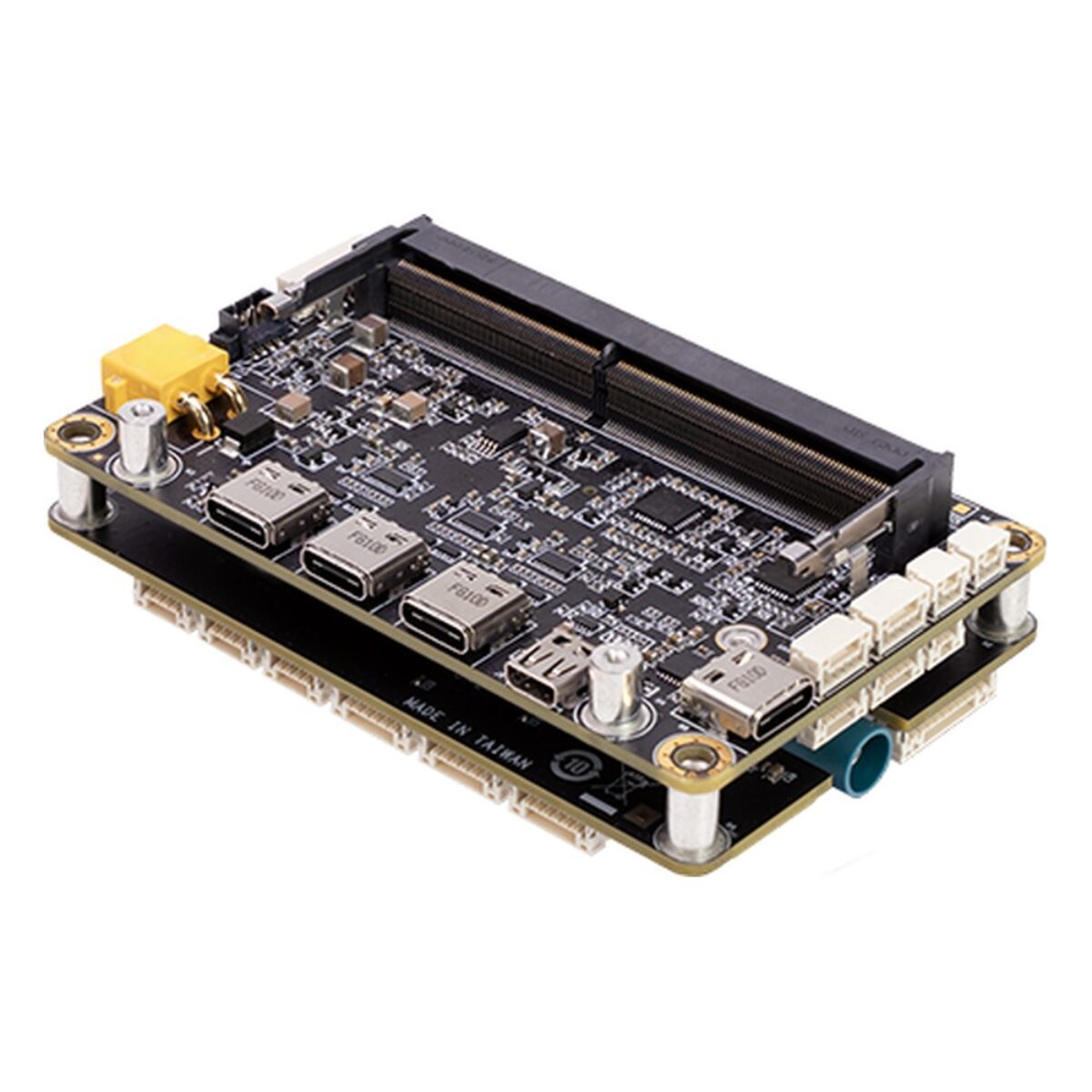

AVerMedia D137 NVIDIA Jetson Orin NX and Orin Nano Rugged Carrier Board with MIPI or GMSL Cameras and 12-50V DC Input

The D137 is AVerMedia's stacking carrier board for Jetson Orin NX and Orin Nano, a two-board design for unmanned aircraft, radar and other edge systems. Each of its two camera inputs switches between 4-lane MIPI CSI-2 and GMSL2, with power from a 12 V to 50 V DC XT30 input.

  • Stacking Two-Board Design: A main board and daughter board stack with the Jetson module, keeping the assembly compact for drone and radar payloads.
  • Switchable MIPI or GMSL2 Inputs: Each of the two camera inputs switches between 4-lane MIPI CSI-2 on 22-pin FPC and GMSL2 on FAKRA-Z.
  • 12-50 V DC XT30 Input: A 12 V to 50 V DC input on an XT30 connector, suiting battery packs on unmanned aircraft and vehicle supplies.
  • Dual GbE and 3x USB 3.2 Gen 2: Two GbE ports on GH1.25 wafers, three USB 3.2 Gen 2 Type-C ports and Micro HDMI at 1080p.
  • UART, CAN, PWM and GPIO: Four UARTs, CAN with a termination switch, two SPI, four PWM, two I2C and eight GPIO for controllers and sensors.
Operating Software: LinuxLinux
USB Connector Type: Type CType C
USB Generation: USB3USB3
M.2: 11x M.2
NVMe: NVMe SSD SupportNVMe SSD
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: FCCFCC
UK Support Team: +44 (0)1785 558 300 Call
Select section
  • Overview
  • Specifications
  • Downloads

D137 Overview

Unmanned aircraft and radar heads leave little room for a computer, and every connector has to earn its place. The AVerMedia D137 is a Jetson Orin NX and Orin Nano rugged carrier board built as a stacking two-board design, which AVerMedia designs for defence-grade unmanned aircraft, radar and other edge systems. Its compact assembly suits payloads where a boxed PC will not fit.

The D137 takes a Jetson Orin NX 16GB or 8GB or Orin Nano 8GB or 4GB module. Each of its two camera inputs switches by DIP switch between 4-lane MIPI CSI-2 on 22-pin FPC and GMSL2 on FAKRA-Z, so one board can serve short-run sensors or longer coax runs. An M.2 M-key 2230 slot takes an NVMe SSD, and AVerMedia supports JetPack 7.2.1 onward on Ubuntu 24.04. For eight GMSL2 cameras in a sealed box, see the D135OXB-16G-004.

Connections use GH1.25 wafers: two GbE ports, four UARTs, CAN with a 120-ohm termination switch, two SPI, four PWM, two I2C and eight GPIO for controllers and sensors. Three USB 3.2 Gen 2 Type-C ports and a Micro HDMI output at 1080p cover peripherals and a local display. Power, recovery and suspend buttons sit on board, with an RTC battery.

Power comes in at 12 V to 50 V DC on an XT30 connector, and the D137 is rated from -10 °C to 60 °C at board level, with a four-pin fan header for the cooling you design in. AVerMedia lists CE, FCC and VCCI, and the board is RoHS 2 compliant. For a single-board carrier with RJ45, HDMI and a -40 °C to 85 °C rating, see the D131S-001. We supply the D137 with the Jetson module fitted, NVMe storage installed and JetPack flashed, tested before it ships.

D137 Specifications

Overview
Brand & ModelAVerMedia D137
FeaturesCompact
Embedded
GPU
Industrial
Rugged
Performance
AI Performance20–100 TOPS
System-on-ModuleNVIDIA Jetson Orin Nano 4GB: 20 TOPS, 512-core Ampere GPU with 16 Tensor Cores, 6-core Arm Cortex-A78AE 1.5GHz, 4GB 64-bit LPDDR5, 5-10W
NVIDIA Jetson Orin Nano 8GB: 40 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 1.5GHz, 8GB 128-bit LPDDR5, 7-15W
NVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W
NVIDIA Jetson Orin NX 8GB: 70 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 2.0GHz, 8GB 128-bit LPDDR5, 10-20W
Operating SystemLinux Ubuntu 24.04
Linux
Jetpack VersionJetPack 7
Graphics
Display StandardsHDMI 1.4
Multi Display SupportSingle Display Support
Display Outputs1x Micro HDMI
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [Board]
USB3x USB Ports
3x USB 3.2 Gen 2 [Type C]
CANbus1x CANbus Ports
1x CANbus [Board]
GPIOGPIO [8-lines]
MIPI Interface2x 4 Lane MIPI CSI-2
2x GMSL Automotive Camera Inputs [FAKRA-Z]
Expansion
M.21x M.2 Expansion Slots
1x M.2 M-Key [PCIe] [2230]
Storage
Storage1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input12-50V DC Input [XT-30]
Environmental Conditions
Thermal DissipationOptional Fan
Operating Temperature-10°C to 60°C [14°F to 140°F]
CertificationCE
FCC
RoHS
VCCI
Mechanical Properties
Weight0.1 Kg (0.2 Lbs)
Dimensions90mm x 56mm x 31mm (3.54" x 2.20" x 1.21")

AVerMedia Edge AI Systems in the UK

Things Embedded supplies the AVerMedia D137 in the UK, and we supply the D137 with the Jetson module fitted, JetPack flashed and the board tested before it ships. Within the AVerMedia range, the D131S-001 is a single-board Super Mode carrier with RJ45, HDMI and a -40 to 85 °C rating, and you can compare every model on our AVerMedia Jetson computers and carrier boards page.

For alternatives from our own range, see our NVIDIA Jetson carrier boards and NVIDIA Jetson computers and modules.
