eMMC vs SSD: What Is the Difference?

eMMC vs SSD is a comparison between two ways of packaging the same thing: NAND flash memory managed by a controller. eMMC (embedded MultiMediaCard) puts the flash and a small controller in one chip soldered to the board, on an interface defined by JEDEC. An SSD (solid-state drive) is a separate drive with a more powerful controller, several flash chips and often its own DRAM cache, connected over SATA or PCIe NVMe.

The two are close relatives, so the differences come down to the interface, how many flash chips work in parallel, and whether the storage can be removed. Those three things decide speed, capacity, cost and what happens when the storage wears out.

UFS (Universal Flash Storage) is included because it is the successor to eMMC on phones and some embedded boards, and it is often the real alternative when a design cannot fit an SSD.

Headline bus speed is only part of the gap. eMMC 5.1 tops out at around 400 MB/s on its bus, roughly the same order as a SATA SSD, yet an SSD feels much faster in use. The reasons are inside the drive.

An SSD controller spreads data across several flash chips on parallel channels, so many reads and writes happen at once. Most SSDs also hold a DRAM or host-memory cache to track where data lives. eMMC has a single, simpler controller and fewer flash dies, its bus can read or write but not both at the same moment, and command queuing only arrived with eMMC 5.1, limited to 32 commands. NVMe, by contrast, supports thousands of queues. The result is a far larger gap in random access, the small scattered reads and writes that dominate booting, updates and databases, than in sequential copies.

Both technologies wear as they are written, and both rely on wear levelling and error correction. SSDs usually publish an endurance figure in terabytes written (TBW) or drive writes per day, and industrial models add power loss protection for data in flight. eMMC endurance is less often quoted as a single figure, so it is worth asking for, or choosing a pSLC part where writes are heavy.

The bigger practical difference is what happens at the end of life. A worn SSD is unscrewed and replaced in minutes. A worn eMMC is part of the board, so the board has to be reworked or replaced. That makes the write load the deciding question for long-life systems.

eMMC is made in a narrow band of sizes. On embedded boards it is usually 16, 32 or 64 GB, with 128 and 256 GB parts available, because the chip has room for only a few flash dies. SSDs start around 128 GB and run to several terabytes, and the M.2 2280 format alone covers most of that range.

For a board maker, eMMC saves the cost of a connector, a drive and its mounting, and frees board space, which is why it is common on low-cost and very small designs. The saving is smaller than it once was as SSD prices have fallen, so the choice now rests more on size, power and write load than on price.

Neither is better in general. Each fits a different kind of system.

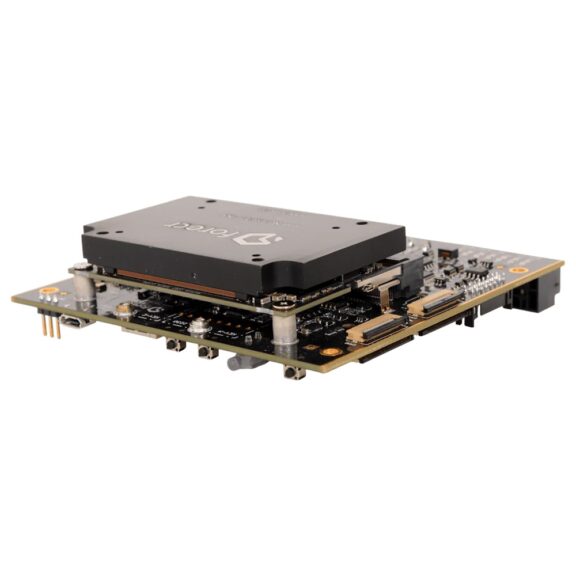

Many of our single board computers carry eMMC for the operating system alongside an M.2 slot or SATA port for an SSD, so the system can be built either way. Some edge AI modules have moved from eMMC to NVMe altogether: NVIDIA Jetson Orin NX and Orin Nano modules have no eMMC and boot from an NVMe SSD on Jetson Orin NX carrier boards.

For the slot types and keys that decide which SSD a board can take, see our guide to M.2 slots, keys and industrial SSDs.

We specify, fit and image the storage on every system we supply as standard, choosing eMMC, SATA or NVMe for the write load and temperature range, and validate the build before it ships.
