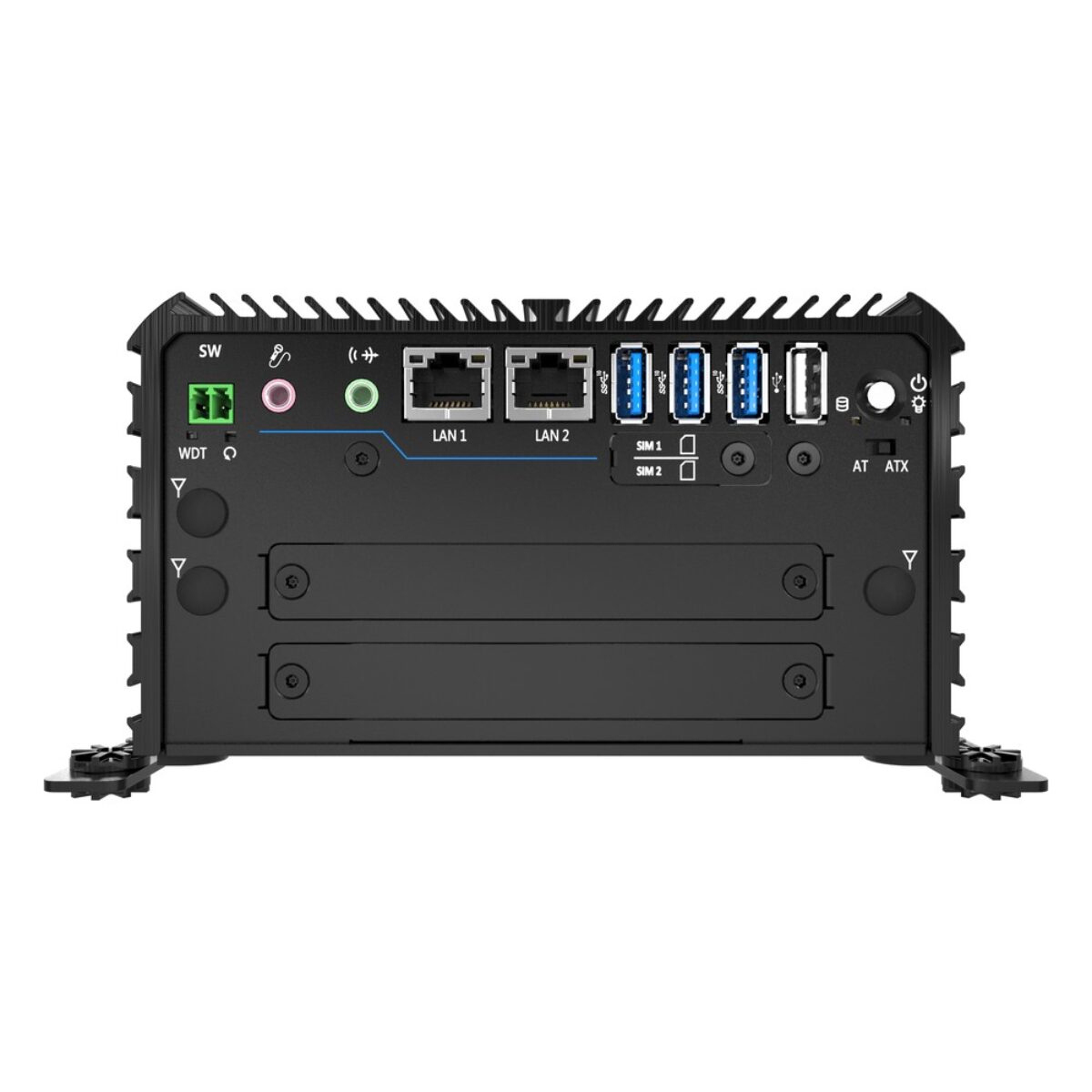

Premio RCO-1000-EHL-X6425E-30 Intel Elkhart Lake Atom x6425E Rugged Mini PC with Multi-Module EDGEBoost I/O and CAN Bus

Projects that mix serial devices, USB peripherals, extra displays and digital signals can run out of I/O on a small computer. The Premio RCO-1000-EHL-X6425E-30 is the largest build of the RCO-1000-EHL series, a fanless rugged mini PC on the Intel Atom x6425E with the most room in the range for EDGEBoost I/O modules.

Inside, the RCO-1000-EHL-X6425E-30 runs an Intel Atom x6425E, a quad-core Elkhart Lake processor with a 12 W TDP and Intel UHD Graphics. One DDR4 SO-DIMM takes up to 32 GB, TPM 2.0 is on board, and Windows 11 and Linux are supported. Storage runs from a 2.5-inch SATA drive bay and an mSATA socket shared with the full-size mini PCIe slot, and an M.2 B key socket takes an optional 4G or 5G module with two external SIM sockets.

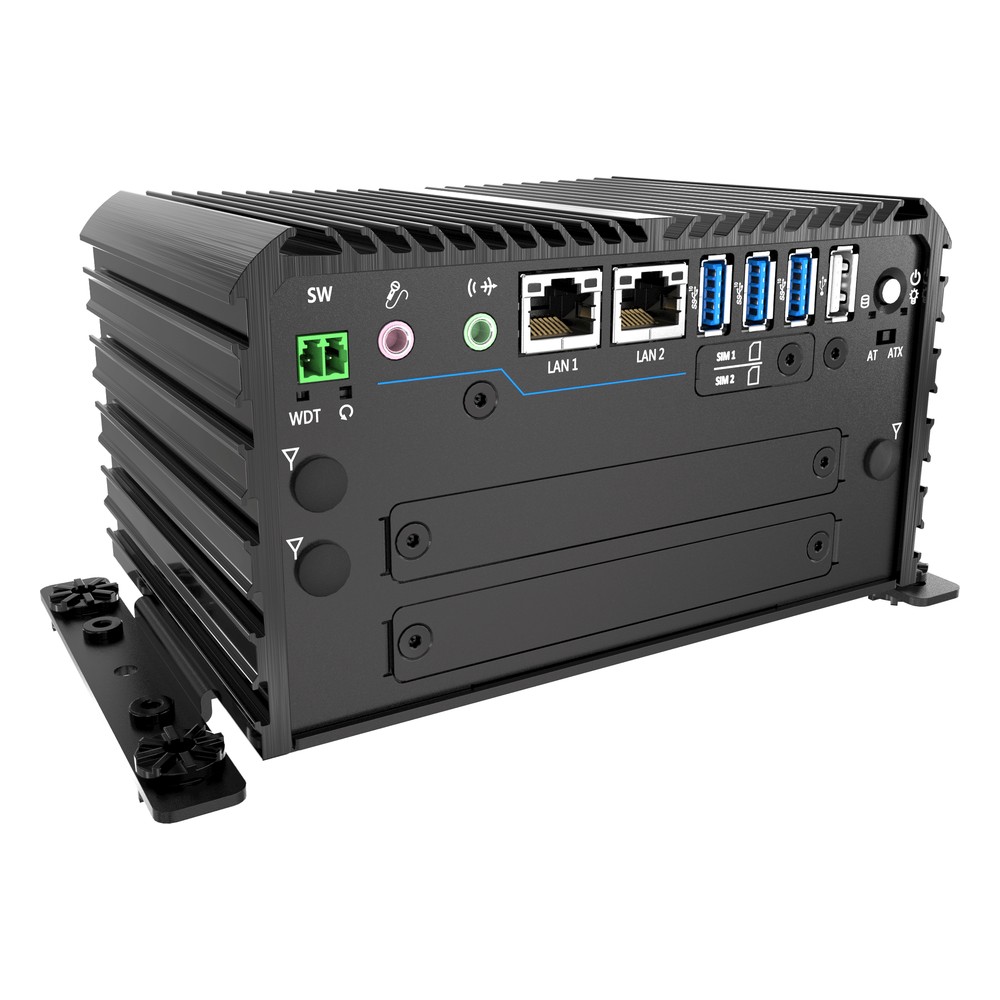

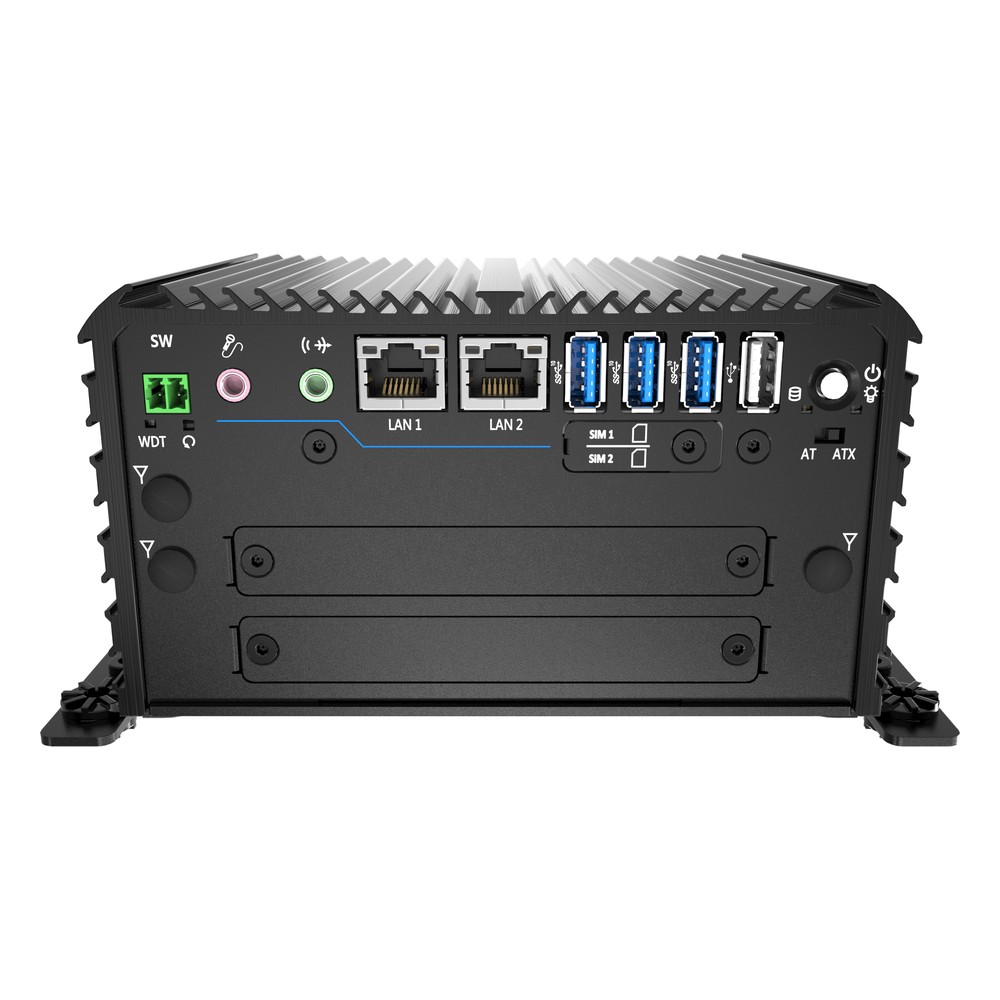

As standard the I/O covers two DisplayPort 1.4 outputs at up to 4K 60 Hz, two RS-232/422/485 COM ports, Intel I225 2.5GbE and I210 GbE ports, 3x USB 3.2 Gen 2 and one USB 2.0 port, mic-in and line-out audio, and two CAN 2.0 A/B channels on an internal header. Optional EDGEBoost modules add two-port COM (up to two modules), four-port USB, HDMI 2.0 or DisplayPort with isolated DIO. The RCO-1000-EHL-X6425E-30C comes with modules fitted for six COM ports and a third display, and the RCO-1000-X6425E-30-2P adds two PoE ports.

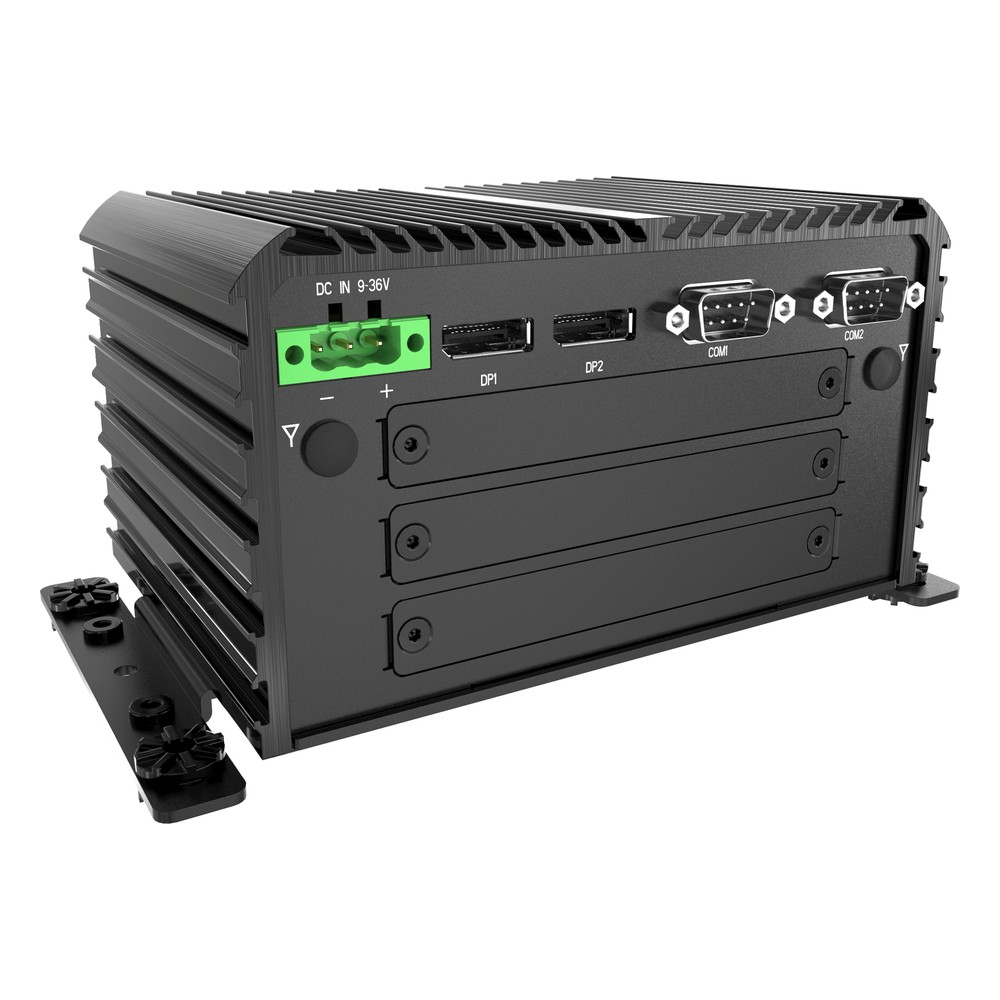

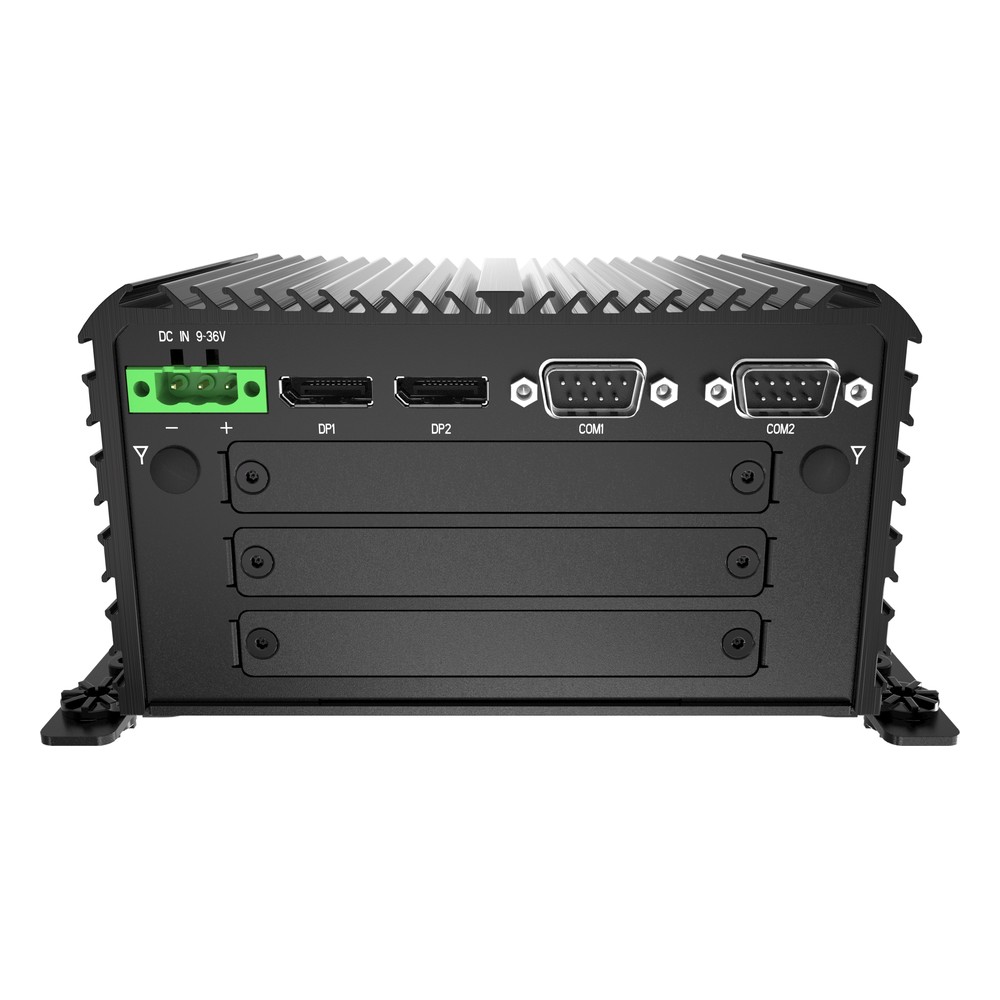

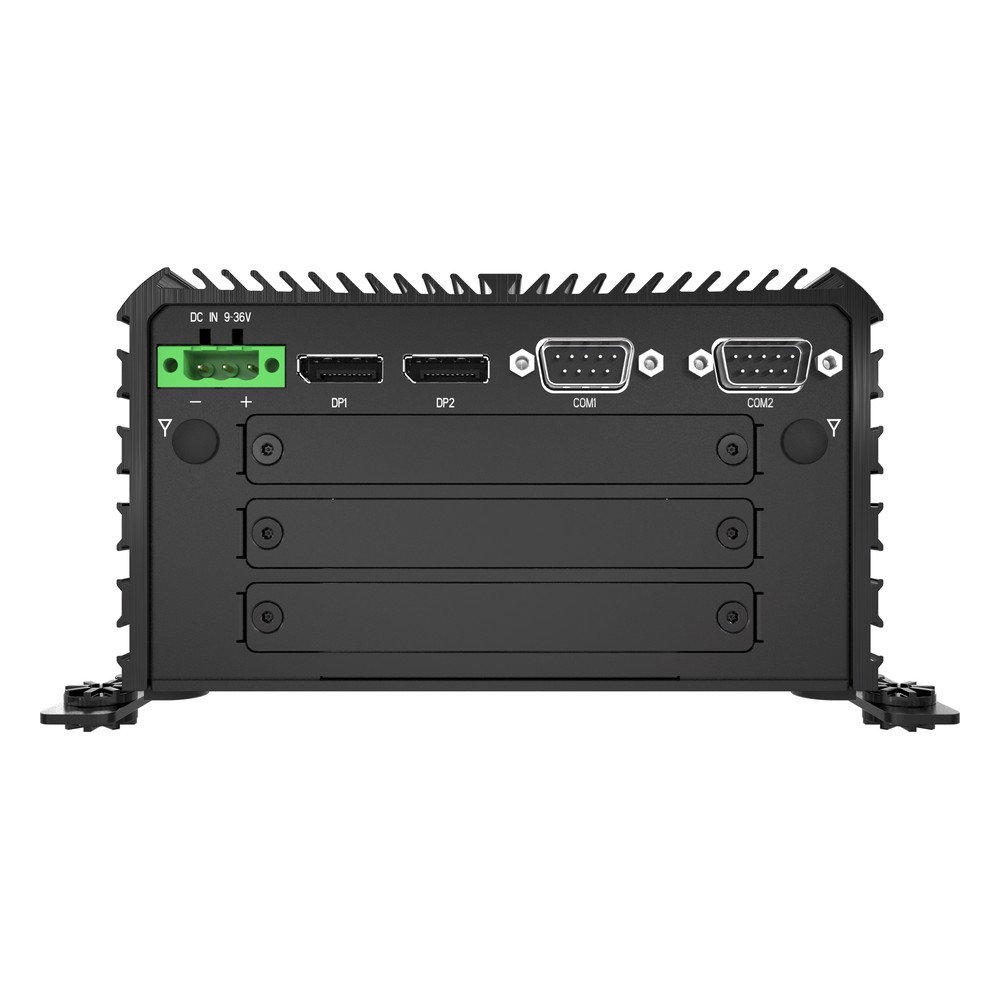

Cooling is passive through an extruded aluminium housing rated from -40 °C to 70 °C, and shock and vibration are designed to comply with MIL-STD-810H. Power is 9 to 36 V DC on a terminal block with AT and ATX modes, over-voltage, over-current and reverse protection and optional ignition management. It is UL listed to UL 62368-1 and carries CE, FCC Class A, UKCA and ICES-003 marks. A wall-mount kit is included, with side, VESA and DIN rail kits and an AC/DC adapter optional. We supply the RCO-1000-EHL-X6425E-30 configured and tested, with memory, storage, the Windows 11 or Linux image and any wireless modules fitted.
