SolidRun BEDROCK R7000 EDGE AI 30W AMD Ryzen 7040 Series Fanless Edge AI Box PC with Hailo-8 and 2x 2.5GbE

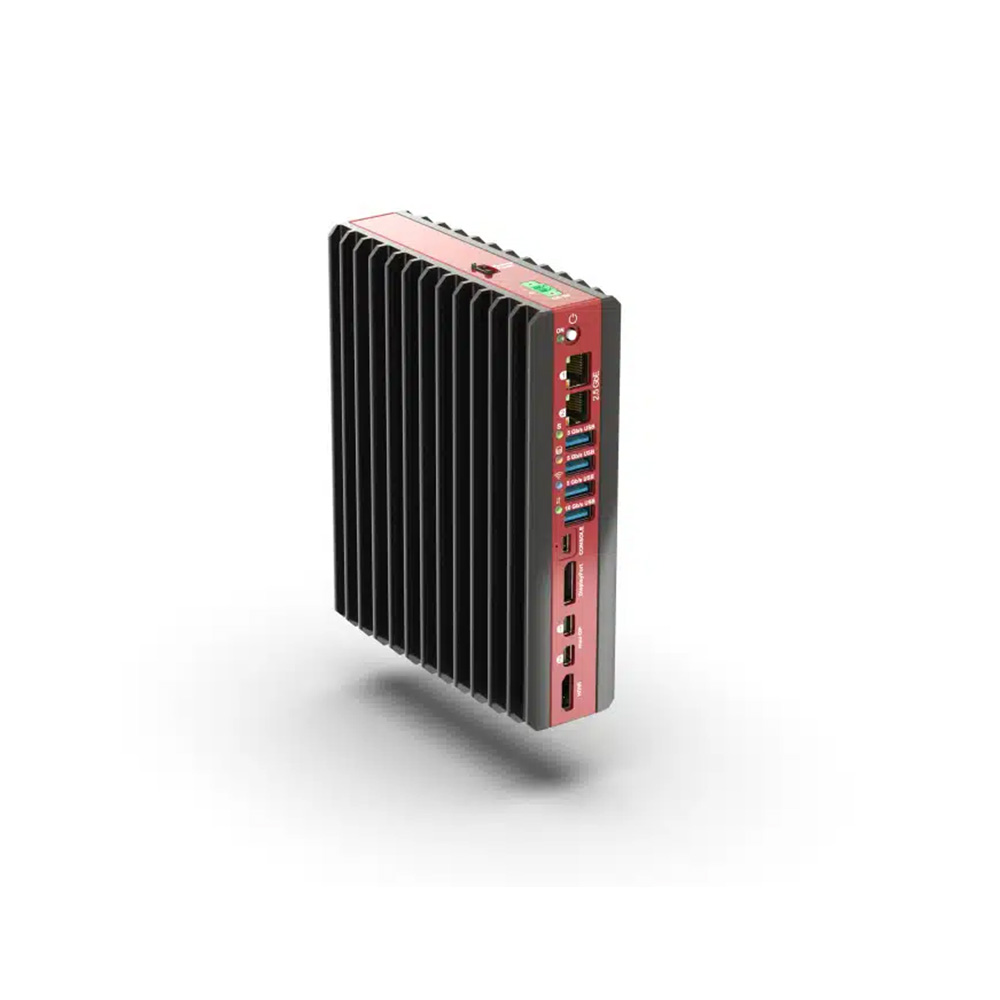

A camera analytics node often has to share a DIN rail with switches, power supplies and I/O, so its width matters as much as its TOPS. The SolidRun BEDROCK R7000 EDGE AI 30W is the compact edge AI box PC in the BEDROCK R7000 EDGE AI series: 45 mm wide and 0.9 litres, cooling up to 30 W through finned aluminium walls with no fan.

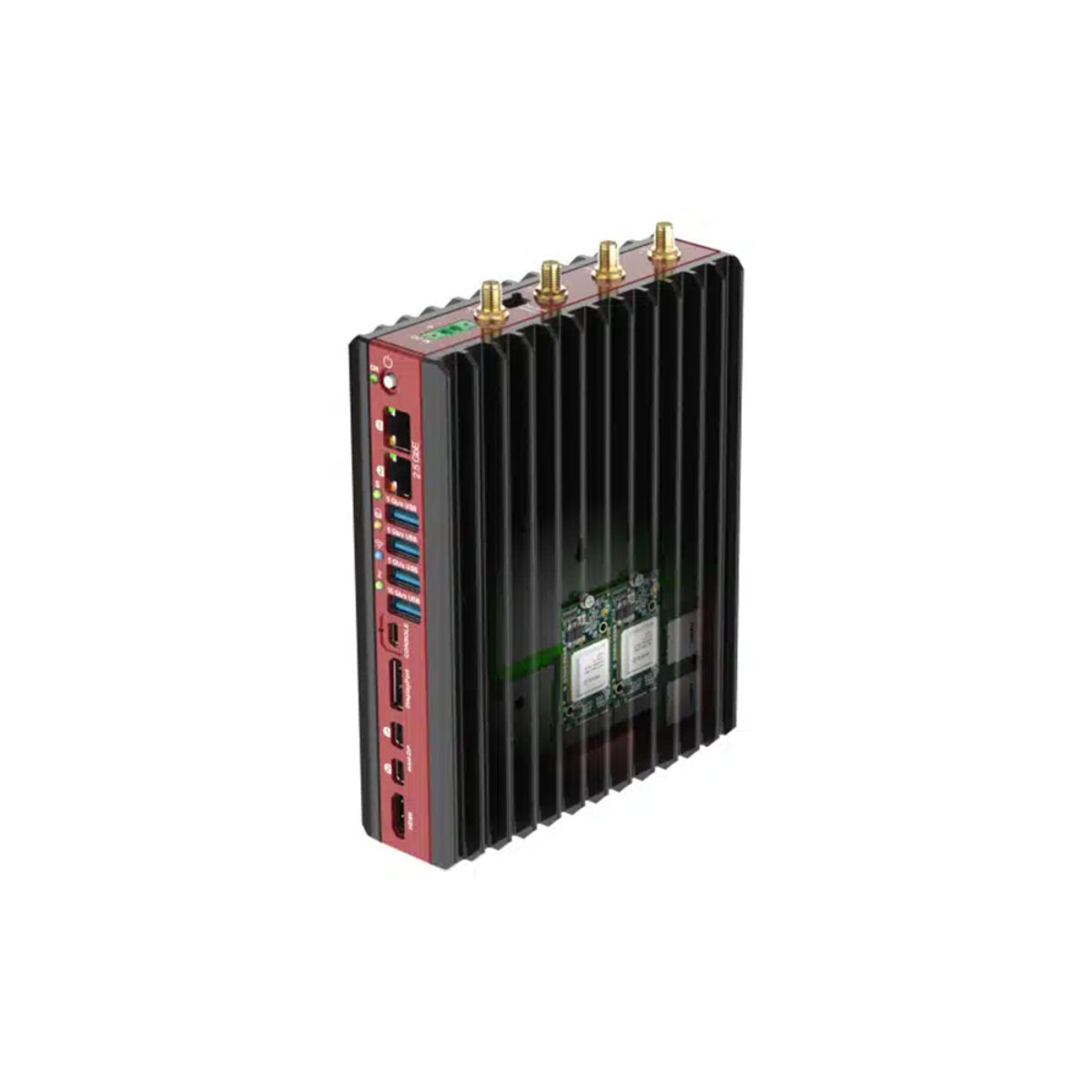

Compute comes from the AMD Ryzen 7040 Series, with eight Zen 4 cores and 16 threads at up to 5.1 GHz, Radeon 780M graphics and, on the 7840U and 7840HS, a 10 TOPS NPU. SolidRun lets CPU power be set in the BIOS, so the processor stays within what the enclosure can dissipate. Hailo-8 M.2 modules add 26 TOPS each, up to three per unit, with the key-M sockets shared with NVMe SSDs and the key-E socket with Wi-Fi 6E.

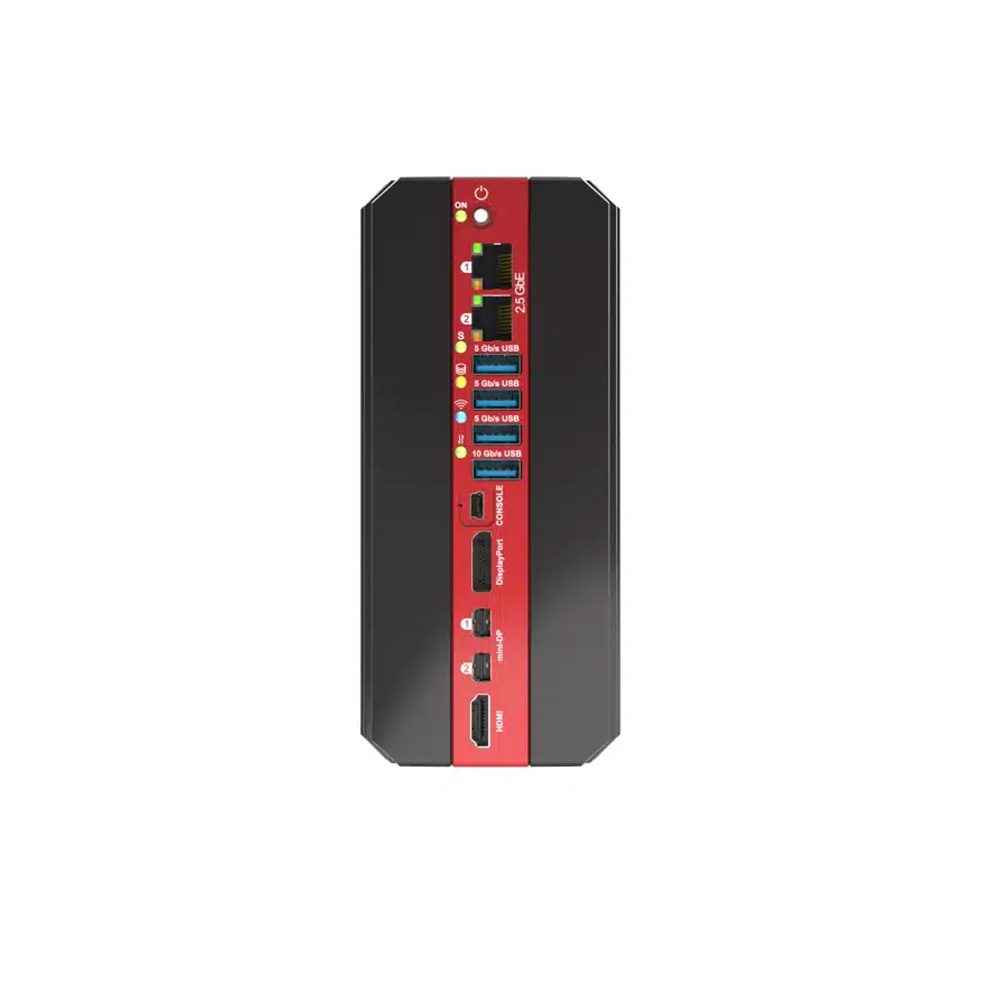

Two DDR5 SO-DIMM sockets take up to 64 GB with ECC, and NVMe PCIe Gen4 x4 storage is conduction cooled. The front panel carries two Intel I226 2.5GbE ports, one 10 Gb/s and three 5 Gb/s USB 3.2 ports, HDMI 2.1, DisplayPort 2.1 and two mini DisplayPort 2.1 outputs, plus a mini-USB serial console.

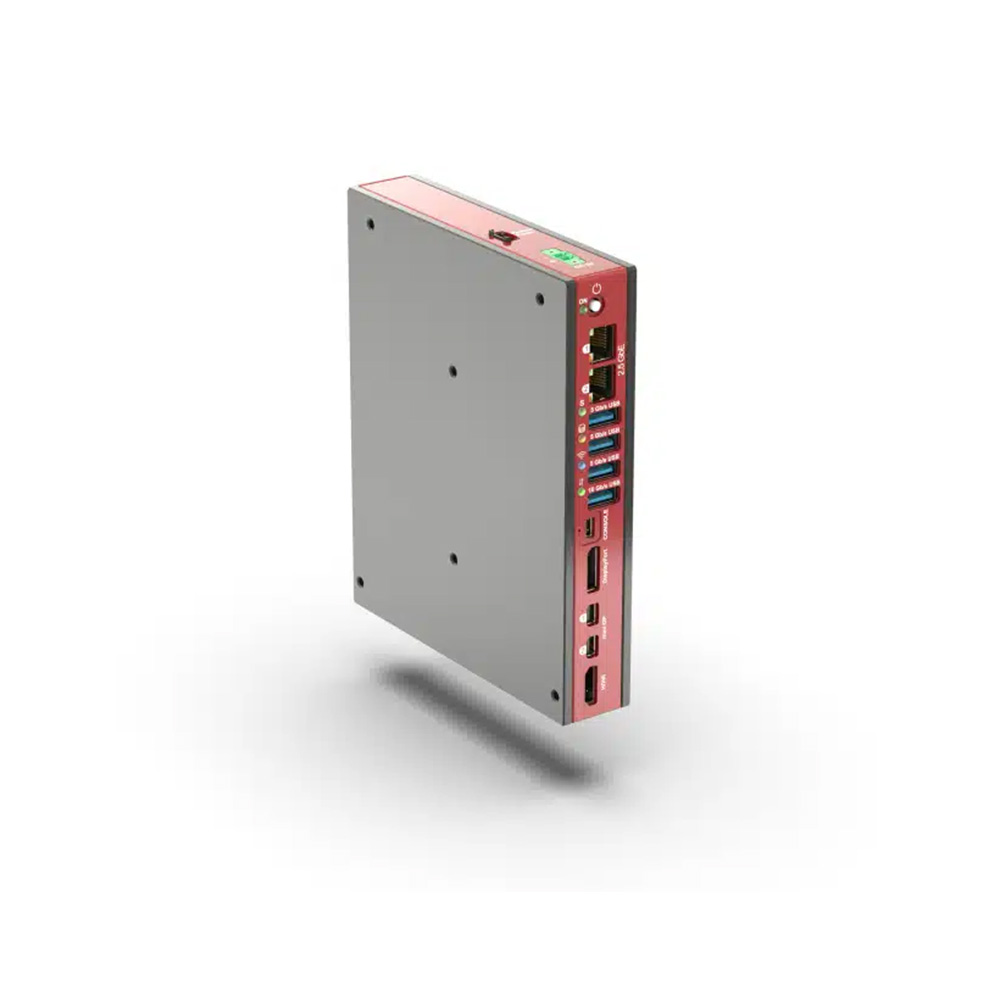

With rear and bottom panels reserved for mounting, the BEDROCK R7000 EDGE AI 30W fits a locking DIN rail bracket, a wall bracket or a stand. Power is 12 to 60 V DC on a screw-locking Phoenix terminal, and industrial builds are rated from -40 to 85 °C. The BEDROCK R7000 EDGE AI 60W adds thermal headroom and the BEDROCK R7000 EDGE AI TILE suits cold plates, while the BEDROCK R7000 EDGE AI 30W runs Windows or Linux.
