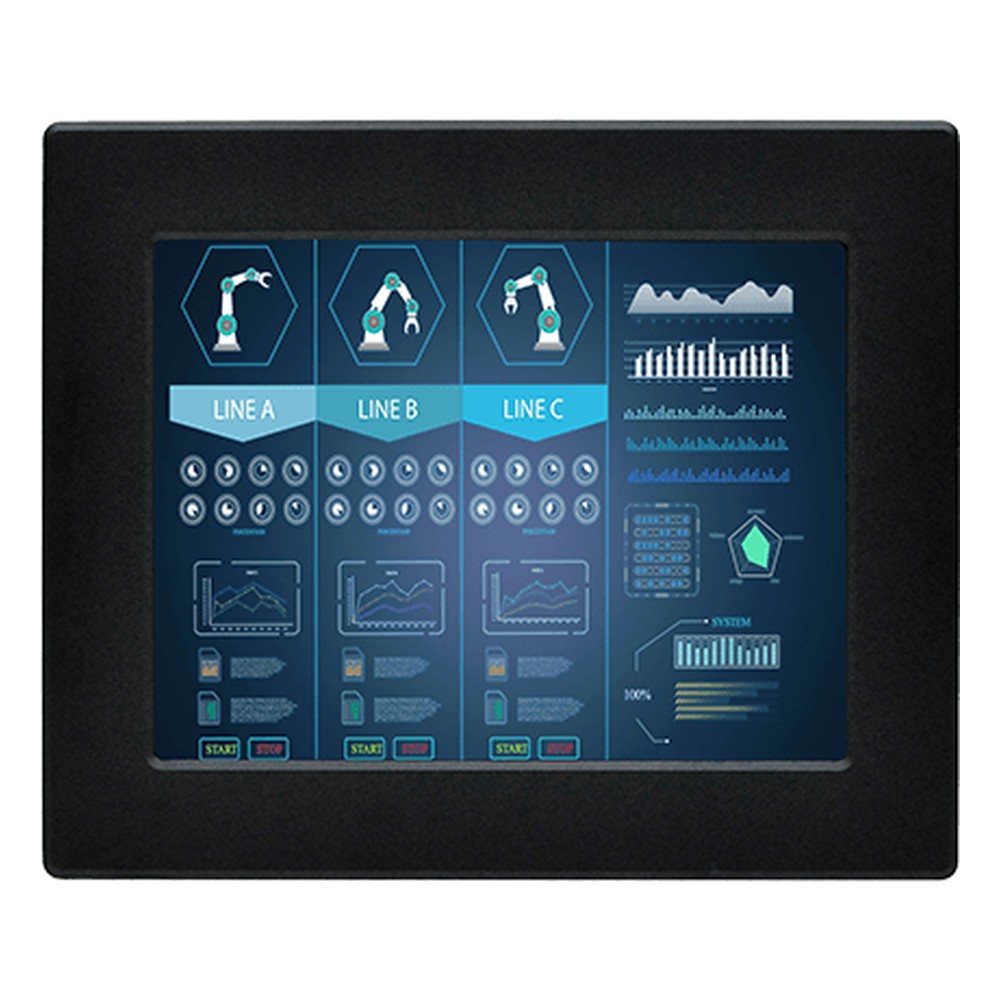

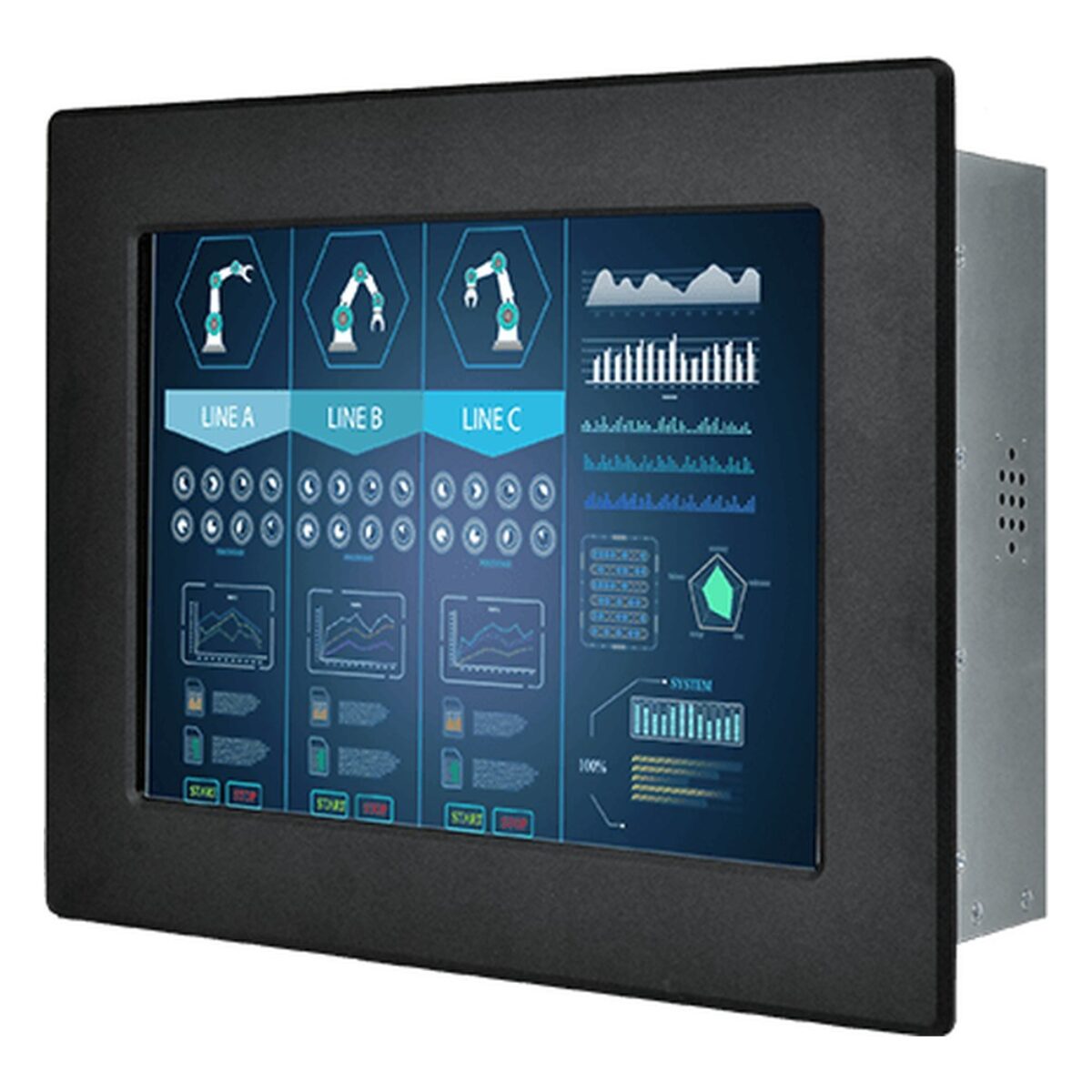

Winmate R10L100-IPA1WT 10.4″ Front IP65 Monitor with Wide Temperature and Resistive Touch

Machine panels and kiosks that sit in unheated or warm spaces need a display that tolerates the temperature as well as splashes and dust at the front. The R10L100-IPA1WT is Winmate’s 10.4 inch front IP65 wide temperature monitor, rated from -20 °C to 60 °C and sealed to IP65 at the front, for factory automation, kiosks and outdoor installations.

The 10.4″ 4:3 panel runs at 800 x 600 (SVGA) with 400 nits and a 700:1 contrast ratio, and Winmate quotes viewing angles of 160° horizontally and 130° vertically. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R10L100-IPT2 is a 0 °C to 50 °C version with a 1024 x 768 panel, and the R15L100-IPA3WT is the 15″ wide temperature version at 500 nits.

The R10L100-IPA1WT runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C. The fanless metal housing mounts into a panel cut-out or on VESA, and the 10.4 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
