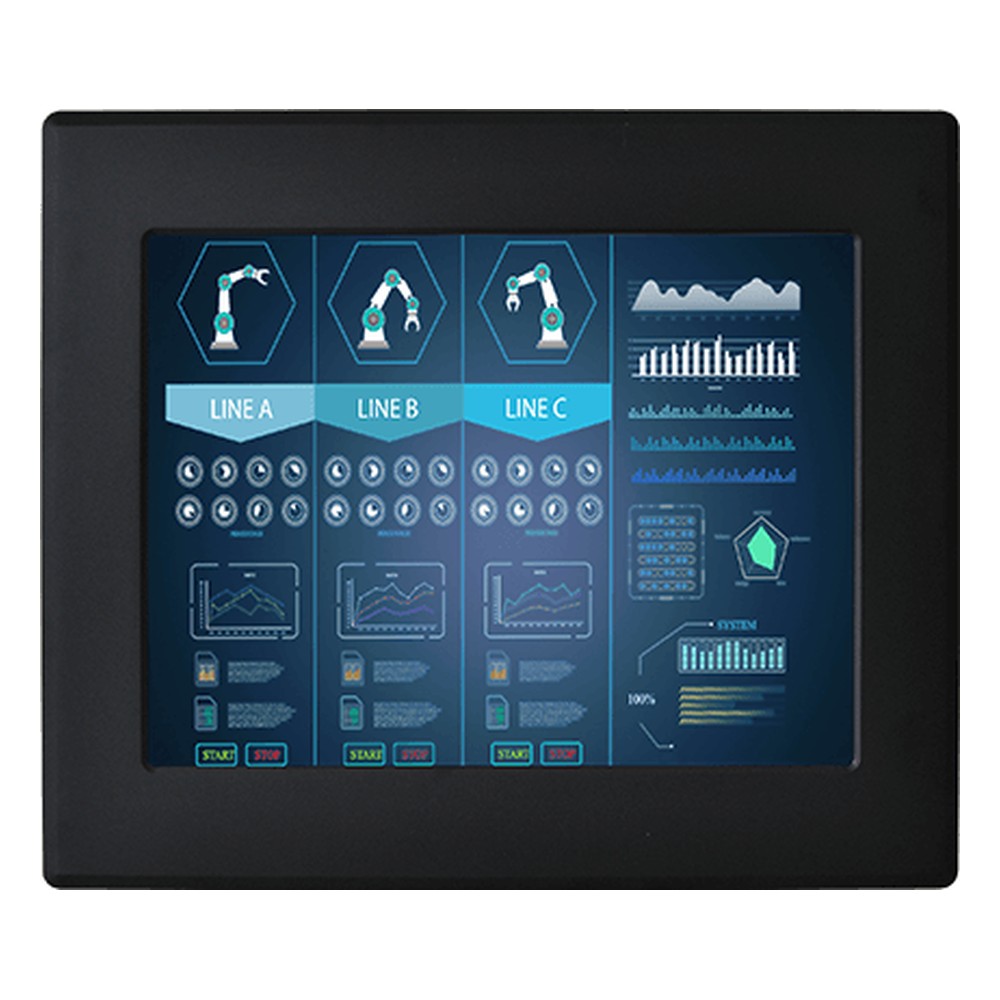

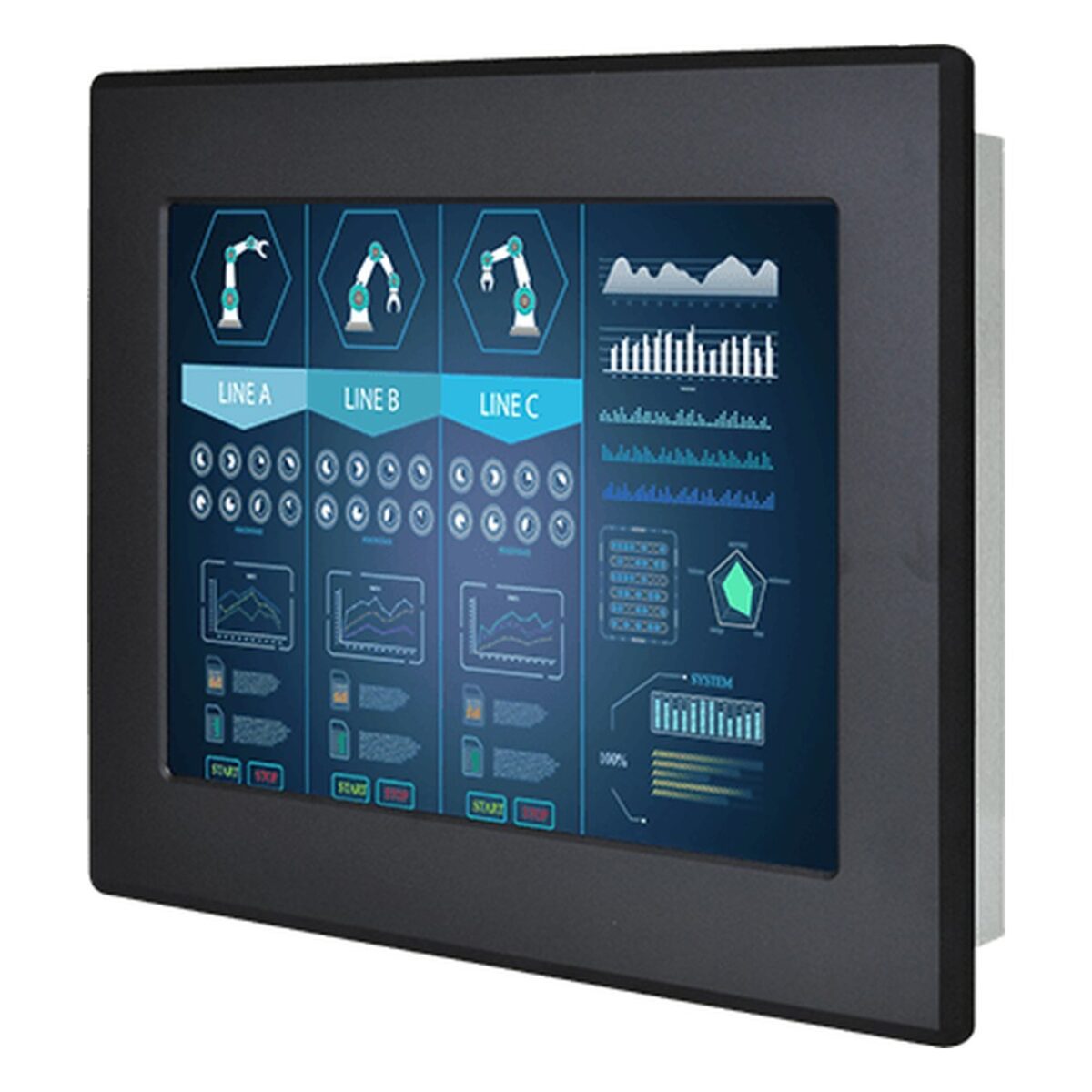

Winmate R15L100-IPA3WT 15″ Front IP65 Monitor with Wide Temperature and Resistive Touch

Machine panels and kiosks that sit in unheated or warm spaces need a display that tolerates the temperature as well as splashes and dust at the front. The R15L100-IPA3WT is Winmate’s 15 inch front IP65 wide temperature monitor, rated from -20 °C to 60 °C and sealed to IP65 at the front, for factory automation, kiosks and outdoor installations.

The 15″ 4:3 panel runs at 1024 x 768 (XGA) with 500 nits and a 2500:1 contrast ratio, and Winmate quotes viewing angles of 176° in both directions. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R15L100-IPA1 is a 0 °C to 50 °C version at 350 nits, and the R10L100-IPA1WT is the 10.4″ wide temperature version.

The R15L100-IPA3WT runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C. The fanless housing mounts into a panel cut-out or on VESA, and the 15 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
