Winmate R10L100-IPP3 10.4″ Front IP65 Monitor with Resistive Touch and VGA LCD
Resistive
Fanless
Front IP65
CE
FCCR10L100-IPP3 Overview

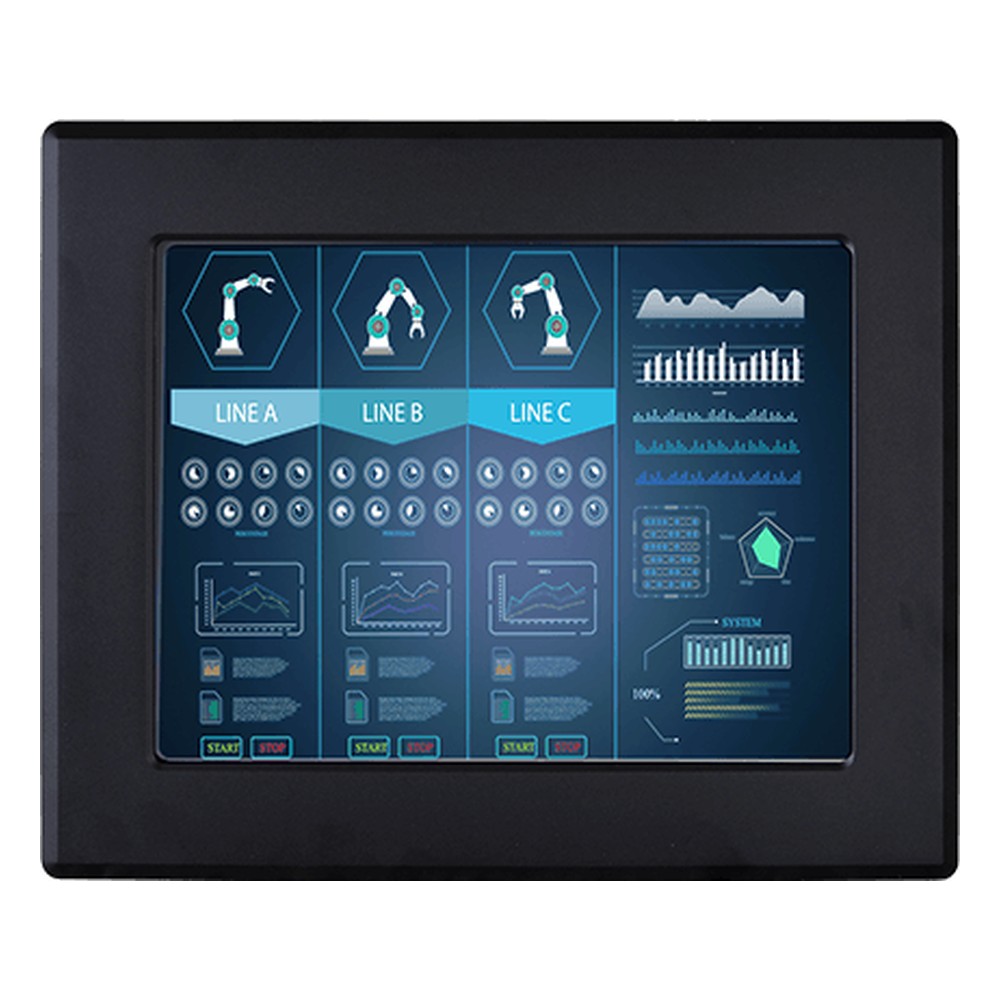

A display set into a machine door or kiosk front has to cope with splashes and dust on the operator side, while its back stays inside the enclosure. The R10L100-IPP3 is Winmate’s 10.4 inch front IP65 monitor for that job, built for factory automation, kiosks and outdoor installations.
The 10.4″ 4:3 panel runs at 640 x 480 (VGA) with 450 nits and a 700:1 contrast ratio, and Winmate quotes viewing angles of 160° horizontally and 140° vertically. Touch is optional: specify resistive touch for gloved or stylus input, or protection glass without touch where the screen only needs to display.

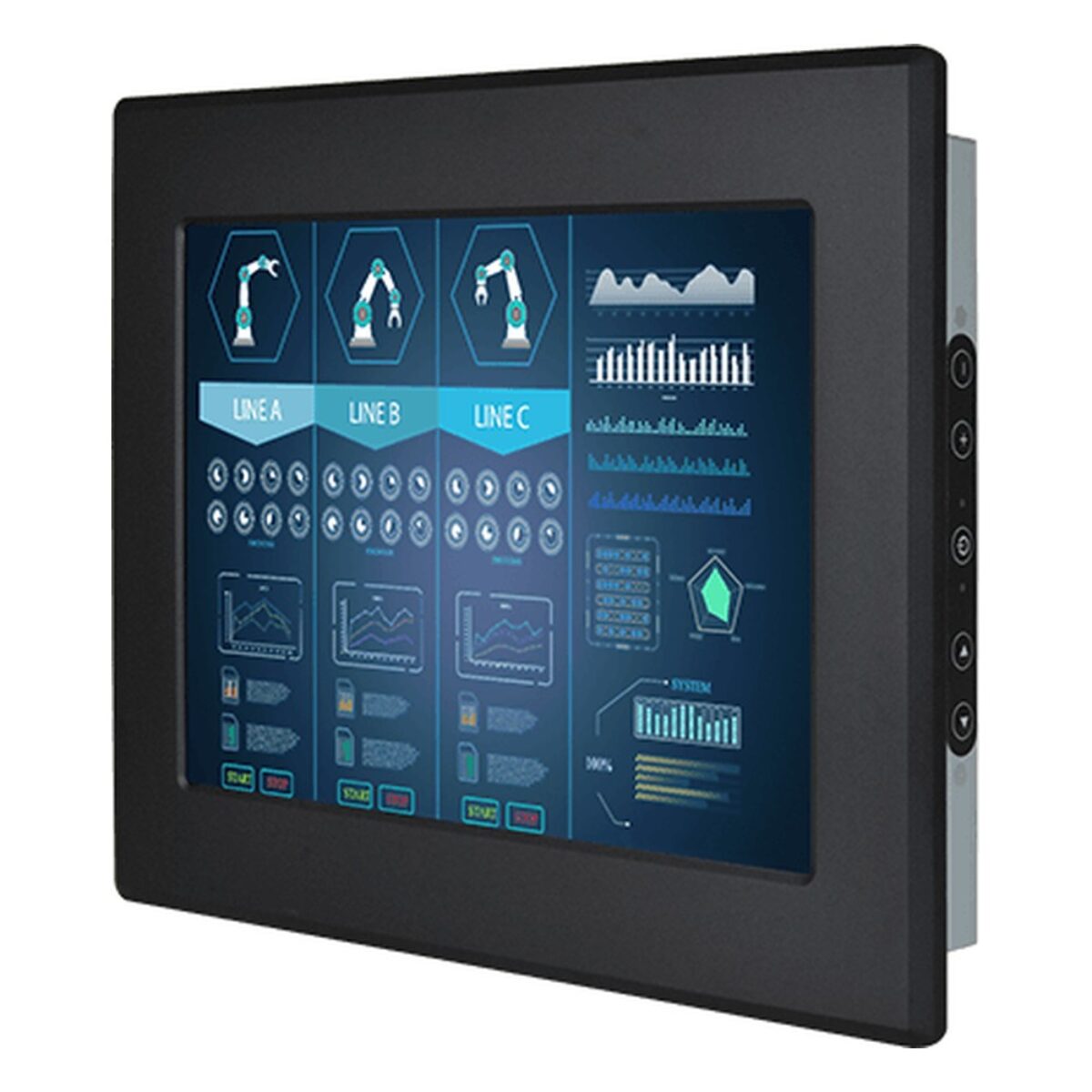

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R10L100-IPT2 moves to a 1024 x 768 panel with 1000:1 contrast, and the R10T600-CHP3 puts a 640 x 480 panel in a VESA chassis instead.
The R10L100-IPP3 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The fanless metal housing with an aluminium bezel mounts into a panel cut-out or on VESA, and the 10.4 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R10L100-IPP3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-IPP3 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 640 x 480, VGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 450 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 140° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 284mm x 234mm x 43mm (11.18" x 9.21" x 1.69") |
- R10L100-IPP3 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R10L100-IPP3 configured and tested for UK machine, kiosk and factory automation projects. Within the Winmate range the R10L100-IPT2HB is the 10.4 inch 1000 nit version.
The R10L100-IPP3 sits among our front IP65 monitors, our panel mount monitors and our 4:3 monitors. Where a project needs a 10.4 inch front IP65 monitor that connects to an existing computer, this is a sensible model to shortlist.
