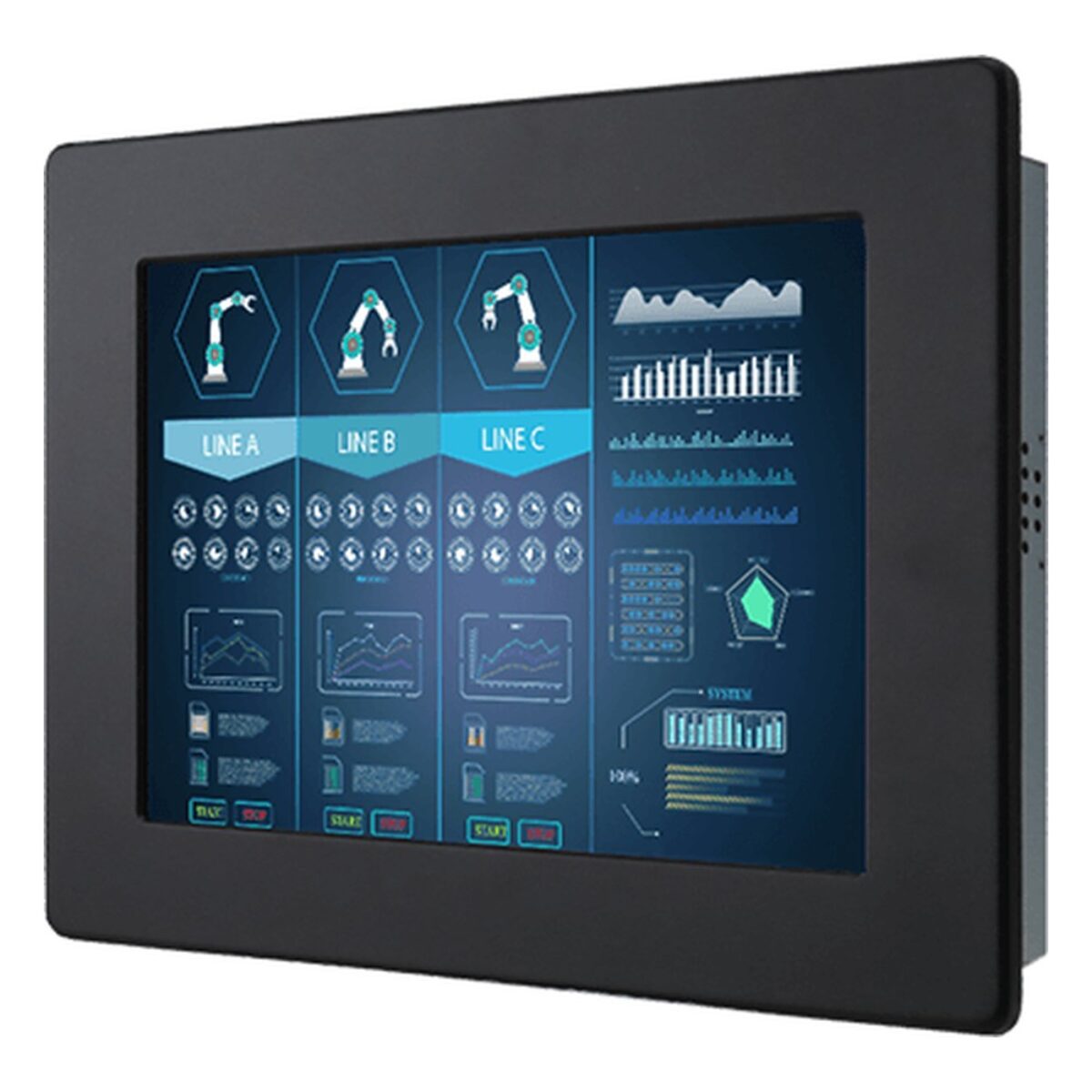

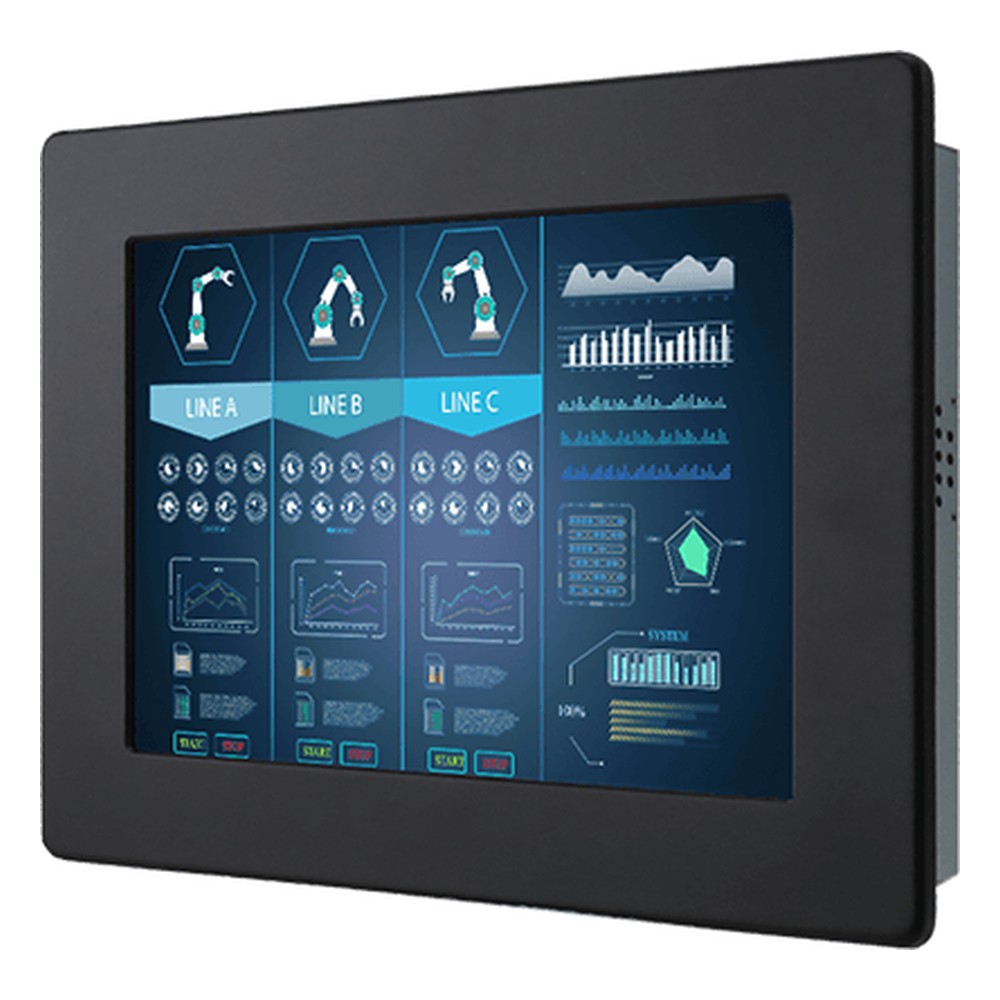

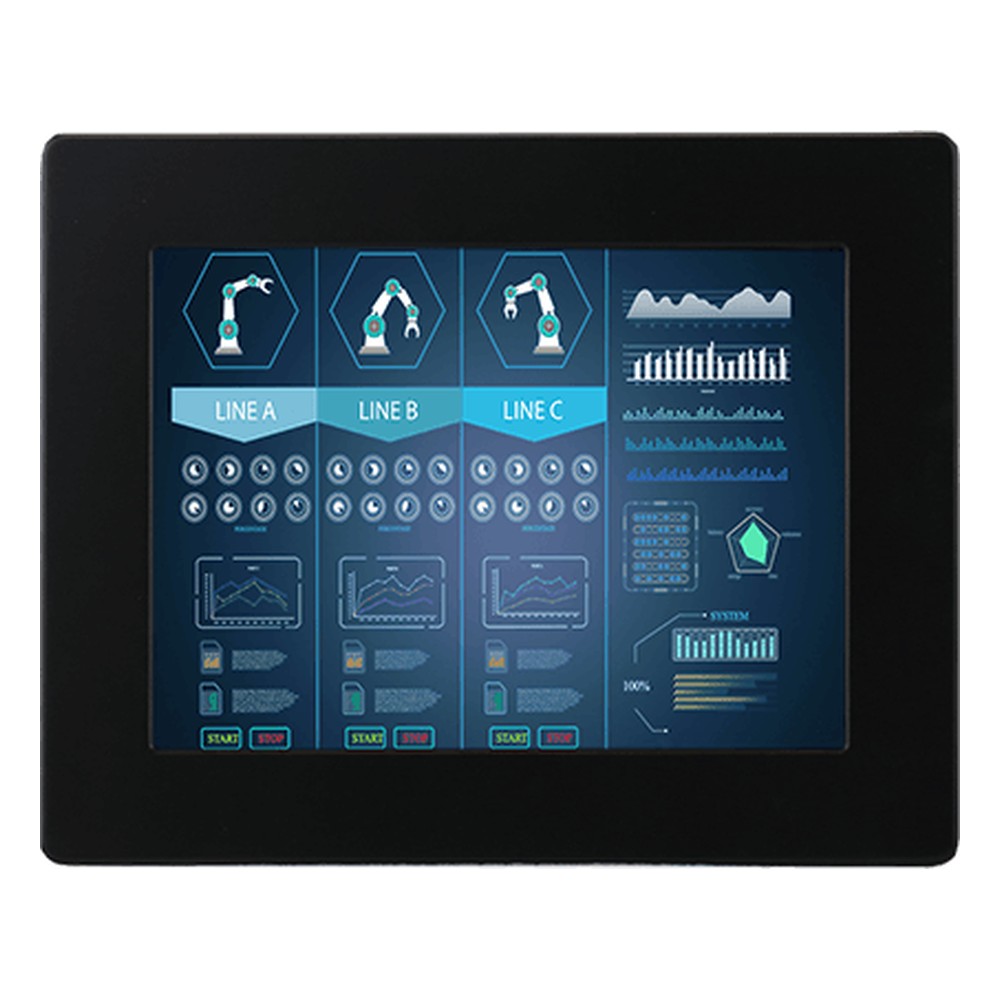

Winmate R10L100-IPT2HB 10.4″ Front IP65 Monitor with 1000 Nit XGA Display and Resistive Touch

A screen in a machine panel or kiosk that faces bright light can be hard to read at normal brightness. The R10L100-IPT2HB is Winmate’s 10.4 inch front IP65 high brightness monitor, with a 1000 nit panel that suits sunlight-readable installations and IP65 sealing at the front.

The 10.4″ 4:3 panel runs at 1024 x 768 (XGA) with 1000 nits and a 1000:1 contrast ratio, and Winmate quotes viewing angles of 176° in both directions. That brightness helps where strong light falls across the front of the machine or kiosk. Touch is optional: specify resistive touch for gloved or stylus input, or protection glass without touch where the screen only needs to display.

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R10L100-IPT2 is the 350 nit version of this design, and the R15L100-IPC3HB is the 15″ version at the same 1000 nits.

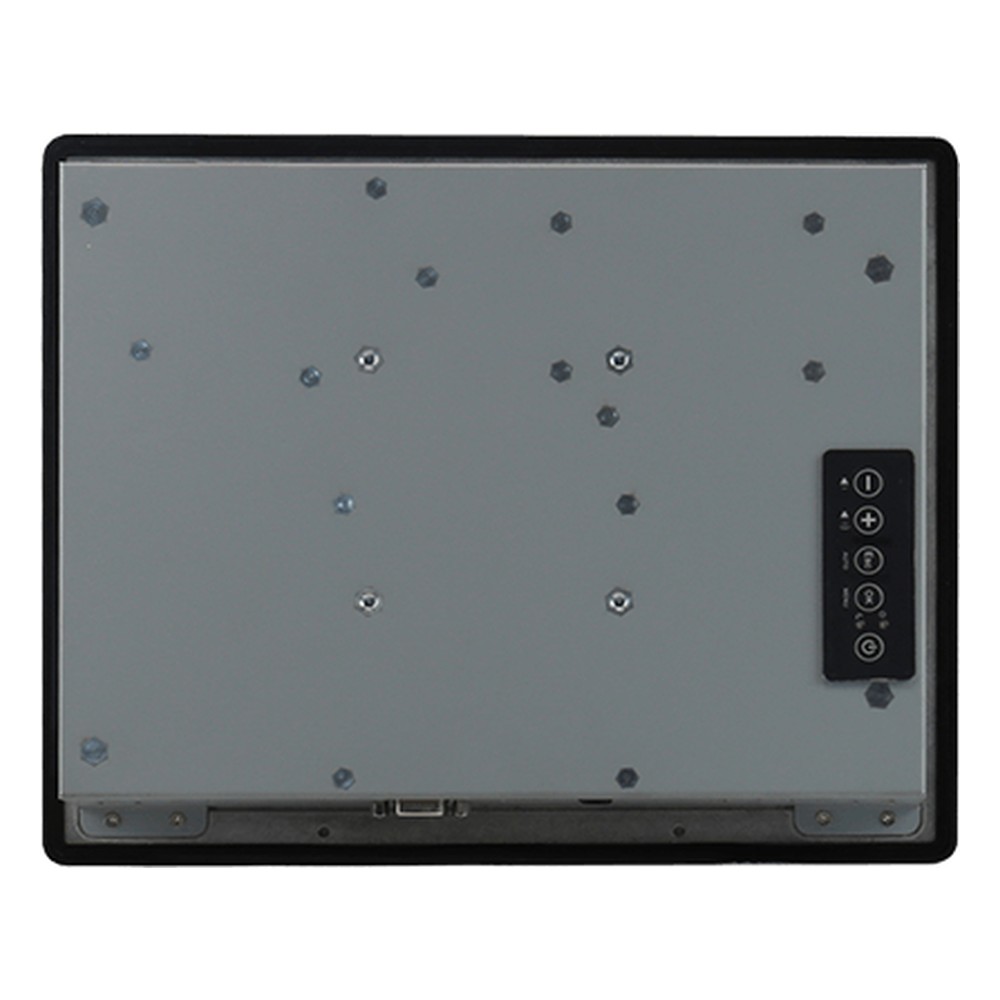

The R10L100-IPT2HB runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The fanless metal housing with an aluminium bezel mounts into a panel cut-out or on VESA, and the 10.4 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
