Winmate R12L600-OFM2 12.1″ Open Frame Monitor with 500 Nit XGA LCD and Optional Resistive or SAW Touch
Resistive
Fanless
CE
FCCR12L600-OFM2 Overview

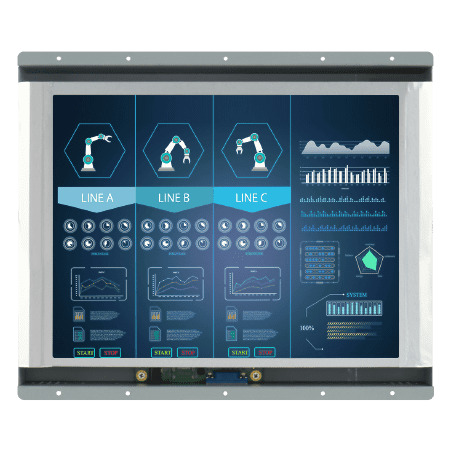

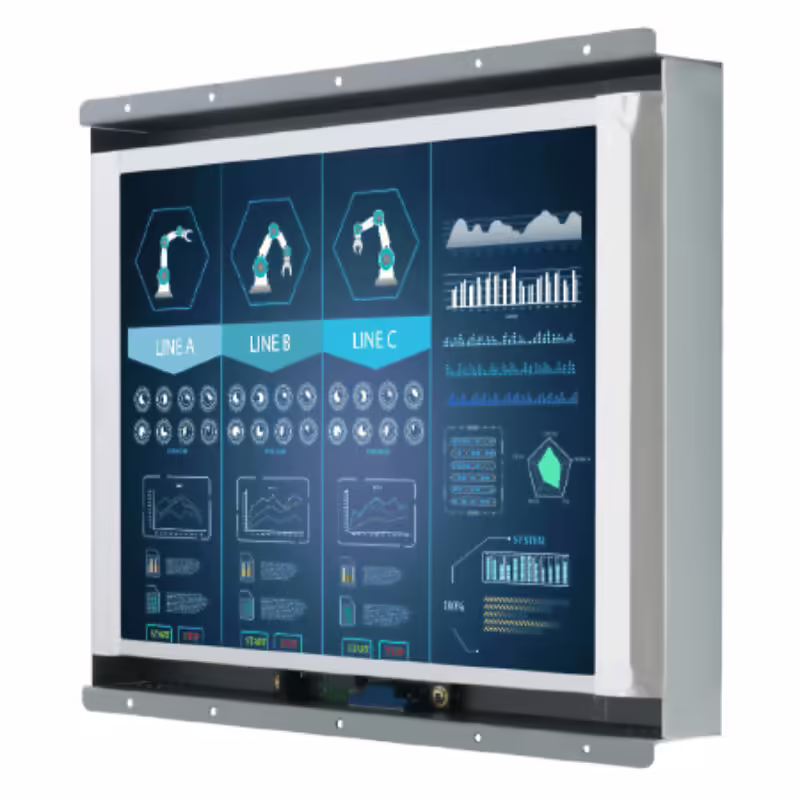

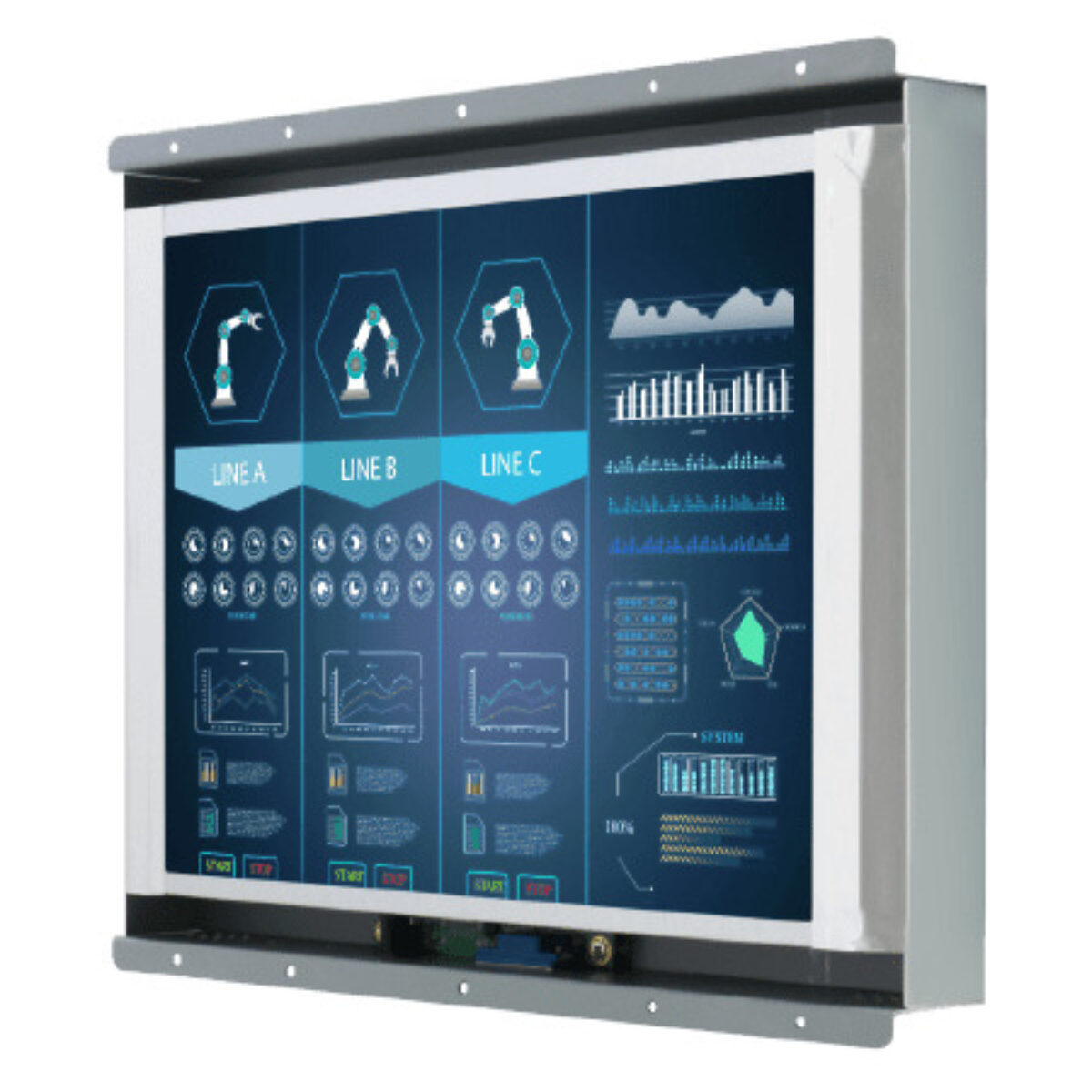

A kiosk or machine screen is often read from an angle, by users of different heights or operators walking past. The R12L600-OFM2 is Winmate’s 12.1 inch open frame monitor with that in mind: a 1024 x 768 XGA display at 500 nits with 178° viewing angles in both planes, in a metal enclosure fitted from behind on rear or VESA mounting.
The panel has a 1000:1 contrast ratio and 16.2 million colours, which keeps text and graphics crisp for HMI and kiosk software. Touch is chosen at order: resistive touch for gloved or stylus input, SAW touch for a clear glass surface that responds to a finger, or protection glass alone for a display-only screen such as a status board.

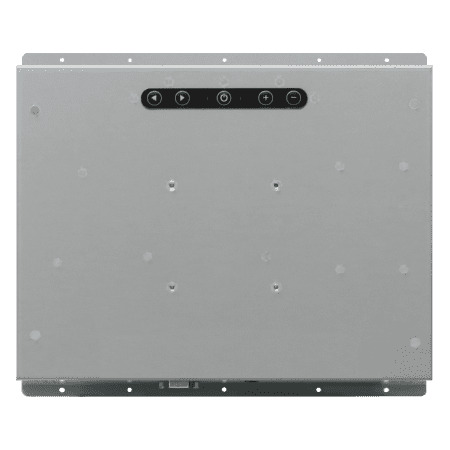

Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor pairs with kiosk PCs, PLCs and controllers. One USB port serves the touch screen, a five-key OSD panel handles settings, and an optional 3.5 mm audio line-in drives two optional speakers. For brighter sites the R12L600-OFM2HB runs at 1000 nits, and the R12L600-OFM2TR has a transflective panel for strong ambient light.
Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The R12L600-OFM2 is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It measures 300 x 250 x 40 mm and takes rear mounting or 75 x 75 mm VESA mounting. Winmate names industrial visualisation, control rooms, equipment monitoring, ATMs, vending machines, casino monitors, airport information displays and mall kiosks.
R12L600-OFM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L600-OFM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 300mm x 250mm x 40mm (11.81" x 9.84" x 1.57") |
- R12L600-OFM2 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R12L600-OFM2 configured for UK kiosk integrators and machine builders. Within the Winmate range the R12L600-OFM2HB is the 1000 nit high brightness version, and the R12L600-OFM2TR uses a transflective panel for sites with strong ambient light.
As a wide-angle built-in screen the R12L600-OFM2 sits among our 12 inch touch screen monitors, our open frame monitors and our 4:3 industrial displays. Where a kiosk is read from many angles indoors, this is the model to specify.
