Winmate R17IT7T-PPM1 17″ PCAP Panel Mount PC with Intel Core i5-1135G7 and Front IP65 Aluminium Bezel

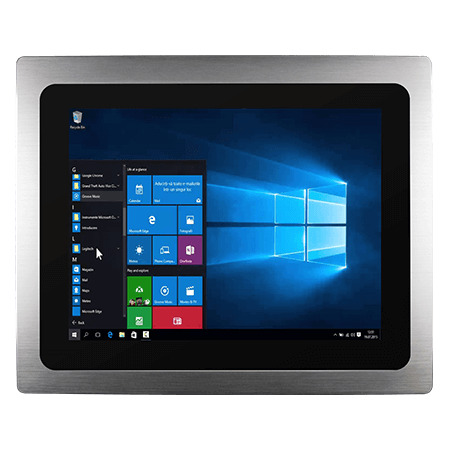

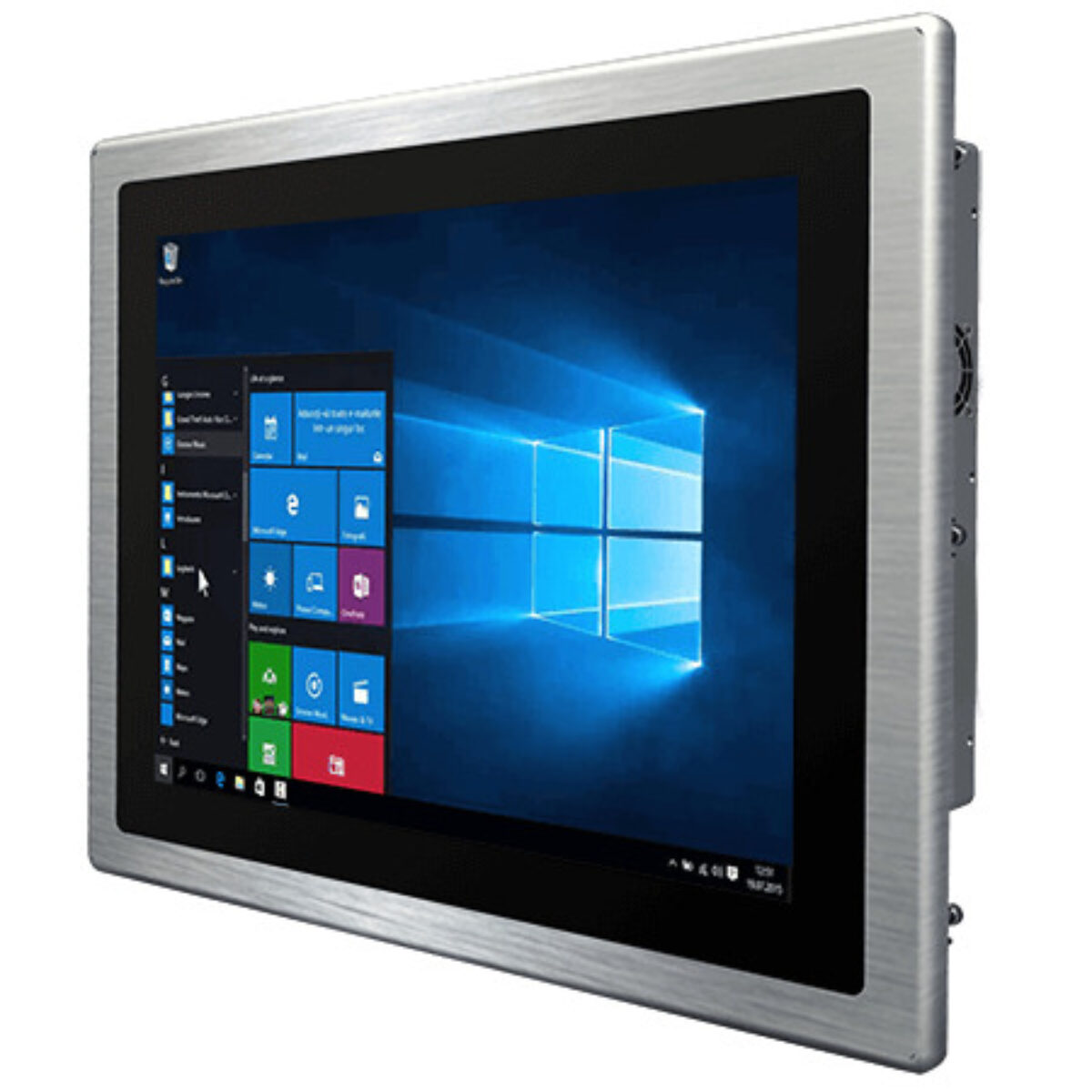

A larger HMI on a cabinet door gives operators room for trends and alarms, but in a food hall or wash area its face still takes spray and cleaning every shift. The R17IT7T-PPM1 is Winmate’s 17 inch PP series panel PC: an aluminium-bezelled panel mount computer with PCAP multi-touch and a front IP65 water and dust proof rating.

It runs an Intel Core i5-1135G7 with 8 MB cache at up to 4.2 GHz, and the vPro Intel Core i5-1145G7 is an option. One DDR4-3200 SO-DIMM holds 4 GB as standard with options to 32 GB, or a two-socket build reaches 64 GB. Storage is one M.2 slot for a 2242 SATA or 2280 NVMe SSD from 128 GB, with NVMe options to 4 TB and an optional SATA III drive. The 1280 x 1024 display is rated at 350 nits with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles, and the projected capacitive screen suits quick taps and swipes. Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied.

Behind the panel are four USB 3.2 Gen 1 Type-A ports, one RS-232/422/485 and one RS-232 port, two Gigabit Ethernet ports on Intel controllers, a DisplayPort 1.4 output with HDMI 2.0 as an option, and mic-in and line-out. An M.2 E-key slot takes an optional Wi-Fi module, and TPM 2.0 is on board. The R17IT7T-POM1 is the open frame version for OEM enclosures, and the R15IT7T-PPC3 is the 15 inch PP series model.

Power is 12 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter rated at 120 W supplied. The R17IT7T-PPM1 is fan cooled, operates from 0 to 50 °C at 10 to 90% humidity non-condensing and stores from -20 to 60 °C, with CE and FCC marks. It measures 437.9 x 372.7 x 71 mm, fits a 395 x 325 mm cut-out and also mounts on 75 x 75 or 100 x 100 mm VESA.
