Winmate R17IT7T-PMM1 17″ SXGA Panel Mount PC with Intel Core i5-1135G7 and 2.5GbE

The R17IT7T-PMM1 is Winmate's 17 inch panel mount panel PC, fitting an Intel Core i5-1135G7 and a 350 nit 1280 x 1024 screen into a 394 x 314 mm cut-out. It suits machine control, factory automation and operator HMI stations built into a cabinet or console.

  • Intel Core i5-1135G7: Tiger Lake processor at up to 4.2 GHz with two SO-DIMM sockets for up to 64 GB of memory.
  • 17 Inch SXGA Display: 1280 x 1024 at 350 nits with 1000:1 contrast, with resistive touch or protection glass as options.

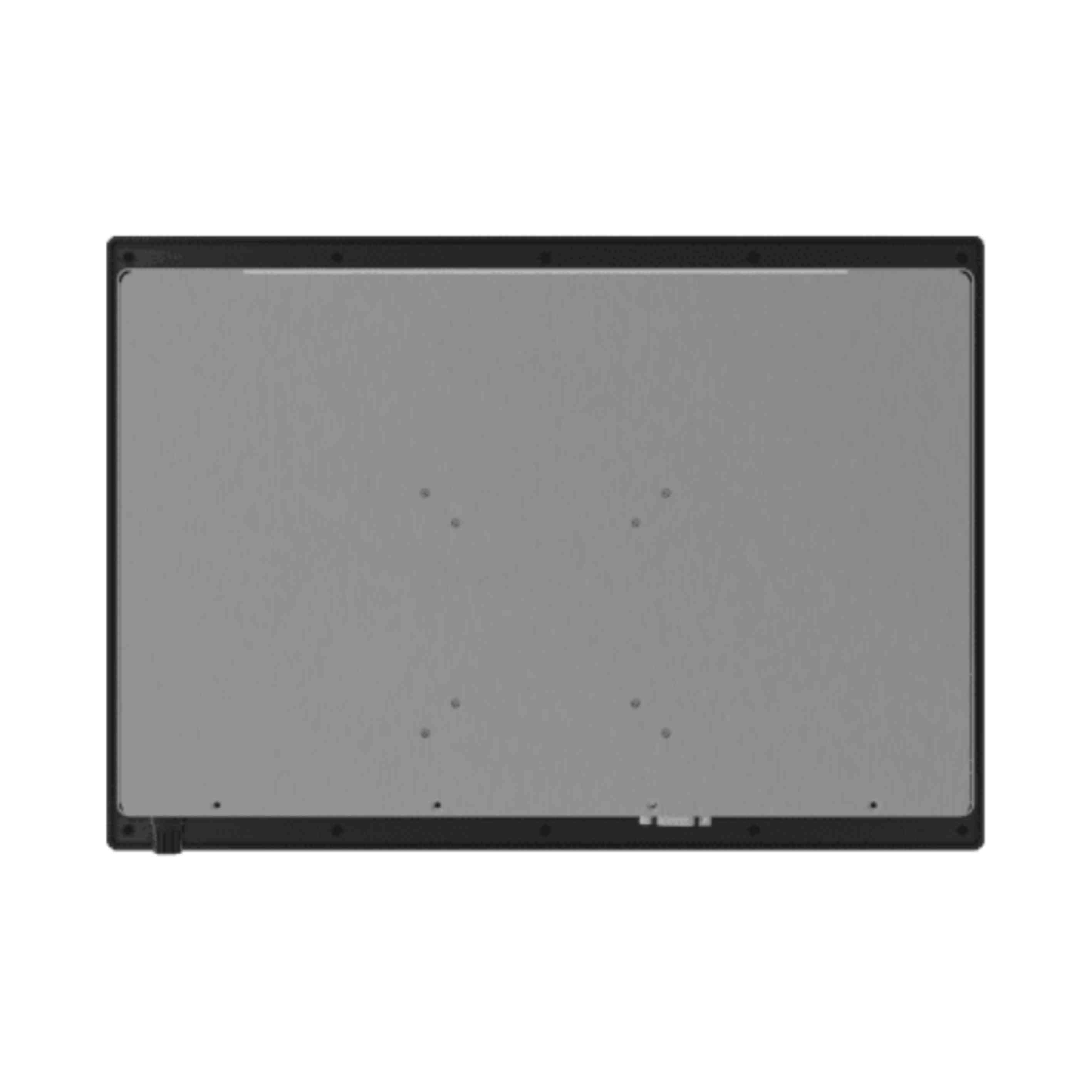

  • Panel Mount Housing: Fanless metal housing for a 394 x 314 mm cut-out as standard, with VESA mounting as an option.
  • GbE and 2.5GbE: One Gigabit and one 2.5 Gigabit Ethernet port, plus four USB 3.2 and two serial ports on the rear.
  • PCIe 4.0 Expansion: A PCIe 4.0 slot with x4 signal and an M.2 Wi-Fi slot leave room for extra I/O inside the cabinet.
Touch Technology: ResistiveResistive
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
USB Generation: USB3USB3
M.2: 22x M.2
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Certification: CECE
Certification: FCCFCC
UK Support Team: +44 (0)1785 558 300 Call
Select section
  • Overview
  • Specifications

R17IT7T-PMM1 Overview

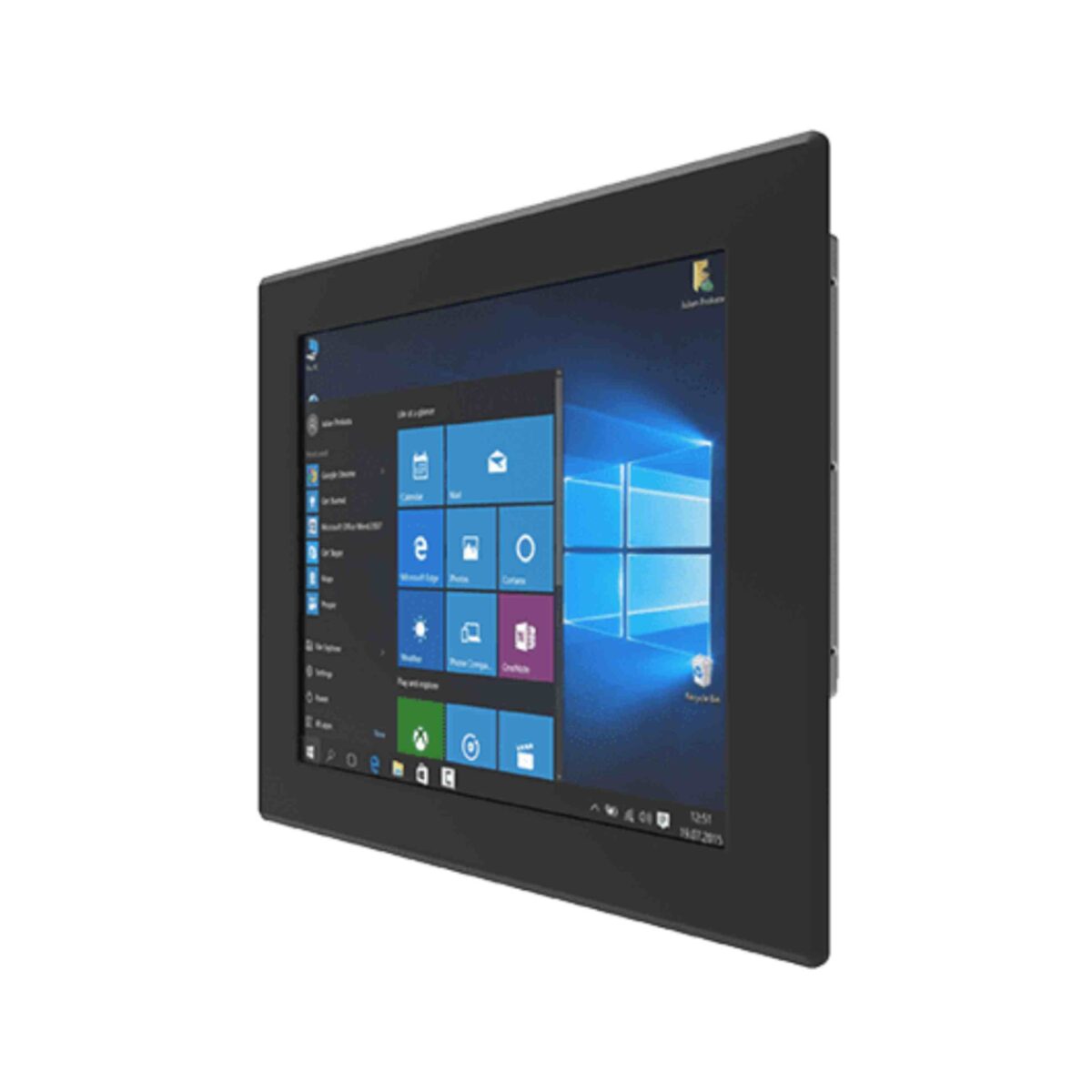

Winmate positions this model for machine control, factory automation and operator HMI, where the display belongs flush in a cabinet door or console rather than on an arm. The R17IT7T-PMM1 is Winmate’s 17 inch panel mount panel PC: a fanless metal housing with a 5:4 display that fits a 394 x 314 mm cut-out, with VESA mounting available as an option.

It runs an Intel Core i5-1135G7 at 2.4 GHz up to 4.2 GHz, with the vPro i5-1145G7E also named by Winmate. Two non-ECC SO-DIMM sockets take up to 64 GB, and storage starts with a 128 GB SSD with options up to 4 TB, plus an optional SATA III bay for a 2.5 inch drive. The 1280 x 1024 screen is rated at 350 nits with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles, and resistive touch or protection glass can be specified. Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 can be supplied.

The I/O comprises four USB 3.2 Type-A ports, one RS-232/422/485 and one RS-232 port, one Gigabit and one 2.5 Gigabit Ethernet port, DisplayPort 1.4 or optional HDMI 2.0, and mic-in and line-out. Inside are an M.2 slot for Wi-Fi and a PCIe 4.0 x16 slot with x4 signal. The R17IT7T-CHM1 is the VESA chassis version, and the R17IT7T-PPM1 is the 17 inch panel mount model with PCAP touch and a front IP65 aluminium bezel.

Power is 12 V DC on a DIN 4-pin connector from a 12 V 120 W adapter. The R17IT7T-PMM1 operates from 0 to 50 °C at 10 to 90% humidity non-condensing, stores from -10 to 60 °C and carries CE and FCC marks. It measures 440 x 360 x 81 mm and weighs 5.9 kg.

R17IT7T-PMM1 Specifications

Overview
Brand & ModelWinmate R17IT7T-PMM1
FeaturesIndustrial
Display
Display17"[5:4, 1280 x 1024, SXGA]
Display TreatmentProtective Glass
Touch ControllerOptional Resistive Touch
Brightness350 Nits
Viewing AngleWide Viewing Angle
170° Horizontal, 160° Vertical
Aspect Ratio5:4
FormatStandard
Contrast1000:1
Performance
Processor SeriesIntel Core 11th Gen Tiger Lake
Processor ModelsIntel Core i5-1135G7: 2.4~4.2GHz, 4 Cores, 8 Threads, 8MB Cache, 15W
Intel Core i5-1145G7E: 1.5~4.1GHz, 4 Cores, 8 Threads, 8MB Cache, 15W
Performance Cores4 Cores
Memory2x DDR4 3200MHz SO-DIMM Slots, 64GB
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux Ubuntu 22.04
Windows 10
Windows 11
Graphics
Display Outputs1x Display Port
Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [RJ45]
USB4x USB Ports
4x USB 3.2 Gen 2 [Type A]
Serial2x Serial Ports
1x RS232 [DB9]
1x RS232/422/485 [DB9]
Expansion
M.22x M.2 Expansion Slots
1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
Wireless ConnectivityOptional WiFi/Bluetooth
Storage
Storage1x 2.5" HDD/SSD
1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input12V DC
Optional AC Power Supply
Environmental Conditions
Operating Temperature0°C to 50°C [32°F to 122°F]
Storage Temperature-10°C to 60°C [14°F to 140°F]
Humidity10-90% (Non-condensing)
CertificationCE
FCC
Mechanical Properties
Dimensions440mm x 360mm x 81mm (17.32" x 14.17" x 3.19")

Official Winmate UK Distributor

Things Embedded is an official Winmate UK distributor, supplying the R17IT7T-PMM1 configured for UK automation projects. Within the Winmate range the R17IT7T-PPM1 adds PCAP touch and a front IP65 aluminium bezel for wash areas, and the R15IT7T-PMC3 is the 15 inch panel mount model for a smaller cut-out.

Set into a cabinet door, the R17IT7T-PMM1 sits among our panel mount PCs, our 17 inch industrial panel PCs and our resistive touch panel computers. Where a 17 inch HMI needs 2.5GbE and a PCIe slot behind the panel, this is the model to specify.
