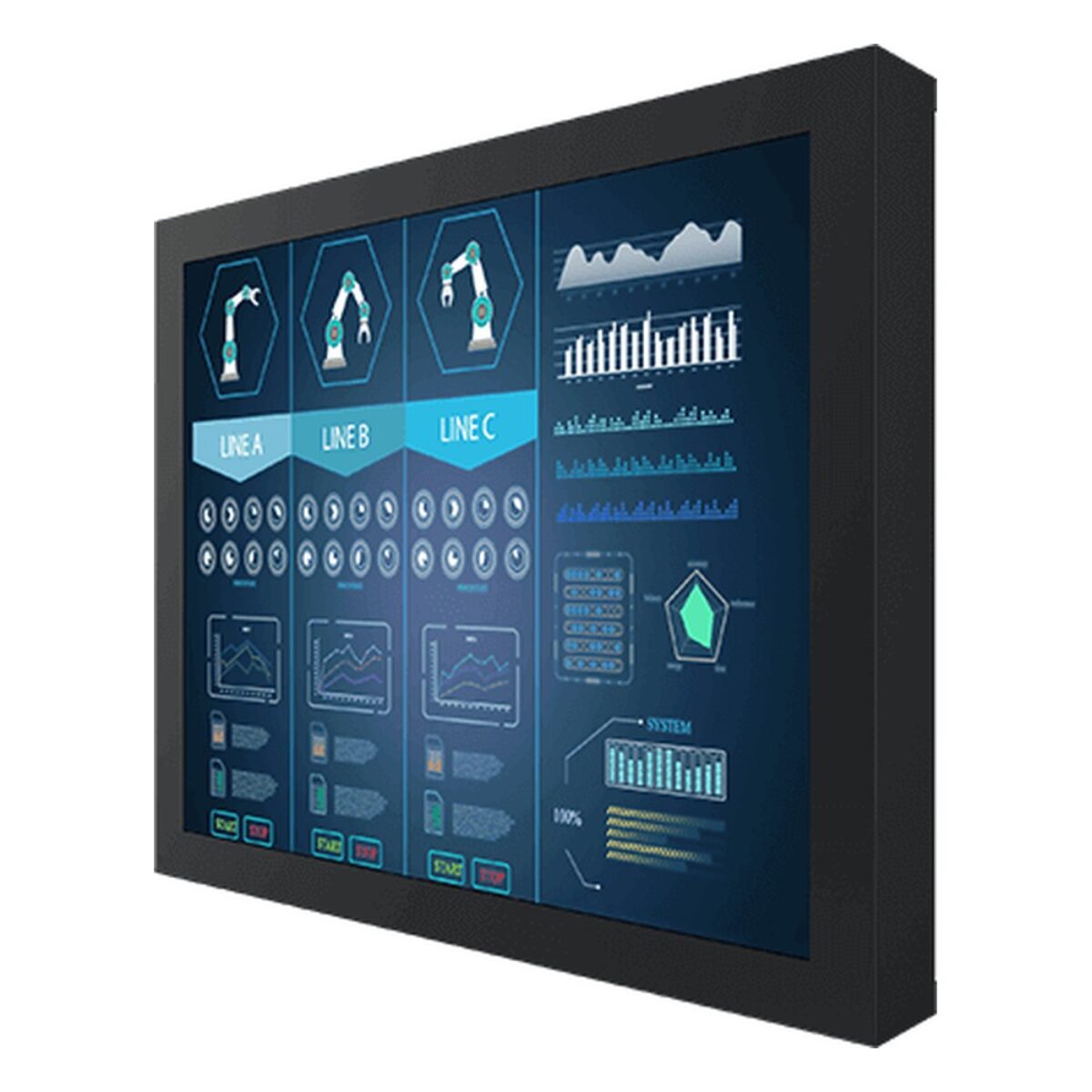

Winmate R19L300-CHA3OD 19″ Sunlight Readable Chassis Monitor with 1000 Nit SXGA Display and Wide Temperature

Control systems, kiosks and equipment screens in bright or exposed places need a display that stays readable and keeps working as the temperature swings. The R19L300-CHA3OD is Winmate’s 19 inch sunlight readable chassis monitor for that job, with a 19″ SXGA panel at 1000 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It connects to a separate computer over VGA, with HDMI or DVI as options.

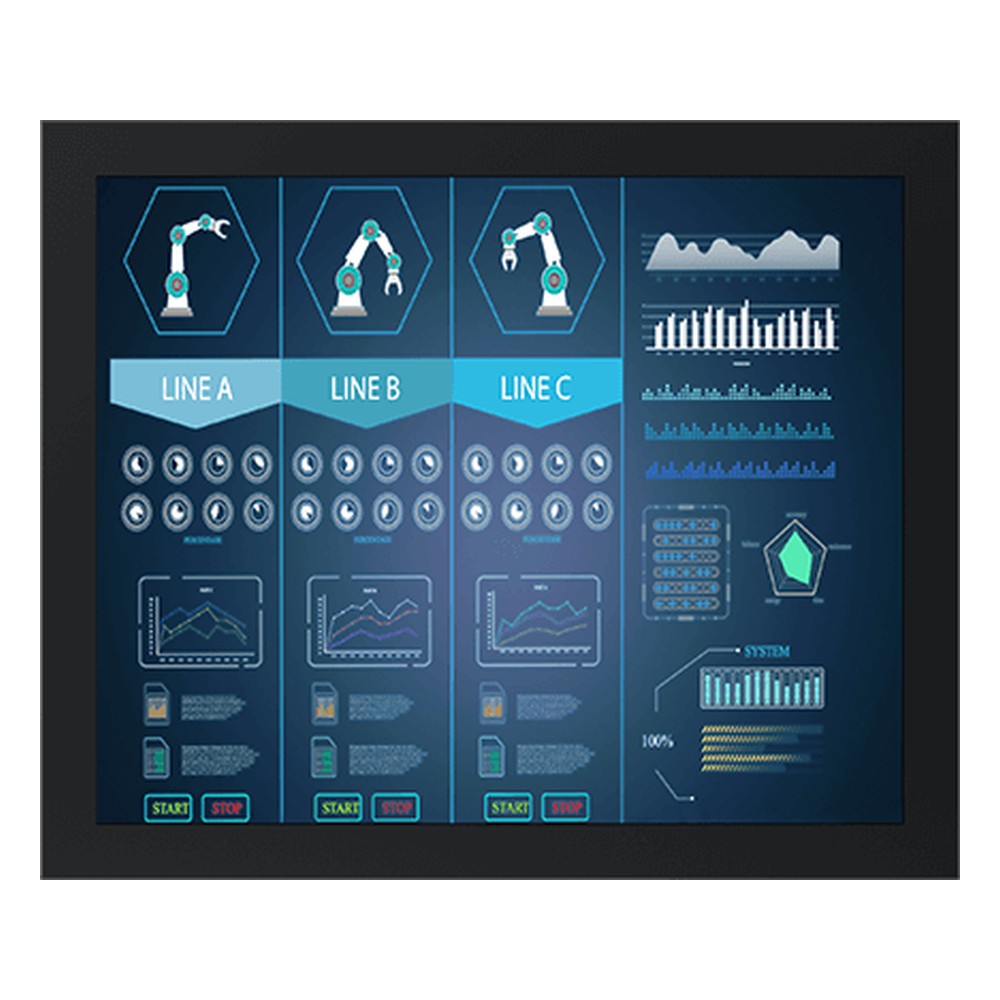

The 19″ SXGA panel runs at 1000 nits with 1000:1 contrast, 16.7 million colours and 170 degree horizontal and 160 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R19L300-CHA3OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R19L300-PMA3OD is the panel mount version of this sunlight readable display, and the R19L300-67M1ST is the stainless steel chassis model with full IP67 sealing and bonded resistive touch.

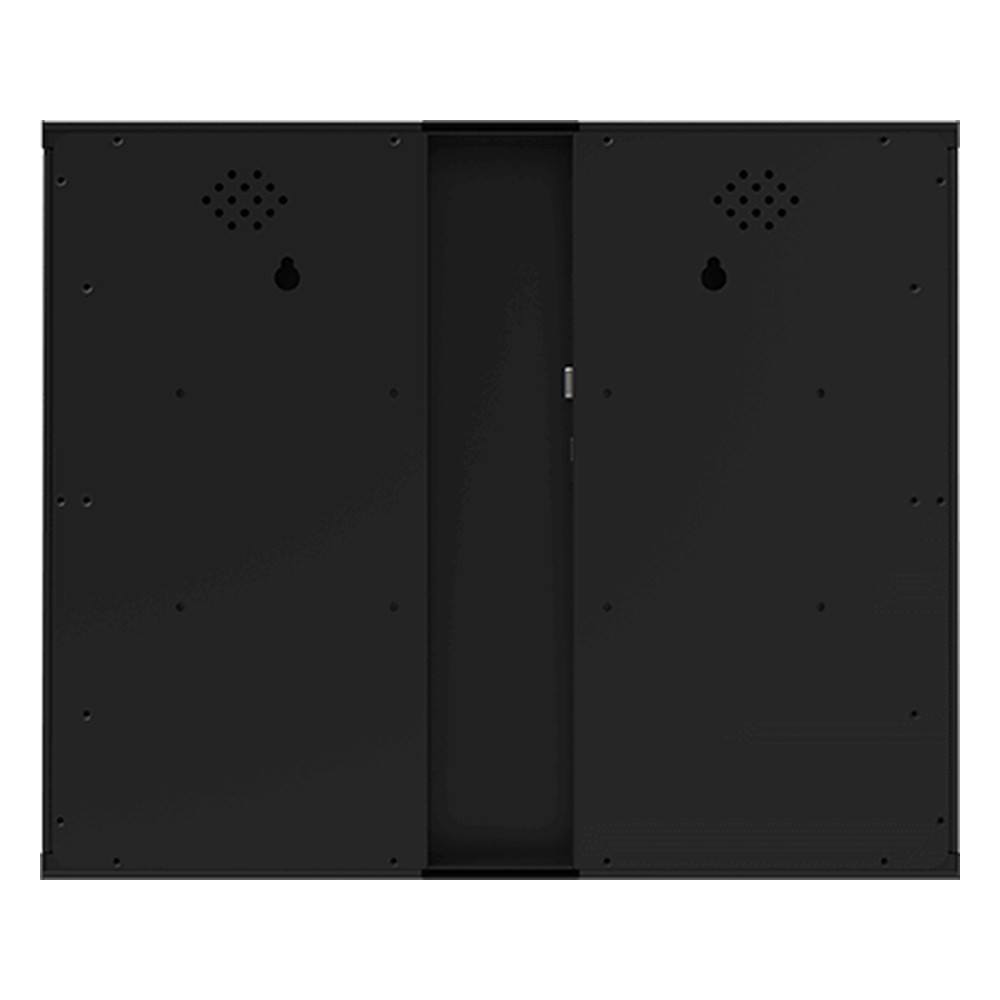

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It mounts on VESA arms, brackets or stands, and it carries CE and FCC marks. We supply the R19L300-CHA3OD configured and tested before dispatch.
