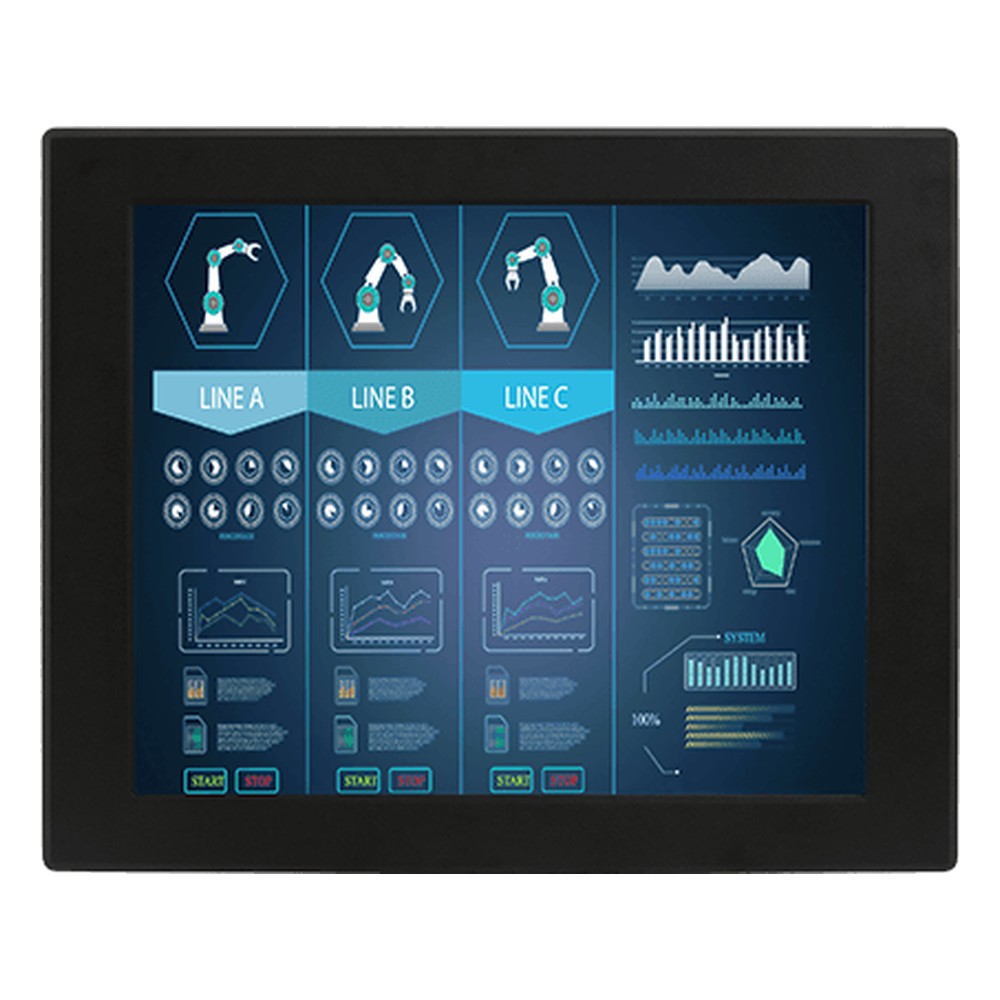

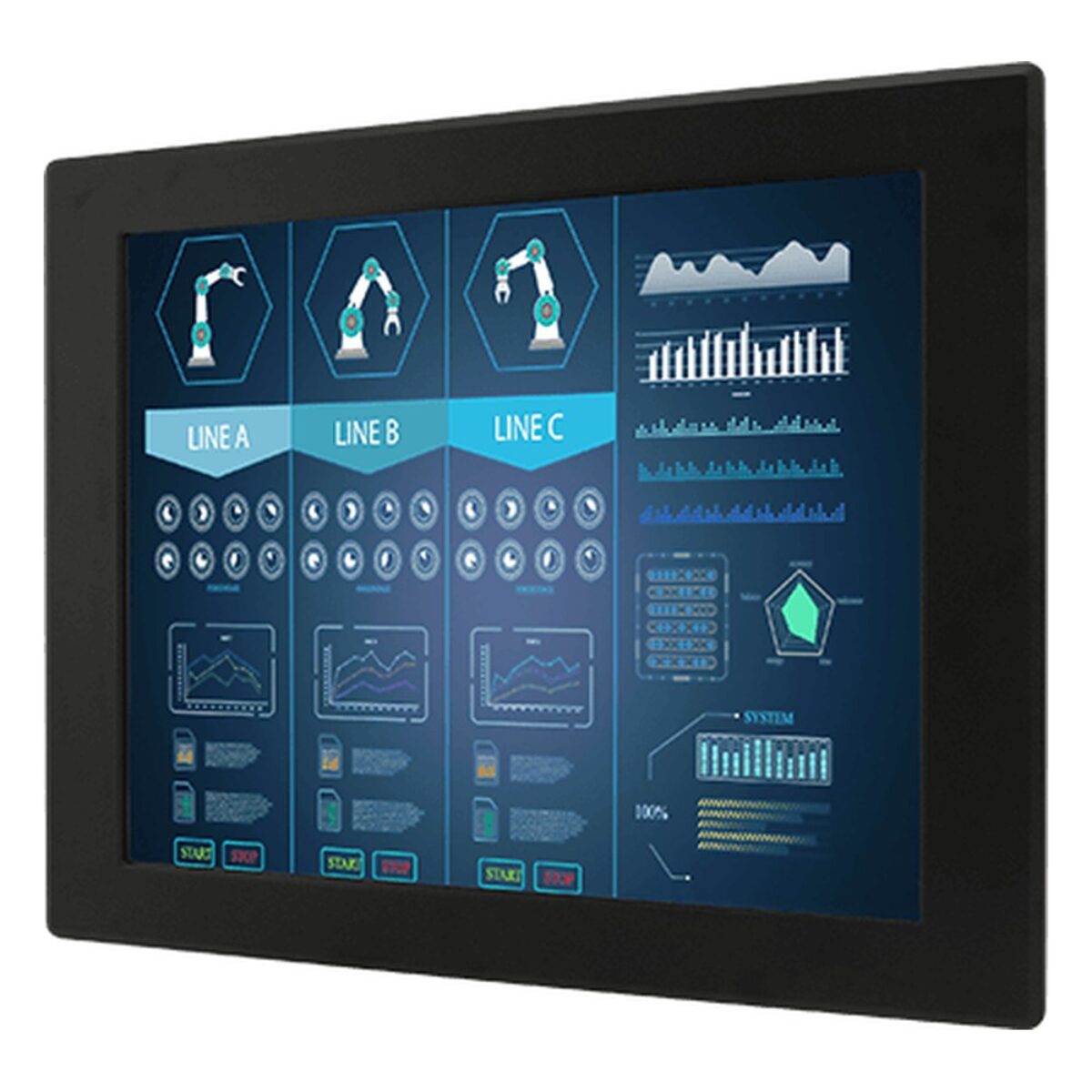

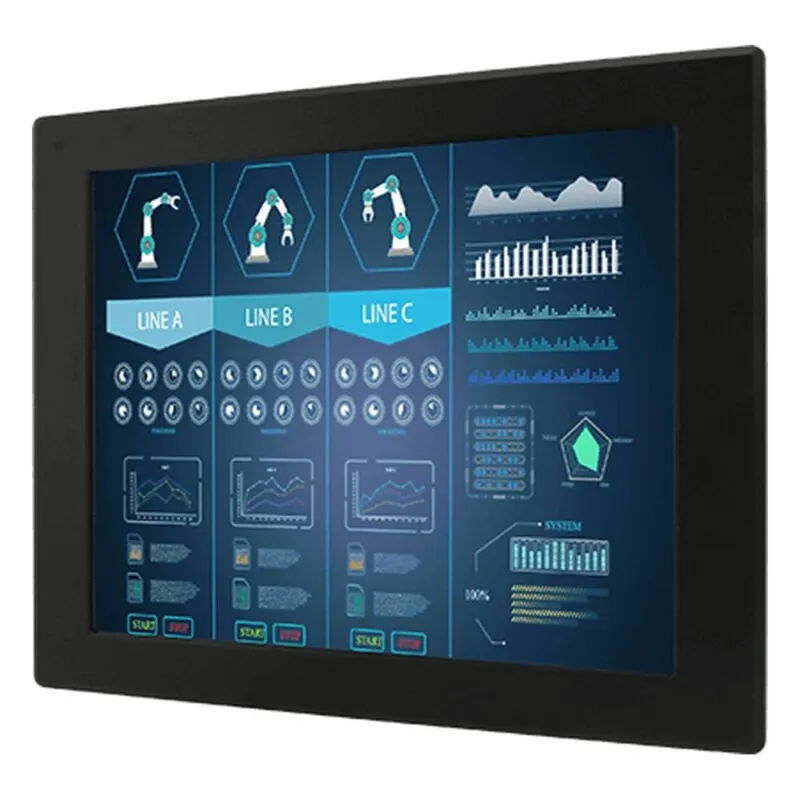

Winmate R19L300-PMM2 19″ Panel Mount Monitor with Resistive Touch and 300 Nits

A 19 inch 5:4 screen is often still the fit for control cabinets and machine panels that were laid out around SXGA, and swapping in a wide panel often means recutting the door. The R19L300-PMM2 is Winmate’s 19 inch panel mount monitor for that kind of job, with a 2000:1 panel and resistive touch, built to connect to a separate PC in factory automation, kiosks and control rooms.

The 19″ panel shows 1280 x 1024 (SXGA) at 300 nits, with 2000:1 contrast and viewing angles of 178 degrees horizontal and 178 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R19L300-PMM2 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R19L300-RMM2 uses the same 300 nit panel in a rear mount design, and the R19L300-65M1 is the IP65 stainless steel 19″ model with M12 connectors for wet areas.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminium bezel runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. VESA mounting is standard and panel mounting is listed as an option, with VESA screws supplied. It carries CE and FCC marks. We supply the R19L300-PMM2 configured and tested before dispatch, and we can help pair it with the right host computer.
