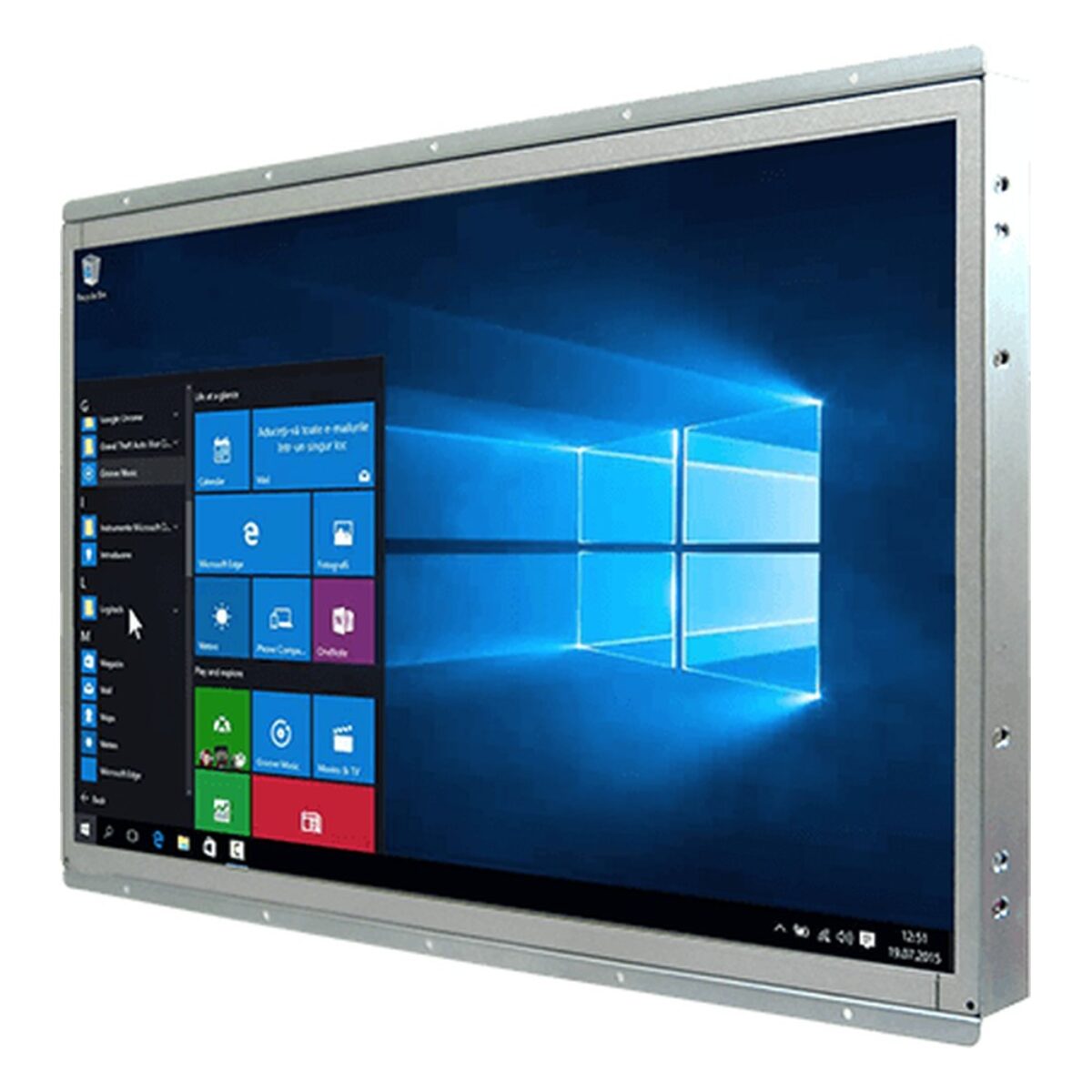

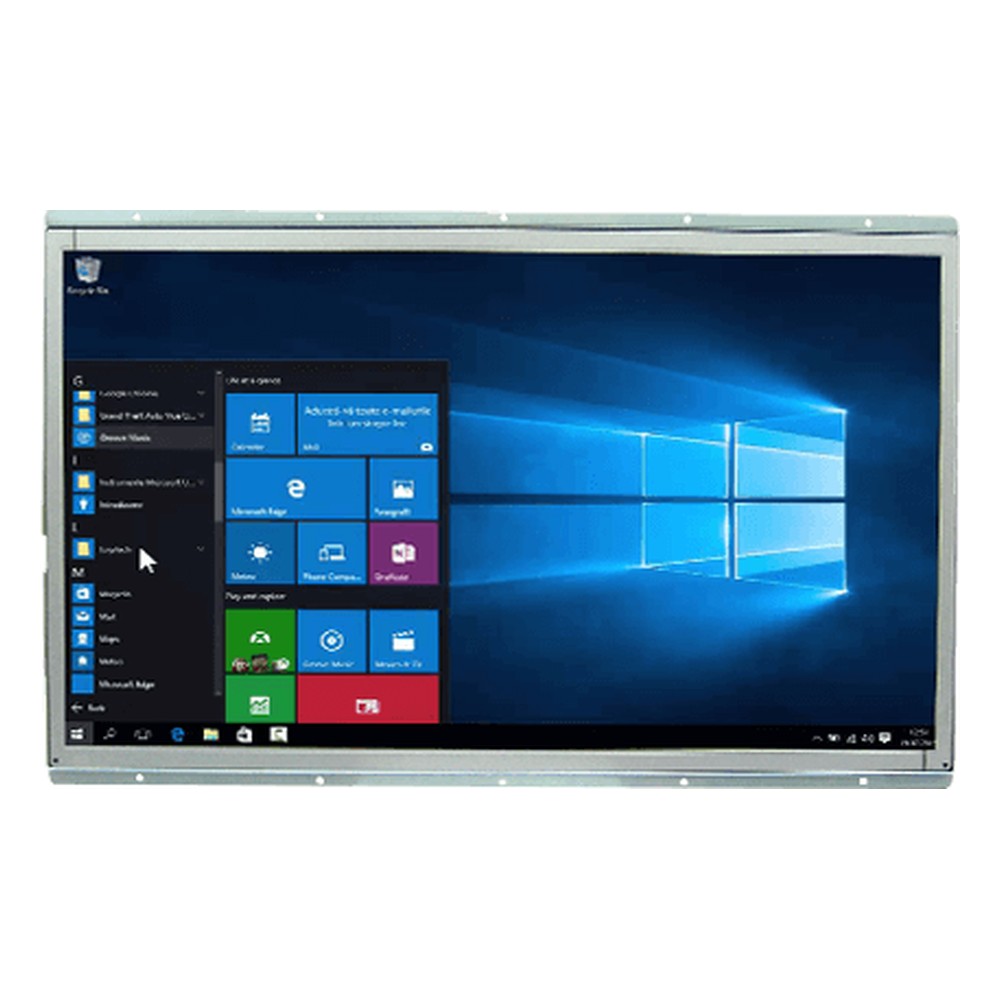

Winmate W15IAD7T-OFA2 15.6″ Open Frame Panel PC with Intel Core i3 to i9 LGA1700 and Resistive Touch
Resistive
Intel
Linux
Windows
Dual Display Support
2.5GbE
USB3
2x M.2
Wi-Fi
NVMe SSD
CE
FCCW15IAD7T-OFA2 Overview
Machine builders and kiosk makers often want the display and computer as one module for their own enclosure. The W15IAD7T-OFA2 is Winmate’s 15.6 inch open frame panel PC: a 15.6″ widescreen display and an LGA1700 Intel Core computer on a metal frame, suited to factory automation, retail and interactive digital signage.
It takes a choice of 12th Gen Intel Core TE (Alder Lake-S) and 14th Gen Intel Core T (Raptor Lake Refresh) processors on the Intel R680E chipset, from the Core i3-12100TE as standard to the Core i9-14900T, so one design can suit a simple operator screen or heavier visualisation. Two DDR5-4800 SO-DIMM sockets take up to 64 GB, and a 128 GB M.2 NVMe SSD can grow to 4 TB, with two optional 2.5″ SATA III bays supporting RAID. The 15.6″ panel is 1366 x 768 at 400 nits with 500:1 contrast, with resistive touch or protection glass as options.
Two Intel 2.5GbE ports can separate control and plant networks, and four USB 3.2 Gen 2 Type-A ports at 10 Gbps take scanners and storage. One RS-232/422/485 port and one RS-232 port link PLCs and serial instruments. DisplayPort 1.4a drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 2.0b optional, plus mic-in and line-out. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and TPM 2.0 is on board. The W15L100-OFA2 is the 15.6 inch open frame monitor with no computer inside, and the W15IAD3S-OFA2 is the same frame with a 12th Gen Intel Core i5.
Power is 12 V DC on a four-pin DIN connector, and it comes with a 220 W AC adapter. The W15IAD7T-OFA2 is fan cooled, runs from 0 to 50 °C at 10 to 90% humidity non-condensing and carries CE and FCC marks. Open frame mounting is standard, with panel and VESA mounting as options. We supply it configured, with Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 installed, and tested before dispatch.
W15IAD7T-OFA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W15IAD7T-OFA2 |
| Features | Industrial |
| Display | |
| Display | 15.6"[8:5, 1366 x 768, WXGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 500:1 |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| Chipset | Intel R680E |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 3.6 Kg (7.9 Lbs) |
| Dimensions | 366mm x 248mm x 78mm (14.42" x 9.76" x 3.05") |
- W15IAD7T-OFA2 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the W15IAD7T-OFA2 configured, with the OS installed, and tested for UK OEM and kiosk projects. Within the Winmate range the W15IAD3S-OFA2 is the same frame with a 12th Gen Intel Core i5, and the W24IAD7T-OFA2 is the 23.8 inch Full HD version.
Built into your own enclosure, the W15IAD7T-OFA2 sits among our open frame panel PCs, our 15 inch panel PCs and our resistive touch panel PCs. Where an OEM needs a 15.6 inch display and Intel Core computer as one module, this is a good model to specify.
