Winmate W22IP7T-PPA3 21.5″ Panel Mount HMI with Intel Apollo Lake Pentium N4200 and PCAP Touch

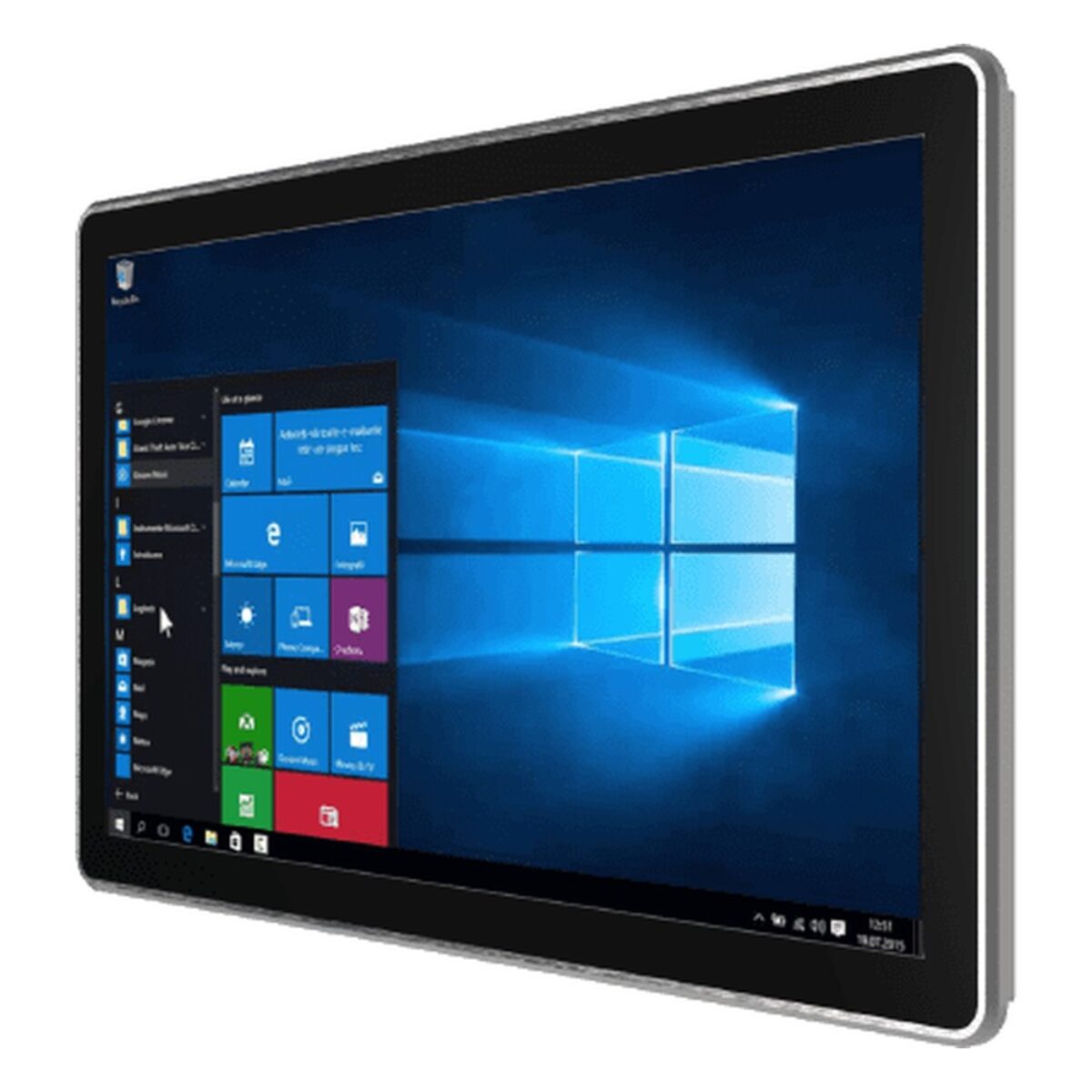

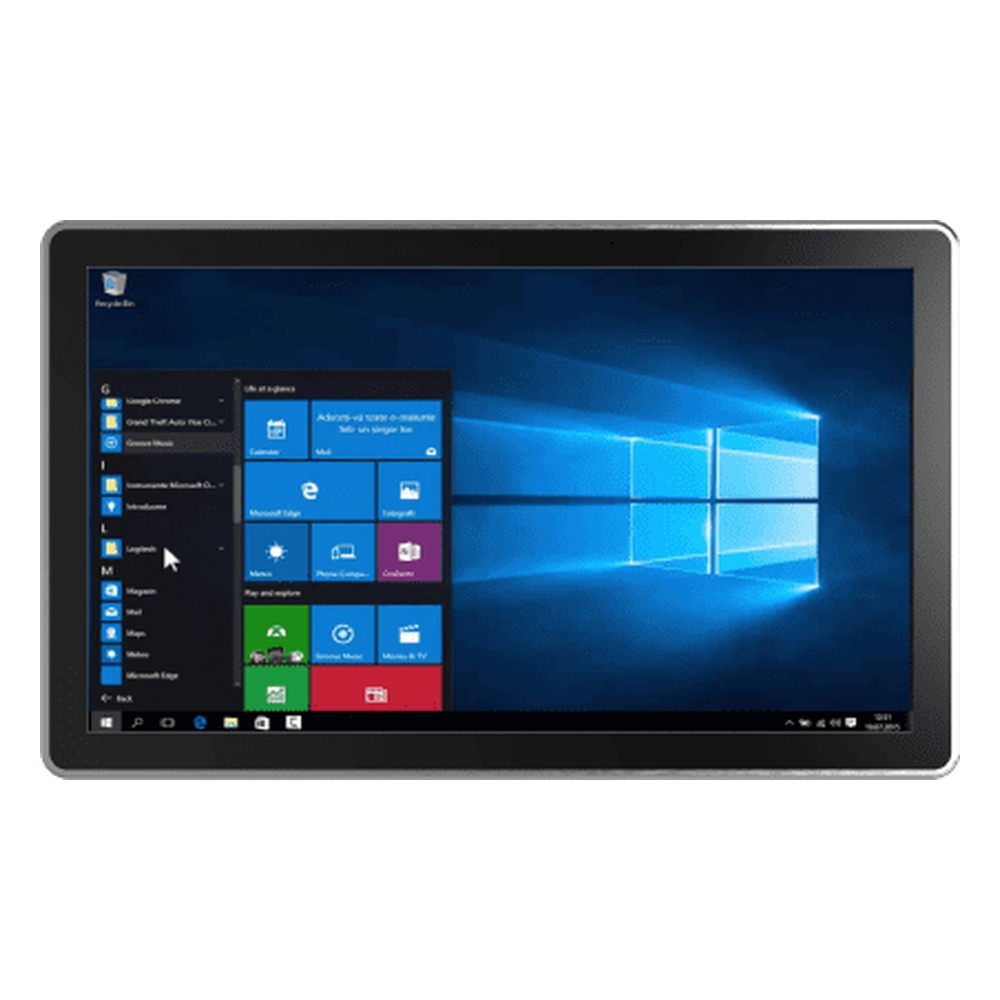

Industrial control panels, room booking screens and access control points often sit flush in a cabinet or wall cut-out, with only the front exposed. The W22IP7T-PPA3 is Winmate’s 21.5 inch PP Series panel mount HMI for those installs, with an Intel Pentium N4200 and a 21.5″ 1920 x 1080 projected capacitive multi-touch display at 250 nits with 3000:1 contrast in an aluminium housing.

The Pentium N4200 runs at 1.1 GHz with burst up to 2.5 GHz, and dual-channel non-ECC SO-DIMM memory goes up to 16 GB, which typically suits HMI software, a kiosk application or a booking client. Storage is a 128 GB SSD as standard on an M.2 2242 B-key SATA slot, with options up to 1 TB, and two optional 2.5″ SATA III bays. A PCIe 2.0 x1 slot takes an expansion card, TPM 2.0 is on board, and Windows IoT Enterprise or Linux Ubuntu 20.04 can be installed.

Connections include two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports, one RS-232/422/485 and one RS-232 port, DisplayPort 1.2 with optional HDMI 1.4 and VGA, and mic in, line out and two speakers. An M.2 2230 E-key slot is there for a Wi-Fi module. Within the Winmate range the W22IT7T-PPA3 is the same size panel mount HMI with an 11th Gen Intel Core i5, and the W22IP7T-POA3 is the open frame version with the same Pentium N4200.

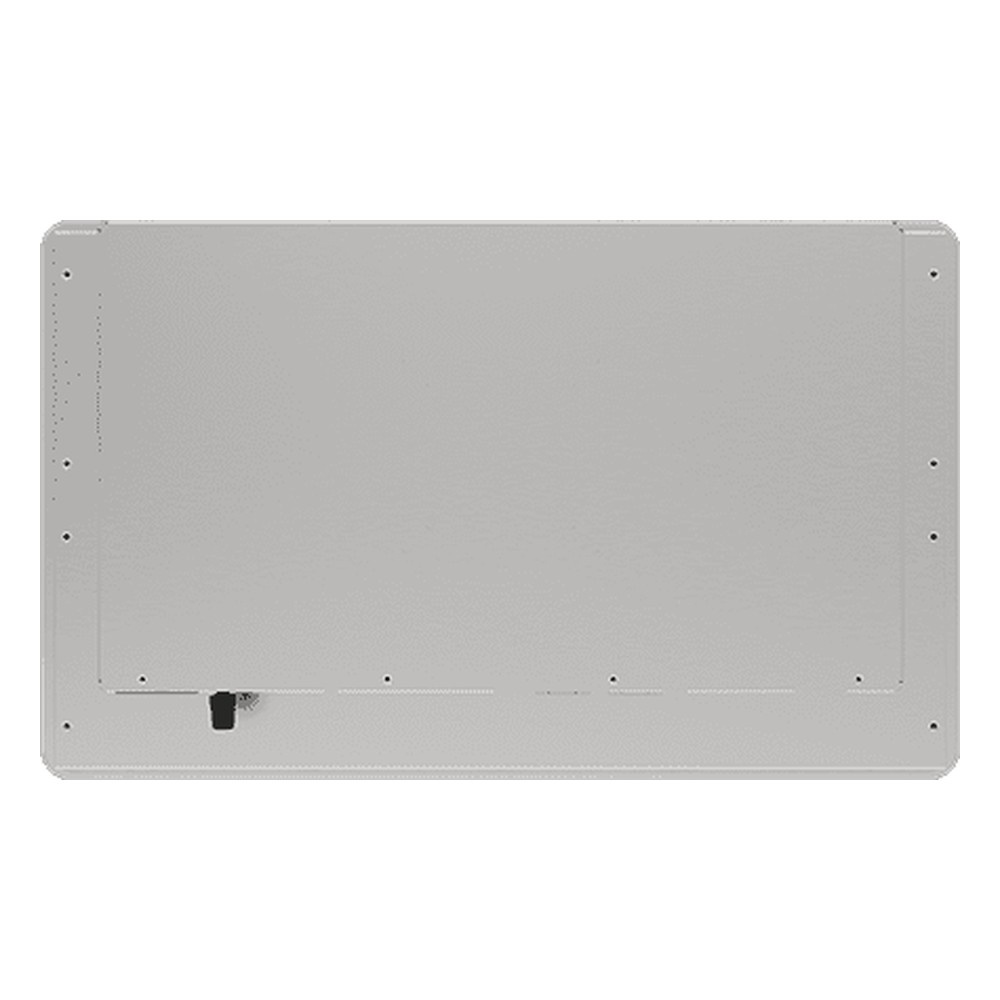

Power is 12 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter (12 V 84 W) supplied. The fanless metal housing has a front IP65 rating and runs from 0 to 50 °C in non-condensing humidity. Panel mounting is standard with mounting clips supplied, and VESA mounting is optional with VESA screws in the box. It carries CE and FCC marks. We supply the W22IP7T-PPA3 configured, with the OS installed, and tested before dispatch.
