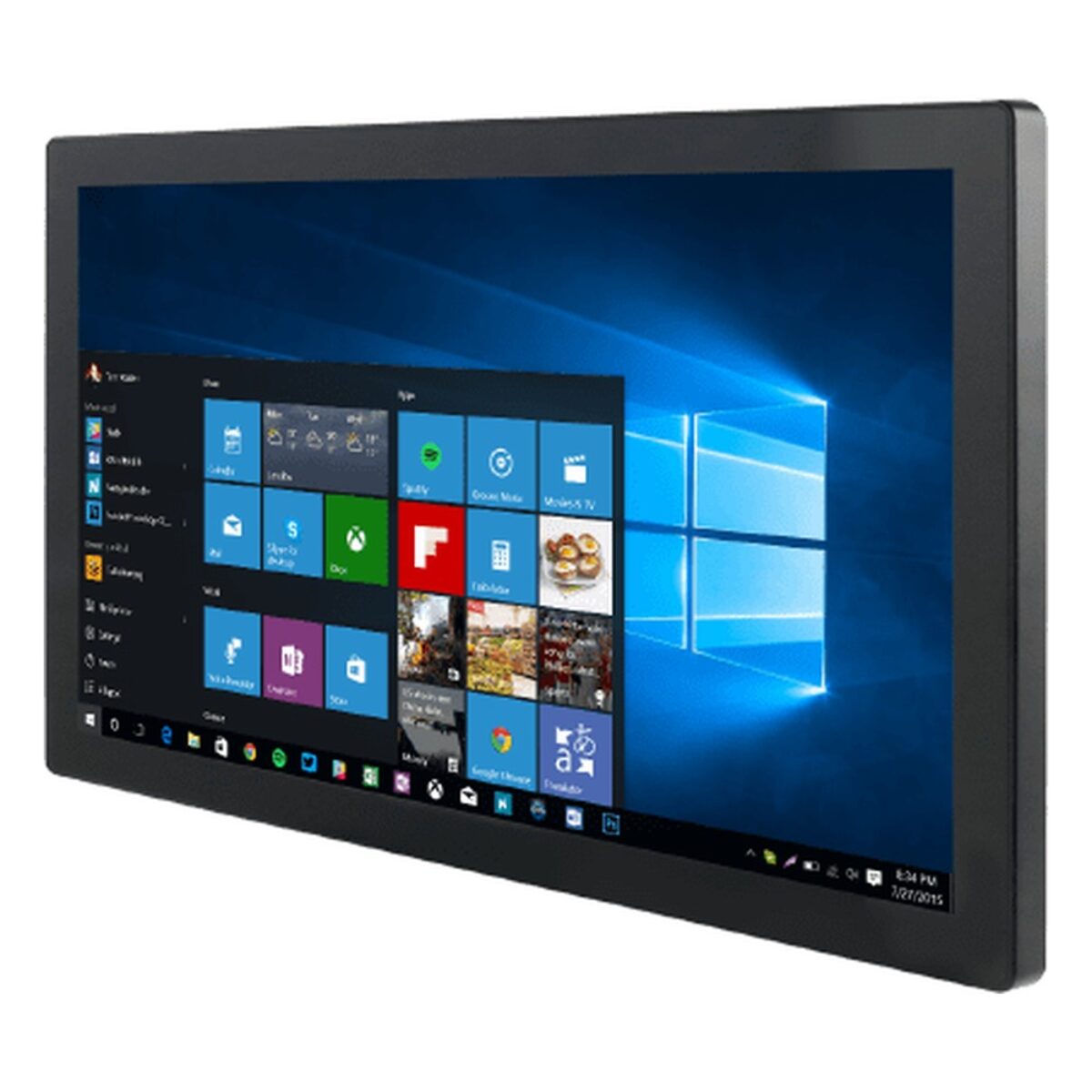

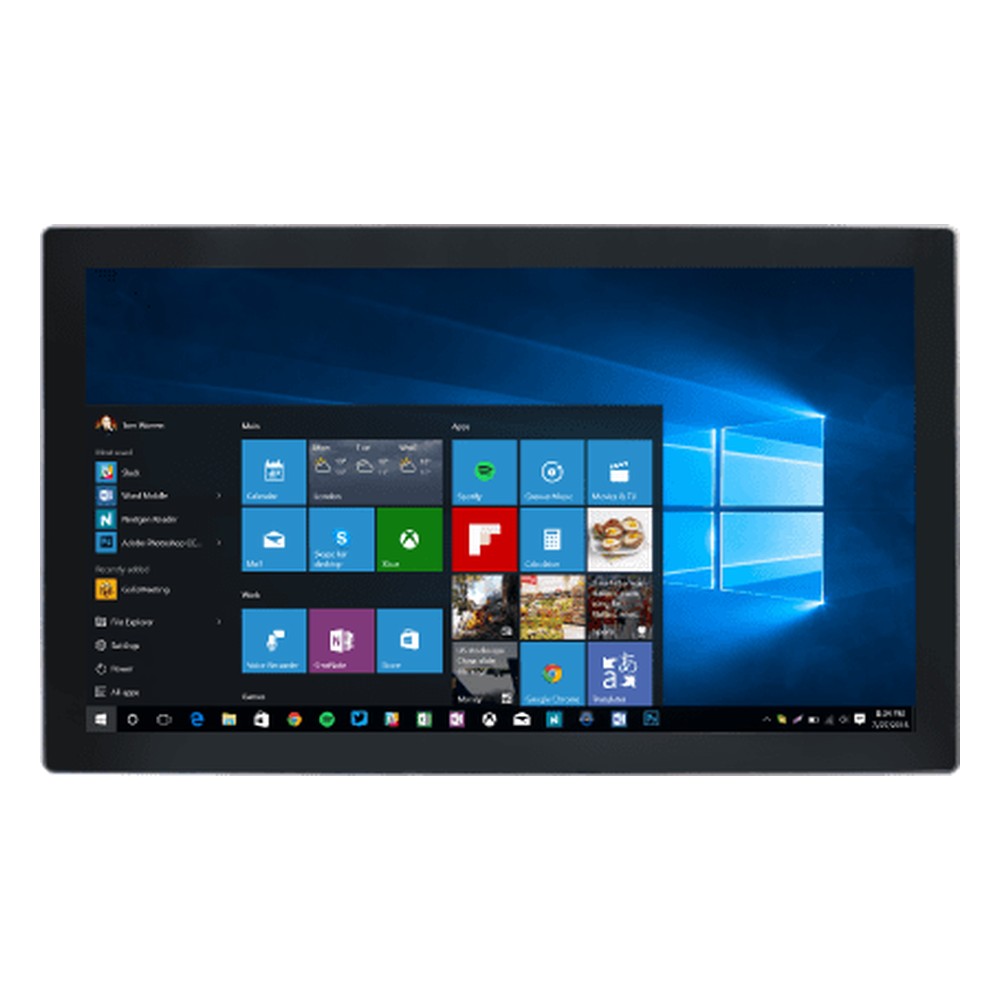

Winmate W24IAD7T-GCA2 23.8″ G-WIN Front IP65 Panel PC with Intel Core i3 to i9 LGA1700 and MIL-STD-810G
PCAP
Intel
Linux
Windows
2.5GbE
USB3
2x M.2
Wi-Fi
NVMe SSD
Front IP65
CE
FCCW24IAD7T-GCA2 Overview
Supervisory stations and kiosks often show several views at once, and a 23.8 inch screen gives each one room to be read from a step back. The W24IAD7T-GCA2 is Winmate’s 23.8″ G-WIN GC panel PC for those jobs, with a 1920 x 1080 PCAP display behind a front IP65, edge-to-edge face and an LGA1700 socket that takes a choice of 12th Gen Core TE and 14th Gen Core T processors.
An Intel Core i3-12100TE is standard, with the i5-12500TE, i7-12700TE and i9-12900TE or the 14th Gen i3-14100T, i5-14500T, i7-14700T and i9-14900T at up to 5.5 GHz as options, all on an Intel R680E chipset. Two non-ECC SO-DIMM sockets take up to 64 GB. Storage is a 128 GB SSD on an M.2 2280 M-key NVMe socket with options to 4 TB, and two optional SATA III bays take 2.5 inch drives up to 2 TB with RAID support. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.
The I/O covers two 2.5GbE ports on Intel controllers, four USB 3.2 Gen 2 Type-A ports, one RS-232/422/485 and one RS-232 port, DisplayPort 1.4a and an optional HDMI 2.0b output up to 4096 x 2160 at 60 Hz, mic in and two speakers, with an M.2 2230 E-key slot for an optional Wi-Fi module. The W24IAN3S-GCA2 is the same 23.8 inch GC design with a fanless Intel Processor N150, and the W24MG3S-GCA2 uses a MediaTek Genio 510 Arm processor.
Power is 12 V DC, with an AC adapter supplied. The W24IAD7T-GCA2 is cooled by a fan and runs from 0 °C to 50 °C, which suits indoor control rooms, retail and production areas. The front is rated IP65 for cleaning, the unit is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, and it mounts in a panel or on VESA. We supply it configured, with the operating system installed, and tested before dispatch.
W24IAD7T-GCA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24IAD7T-GCA2 |
| Features | Industrial Waterproof |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Chipset | Intel R680E |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x Display Port 1x Optional HDMI |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Shock | MIL-STD-810G, Method 516.6, Procedure I |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 588mm x 358mm x 66mm (23.15" x 14.09" x 2.60") |
- W24IAD7T-GCA2 Datasheet Download
