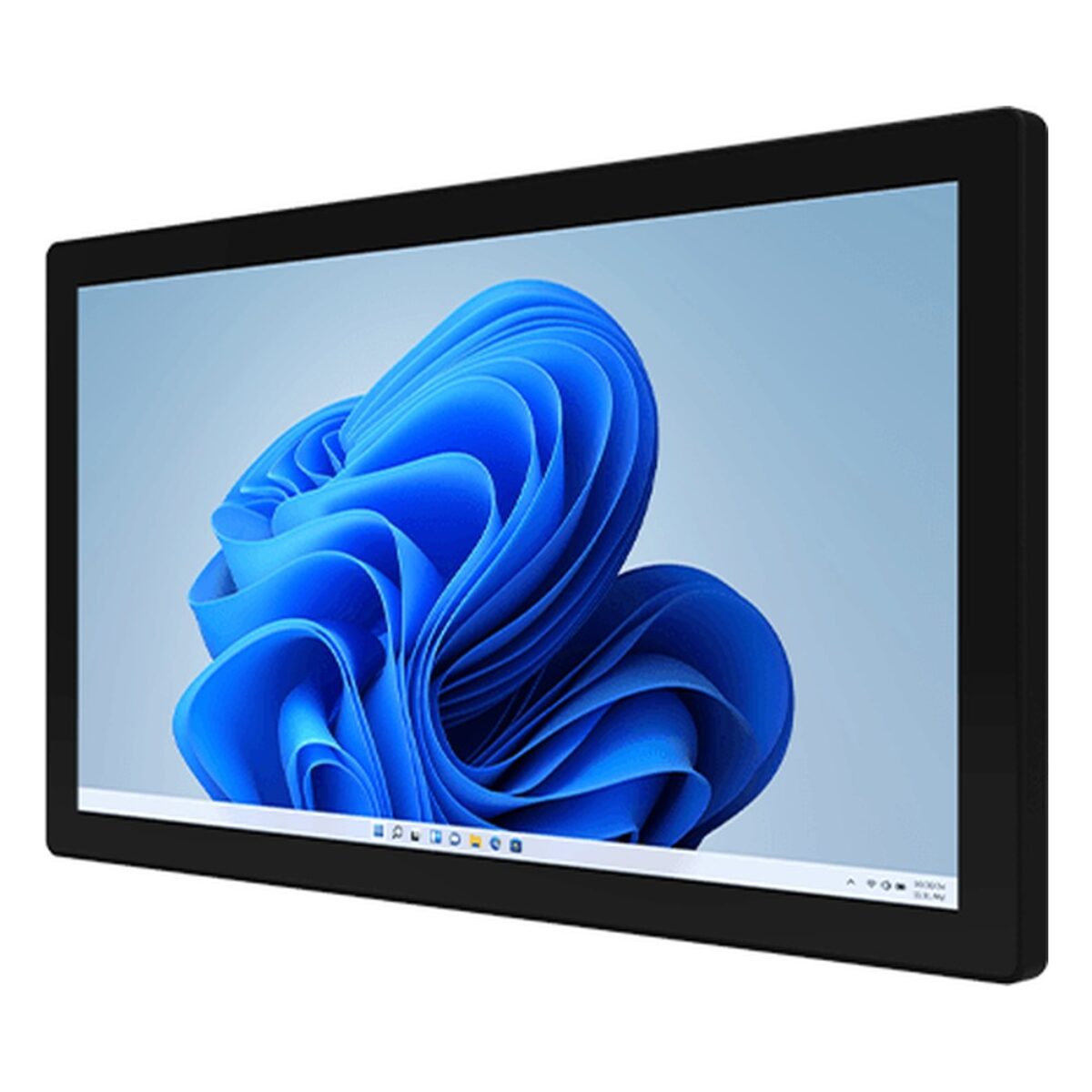

Winmate W24IAN3S-GCA2 23.8″ G-WIN Front IP65 Panel PC with Quad-Core Intel N150 and MIL-STD-810G

A 23.8 inch screen lets a team read line status or a work cell overview from a few steps away, and a fanless computer keeps the unit quiet and free of dust-laden airflow. The W24IAN3S-GCA2 is Winmate’s 23.8″ G-WIN GC panel PC for industrial automation and HMI, with an Intel Processor N150 behind an edge-to-edge 1920 x 1080 PCAP display with a front IP65 rating, in a metal housing with a plastic bezel.

The N150 is a low-power quad-core processor running at up to 3.6 GHz, which suits HMI runtimes, dashboards and video playback in a fanless design. Memory is 8 GB as standard with a 16 GB option, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed. The 23.8 inch panel shows 1920 x 1080 at 250 nits with 3000:1 contrast and 178 degree viewing angles under projected capacitive multi-touch.

Connections are two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port with DP Alt mode up to 4096 x 2160 at 60 Hz, an optional HDMI 2.0b output and one RS-232/422/485 port, with Wi-Fi and Bluetooth as options. The W24IAD7T-GCA2 is the same 23.8 inch GC design with a fan-cooled LGA1700 board for Core i3 to i9 processors, and the W24MG3S-GCA2 uses a MediaTek Genio 510 Arm processor for Android or Linux projects.

Power is 12 V DC as standard, with a 9 to 36 V DC input as an option, and an AC adapter comes in the box. The W24IAN3S-GCA2 runs from 0 °C to 50 °C, is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, mounts on VESA and carries CE and FCC marks. We supply it configured, with the operating system installed, and tested before dispatch.
