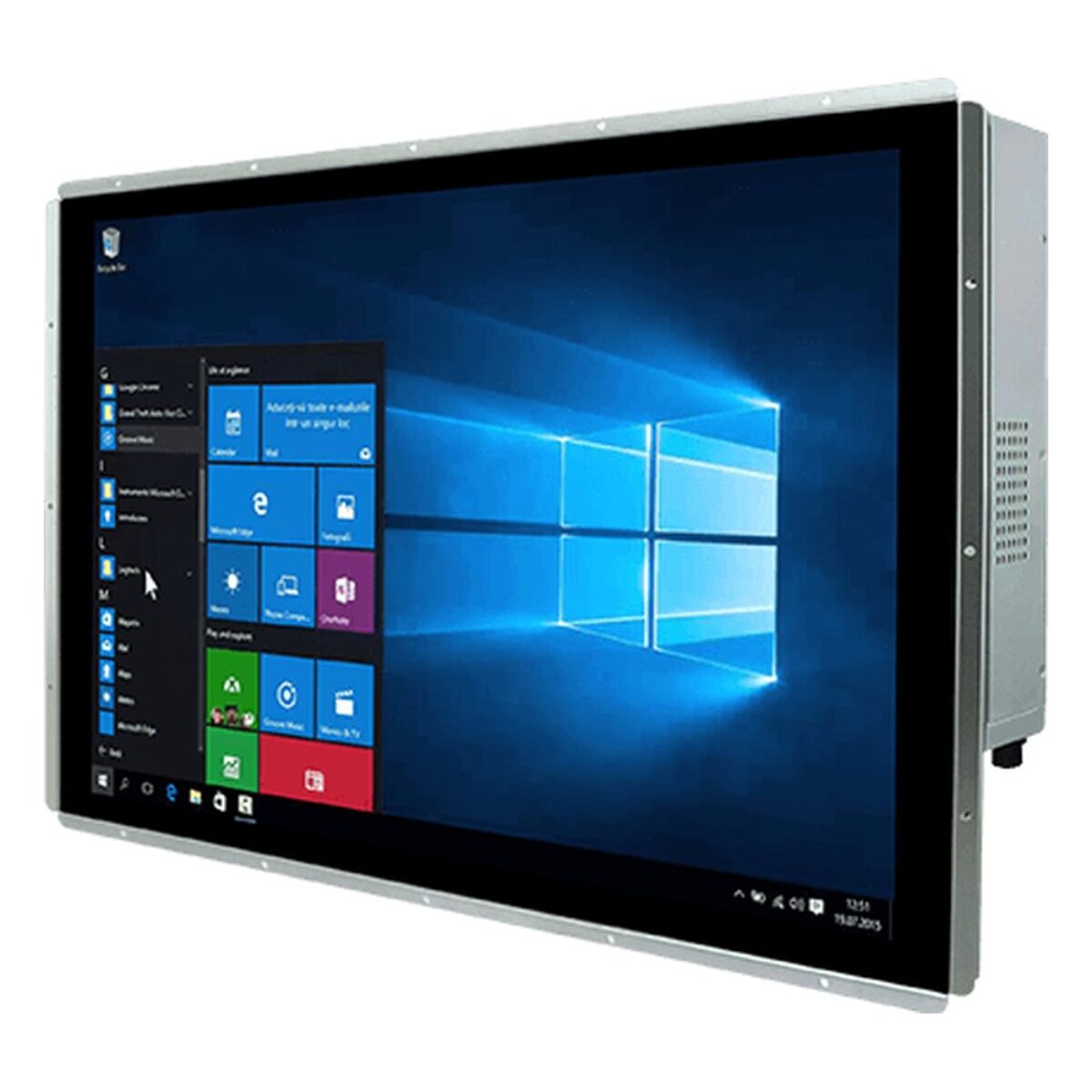

Winmate W24IP7T-POA2 23.8″ Open Frame HMI Panel PC with Intel Pentium N4200 and PCAP Touch

The W24IP7T-POA2 is Winmate's 23.8 inch PO Series open frame HMI panel PC with an Intel Pentium N4200, two serial ports and a 1920 x 1080 PCAP display at 250 nits behind a front IP65 face. It suits kiosks and machine fronts built into the builder's own enclosure.

  • Open Frame, Front IP65: An open frame with a front IP65 rating, panel and VESA mounting as options, and no fan.
  • 23.8″ PCAP Display: A 1920 x 1080 projected capacitive multi-touch panel at 250 nits with 3000:1 contrast and 178 degree viewing angles.
  • Intel Pentium N4200: Up to 2.5 GHz with two DDR3L-1866 SO-DIMMs, 4 GB as standard and an 8 GB option, plus TPM 2.0.
  • Two Serial, Four USB: Two Gigabit LAN ports, four USB 3.2 Gen 1 ports, two serial ports and DisplayPort 1.2 with optional HDMI and VGA.
  • 12 V DC, Adapter Supplied: A DIN 4-pin 12 V DC input with an 84 W AC adapter supplied, and a 0 to 50 °C operating range.
Touch Technology: PCAPPCAP
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
USB Generation: USB3USB3
M.2: 22x M.2
PCIe: 11x PCIe
Connectivity: WirelessWi-Fi
Thermal Dissipation: FanlessFanless
Ingress Protection: Front IP65Front IP65
Certification: CECE
Certification: FCCFCC
UK Support Team: +44 (0)1785 558 300 Call
Select section
  • Overview
  • Specifications
  • Downloads

W24IP7T-POA2 Overview

Kiosk makers and machine builders who fit a touch computer behind their own bezel usually want a slim open frame unit that runs quietly without a fan. The W24IP7T-POA2 is Winmate’s 23.8 inch PO Series open frame HMI panel PC for those builds, with an Intel Pentium N4200 and a 23.8″ 1920 x 1080 projected capacitive multi-touch display at 250 nits with 3000:1 contrast.

The Pentium N4200 runs at 1.1 GHz with burst up to 2.5 GHz, and two DDR3L-1866 SO-DIMM sockets hold 4 GB as standard or 8 GB as an option, which typically suits HMI software, a kiosk application or a booking client. Storage is a 128 GB M.2 2242 SSD as standard on a B-key SATA slot, with 256 or 512 GB as options, and two optional 2.5″ SATA III bays. A PCIe 2.0 x1 slot takes an expansion card, TPM 2.0 is on board, and Windows IoT Enterprise or Linux Ubuntu 20.04 can be installed.

Connections include two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports, one RS-232/422/485 and one RS-232 port, DisplayPort 1.2 with optional HDMI 1.4 and VGA, and mic in, line out and two speakers. An M.2 2230 E-key slot is there for a Wi-Fi module. Within the Winmate range the W24IF7T-POA2 is the same open frame with a choice of 9th Gen Intel Core i3 to i7, and the W24IP7T-PPA2 is the panel mount version with the same Pentium N4200.

Power is 12 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter (12 V 84 W) supplied. The fanless metal housing has a front IP65 rating and runs from 0 to 50 °C in non-condensing humidity. Open frame mounting is standard, with panel and VESA mounting as options and VESA screws supplied. It carries CE and FCC marks. We supply the W24IP7T-POA2 configured, with the OS installed, and tested before dispatch.

W24IP7T-POA2 Specifications

Overview
Brand & ModelWinmate W24IP7T-POA2
FeaturesFanless
Industrial
Display
Display23.8"[16:9, 1920 x 1080, FHD]
Touch ControllerMulti Touch PCAP
Brightness250 Nits
Viewing AngleWide Viewing Angle
178° Horizontal, 178° Vertical
Aspect Ratio16:9
FormatWidescreen
Contrast3000:1
Performance
Processor SeriesIntel Pentium N Series Apollo Lake
Processor ModelsIntel Pentium N4200: 1.1~2.5GHz, 4 Cores, 4 Threads, 2MB Cache, 6W
Performance Cores4 Cores
Memory2x DDR3L 1866MHz SO-DIMM Slot, 8GB
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux Ubuntu 20.04
Windows 10
Graphics
Integrated GPUIntel HD Series
Display Outputs1x Display Port
Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [RJ45]
USB4x USB Ports
4x USB 3.2 Gen 1 [Type A]
Serial2x Serial Ports
1x RS232 [DB9]
1x RS232/422/485 [DB9]
Expansion
M.22x M.2 Expansion Slots
1x M.2 B-Key [SATA] [2242]
1x M.2 E-Key [2230]
PCIe1x PCIe Slots
1x PCIe [x1 Slot] [Gen2]
Wireless ConnectivityOptional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
2x 2.5" HDD/SSD
Power
Power Input12V DC [4-Pin]
AC Power Supply Included
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature0°C to 50°C [32°F to 122°F]
Storage Temperature-10°C to 60°C [14°F to 140°F]
Humidity10-90% (Non-condensing)
Ingress ProtectionFront IP65
Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side]
CertificationCE
FCC
Mechanical Properties
Weight6.3 Kg (13.9 Lbs)
Dimensions615mm x 385mm x 69mm (24.21" x 15.16" x 2.71")
Mounting OptionsVESA Mount

Official Winmate UK Distributor

Things Embedded is an official Winmate UK distributor, supplying the W24IP7T-POA2 configured, with the OS installed, and tested for UK kiosk and machine building projects. Within the Winmate range the W24IF7T-POA2 is the same open frame with a choice of 9th Gen Intel Core i3 to i7.

The W24IP7T-POA2 sits among our 24 inch panel PCs, our open frame panel PCs and our front IP65 panel PCs. Where a 23.8 inch touch computer needs to sit quietly behind your own bezel, this is a sensible model to specify.
