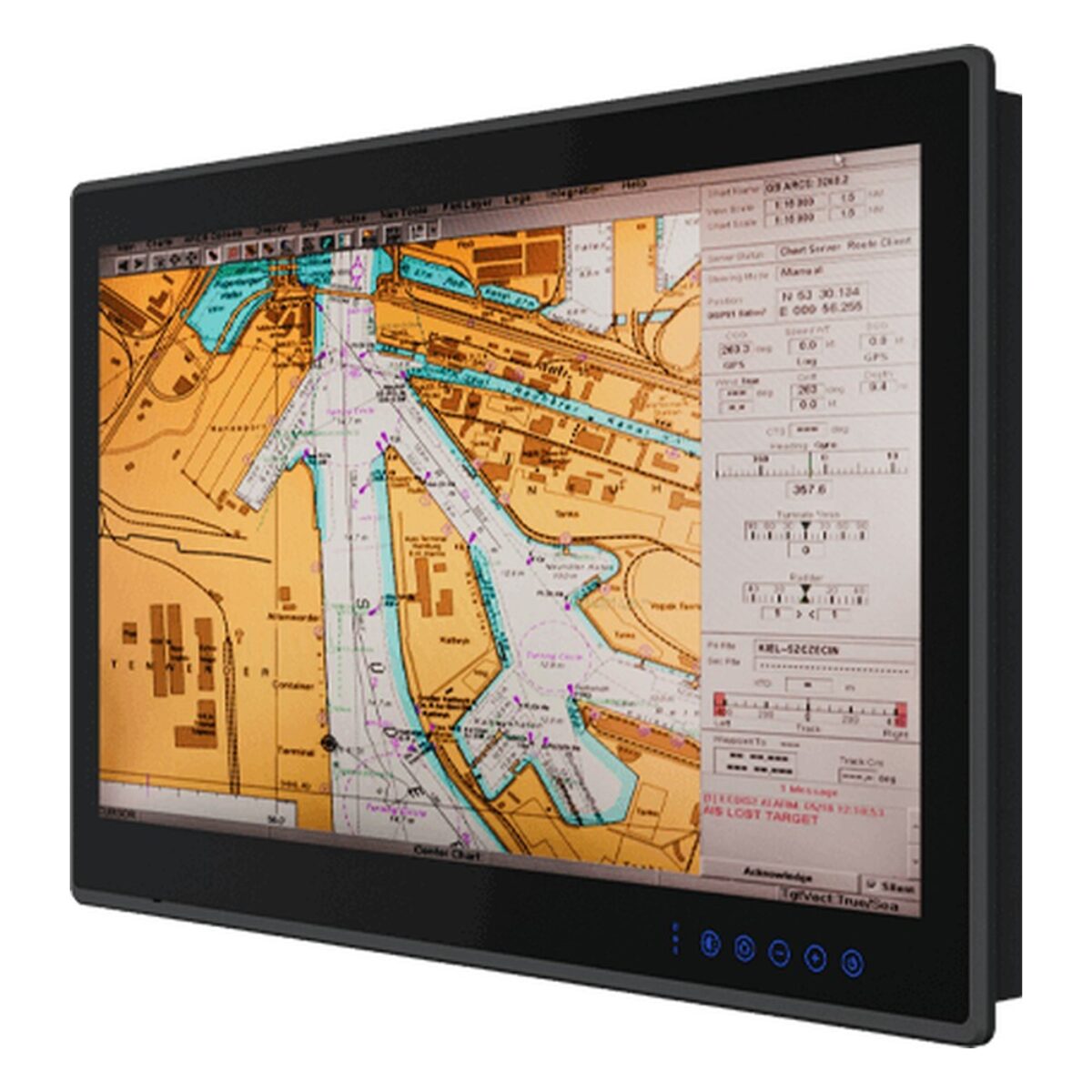

Winmate W27IAD3S-MRA1FP 27″ ECDIS Marine Panel PC with Intel Raptor Lake Core i5-1335U and 9 to 36V DC

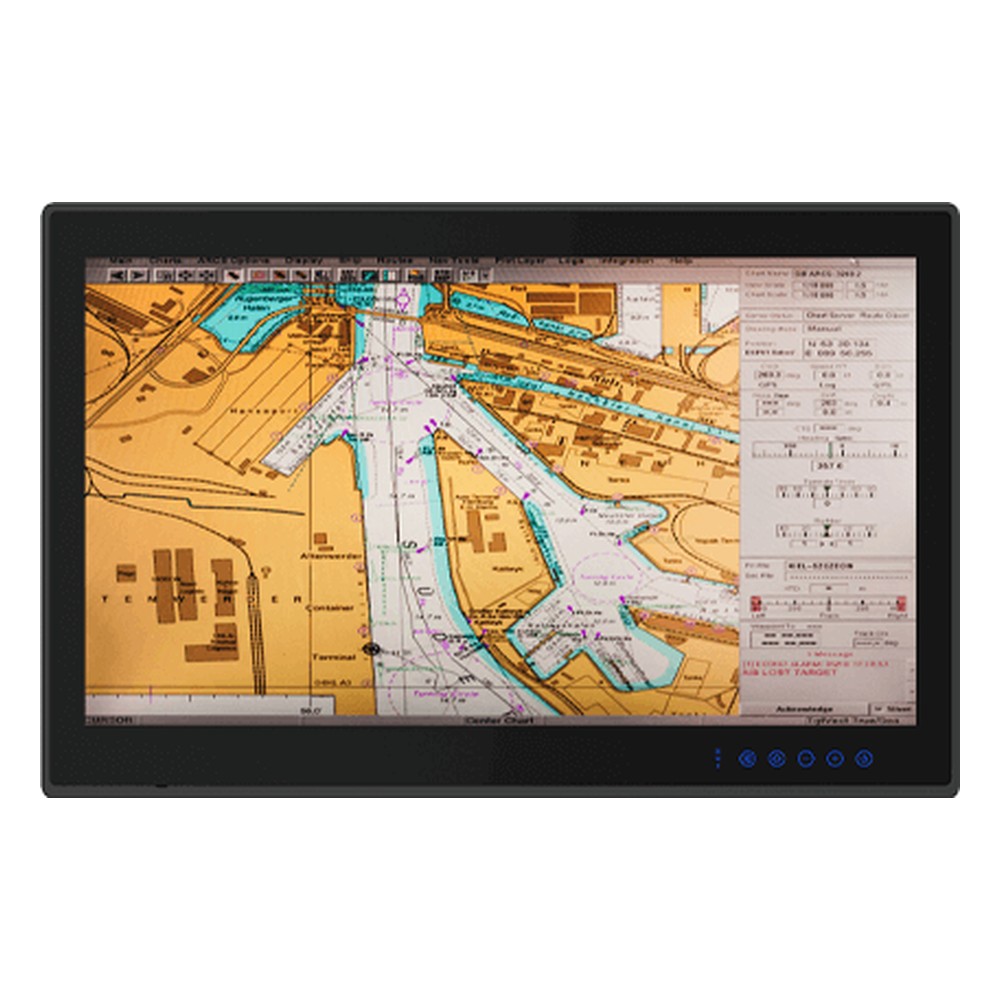

The largest bridge consoles carry chart, radar and ship systems side by side, and a 27 inch screen gives each of them usable space. The W27IAD3S-MRA1FP is Winmate’s 27 inch flat PCAP ECDIS marine panel PC for bridge systems, shipboard automation and offshore operations: a fanless unit with an anodised aluminium bezel, rated IP66 at the front, around a 27″ 1920 x 1080 display at 300 nits with 3000:1 contrast.

The default processor is a 13th Gen Intel Core i5-1335U at up to 4.6 GHz, with an Intel Core 5 120U at up to 5 GHz as an option. Memory is 8 GB as standard with 16 GB or 32 GB options, and storage runs from 128 GB to 2 TB. Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 can be supplied, though Ubuntu does not support wake on touch. That leaves headroom for ECDIS and other bridge software.

I/O includes two RJ45 LAN ports on Intel Ethernet controllers, two USB 3.2 ports and one USB 2.0 port and one RS-232/422/485 port, with a second RS-232 port as an option. A 2.5″ removable SSD or HDD bay is optional. HDMI, eight-channel isolated DIDO and four NMEA 0183 ports are optional. Front capacitive keys cover power, brightness, menu and a function key set to ECDIS mode, with day, dusk and night indicators. The W27L100-MRA1FP is the 27 inch marine monitor version, with no built-in computer, and the W24IAD3S-MRA2FP is the 23.8 inch ECDIS marine panel PC with the same processor options.

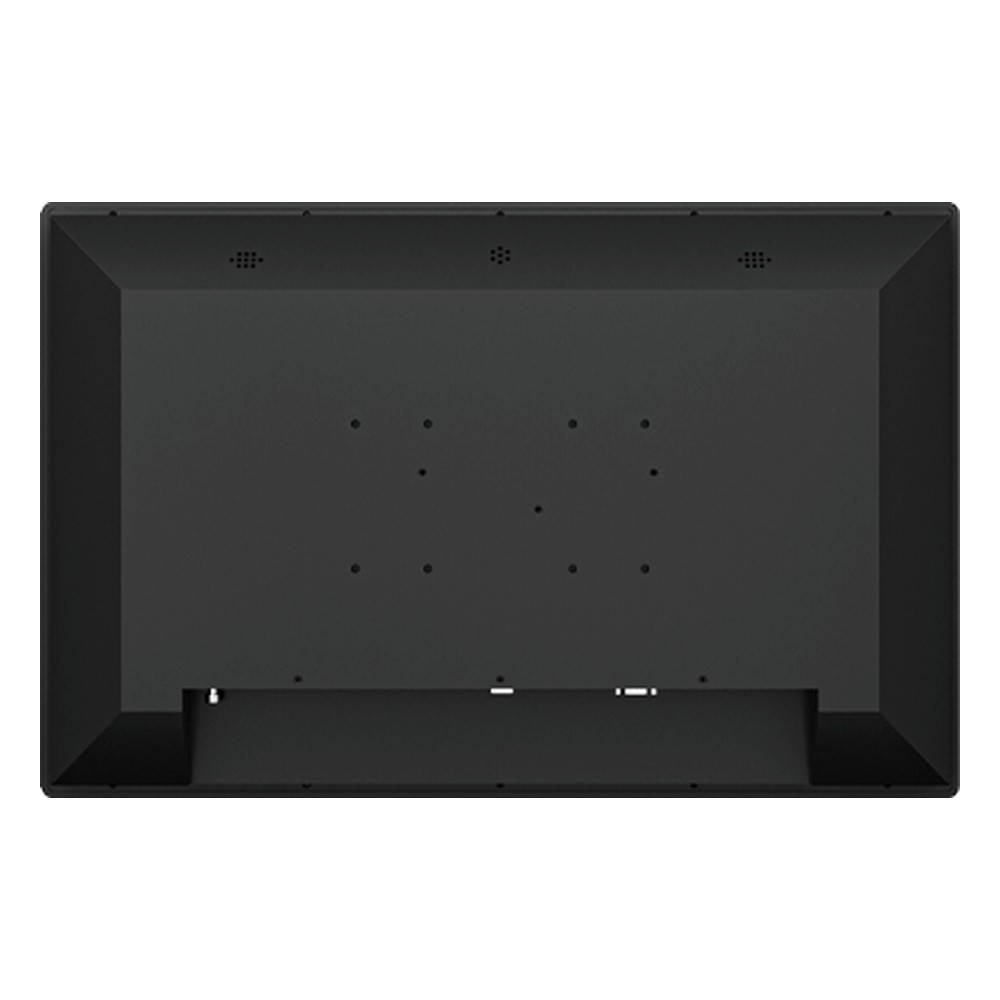

Power is 24 V DC with isolation, with 9 to 36 V DC also accepted, and an AC to DC adapter is supplied. Winmate lists DNV-CG-0339, IEC 60945 4th edition and IACS E10 under certification, and notes that only the 24 V DC input is approved under the DNV certification. Colour calibration for ECDIS compliance is optional. The unit operates from -15 °C to 55 °C at 5 to 95% humidity and panel or VESA mounts. We supply the W27IAD3S-MRA1FP configured, with the OS installed, and tested before dispatch.
