Winmate W27IAD7T-PCA1 27″ PCAP Touch Panel PC with Intel Core i3 to i9 LGA1700 and PCAP Touch
PCAP
Intel
Linux
Windows
2.5GbE
USB3
1x M.2
Wi-Fi
Front IP65
CE
FCCW27IAD7T-PCA1 Overview

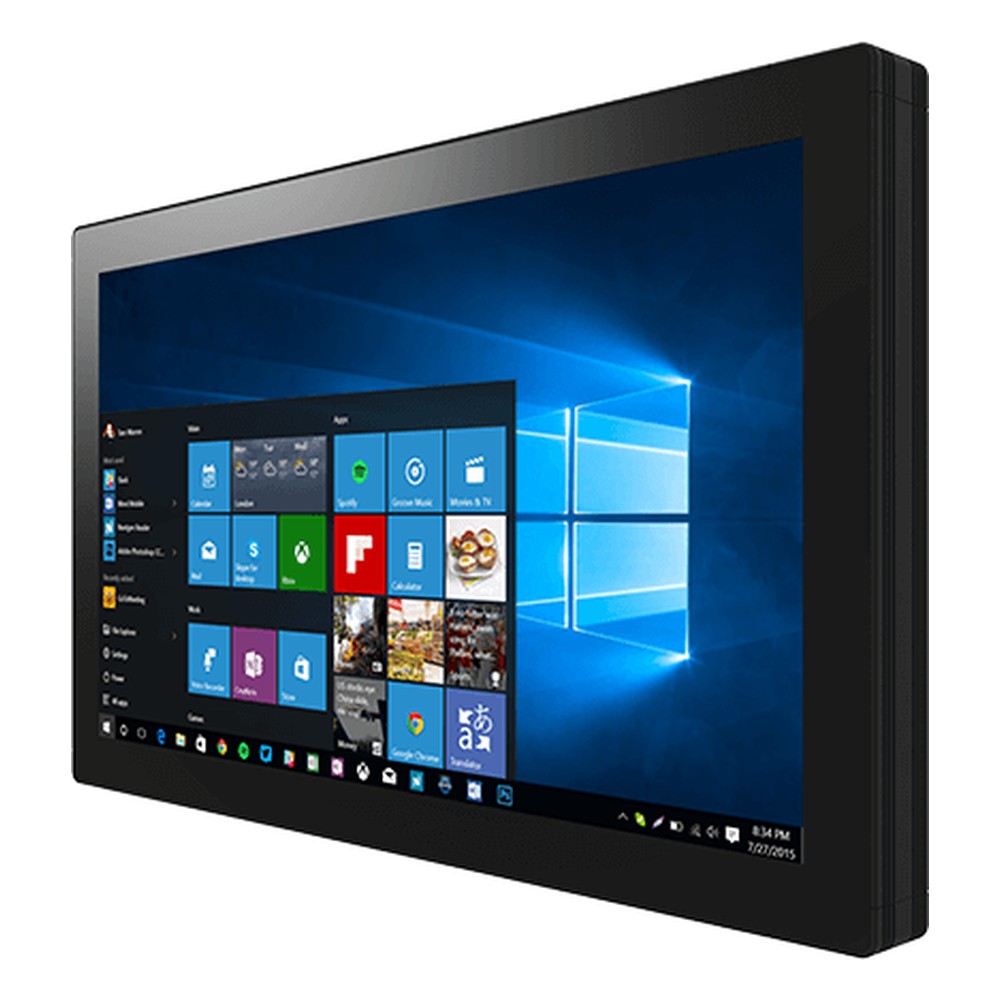

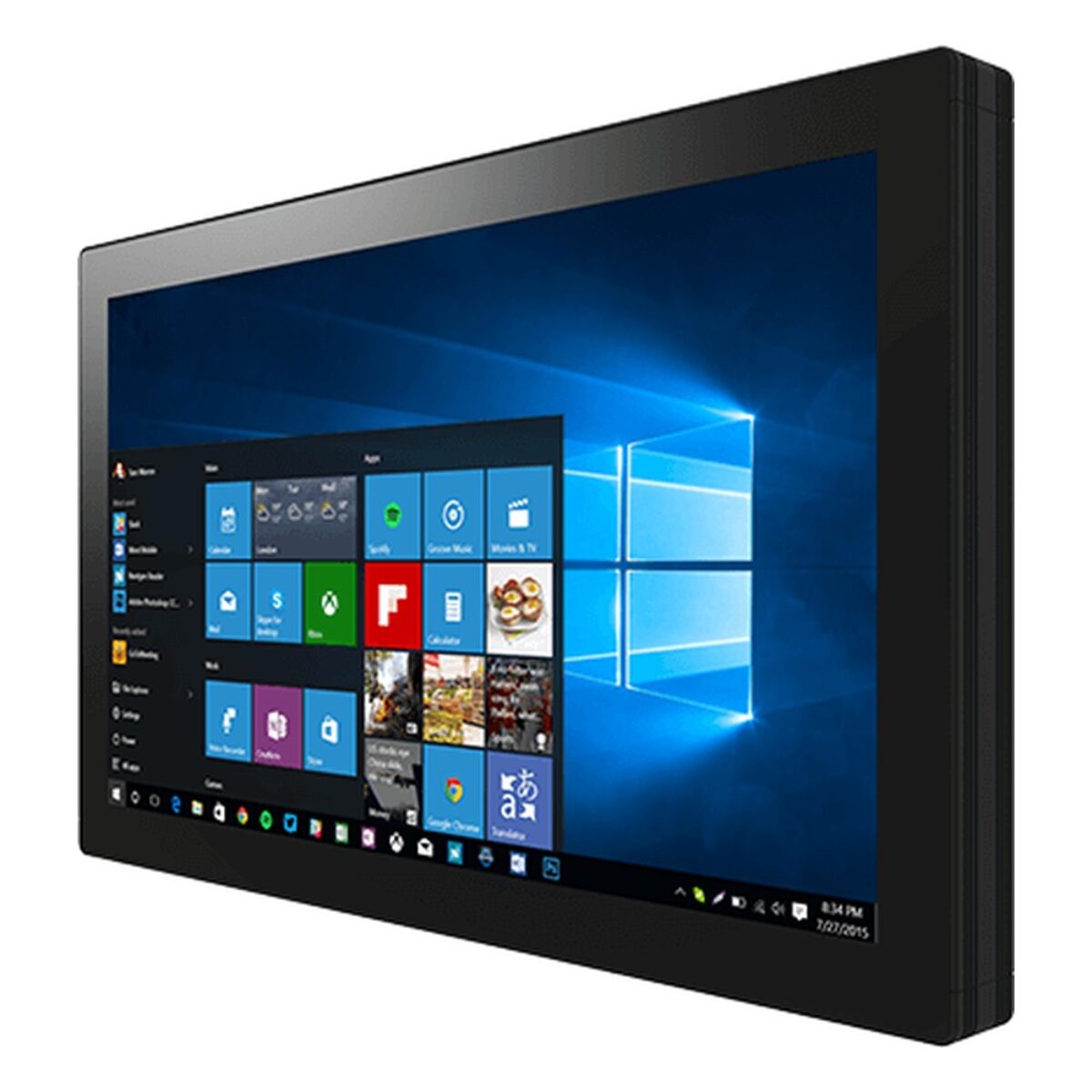

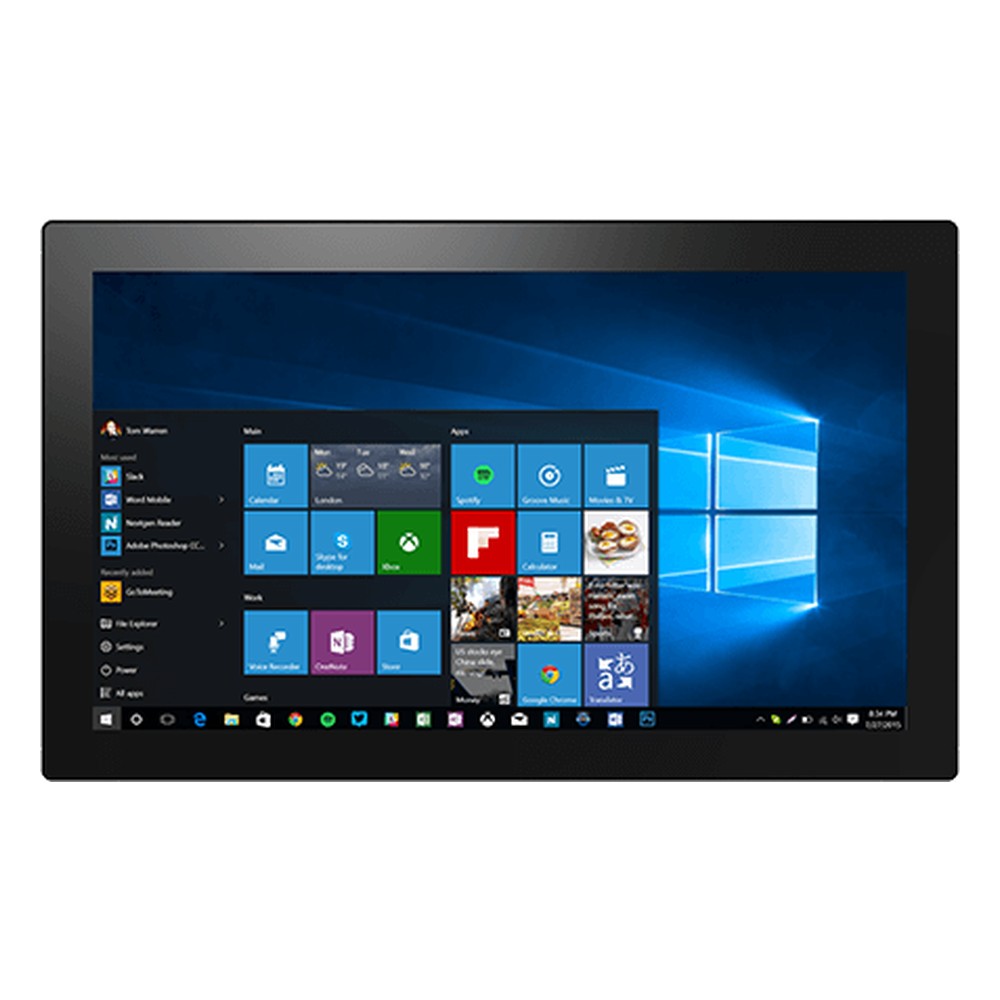

Large touchscreens in control rooms, kiosks and signage points need proper processing behind them and a front that can be cleaned. The W27IAD7T-PCA1 is Winmate’s 27 inch PCAP touch panel PC, with a 27″ 1920 x 1080 display at 300 nits with 3000:1 contrast, projected capacitive multi-touch and a front IP65 rating on a true-flat, edge-to-edge face. Winmate names industrial control, interactive kiosks and digital signage as its uses.
It uses the LGA1700 socket with an Intel R680E chipset and a choice of 12th Gen Intel Core TE processors: the i5-12500TE as standard, or the i3-12100TE, i7-12700TE or i9-12900TE as options. Two non-ECC SO-DIMM sockets take up to 64 GB (32 GB per module), storage runs from a 128 GB SSD to 4 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed.
Four USB 3.2 Gen 2 Type-A ports at 10 Gbps, two 2.5GbE ports on Intel controllers and one RS-232/422/485 port cover peripherals and plant links. A DisplayPort 1.4a DP++ output drives up to 4096 x 2160 at 60 Hz, with HDMI 2.0b as an option, and mic-in and line-out are fitted. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. The W27IAD7T-POA1 is the 27 inch open frame HMI version, and the W27IAD7T-GPA1 is the 27 inch edge AI panel PC that takes an optional NVIDIA RTX Ada GPU.

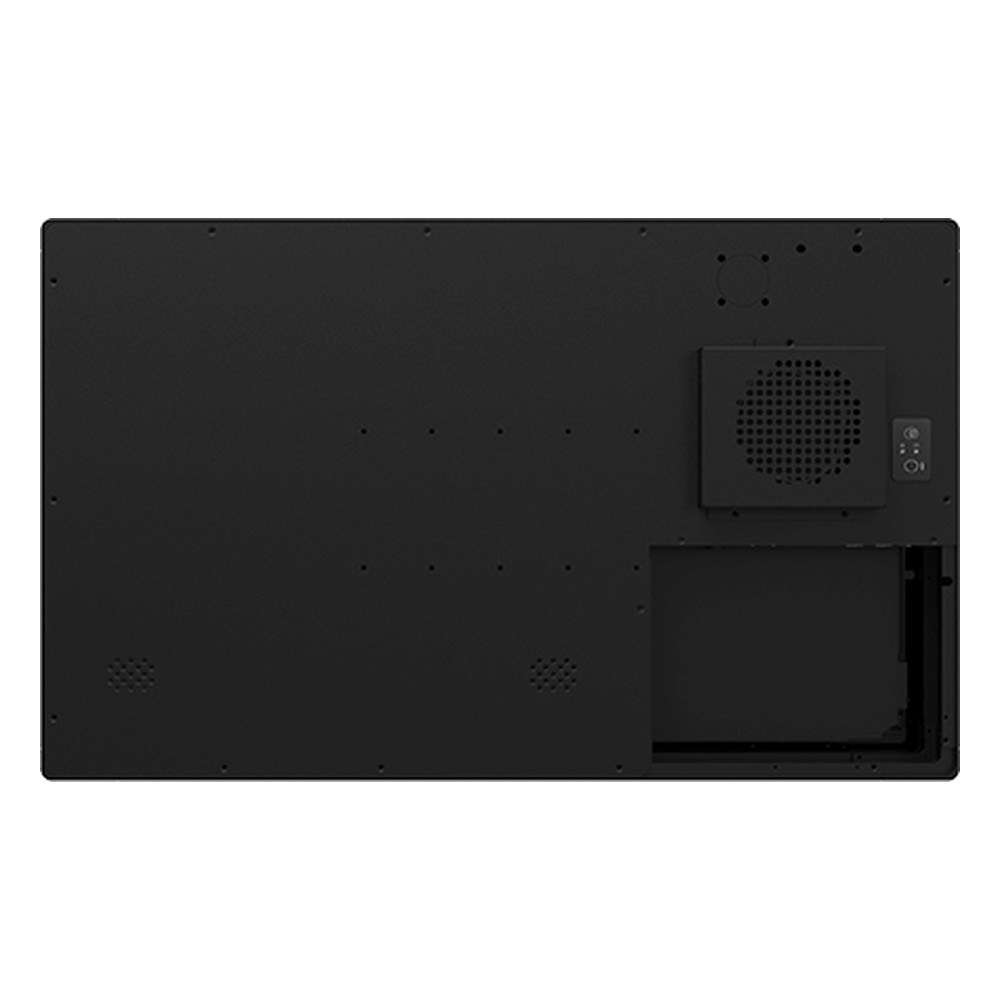

Power is 12 V DC on a DIN 4-pin connector, and a 100 to 240 V AC adapter rated 220 W is supplied with the power cord and VESA screws. The metal housing is fan cooled and VESA mounted, and runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W27IAD7T-PCA1 configured, with the OS installed, and tested before dispatch.
W27IAD7T-PCA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W27IAD7T-PCA1 |
| Features | Industrial |
| Display | |
| Display | 27"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 16 Cores |
| Chipset | Intel R680E |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 10.2 Kg (22.5 Lbs) |
| Chassis Material | Aluminium |
| Dimensions | 675mm x 413mm x 65mm (26.59" x 16.28" x 2.54") |
| Mounting Options | VESA Mount |
- W27IAD7T-PCA1 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the W27IAD7T-PCA1 configured, with the OS installed, and tested for UK control room, kiosk and signage projects. Within the Winmate range the W32IAD7T-PCA3 is the 32 inch model, which adds 14th Gen Intel Core T options and runs on 24 V DC, and the W27IAD7T-POA1 is the 27 inch open frame HMI for building into an enclosure.
As a large VESA-mounted touchscreen the W27IAD7T-PCA1 sits among our PCAP touch panel PCs, our front IP65 panel PCs and our chassis and VESA mount panel PCs. If you are weighing processor choices against your software, our team can help you pick the right build.
