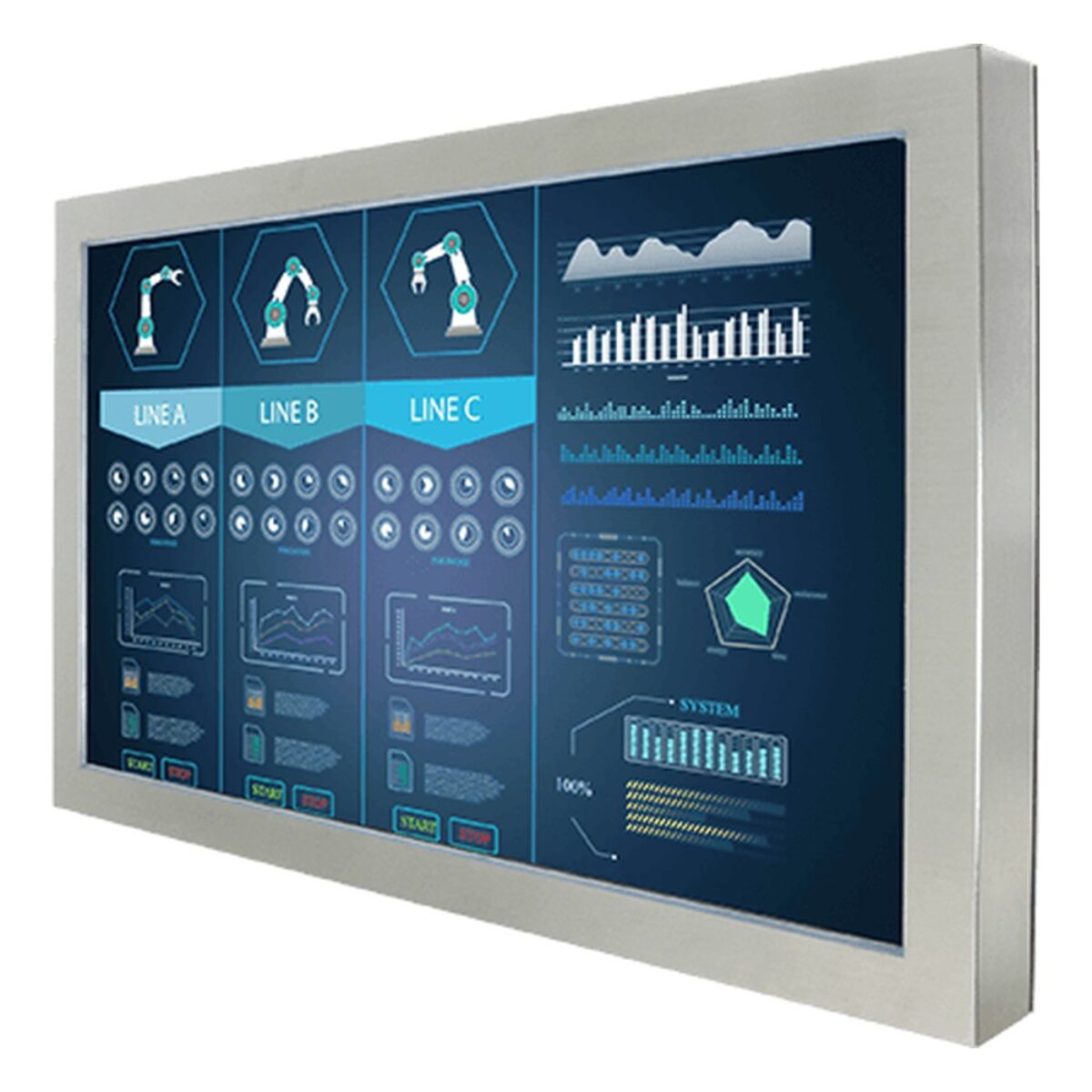

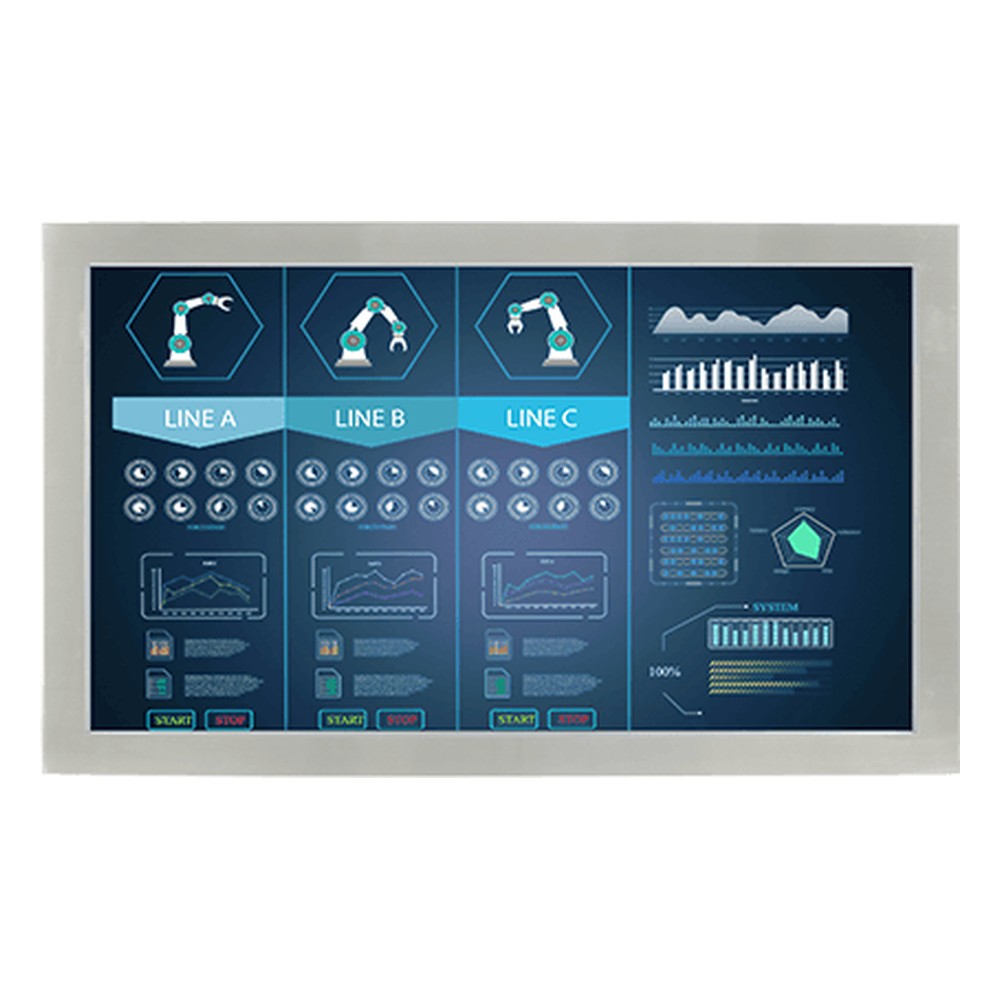

Winmate W42L300-65A3 42″ IP65 Stainless Steel Monitor with M12 Connectors and FHD LCD

A screen that a whole production team reads from across a hall has to be large, bright enough for the lighting, and sealed well enough to live alongside the cleaning routine. The W42L300-65A3 is Winmate’s 42″ stainless steel chassis display: a 42 inch Full HD panel in a SUS 316 (AISI 316) housing, sealed to full IP65 against dust and low-pressure water jets from any direction.

The 1920 x 1080 panel runs at 500 nits with 4000:1 contrast, 1.07 billion colours and 178 degree viewing angles in every direction, which helps where people view it from well off-centre. Protection glass covers the screen. On-unit controls cover power, brightness adjustment, auto and menu, and two LEDs show power and status.

The W42L300-65A3 connects to a separate computer over VGA on an M12 waterproof connector as standard, and a waterproof DVI input and a waterproof HDMI input can be added as options, with matching waterproof cables. Power is 24 V DC on an M12 connector. The W32L300-65A3 is the same IP65 stainless design at 32 inch with a 400 nit panel, and the R17L500-65M1 is a 17 inch stainless IP65 monitor with optional resistive touch.

In the box Winmate includes a 100 to 240 V AC to DC adapter with a waterproof connector, a power cord, an external VGA cable with a waterproof connector, waterproof caps and VESA screws. The monitor is fanless, operates from 0 °C to 45 °C at 10 to 90% humidity, non-condensing, stores from -20 °C to 60 °C and carries CE and FCC marks. We supply it configured and tested before dispatch, and can help match the input to your host computer.
