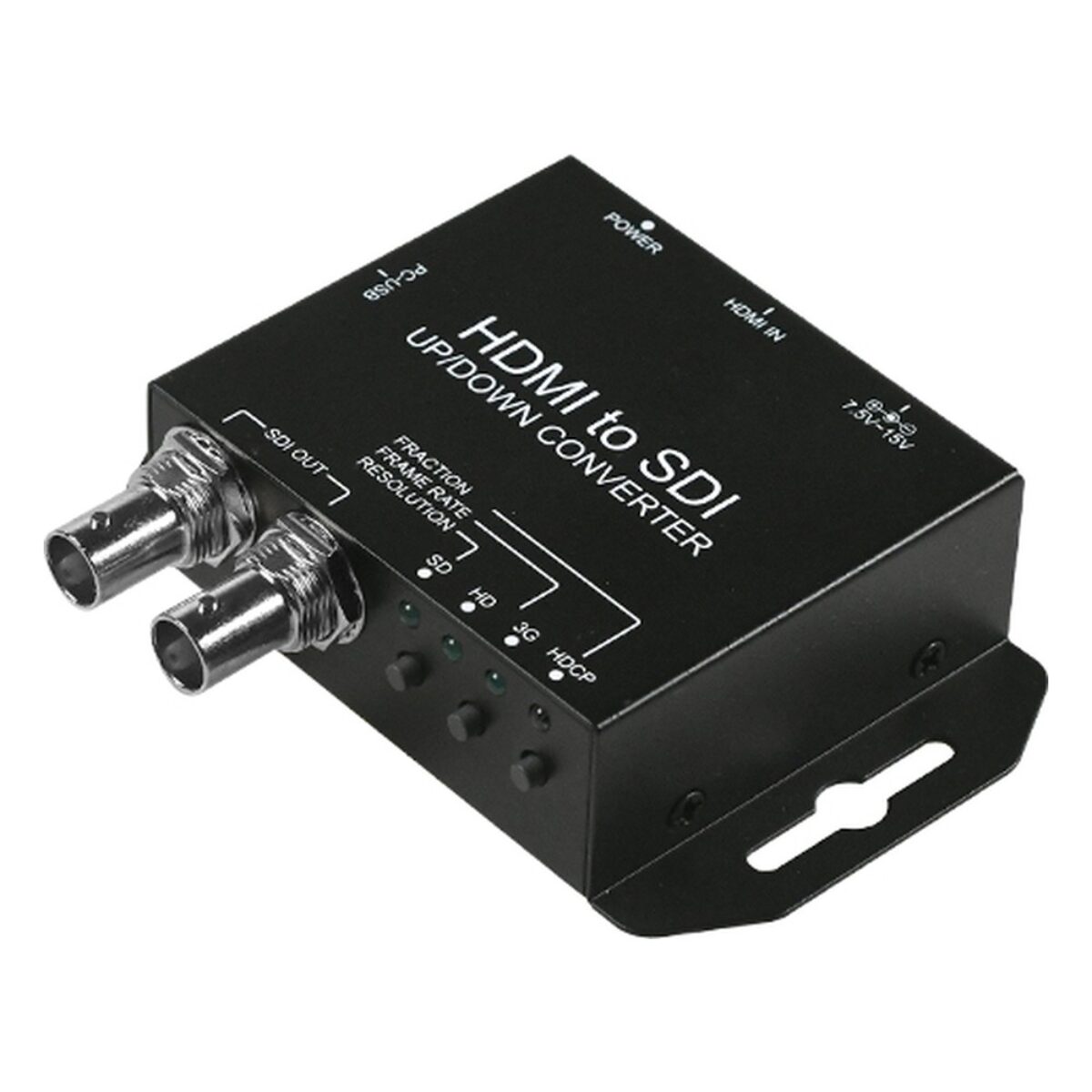

Yuan HDMI to SDI-S HDMI to SDI Converter with Up/Down Scaling and Dual SDI Outputs at 1080p60

The HDMI to SDI-S is Yuan's HDMI to SDI converter with up/down scaling, interlace handling and frame rate conversion, two converted SDI outputs and an OSD menu. It suits bringing HDMI cameras, laptops and players into SDI systems at the format the system runs.

  • Up/Down Conversion: Scales HDMI input, including VESA PC formats, to 1080p, 1080i, 720p or SD-SDI.

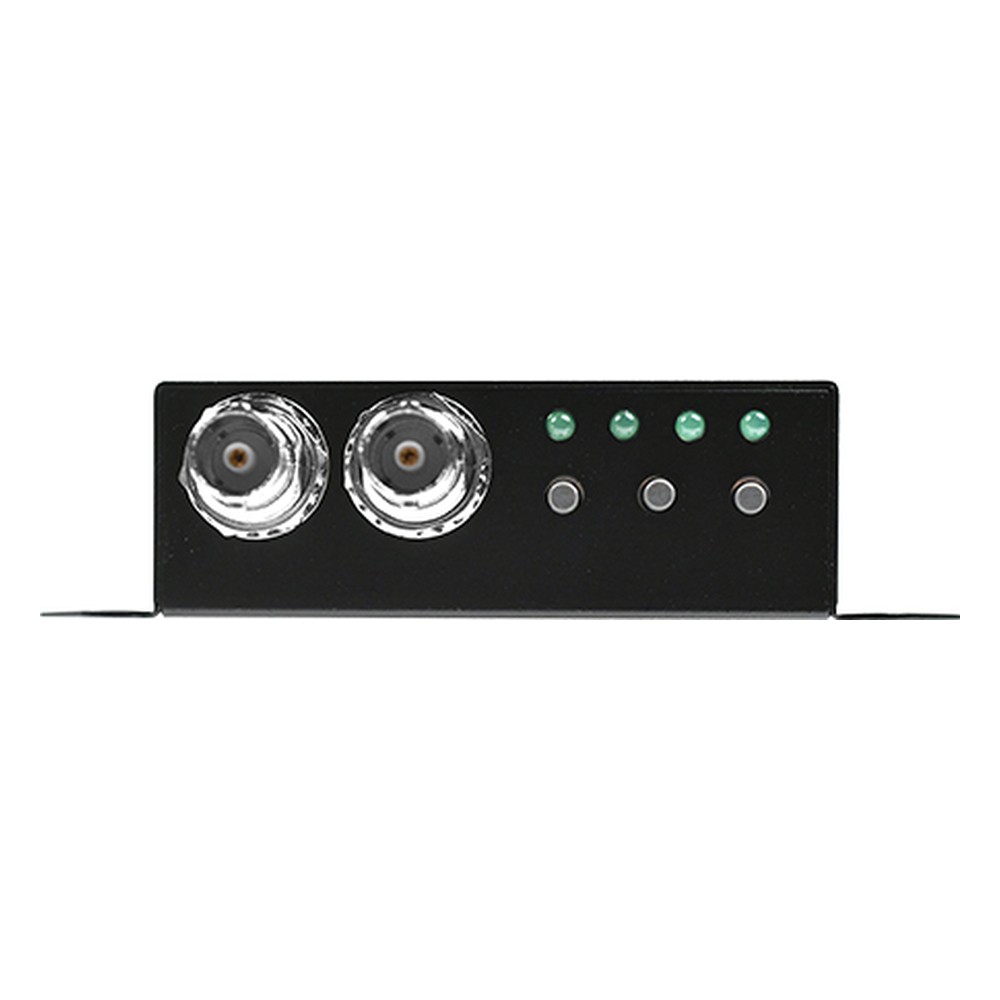

  • Dual SDI Outputs: Two converted SDI outputs can feed a vision mixer and a recorder at the same time.
  • Interlace Handling: Built-in interlacer and de-interlacer plus 60 to 59.94 fps conversion for mixed sources.
  • Button and OSD Menu: Front buttons and an on-screen menu set the output format without a PC.
  • Embedded Audio: HDMI audio of two channels at up to 192 kHz is embedded into SDI at 48 kHz.
UK Support Team: +44 (0)1785 558 300 Call
Select section
  • Overview
  • Specifications

HDMI to SDI-S Overview

Presenter laptops and HDMI cameras rarely output the exact format an SDI system runs at, and PC resolutions will not pass through SDI at all. The Yuan HDMI to SDI-S is an HDMI to SDI converter that scales the source to the house format, typically for live events, lecture capture and broadcast.

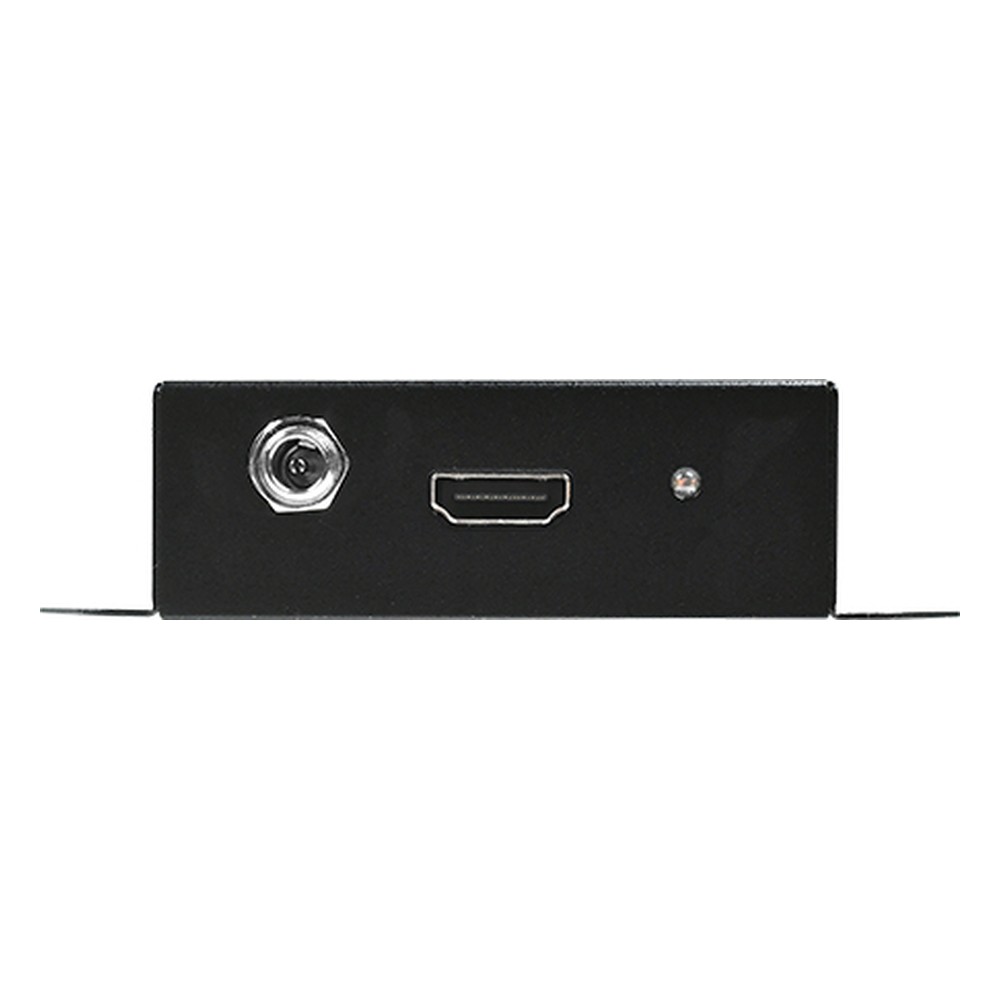

Input is one HDMI connection accepting 1920x1080p at 60/50 and 30/25/24 fps, 1080i, 720p, SD and VESA PC formats from 640×480 to 1280×1024. Outputs are two SDI connections, up/down converted to 1080p 60/50, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i. Built-in interlacer, de-interlacer, 60 to 59.94 fps and frame rate conversion are included. HDMI audio of two channels, 24-bit, up to 192 kHz is embedded into SDI at 48 kHz.

The HDMI to SDI-S is set up with buttons and an OSD menu and runs from a 7.5 to 15 V DC input. If no scaling is needed, the HDMI to SDI converts in the input format with EDID learning. Where the output must lock to house sync, the HDMI to SDI Genlock adds a reference input and frame synchroniser.

Yuan publishes no operating temperature or certification for this unit, so plan for indoor use. We can also supply spare units for critical signal paths and advise on mounting and power in the rack, so the installation is ready before you go live. We supply the HDMI to SDI-S configured and tested with the sources, displays and SDI routing it will connect to.

HDMI to SDI-S Specifications

Overview
Brand & ModelYuan HDMI to SDI-S
Video Capture
Video Input1x HDMI
Video Resolution InputHD60 [1920x1080p @ 60/50fps]
Video Output2x SDI
Video Resolution OutputHD60 [1920x1080p @ 60/50fps]
Audio Input1x HDMI Embedded Audio Input
Audio Output1x SDI Embedded Audio Output
Power
Power Input7.5-15V DC
Mechanical Properties
Dimensions104mm x 64mm x 26mm (4.09" x 2.5" x 1.02")

Official Yuan UK Distributor

Things Embedded is an official Yuan UK distributor, and we supply the HDMI to SDI-S configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI to SDI converts without scaling, and the HDMI to SDI Genlock adds a black burst and tri-level reference input.

Across our range, the HDMI to SDI-S sits with our SDI and HDMI converters, our SDI video capture cards and our HDMI video capture cards.
