Yuan Pandora Nano 8GB Super NVIDIA Jetson Orin Nano 8GB Super Edge AI Box PC with 128GB SSD

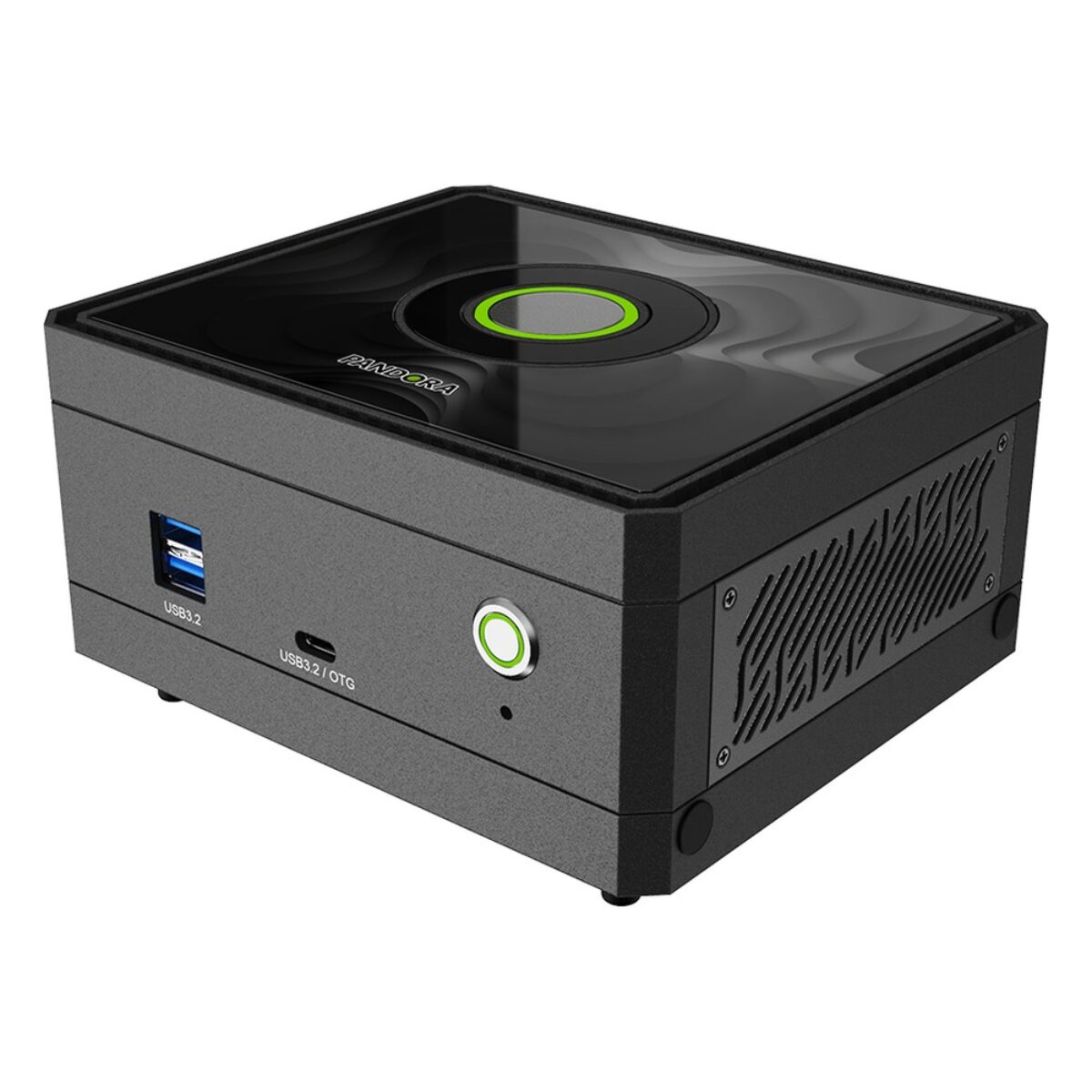

Not every edge AI project needs Orin NX: smaller vision models and proofs of concept often run well on Orin Nano at a lower power draw. The Pandora Nano 8GB Super from Yuan is an edge AI box PC built on the NVIDIA Jetson Orin Nano 8GB Super module, with a pre-installed 128GB SSD and four M.2 slots. Yuan aims the Pandora range at AI developers and professional uses such as smart retail, with custom cases supported.

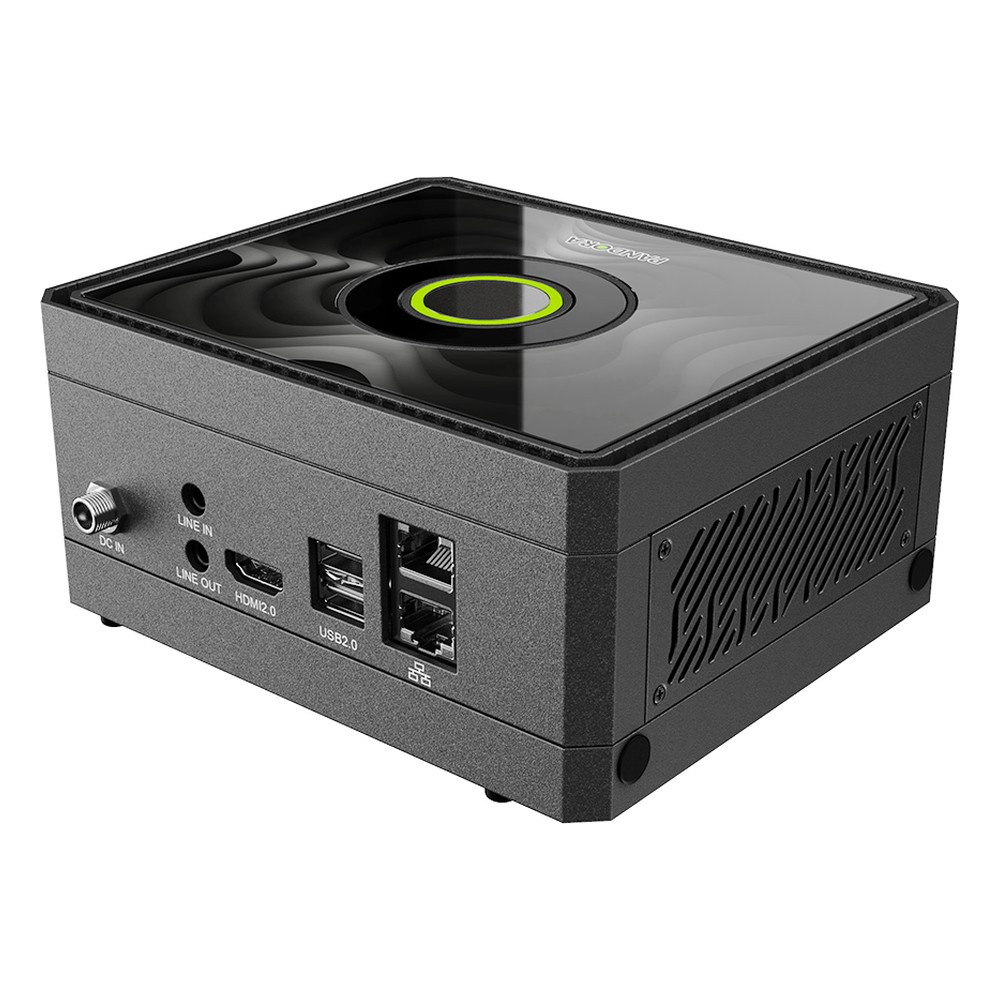

The Jetson Orin Nano 8GB Super gives up to 67 TOPS from a six-core Cortex-A78AE CPU and a 1024-core Ampere GPU with 8GB LPDDR5. Eight MIPI CSI-2 lanes, as two 4-lane and four 2-lane ports, take MIPI cameras or capture cards. Display is one HDMI 1.4 output, networking is two GbE ports, and USB is two USB 3.2 Gen2 Type-A, one Type-C OTG and two USB 2.0 Type-A ports, with line in and line out for audio.

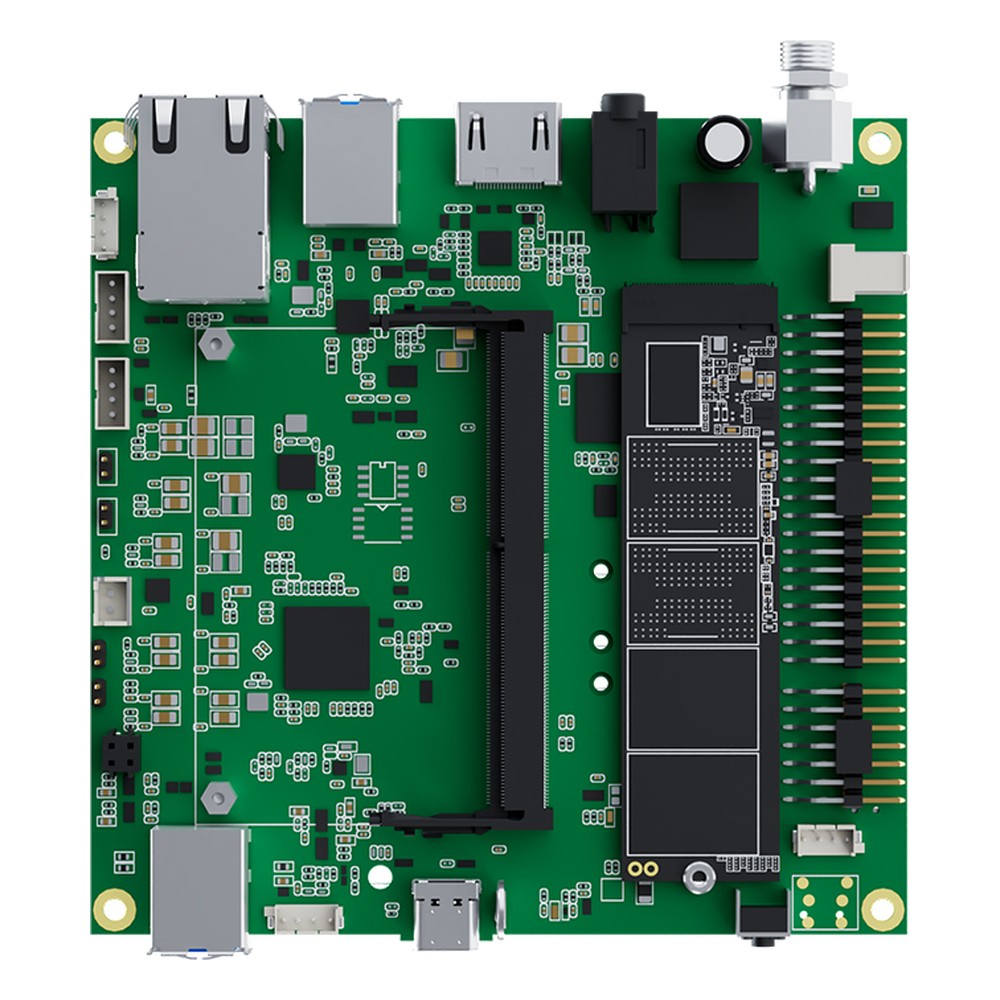

Storage starts with a pre-installed 128GB SSD in an M key slot at PCIe Gen3 x2, and a second M key slot at PCIe Gen3 x4 takes another SSD or a video capture card. An E key slot is there for WiFi and a B key slot with nano SIM for 5G or 4G. A 40-pin header carries I2S, I2C, SPI, UART and GPIO, a 14-pin header adds CAN and UART, and a TPM is optional. Yuan rates maximum power at 43.5W on a 9 to 36V DC input. If you need more AI headroom or HDMI 2.0 at 4K60, the Pandora NX 8GB Super uses Orin NX. For lighter models, the Pandora Nano 4GB Super uses the 4GB module.

The Pandora Nano 8GB Super supports JetPack 6.2 and operates from 0 to 60°C with airflow. We supply it configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
