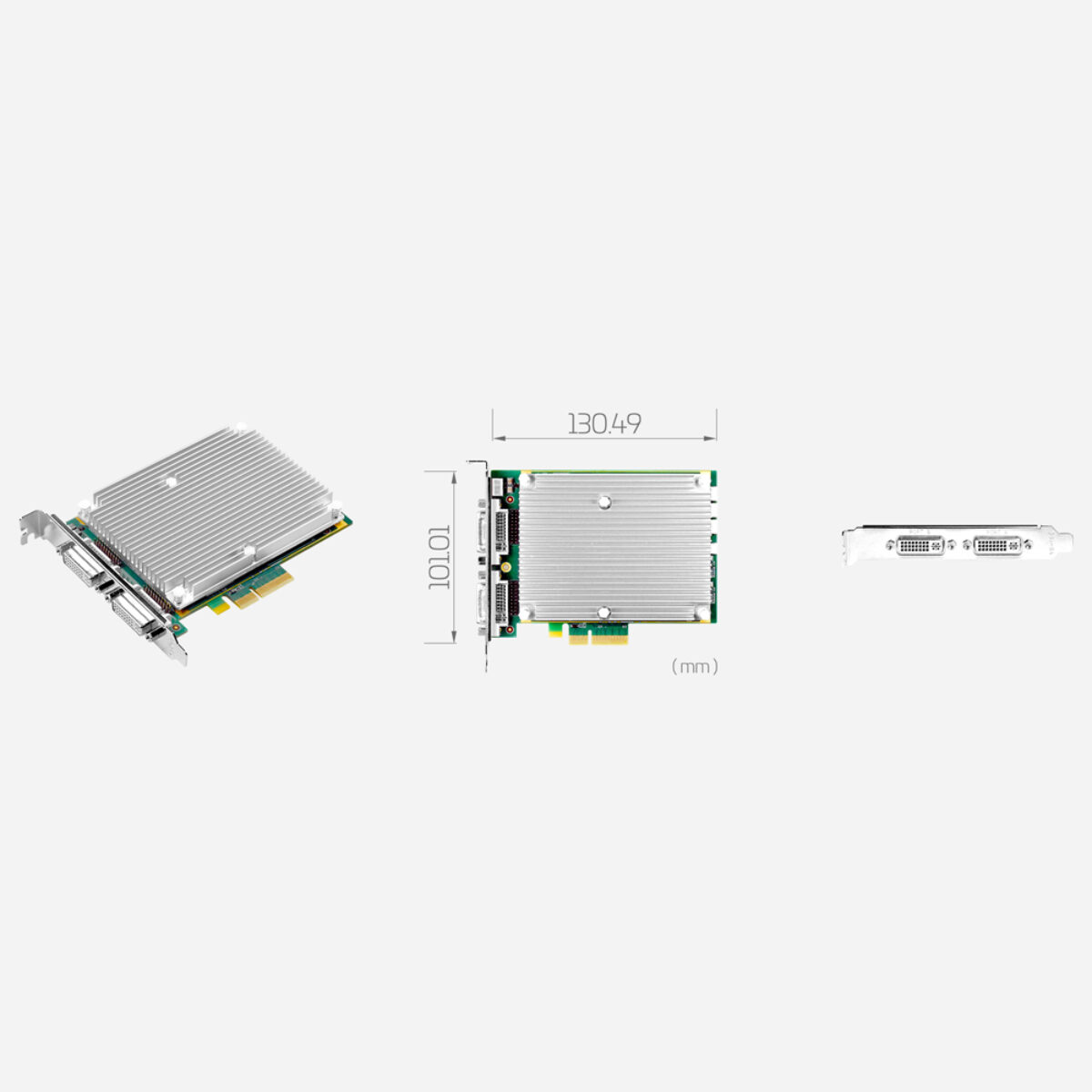

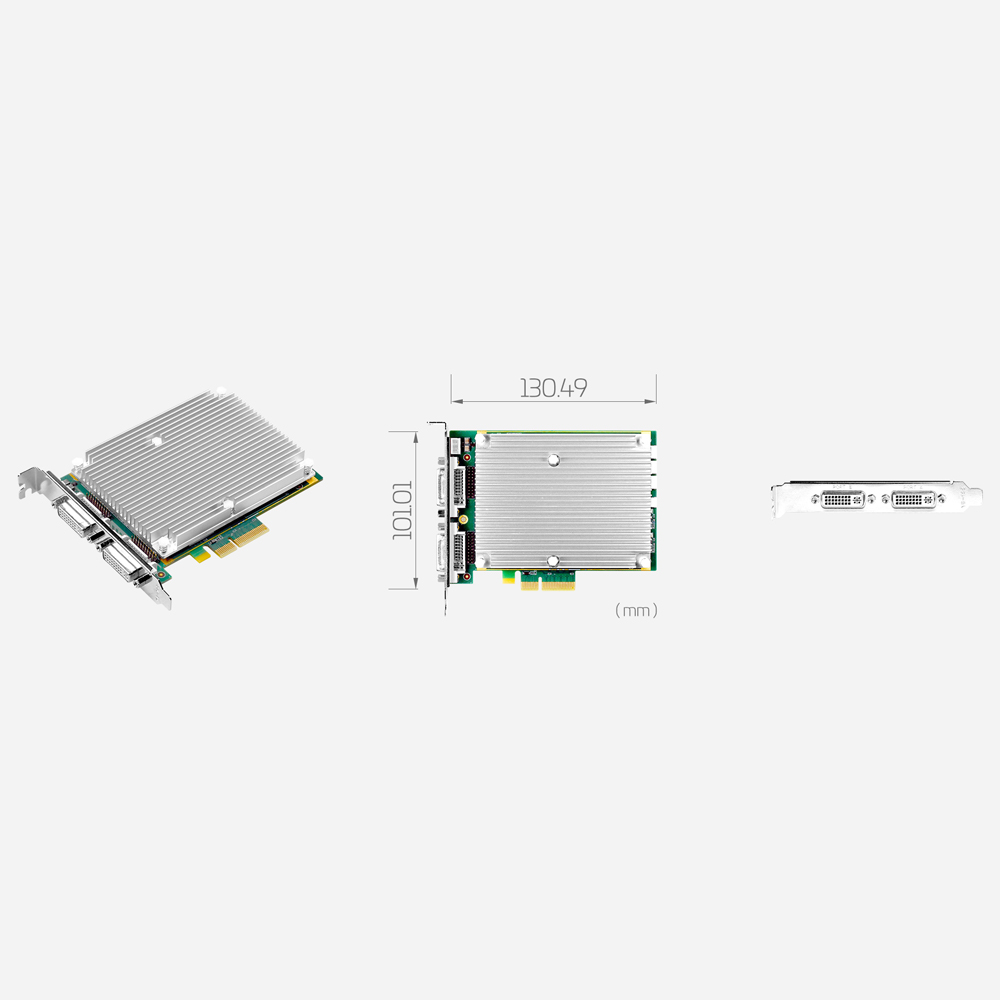

Yuan SC420N16 TVI PCIe TVI Capture Card with 16 x TVI Inputs at 1080p30
PCI ExpressSC420N16 TVI Overview
Sites with an installed base of analogue HD cameras often want to record or analyse them on a modern computer without recabling. The SC420N16 TVI is Yuan’s PCIe TVI capture card for that job, bringing 16 camera inputs into one PCIe x4 slot. Each input accepts TVI, CVI, AHD or CVBS, so it can suit surveillance recorders and video analytics systems where camera types are mixed.
TVI and compatible analogue HD signals capture at 1920 x 1080 at 30/25 fps and 1280 x 720 at 60, 50, 30 or 25 fps. 960H and CVBS sources run at 960 x 480i or 720 x 480i at 60 fps and 960 x 576i or 720 x 576i at 50 fps. Colour formats are 8-bit RGB24, RGB32, YUY2, YV12 and NV12. Sixteen RCA inputs carry mono audio at 16-bit, 48 kHz.
The card uses PCIe x4 Gen2 in a full-height slot and supports multiple instances and multiple devices in one host. On-board processing covers cropping and scaling, deinterlacing and auto signal detection. Yuan provides a Windows and Linux SDK and lists DirectShow and V4L2 applications such as vMix and OBS. Yuan also lists this card as an option for the VPP6N0-S AGX edge AI server, and the SC400N4-L TVI covers four TVI inputs for smaller sites.
Yuan lists Windows, Linux 4.8 or higher, Linux ARM and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX support. We supply the SC420N16 TVI tested in the host computer it goes into, with drivers and recording software installed, so it is ready to connect to the camera cabling on site.
SC420N16 TVI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC420N16 TVI |
| Video Capture | |
| Host Interface | PCIe [x4, Gen2] |
| Simultaneous Video Inputs | 16 |
| Video Input | 16x TVI |
| Video Resolution Input | HD30 [1920x1080p @ 30/25fps] |
| Video Resolution Output | HD30 [1920x1080p @ 30/25fps] |
| Colour Format | NV12 RGB24 RGB32 YUY2 YV12 |
| Audio Input | 16x RCA Audio Input |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the SC420N16 TVI tested in the host system it goes into, with drivers installed. Within the Yuan range, the SC400N8 M2 TVI brings eight TVI inputs to an M.2 socket for compact computers, and the SC350N16 captures 16 standard-definition composite inputs on PCIe.
Across our range, the SC420N16 TVI sits with our TVI video capture cards, our PCIe video capture cards and our frame grabbers.
