Yuan SC540N1 M2 SDI M.2 SDI Frame Grabber with 1080p30 Capture
M.2SC540N1 M2 SDI Overview
Small embedded PCs often have an M.2 socket free but no room for a PCIe card, yet still need to take a feed from an SDI camera or switcher. The SC540N1 M2 SDI is Yuan’s M.2 SDI frame grabber, built to add one SDI input to that kind of compact host, with a loop-through so the signal can carry on to a monitor or recorder.
The card accepts SDI up to 1920 x 1080p at 60/50 fps and captures at up to 1920 x 1080p at 30/25 fps. Yuan also lists HD-SDI at 1080p30/25/24, 1080i60/50 and 720p60/50, plus SD-SDI at 720 x 480i and 720 x 576i. Capture and preview formats cover RGB24 and RGB32 at 4:4:4, YUY2 at 4:2:2, and YV12 and NV12 at 4:2:0, all at 8-bit. Embedded SDI audio is captured as stereo 16-bit at 32 to 48 kHz. On-board processing handles cropping and scaling, auto signal detection and deinterlacing. There is no built-in hardware encoder, so any encoding is left to the host software.
The card connects over a PCIe x1 link in an M.2 B/M key socket. Yuan provides a Windows and Linux SDK, supports DirectShow and V4L2 software, and lists vMix, OBS, Zoom, Skype, Teams, Discord, Slack, Cisco Webex and GoToMeeting as compatible applications. For full-rate 1080p60 SDI capture in a Mini PCIe slot the SC542N1 MC SDI is the nearest alternative, and the SC550N1 M2 HDMI (B/M) takes an HDMI source on a shorter M.2 2242 card.

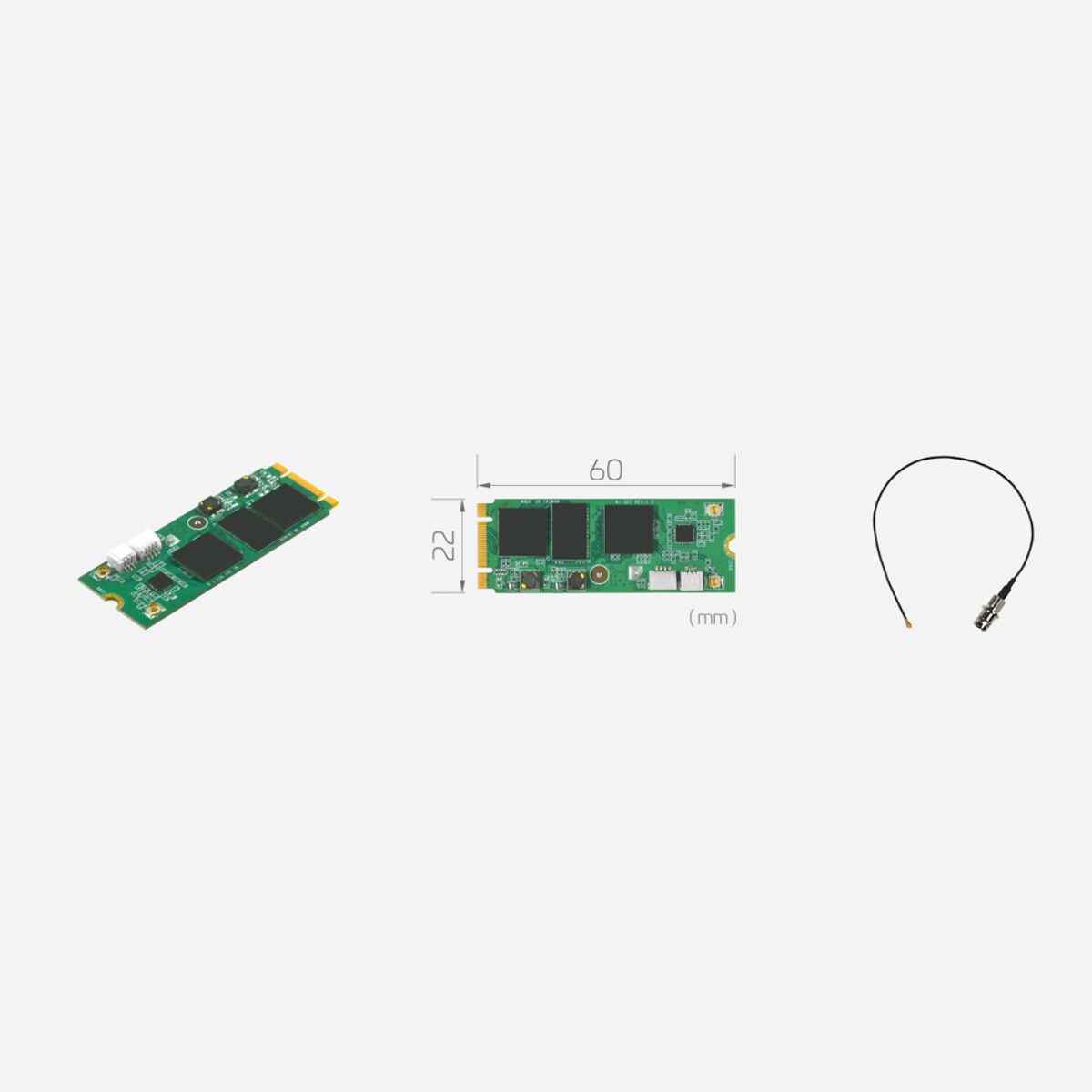

Operating system support covers Windows 7, 8, 8.1 and 10, Linux from kernel 2.6.14 in 32-bit and 64-bit builds, Linux on ARM, and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX modules. The board measures 22 x 60 mm. Yuan lists multi-device and multi-instance support, for hosts that run more than one card or capture session.
SC540N1 M2 SDI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC540N1 M2 SDI |
| Video Capture | |
| Host Interface | M.2 [2260, B-Key/M-Key] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x SDI |
| Video Resolution Output | HD30 [1920x1080p @ 30/25fps] |
| Colour Format | NV12 RGB24 RGB32 YUY2 YV12 |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x SDI Embedded Audio Output |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, supplying the SC540N1 M2 SDI fitted in the compact capture systems we build for UK video projects. Within the Yuan range the SC542N1 MC SDI brings 1080p60 SDI capture to Mini PCIe, and the SC550N1 M2 HDV keeps the 22 x 60 mm size with HDMI, DVI-I and YPbPr inputs.
