Yuan SC5A0N1-L HDV PCIe DVI Video Capture Card with 1080p30 Capture
PCI ExpressSC5A0N1-L HDV Overview
When a capture card sits between a source and its monitor, the operator still needs to see the picture. That is common when recording the screen of a computer, a test system or older medical or industrial equipment. The SC5A0N1-L HDV is Yuan’s single-channel PCIe DVI video capture card for that job, with DVI-I, YPbPr, S-Video and composite inputs and matching loop-through outputs.
Digital and component sources run up to 1920 x 1080p at 60/50 fps in and 30/25 fps captured, with 1080i, 720p and common computer modes from 640 x 480 to 1280 x 1024 listed for DVI. Composite and S-Video cover 720 x 576i50 and 720 x 480i60. Frames come out as 8-bit RGB24, RGB32, YUY2, YV12 or NV12, from full 4:4:4 colour down to 4:2:0 for lighter encoding and streaming loads. Stereo embedded audio is captured at 16-bit and 32 to 48 kHz.
The card uses a PCIe x1 Gen1 slot and supports multiple instances and multiple cards per host, with cropping and scaling, automatic signal detection and deinterlacing on board. Yuan also lists 16 GPIO and a watchdog. Development runs on Yuan’s Windows and Linux SDK, while DirectShow and V4L2 support lets off-the-shelf software including vMix, OBS, Teams and GoToMeeting use it as a video source. The SC5C0N1-L HDV keeps loop-through and moves to 1080p60 capture, and the SC5A0N2 HDV offers two DVI channels without loop-through.

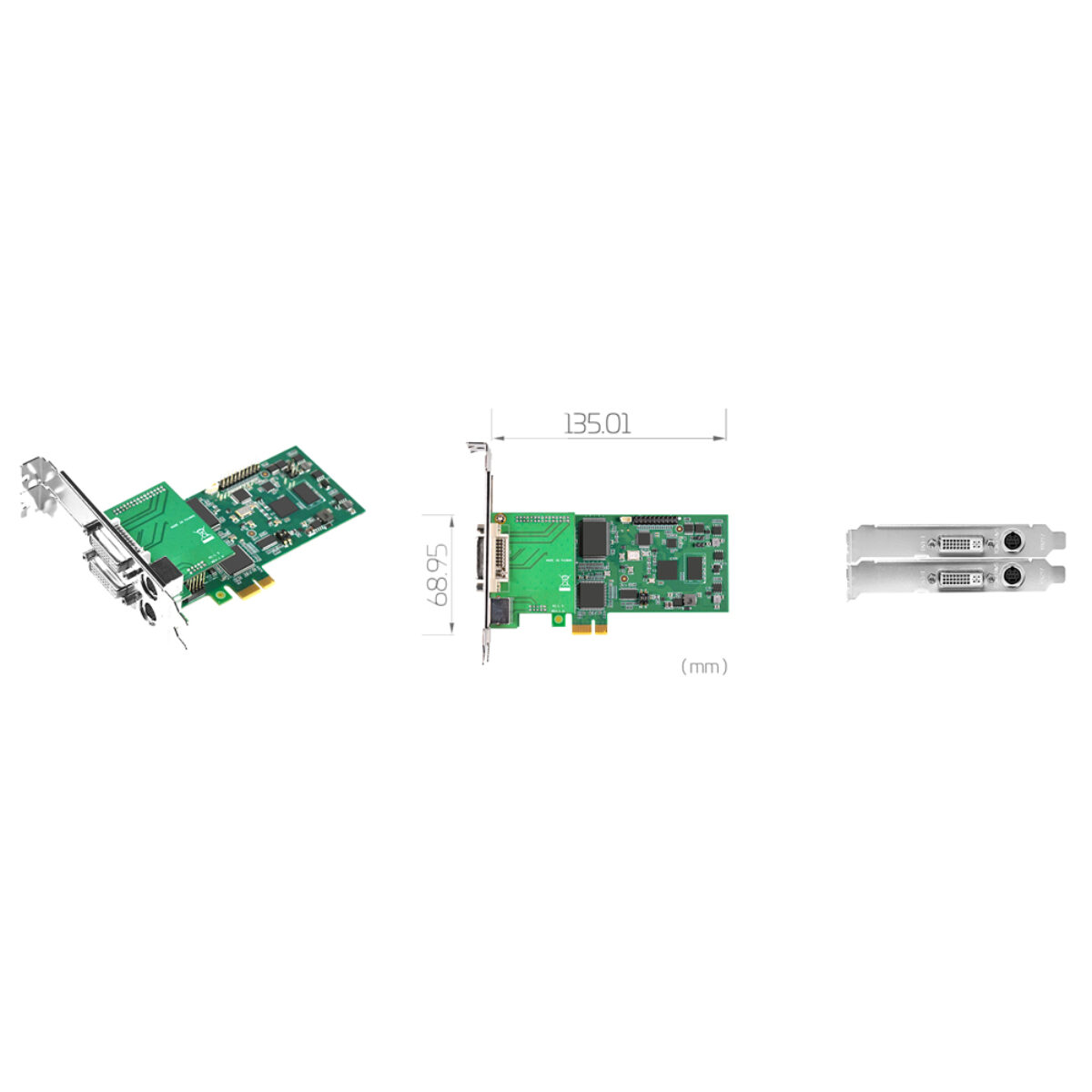

On the operating system side Yuan supports Windows 7, 8, 8.1 and 10, 32-bit and 64-bit Linux from kernel 2.6.14, Linux on ARM, and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX modules. So the same card can sit in a Windows review station or a Linux or Jetson-based recorder. The board measures 135.01 x 68.95 mm.
SC5A0N1-L HDV Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC5A0N1-L HDV |
| Video Capture | |
| Host Interface | PCIe [x1, Gen1] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x Composite 1x DVI-I 1x S-Video 1x YPbPr |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Resolution Output | HD30 [1920x1080p @ 30/25fps] |
| Recording Mode | Hardware Compression |
| Colour Format | NV12 RGB24 RGB32 YUY2 YV12 |
| Audio Input | 1x RCA Audio Input |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, supplying the SC5A0N1-L HDV configured for UK equipment recording projects. Within the Yuan range the SC5C0N1-L HDV keeps the loop-through outputs and captures at 1080p60, and the SC5A0N2 HDV records two DVI sources on one card.
With DVI-I and analogue inputs the SC5A0N1-L HDV sits among our DVI capture cards and our PCIe capture cards. Where a source must be recorded at 1080p30 while its own monitor keeps a live picture, this is the model to specify.
