Yuan SC5C0N1-L HDV PCIe HDMI, DVI and VGA Video Capture Card with 1080p60 Input
PCI ExpressSC5C0N1-L HDV Overview
Recording the screen of a computer, medical imaging equipment or a test system usually happens while someone is still using that screen. The capture card has to sit inline without taking the picture away. The SC5C0N1-L HDV is Yuan’s single-channel PCIe HDMI, DVI and VGA video capture card for it, with a DVI-I input, DVI-I and analogue loop-through outputs and 1080p60 capture.
The DVI-I input also takes HDMI, VGA, YPbPr, S-Video and composite. The card captures 1920 x 1080p at 60/50 fps and takes 1920 x 1200 sources at up to 60/50 fps in, captured at 30/25 fps, with computer modes from 640 x 480 to 1280 x 1024 listed. Frames come out as 8-bit RGB24, RGB32, YUY2, YV12 or NV12, from full 4:4:4 colour down to 4:2:0 for lighter encoding and streaming loads. Stereo embedded audio is captured at 16-bit and 32 to 48 kHz.
It uses a PCIe x1 Gen1 slot and supports multiple instances and multiple cards per host, with an H.26X encoder, cropping and scaling, automatic signal detection, deinterlacing, 16 GPIO and a watchdog. Development runs on Yuan’s Windows and Linux SDK, while DirectShow and V4L2 support lets off-the-shelf software including vMix, OBS, Teams and GoToMeeting use it as a video source. The SC5A0N1-L HDV is the 1080p30 card with the same loop-through outputs, and the SC5C0N2 HDV records two DVI-I sources at 1080p60.

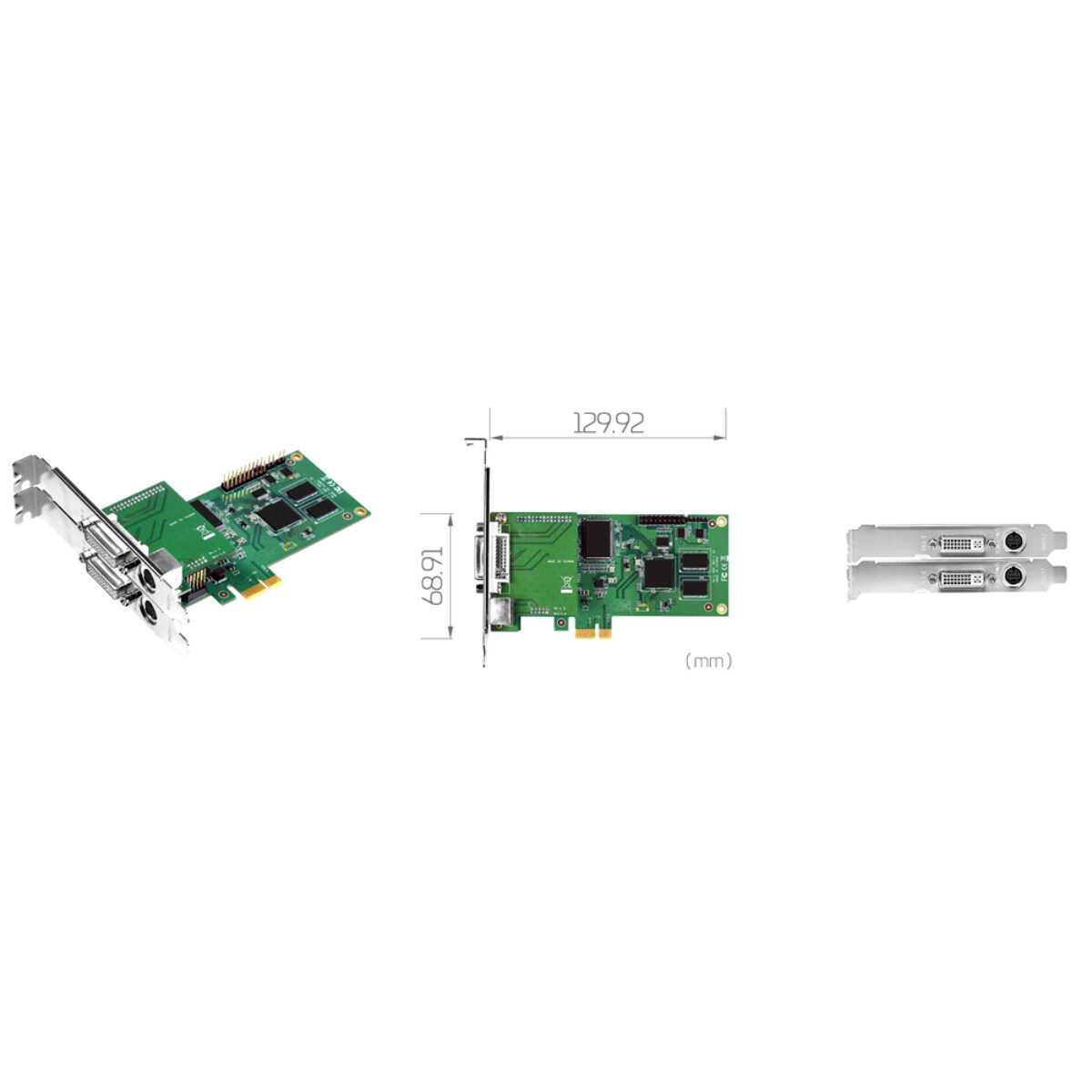

On the operating system side Yuan supports Windows 7, 8, 8.1 and 10, 32-bit and 64-bit Linux from kernel 2.6.14, Linux on ARM, and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX modules. So the card can sit in a Windows review PC or a Linux or Jetson-based recorder. The board measures 129.92 x 68.91 mm.
SC5C0N1-L HDV Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC5C0N1-L HDV |
| Video Capture | |
| Host Interface | PCIe [x1, Gen1] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x DVI-I |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50fps] |
| Video Output | 1x Composite 1x DVI-I 1x S-Video 1x YPbPr |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] UXGA30 [1920x1200 @ 30/25fps] |
| Recording Mode | Hardware Compression |
| Colour Format | NV12 RGB24 RGB32 YUY2 YV12 |
| Audio Input | 1x RCA Audio Input |
| Audio Output | 1x RCA Audio Output |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, supplying the SC5C0N1-L HDV configured for UK medical and equipment recording projects. Within the Yuan range the SC5A0N1-L HDV keeps the loop-through outputs at 1080p30, and the SC5C0N2 HDV records two DVI-I sources at 1080p60.
With DVI-I input and loop-through the SC5C0N1-L HDV sits among our DVI capture cards and our PCIe capture cards. Where a screen must be recorded at 1080p60 while its own monitor keeps the picture, this is the model to specify.
